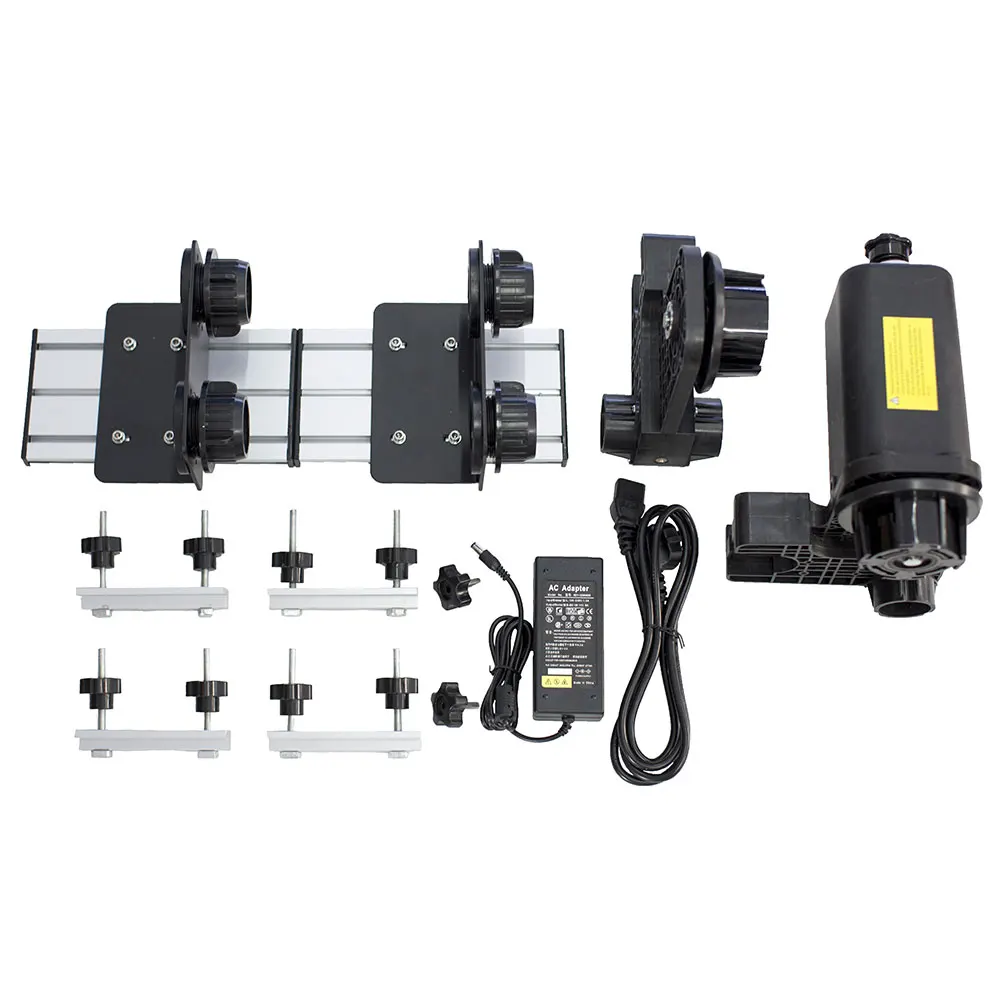

Damper take up K3 for Mutoh, Mimaki, Roland printer Graphic take up roller

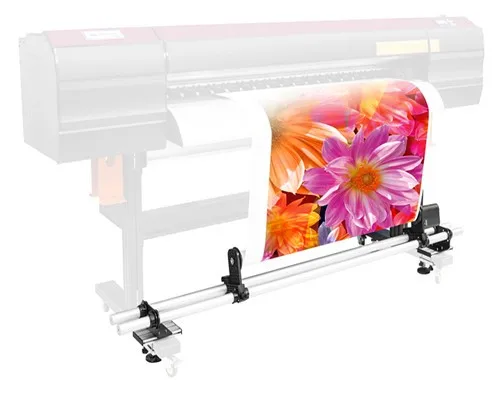

Product Application

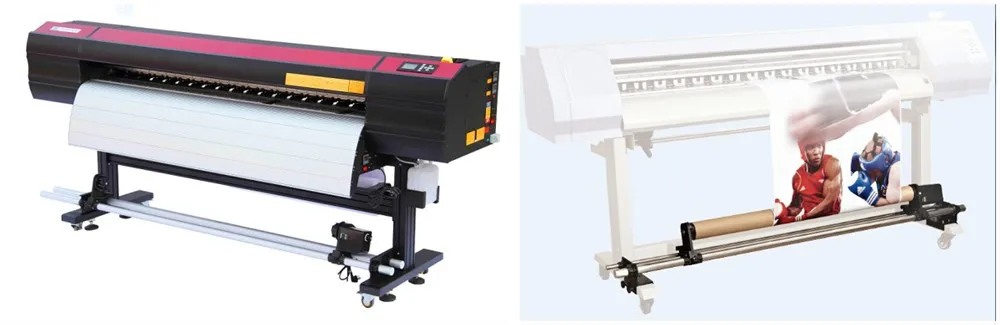

AECFUN damper Take-up K3 adopts universal linking slab and through-hole design, can be fixed directly to any printer without punching, such as Mimaki, MUTOH 1604/1638, MIMAKI JV33,ROLAND 640/740 etc,.

Main Features

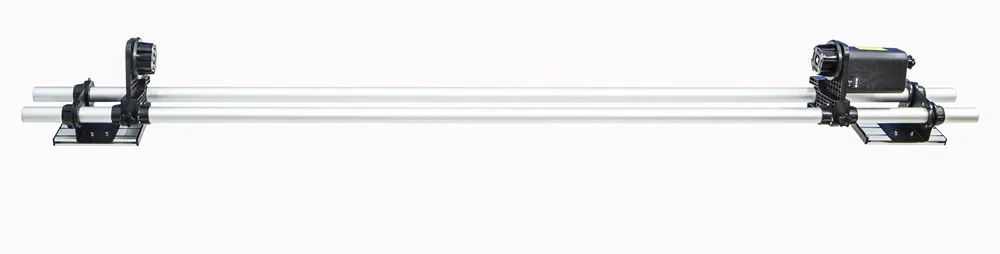

Take-up system K3 adopts double-tube design, working voltage: 12V,power: 24W, media diameter: 260mm, bearing weight is 35kg. Torque is adjustable, the motor works stable. Has CE certificate

Applications:

Water-based Media: PP, Adhesive sticker, Transferpaper, Pictorial cloth ,etc.

Eco-solvent Media: Car sticker, Wallpaper etc.

Machine Parts

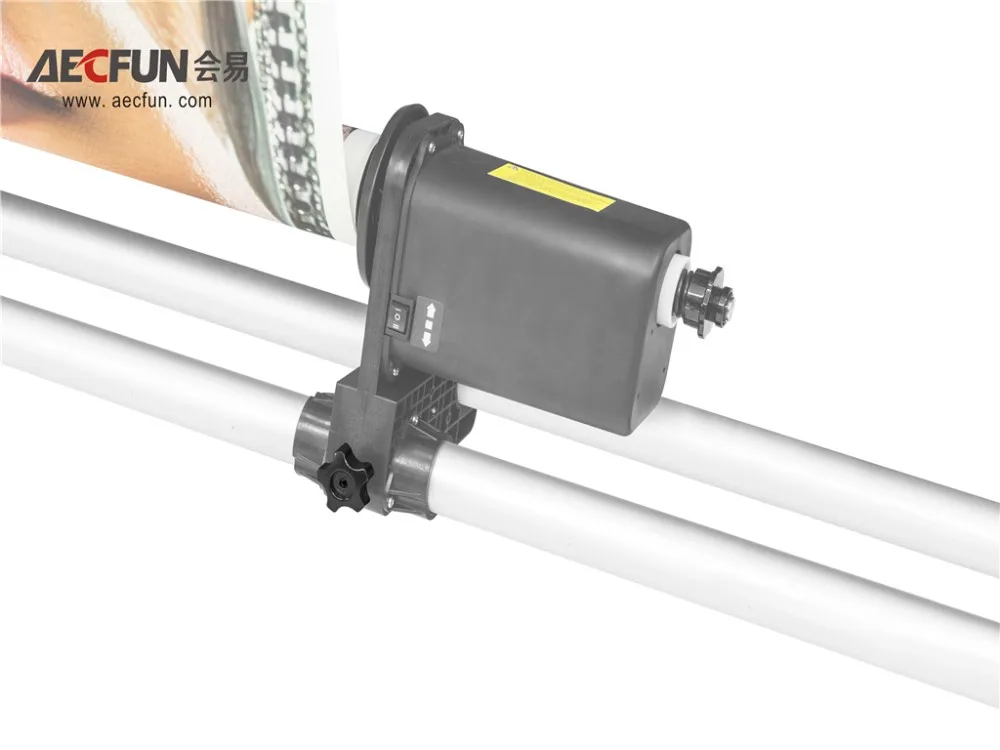

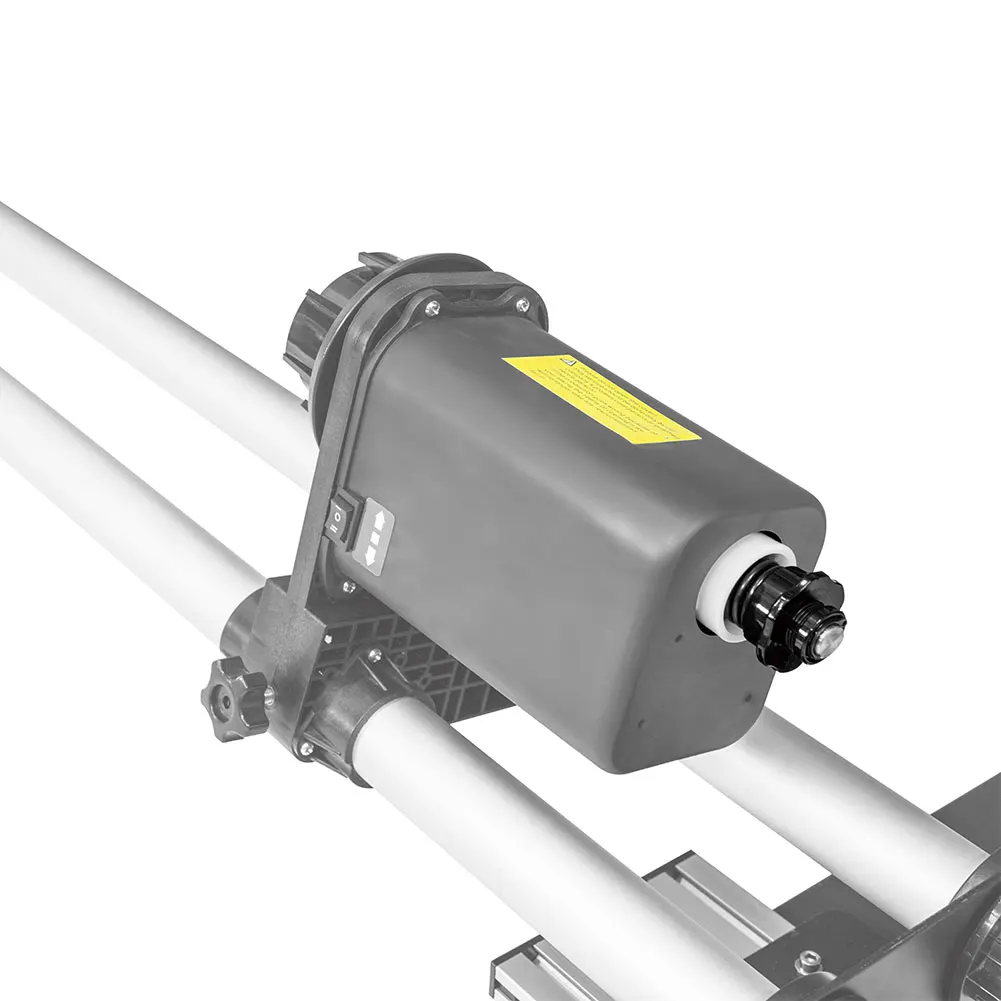

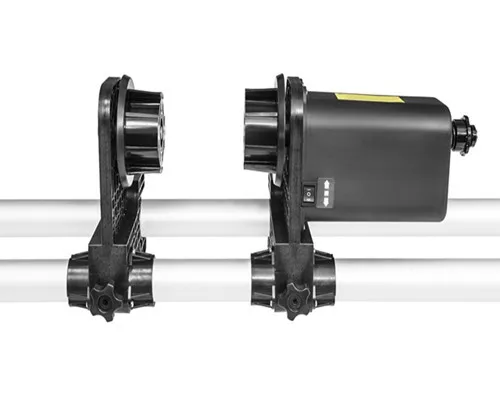

Removable main part design

Removable main parts,suitable for paper core in different length.Motor equips with clockwise and anti-clockwise to achieve the internal model and external model.

Machine Parts

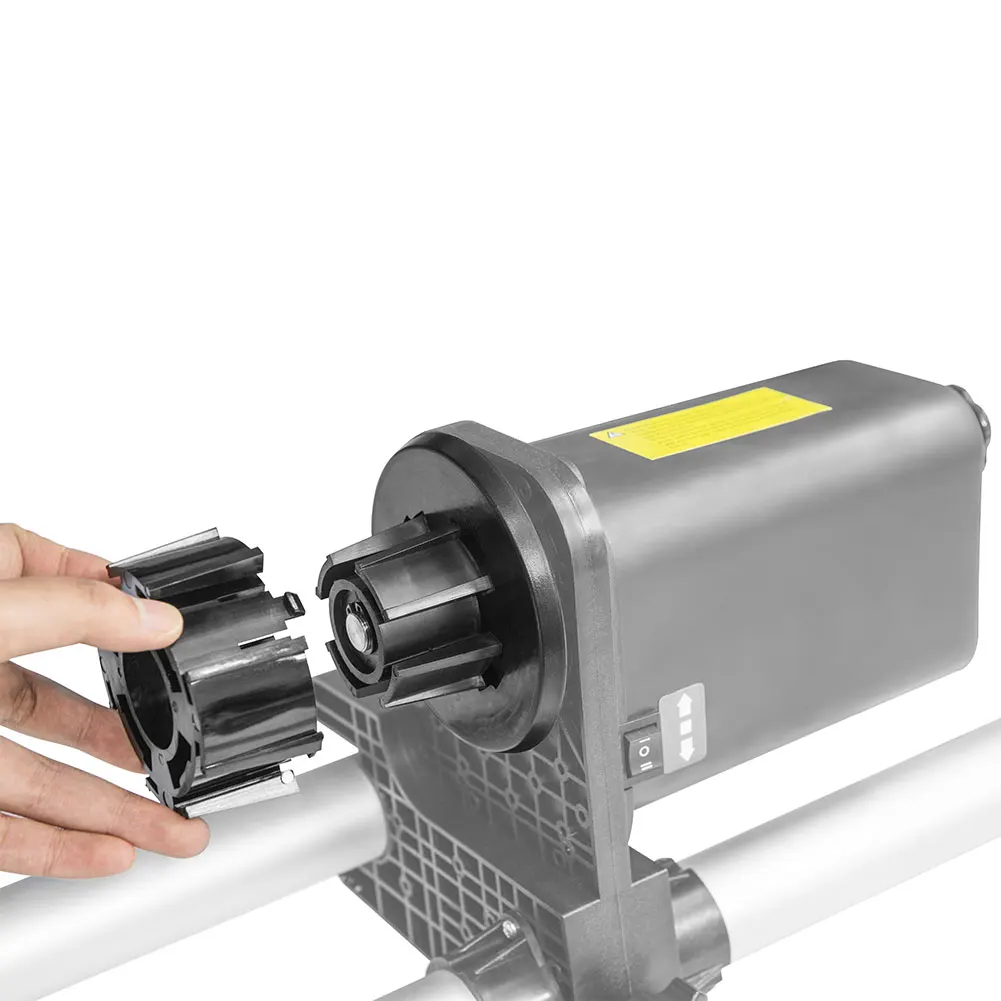

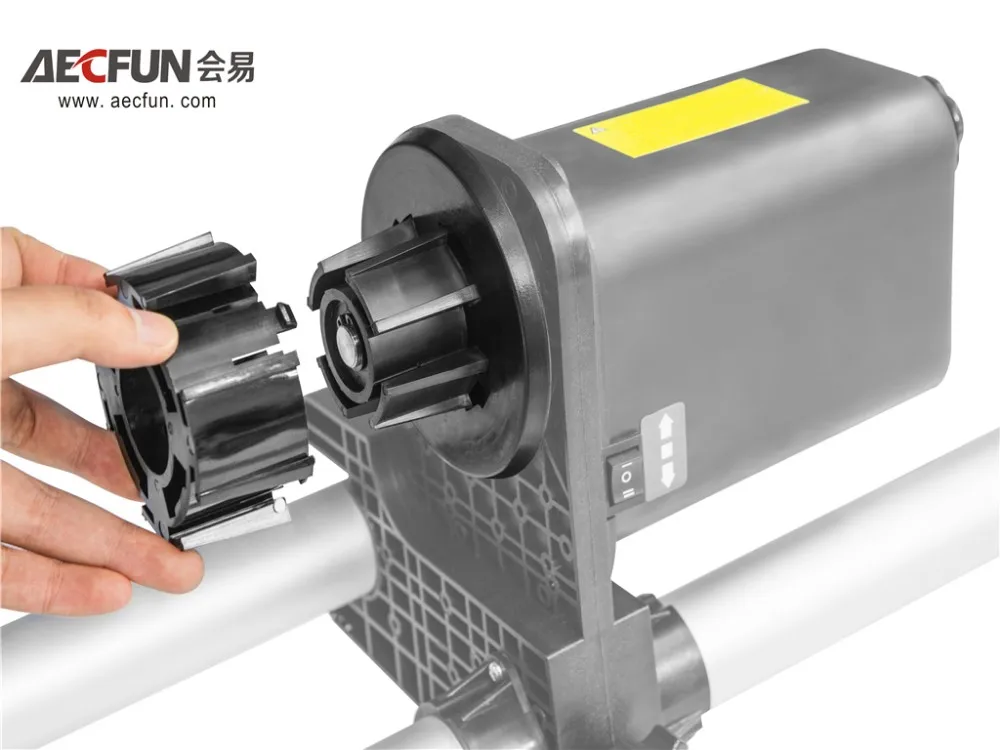

New plastic axis

Paper core 2''(φ48-53mm)or 3''(φ75-80mm) is available.

Machine Parts

Design of fastening screw

Fastening screws of main parts fix the paper core tightly to insure the neat rolling.

Machine Parts

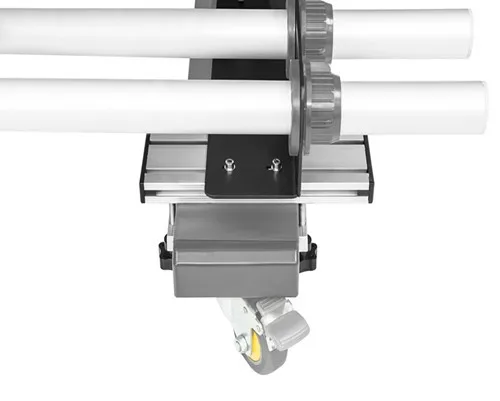

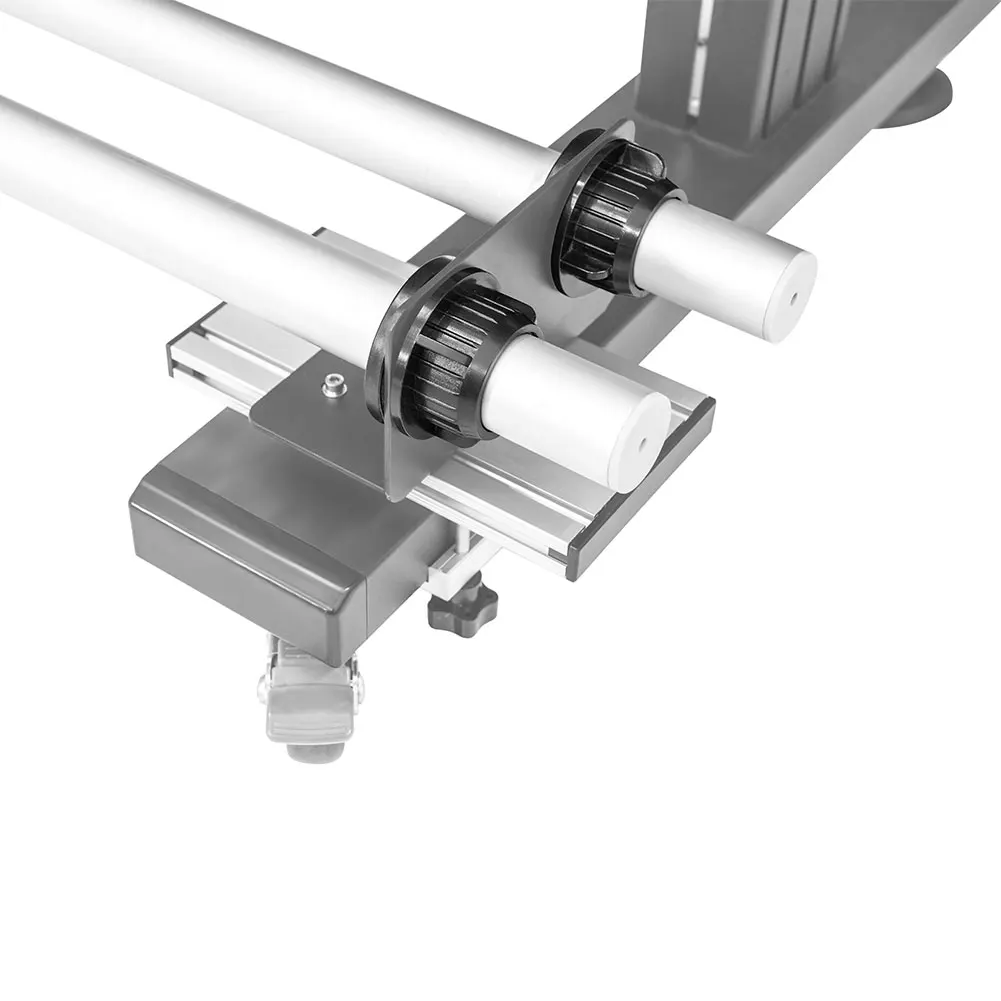

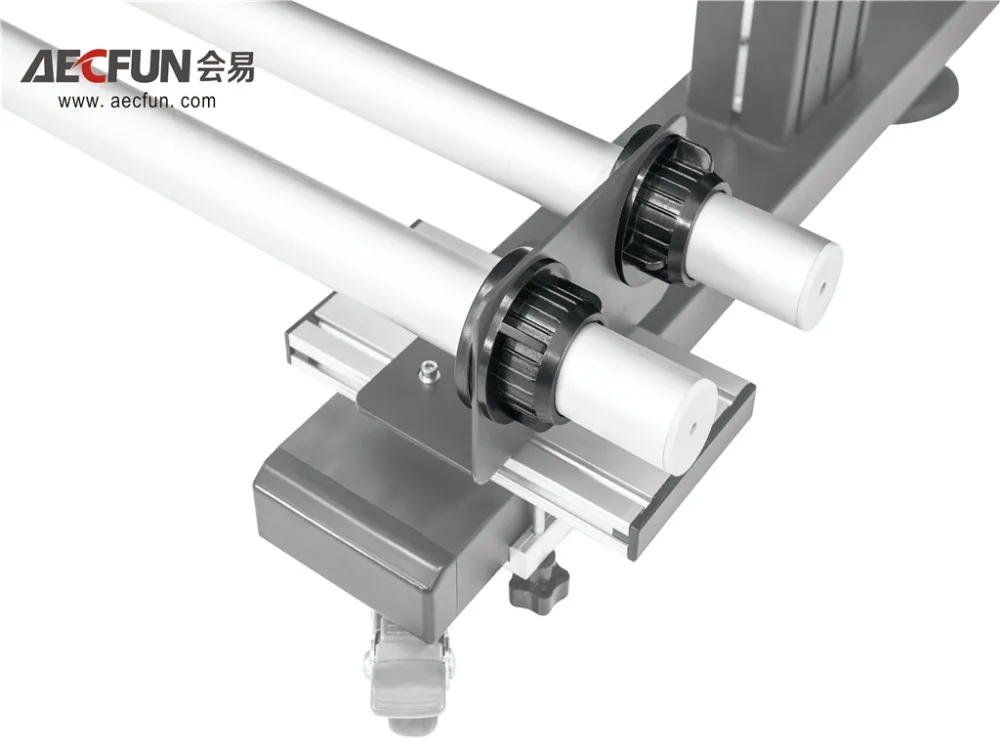

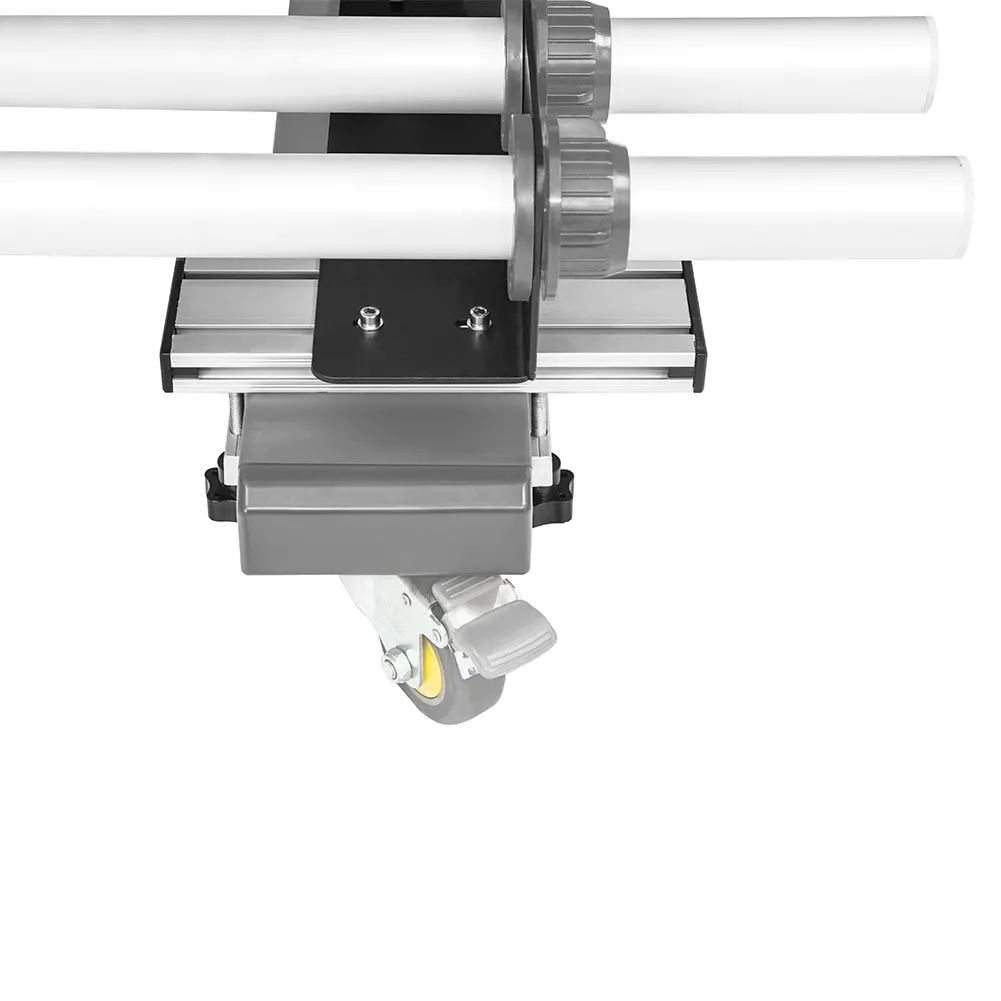

Design of through-hole

Design of through-hole can efficiently eliminate the size deviation caused by printer,with good bearing.
