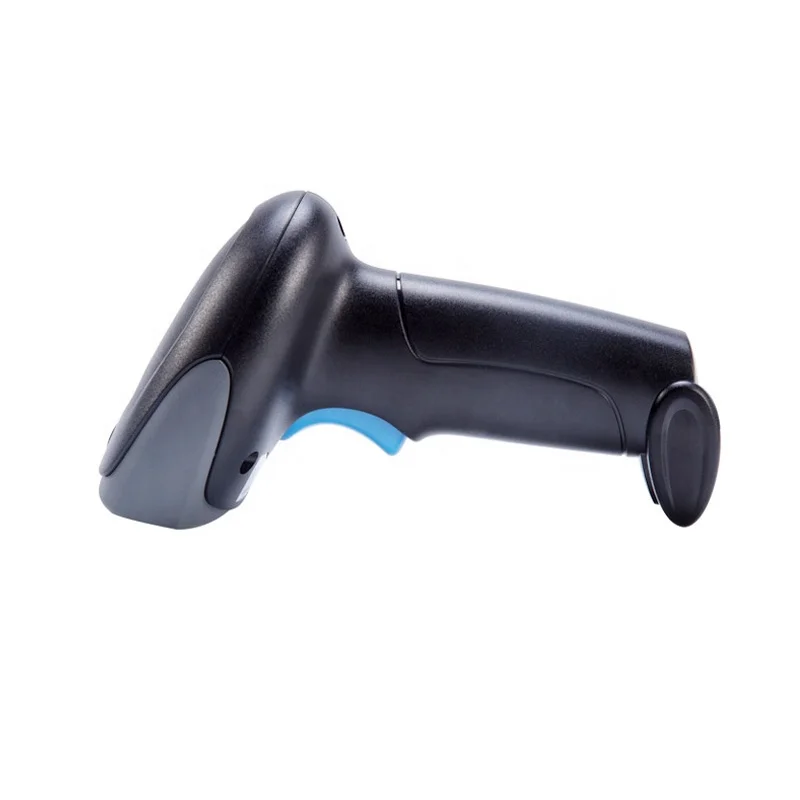

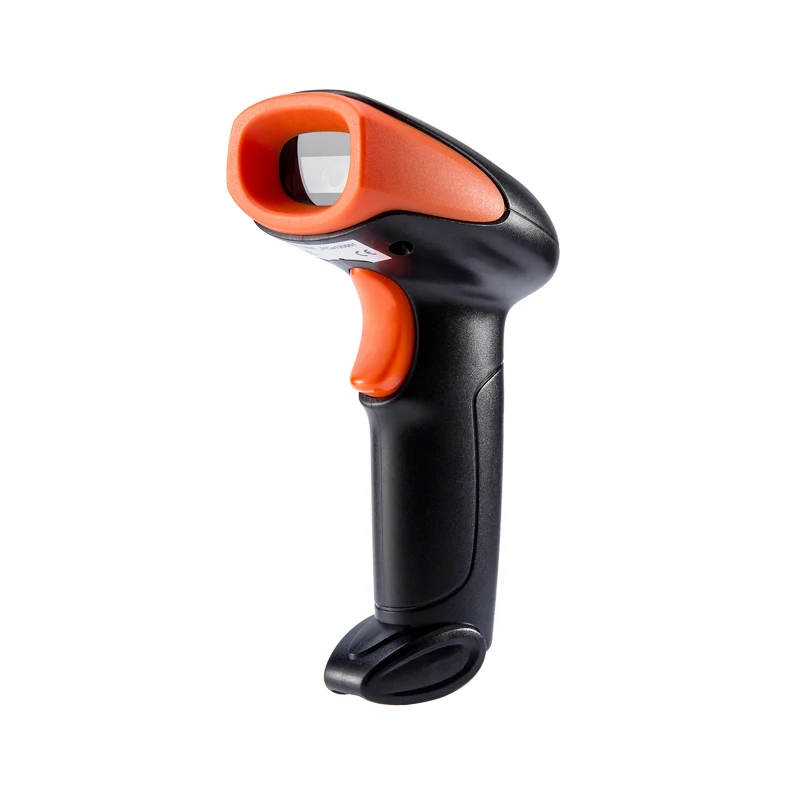

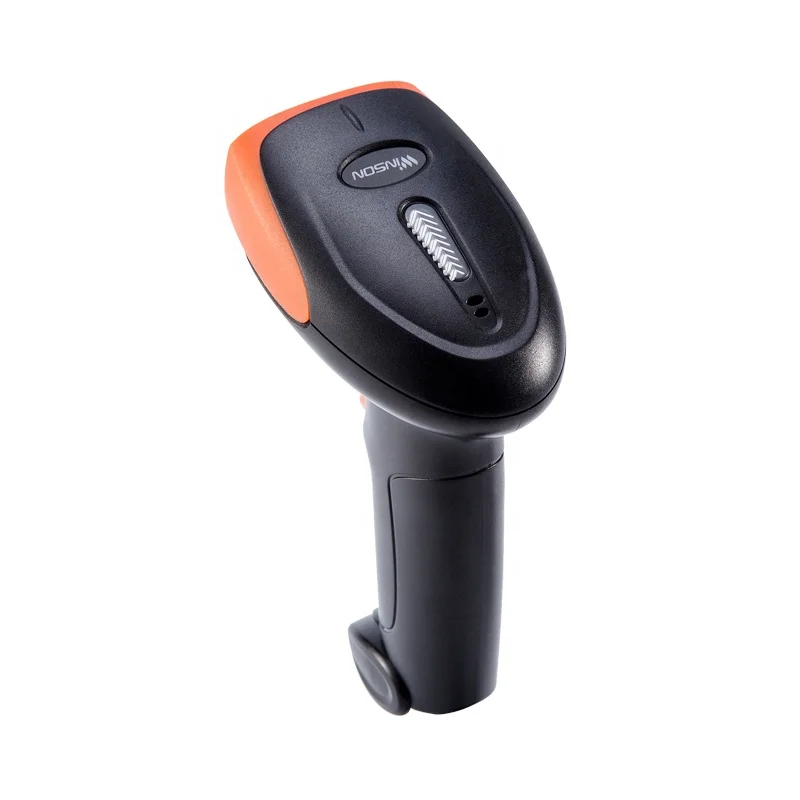

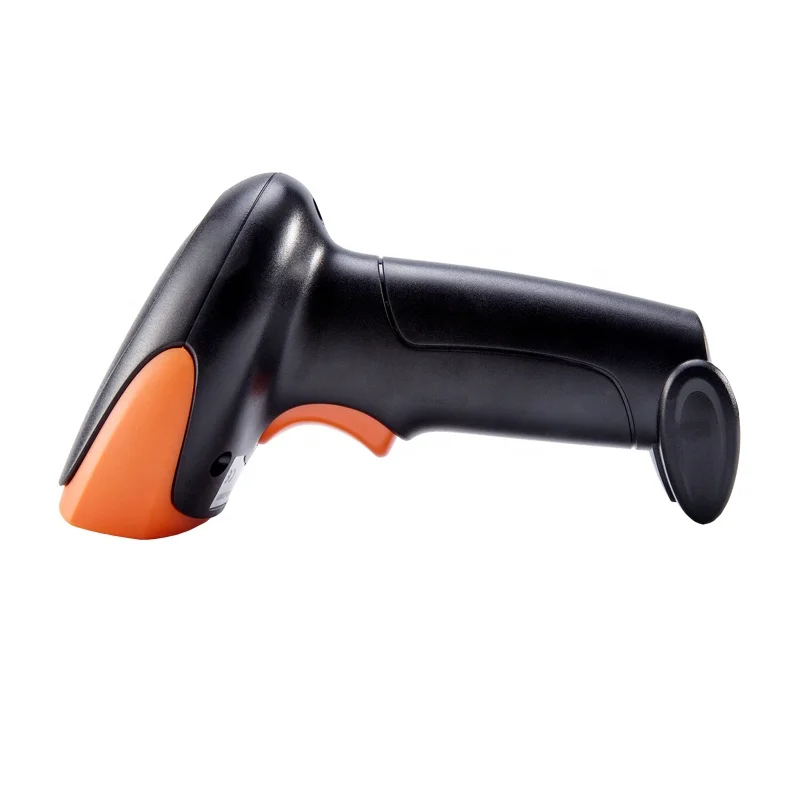

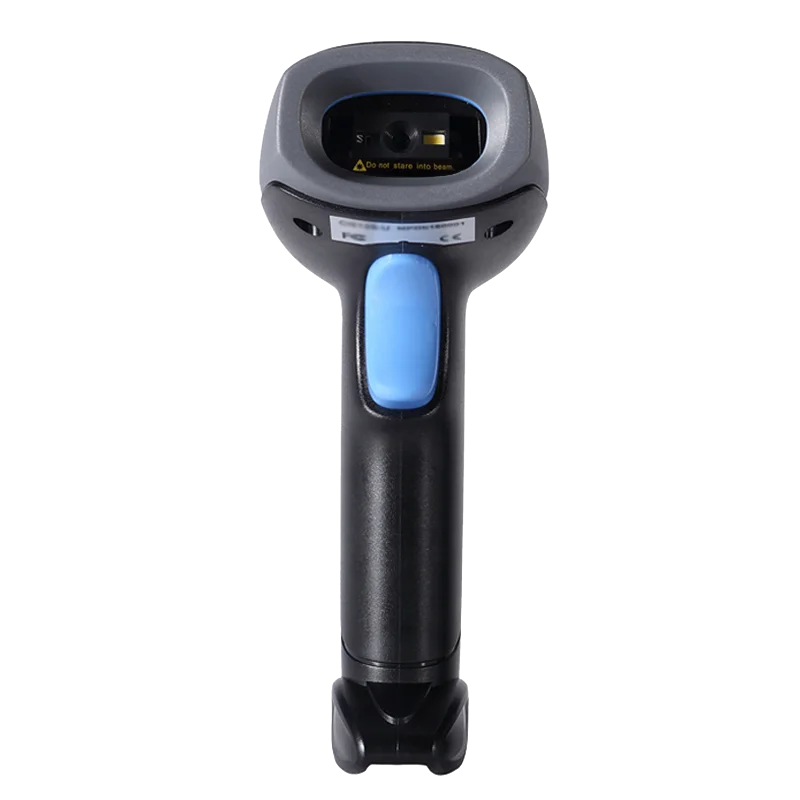

Cordless Handheld USB 2d barcode scanner RF433 Barcode reader with storage inventory function

Technical Parameters

Wireless Specifications

Communications

433

Communication frequency

433 to 440MHz

Transmission range

≤100M(In empty area 10M )

Data rate

10kbps

Memory

100,000@13Byte barcode

Battery capacity

2000mAh (Lithium battery)

Charging time

 5H

The life time of the full charge

6h(continuous reading situation)

12h(Manual reading situation)

More than 15 days(Stand-by time)

Communication mode

Read-time mode/Inventory mode/Cache mode

Electrical Characteristics

Interface

USB HID KEYBOARD/USB VCP

Voltage requirement

5VDC±10%

Current consumption

Max:120mA

Optical Characteristics

Photo sensor

CMOS array sensor

SENSOR RESOLUTION

648×488 pixels

light source

white LED*1

Aim light source

Red Bar led

Performance Characteristics

Decode angle

Pitch angle:±65°

Skew angle:±60°

Tilt angle:±180°

Min resolution

1D:5mil(0.127)

Min.PCS value

>30%UPC/EAN 13(13mil)

Field of View

34°(H),26°(V)

Identification

1D:UPC/EAN,Code 128, Code 39,

Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI

GS1 Databar

2D:QR ,PDF417,Data Matrix

Physical Characteristics

Dimensions

Scanner:97 mm x 67 mm x165mm (L*W*H)

Receiver:83mm*18mm*13mm(L*W*H)

Weight

Scanner:174.5g

Receiver:16g

Environmental Characteristics

Temp

-20°to 60°C / -4°-140°F(operation)   -40°-to 80°C /-40°-176°F(storage)

Humidity

5 - 95% (operation) 5 - 95% (storage)

Shock drop test

1.2m drop onto concrete surface

Ambient Light

Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max

Regulatory

Electrical Safety

UL 60950,EN/IEC 60950

EMI/RFI

FCC Part 15 Class B,EN 55024/CISPR 22

Environmental

RoHS
