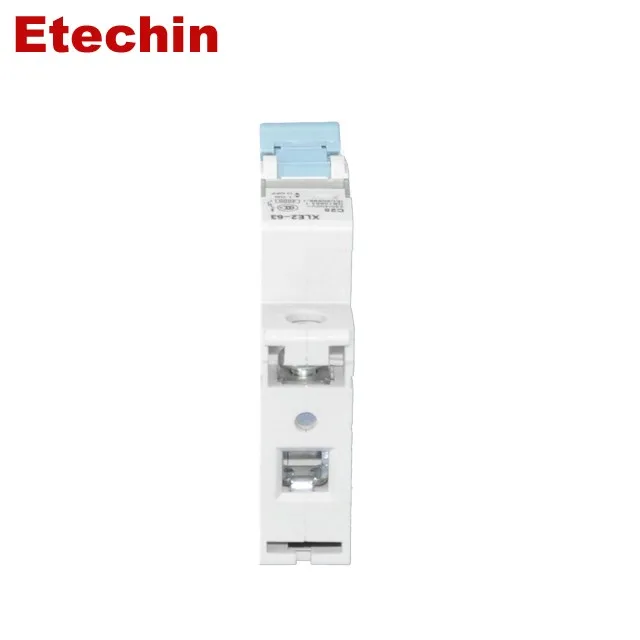

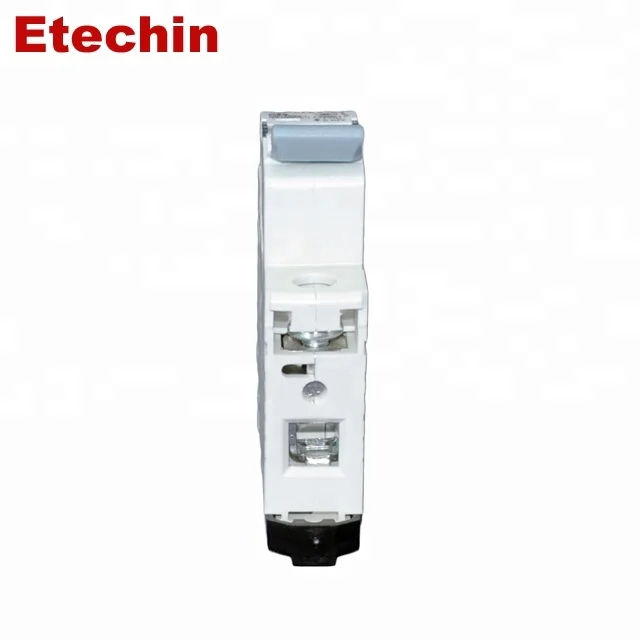

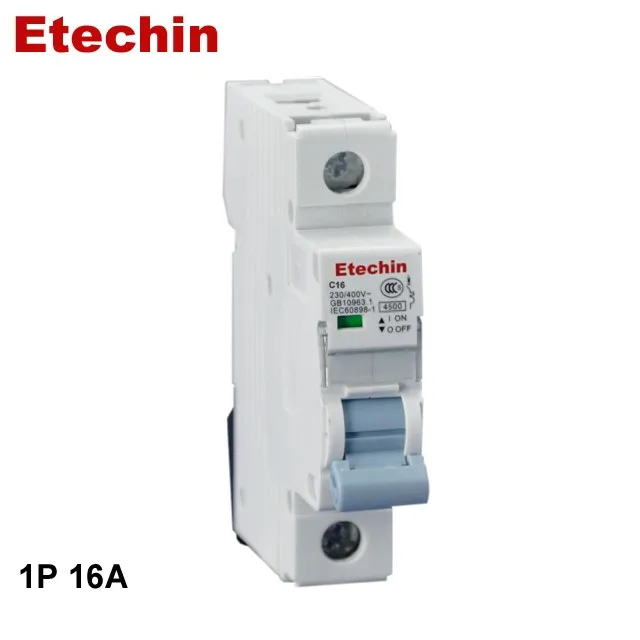

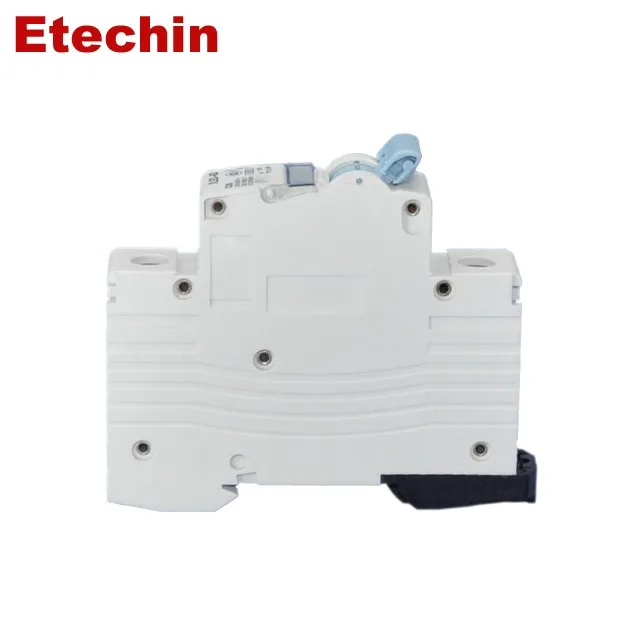

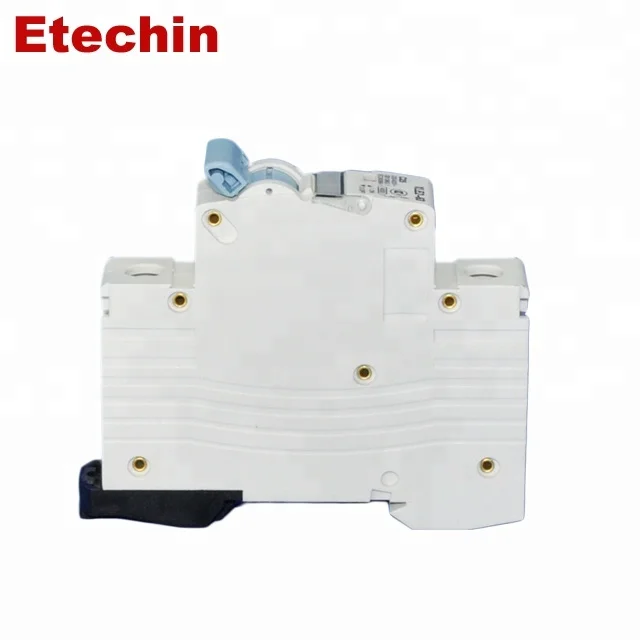

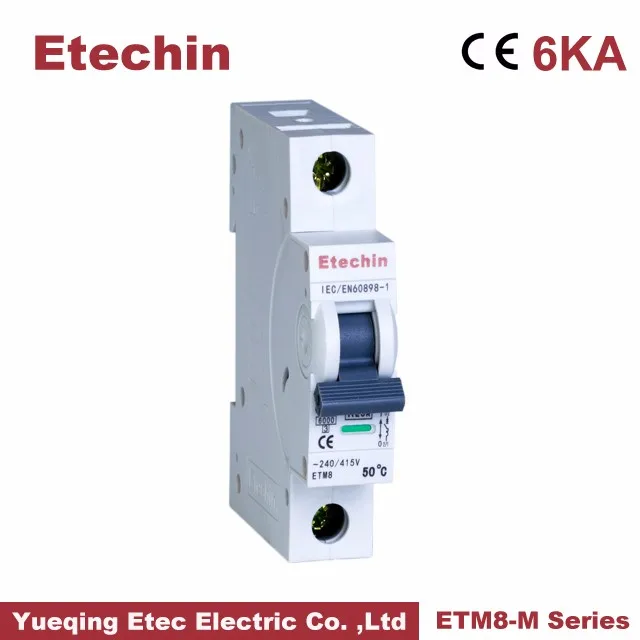

DZ47 C45 1P 16A 2P 3P 4P 4.5KA MCB Mini Circuit breaker
- Category: >>>
- Supplier: Yueqing Etec Electric Co. Ltd.
Share on (60797314350):
Product Overview
Description
Product Description
| Rated current(In) | A | 1,2,3,4,5,6,8,10,13,16,20,25,32,40,50,63A |
| Number of poles | 1,2,3,4 | |
| Rated operating voltage (Ue) | V | 230/400V~,240/415V |
| Rated frequency | Hz | 50/60Hz |
| Insulation voltage(Ui) | V | 500 |
| Rated withstand impulse voltage (Uimp) | kV | 6 |
| Main circuit dielectric strength (1 min | kV | 2 |
| Protection degree | IP20 | |
| Instantaneous tripping type | B C D (According to IEC/EN60898-1) | |
| Instantaneous tripping type | K (According to IEC/EN60947-2) | |
| Electric life | times | 6000 |
| Mechanical life | times | 10000 |
| Rated short-circuit breaking capacity (Icn) | kA | 4.5 (According to IEC/EN60898-1) |
| Rated ultimate short-circuit breaking capacity (lcu) | kV | 10 |
| Position indicator of main contact | √ | |
| Standard operation condition Protection degree | 2 | |
| Standard operation condition Ambient temperature | -5℃~+40℃ and its average over aperiod of 24h does not exceed +35℃; 50℃ by required | |
| Standard operation condition Storage temperature | -25℃to+55℃,for short periods not exceeding 24h,up to +70℃ | |
| Standard operation condition Altitude | m | ≤2000 |
| Terminal connection types | type cable,U type busbar, Pin type bus | |
| Wiring terminal connection conductor | mm² | 1~25 |
| Wiring terminal copper size | mm² | 25 |
| Tightening torque | N*m | 1.5~2.5 |
| Installation mode | using TH35-7.5 profile steel installation rail, the tilt of | |
| installation face and vertical face is not greater than 5° | ||
| Line coming mode | upper and lower incoming is possible |
Packing & Delivery
Our Company

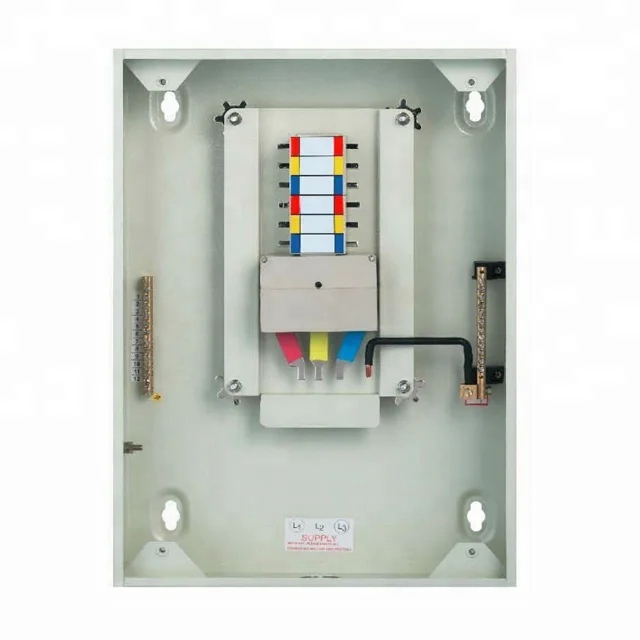

Our company established on 2001 in the mini circuit breaker manufacturing and exporting for Middle east area market, as KSA,UAE,BAHRAIN,IRAN,OMAN and so on. After years development, our products have circuit breaker, Distribution board, Pan assembly, Fuse and so on

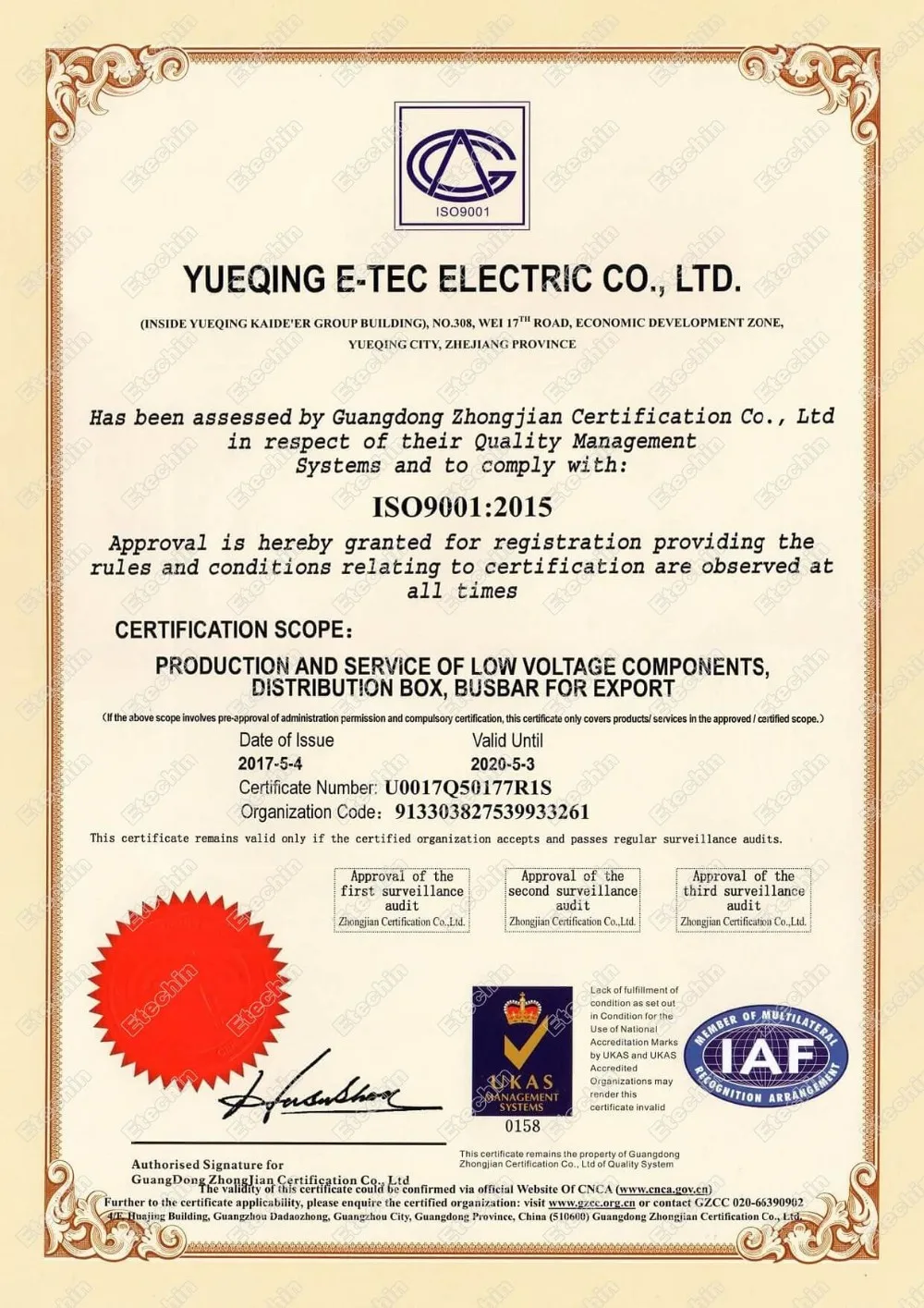

Now our factory taking 6000 square meter area of construction, We own modern production lines, CNC fabrication device, scientific administration, professional engineers, highly trained technicians and skilled workers. All of these keep our company running well under ISO9001:2008 management system

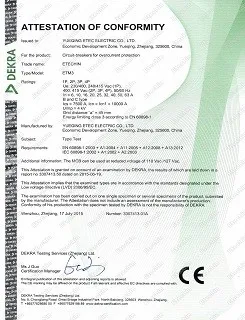

Our breakers were approved by KEMA, CE, CB, Semko certification. And exported to KSA with SASO, Kenya with PVoc, Nigeria with Soncap, and other VOC certification.
