Огнеупорная бумага из керамического волокна для обжига стен толщиной 0,7 мм
- Category: Ceramic Fiber Paper >>>
- Supplier: Zibo Jiuqiang Refractory Co. Ltd.
Share on (60797318074):
Product Overview
Description

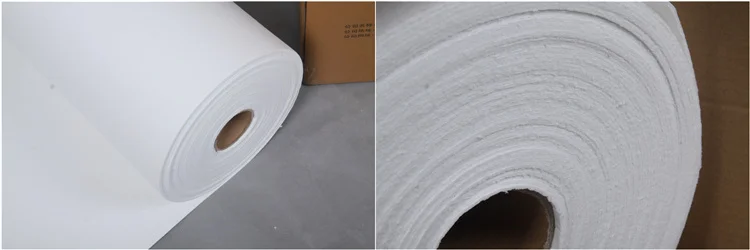

0.7mm thickness wall lining refractory ceramic fiber paper for kiln
Product Description
Product Description
The working temperature is 1050℃. Standard thick is from 0.5mm to 12mm, standard width is 610mm and 1220mm. It is made from high-purity ceramic fiber by adding a small amount of binder which will completed burnt out during using process, through production technology with scientific selection and strict control binding.
| Item | ceramic fiber paper |
| Characteristics | Low thermal capacity Low thermal conductivity Excellent electrical insulation properties Excellent machining performance High strength, tear resistance High flexibility Low shot content |
| Specifications | Thickness:0.6mm,1mm,3mm,5mm,6mm,10mm,12mm Min Width 5cm Regular size:40000x610x0.6mm; 40000x610x1mm; 20000x610x2mm;15000x610x3mm; 10000x610x5mm;10000x610x6mm |
| Working Temperature | 1050Ordinary Ceramic Fiber Paper--950C 1260Standard Ceramic Fiber Paper--1050C 1260High-purity Ceramic Fiber Paper --1100C 1400High Aluminum Ceramic Fiber Paper--1200C 1450Zirconia Ceramic Fiber Paper--1350C |
| Applications | Insulation material for instruments and heating element Insulation material for automobile and aerospace industry Expansion joints filling material Isolation for construction material, metallurgy and glass industries, Molten metal sealing gasket Fireproof material Substitute for glass fiber and asbestos fiber |
| Package | plastic bag inside, carton or woven bag outside |
Product Feature
1.Light weight and flexibleProduct Features
2.Low thermal conductivity and low heat storage
3.No asbestos and anticorrosion
4.Excellent corrosion resistance
5.Good electric insulation
6.Low slag ball content and no layer
Product Application
1.Industrial thermal insulation and sealing corrosion resistance material,
2.Thermal and electrical insulation material
3.Instrument equipment insulation material
4.Kiln deck covering for insulation
Technical Data
Technical Data
| Grade | Standard | High Aluminium | Zirconium | |
| Max Temperature(℃) | 1260 | 1360 | 1450 | |
| Working Temperature(℃) | 1150 | 1250 | 1350 | |
| Color | Pure White | Pure White | Pure White | |
| Density(kg/m3) | 170-220 | 170-220 | 170-220 | |
| Thermal Conductivity(w/m.k) | 0.07(400℃) 0.09(600℃) 0.12(800℃) | 0.069(400℃) 0.088(600℃) 0.110(800℃) | 0.068(400℃) 0.087(600℃) 0.100(800℃) | |
| Compression Strength(Mpa) | 0.65 | 0.70 | 0.75 | |
| Chemical Composition(%) | Al2O3 | 42-43 | 51-52 | 39-40 |
| SiO2 | 53 | 44 | 44 | |
| ZrO2 | - | - | 15-17 | |
| Fe2O3+Ti2O3 | ≤1.2 | ≤0.3 | ≤0.2 | |
| NaO2+K2O | ≤0.5 | ≤0.3 | ≤0.2 | |
| CaO+MgO | ≤0.3 | ≤0.3 | ≤0.2 | |
| Size(mm)L*W*T | 90,000*610/1,220*0.5 60,000*610/1,220*1 30,000*610/1,220*2 20,000*610/1,220*3 15,000*610/1,220*4 12,000*610/1,220*5 10,000*610/1,220*6 | |||
Packing & Delivery
Packing & Delivery

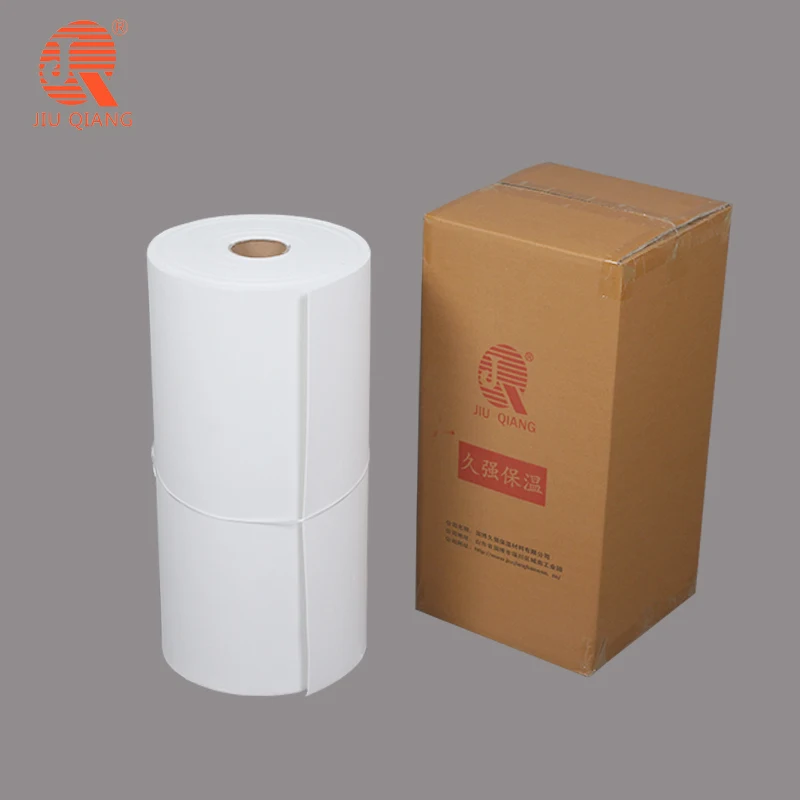

Packing: plastic bag inside, carton or woven bag outside
| packing detail | carton with inner plastic bag |
| carton size(mm) | 310*310*620 310*310*1250 |
Related Products
Related Products
We can also supply ceramic fiber paper/board/blanket/module/Vaccum formed shapes/gasket/tape/cloth/rope.
More related information, pls click on below product name!
| Ceramic fiber paper | Ceramic fiber board | Ceramic fiber blanket | Ceramic fiber module |
| Vacuum Formed shapes | ceramic fiber gasket | ceramic fiber cloth/tape | ceramic fiber rope |
Company Information
Company Information
ZiBo Jiuqiang Refractory Co.,Ltd is a professional ceramic fiber paper, board, blanket, textiles(cloth, tape, rope) manufacture, the ceramic fiber paper (cotton fiber paper) we produced has been exported to all over the world and won a very good reputation. Ceramic fiber paper, ceramic fiber board, ceramic fiber blankets and felts, ceramic fiber bulk, ceramic fiber modules, with kinds of mechanical anchor fixings, ceramic fiber textiles (ceramic fiber yarn, cloth, tape, twisted rope & braided rope),special shaped ceramic fiber products/vacuum formed ceramic fiber products.
Exhibition information
ZiBo Jiuqing has been in international exhibition. Stable quality and good credit make our brand be highly recommended by customers all over the world.
We have widely market all over the world ,our product have exported to America, Mexico, Canada, Korea, Vietnam, Singapore and so on. We won the trust from our customers.
Certifications
Certifications
Our ceramic fiber products passed CE certificate. At the same time, we passed ISO, MSDS.
