Portuguese Standard 300/500V 19*1.5mm2 H1VV R,H1VV U electrical wire and control cables manufacturer from China

Product Overview

Description



Portuguese Standard 300/500V 19*1.5mm2 H1VV-R,H1VV-U  electrical wire and control cables manufacturer from China





APPLICATIONS:

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

STANDARD:

IEC 60502-1

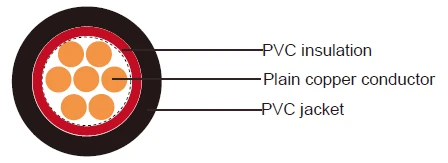

CONSTRUCTION:

- Solid copper conductor, class 1 to NP 2363
- PVC insulation
- Color coded to HD 308
- Flexible PVC outer jacket

ETechnical Characteristics:

- Working Voltage: 600/1000 volts
- Test voltage: 3500 volts
- Flexing bending radius: 15 x Ø
- Static bending radius: 12 x Ø
- Flexing temperature: -5º C to +50º C
- Fixed installation temperature: - 40º C to +70º C
- Flame retardant: IEC 60332-1, EN 50265-2-1
- Insulation resistance: 100 MΩ x km

PARAMETERS:

NOMINAL CROSS SECTION	OVERALL DIAMETER (APPROX.)	CABLE WEIGHT (APPROX.)	NOMINAL CROSS SECTION	OVERALL DIAMETER (APPROX.)	CABLE WEIGHT (APPROX.)
MM2	MM	KG/KM	MM2	MM	KG/KM
1x1.5	6.4	58	30x1.5	26	1020
1x2.5	6.8	71	40x1.5	29	1290
2x1.5	12	205	48x1.5	32	1520
2x2.5	13	250	61x1.5	35	1900
3x1.5	13	230	5x2.5	16	375
3x2.5	13.5	280	7x2.5	17	460
4x1.5	13.5	265	10x2.5	20	590
4x2.5	14.5	325	12x2.5	21	660
5x1.5	14.5	300	14x2.5	22	740
7x1.5	15.5	360	19x2.5	24	940
10x1.5	19	460	21x2.5	25	1030
12x1.5	19.5	510	24x2.5	27	1150
14x1.5	20	570	30x2.5	29	1370
19x1.5	22	710	40x2.5	32	1810
21x1.5	23	770	48x2.5	36	2130
24x1.5	25	870	61x2.5	39	2630
