Product Overview
Description
Full Color 10.1 Inch TFT LCD Touch Control Screen for Electronic Instrument
Product Description
| STVI101WT-01
The STVI101WT-01 is the intelligent TFT LCD Module with UART PORT which can be controlled by ANY MCU via Simple Powerful Command Set. So it can be used as colourful TFT Display & Touch controller in various electronic equipment.
The STVI101WT-01 include CPU , TFT Driver,Flash Memory,UART port,power supply and so on,the important is that it has the ready-made Basic Control Program and Powerful Design Software,so that it can reduce much development time and cost for engineers. |
Product Parameters
Physical Parameter | |
Model | STVI101WT-01 |
Size (Inch) | 10.1 inch |
Resolution | 1024×RGB×600 |
Color | 65536 colors (16 bit) |
Viewing Area | 222.7 mm × 125.3 mm |
Pixel Spacing | 0.1905 mm × 0.0635 mm(H×V) |

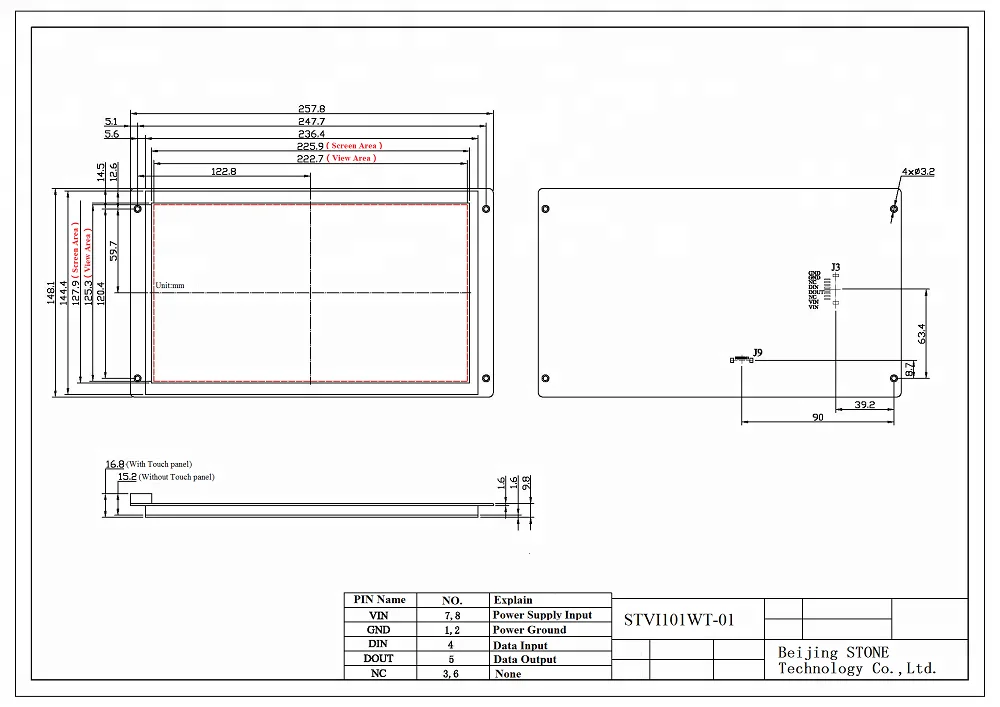

Overall Dimension | 257.8 mm × 148.1 mm × 15.2 mm(N)/16.8 mm(T) |
Net Weight | 765 g(N)/ 795 g(T) |
TFT Panel | A Class Industry Panel |
Touch Screen | Industry Level 4 wire resistance |
Backlight Parameter | |
Backlight Type | LED |
Brightness | 500 cd/m2(Brightness can be adjustable in 100 levels.) |
Contrast | 500:1 |
Backlight life | 30000 hours |
Viewing Angle | 70°/ 70°/ 50°/ 60°(L/R/U/D) |
Working Temperature | -20°C ~ +70°C |
Working Humidity | 55°C, 85% |
Storage Temperature | -30°C ~ +80°C |
Screen Mode | Digital |
Performance Parameter | |
CPU | CortexM4 |
LCD Controller | CPLD EPM240 |
Refresh Rate | 200MHz |
Picture Switching Speed | 63 ms/picture (16 pictures/s) |
Flash Memory | Standard 128MB, Extension 1GB |
Memory Amount for picture | According to the capability of the image, Suggest "JPG" format. |
Interface | RS232/ USB Interface |
Image downloading | USB2.0 (12Mbps) & U storage Disk downloading |
Voltage Range | DC6.0V ~ 35V (typical value: 12V) |
Power | 3.0 W |
Test Report | |
MTBF | 4,250,000H |
Working Temperature | -20°C ~ +70°C |
Air Humidity | 60°C, 90% |
Continuous Vibration Testing | 10-55Hz, 1.5mm, 10G |
Impact Acceleration Testing | 6ms, 100G |
ESD Testing | 10KV |
Radiation Reliability Testing | 44W |

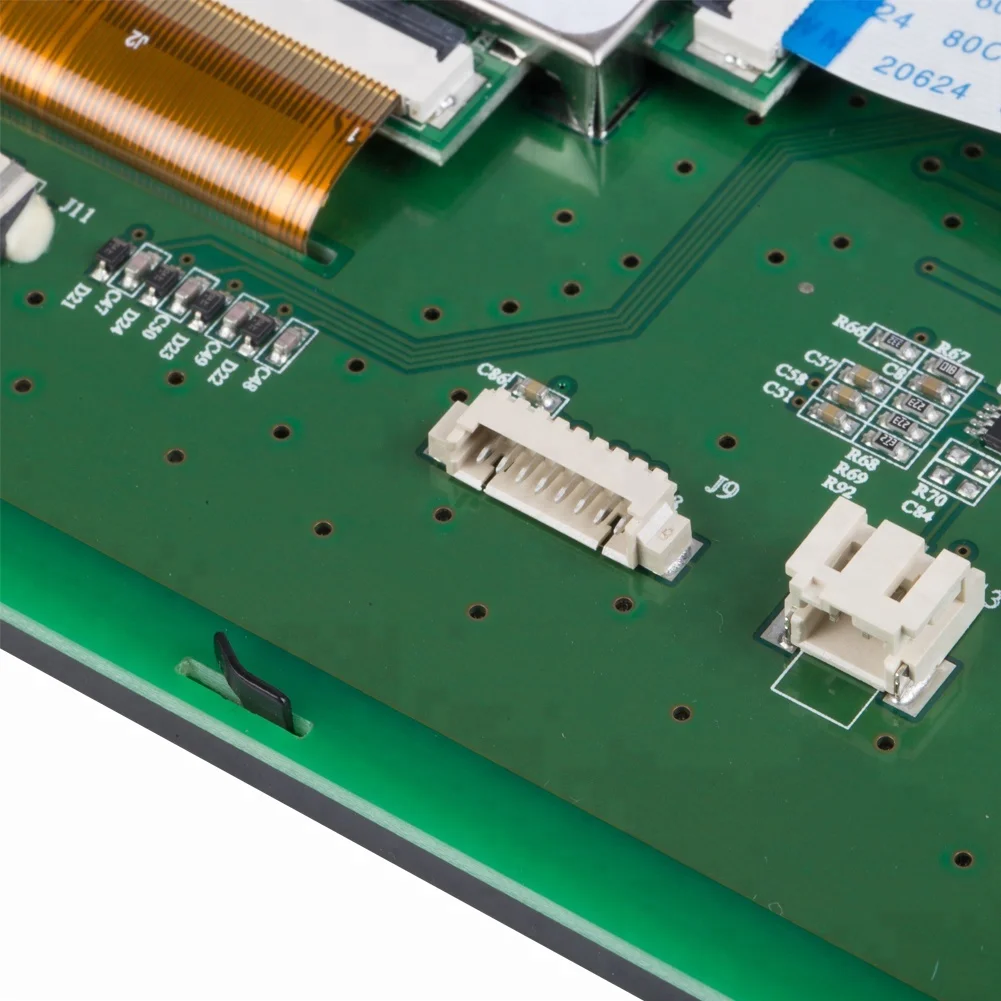

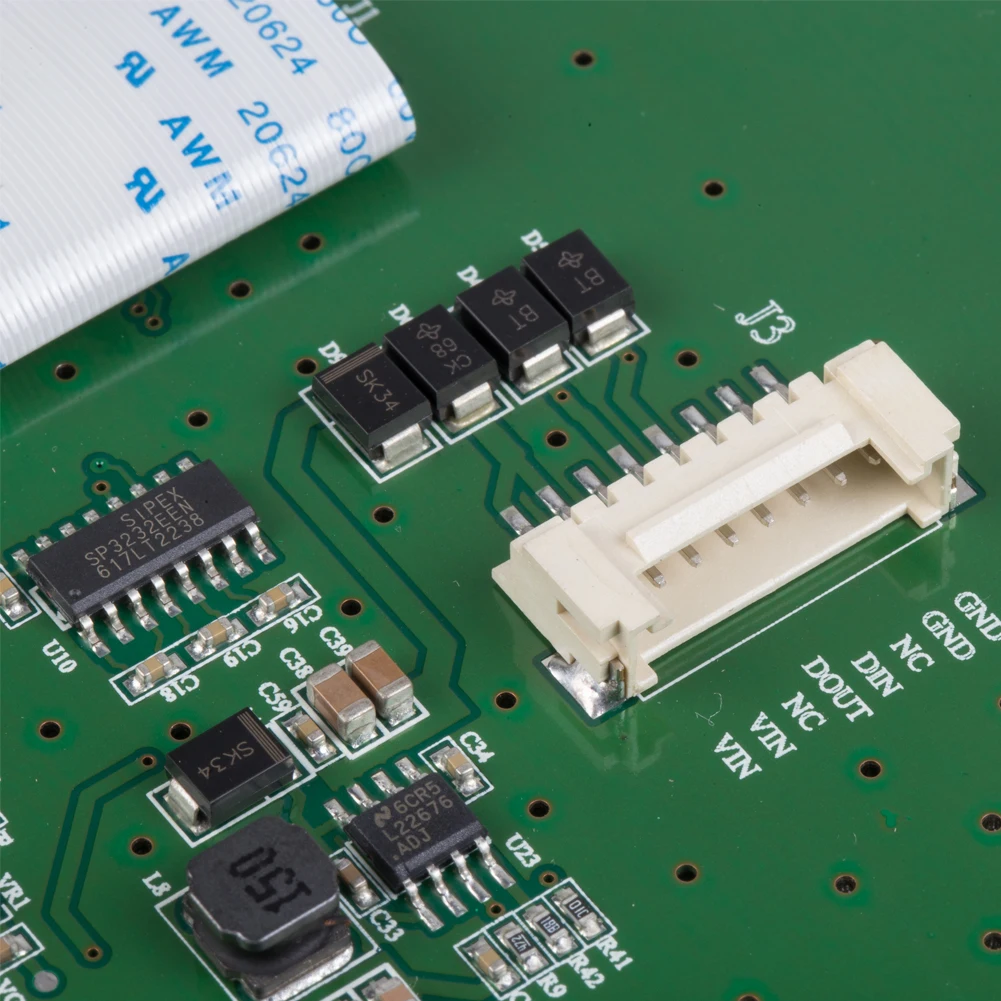

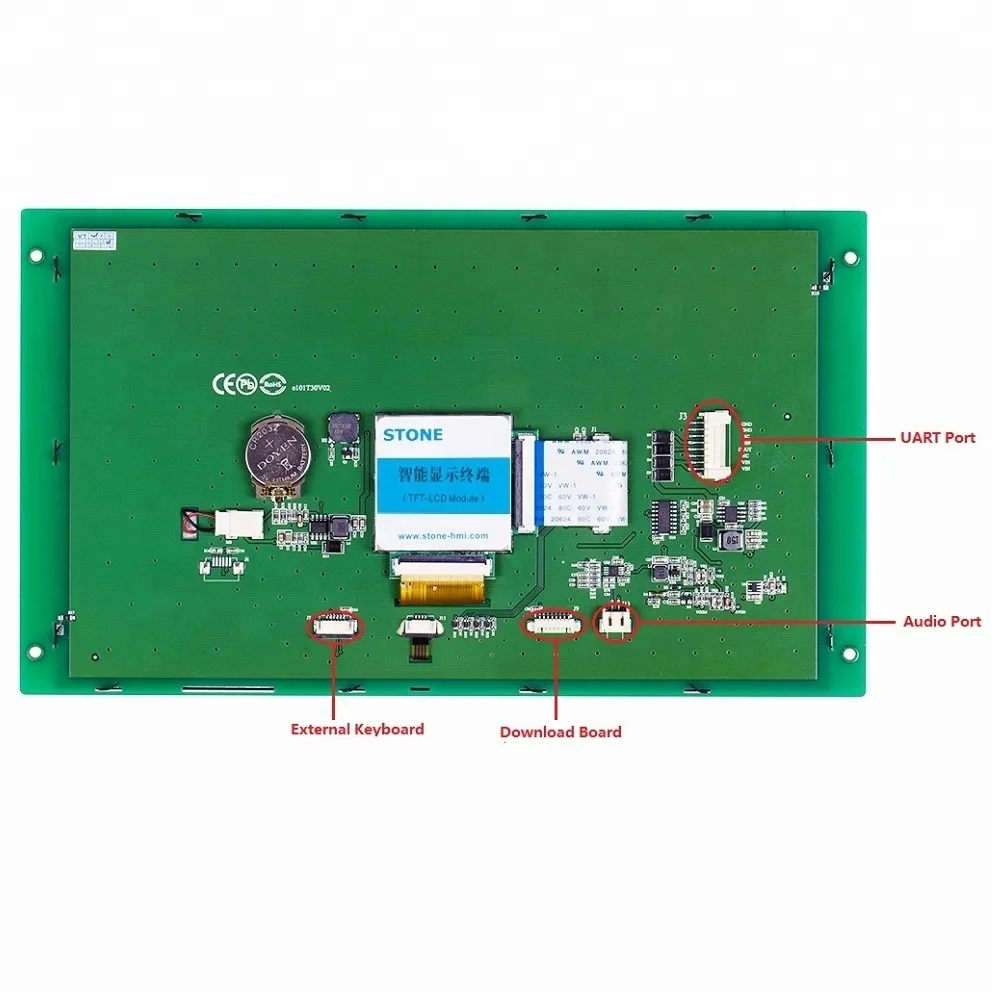

Product Picture
WHY STONE TFT LCD MODULE IS INTELLIGENT?
Item | Hardware | Software | Operation | Comparison |
| TFT Panel &Driver &Memory Flash &UART/USB Port &5-40V Power Supply | GUI Design Software &Hex Command Set | Easy to operate,use simple instruction (Hex code)to control TFT module by any junior engineer. | 1.Easy!Pwerfull!Saving! 2.Plug and Play. 3.Working fast. 4.Industrial class. 5.Components from Well-known Brands. |
PC | Operation System | Develop application programs by professional software engineer. | 1.Need professional operation. 2.Long startup time. 3.Working slowly. 4.High cost. | |
Panel&Driver | None | Write plenty of control programs for TFT module by professional engineer. | 1.Need tedious & Professional work. 2.Cost lots of development time. 3.Unstable working system. 4.Poor quality components. | |
Just panel | None
| 1.Develop hardware and driver. 2.Write programs by professional engineer. | 1.Need tedious & Professional work. 2.Cost even more development time. 3.Unstable working system. 4.Cheap imitated components. |
