KITZ brand originated in Japan 10SJBF 10K Ductile iron Globe valves with disc flanged ends for steam
- Category: >>>
- Supplier: Beijing Ymer Technology Co. Ltd.
Share on (60797346639):
Product Overview
Description
Product Description
The freight shown on the page is only the reference price. Please contact us before placing the order. |
Product parameters
10K DUCTILE IRON,GLOBE VALVES,SCREWED BONNET,INSIDE SCREW,FLAT FACE FLANGED ENDS.,END TO END:JIS B2011,END CONNECTION:JIS B2239 10K,WALL THICKNESS:KITZ STANDARD,TEST STANDARD:KITZ STANDARD
Static water pressure at 120℃ maximum, 1.37MPa.
Steam, air, gas, oil or pulsing water pressure at 220℃ maximum, 0.98MPa.
Test Pressure(MPa) Inspection Standard:KITZ St'd-2
| Water | Air | |
| Shell | 2.1*(3/8-3inch,10-80mm) | 1.4(3/8-3inch,10-80mm) |
| Seat | - | 0.6(3/8-3inch,10-80mm) |
| Back Seat | - | - |

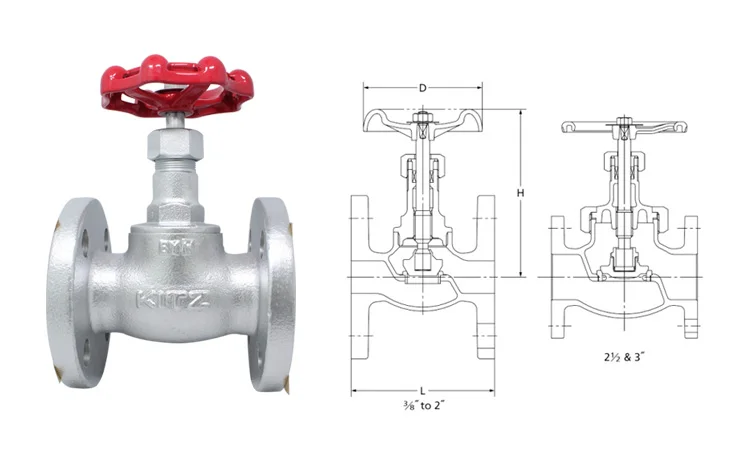

Size Range
| inch | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 |
| mm | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 |
| H | 108.0 | 122.0 | 125.0 | 146.0 | 160.0 | 180.0 | 198.0 | 250.0 | 280.0 |
| D1 | 60.0 | 70.0 | 80.0 | 90.0 | 100.0 | 115.0 | 135.0 | 180.0 | 225.0 |

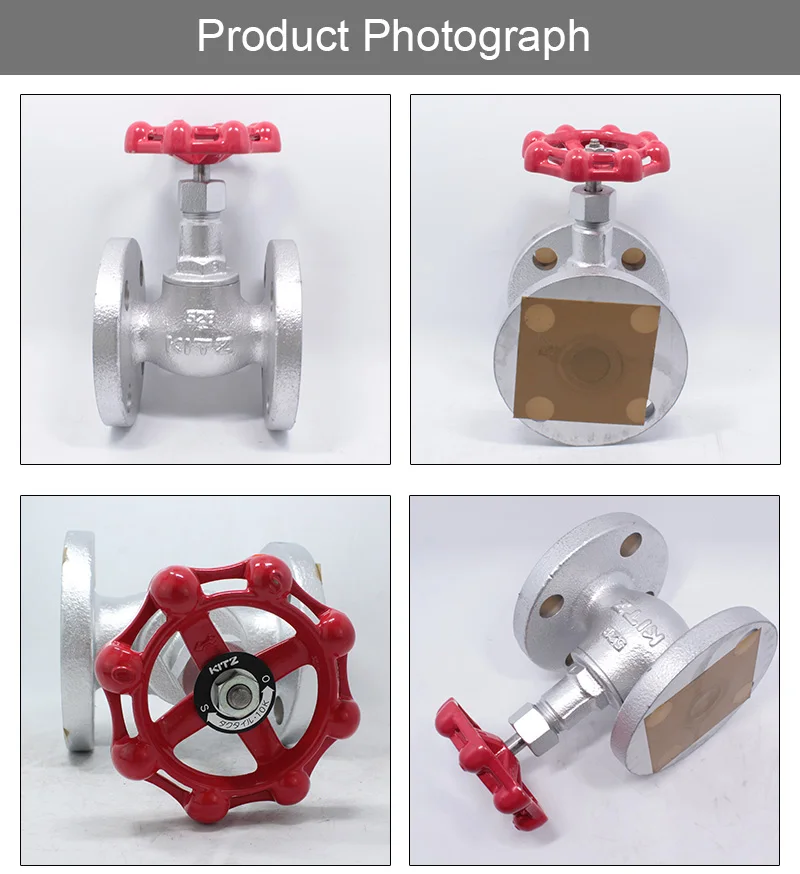

Prouduct show
