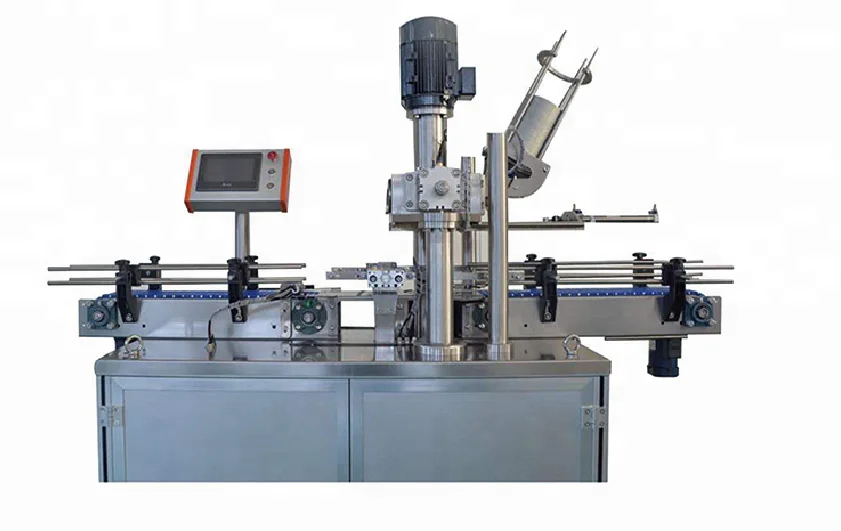

Vacuum and Nitrogen canned milk powder packing machine

Product Overview

Description

This is the latest Vacuum and Nitrogen Charging Powder seaming machine. It is automatic can-in,can-out,vacuum,nitrogen charging and seaming.

The main electric components adopt “Mitsubishi” PLC, frequency converter,  proximity sensor and “Siemens” analog output. Setup the production speed on touch screen. Machine alarms automatically of all common malfunctions and show the cause and position of malfunction, PLC detect and decide to continue or stop the machine according to the malfunction degree.

It is in great shape,steady running, low remaining oxygen value and high automatic. Touch screen operation, and the whole seaming process happens in sealed chamber which is reach to food production sanitation.

Main technical parameters
Model	NFG-1
The number of capping head	1
Production capacity	When the vacuum is 90Kpa, the product capacity is 5-7  cans/min
Can diameter	99-127mm
Can height	100-180mm
Power	1.5KW
Weight	860kg
Dimension	1900*800*1800mm
Nitrogen pressure	0.1~0.8Mpa
Air supply	0.6~0.8Mpa
Power	3KW
Voltage	AC220V
