HP100 Portable Gantry Hydraulic Press
HP100 Portable Gantry Hydraulic Press

HP100 Portable Gantry Hydraulic Press

Share on (60797420367):


Price:$3,600.00

Quantity:


Product Overview

Description

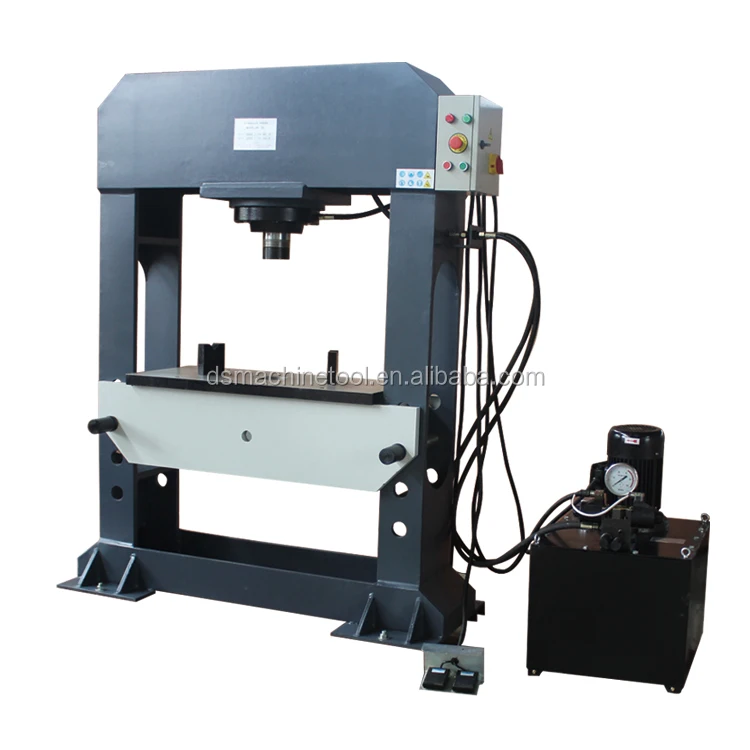

DS100   Harsle Small Shop Portable  Gantry Hydraulic Press


The DS series hydraulic press can assemble, disassemble, straighten, calender, press, stretch, bend and pierce the machine parts, so that one machine can be used more.

This series uses Italy CNK and CBZ oil pump double pump combined fuel supply, and is more than 60% energy saving compared with the traditional hydraulic machine.

The efficiency is increased by 2-3 times, with small volume, high pressure, simple structure and light weight. The worktable can move up and down, which greatly expands the height of the machine, and it is more convenient to use.


























































Model


HP-100


HP-150


HP-200


Capacity(KN)


1000


1500


2000


Pressure ( MPa)


30


30


30


Travel(mm)


250+405


250+405


300+405


Table Size(mm)


440*980


440*980


500*980


Dimension(mm)


2000*600*1900


2000*600*1900


2100*700*2000


Gross Weight(kg)


1220


1320


2200
