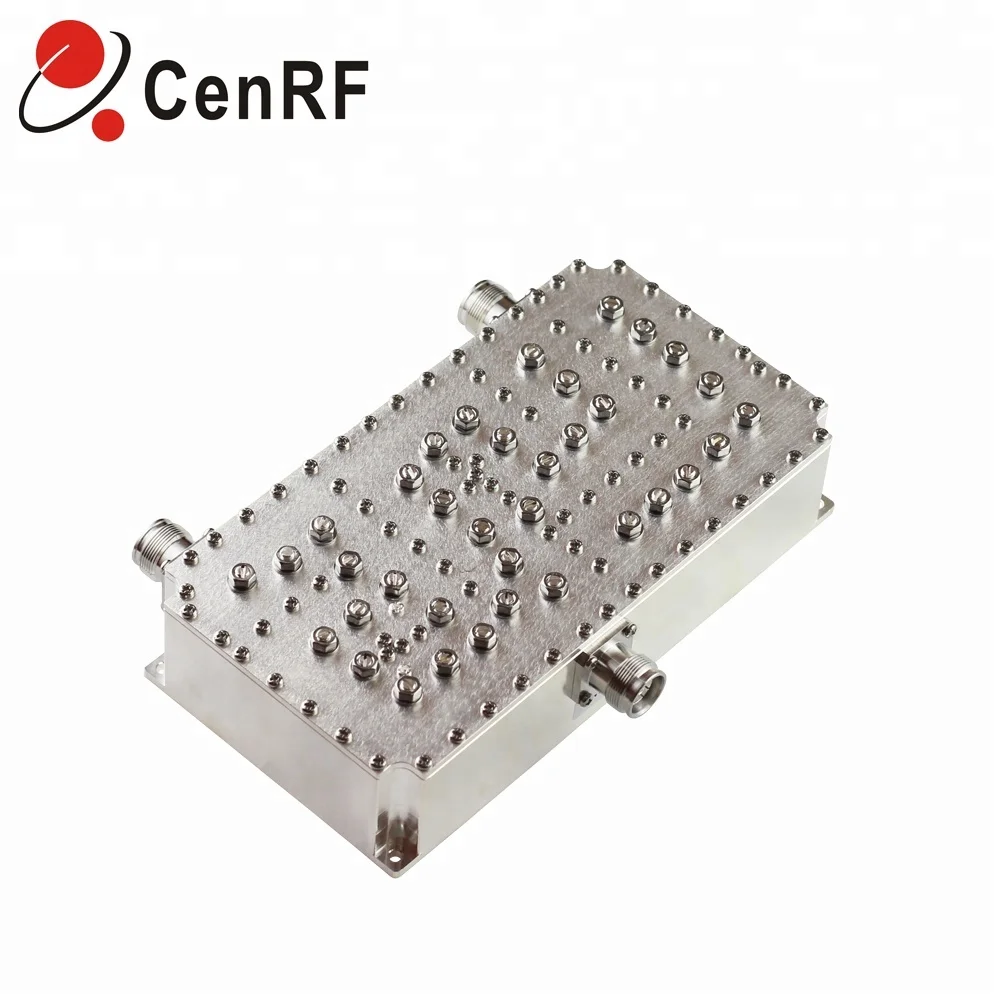

RF indoor GSM WCDMA 2 Way Combiner mobile signal booster diplexer with SMA Female
- Category: >>>
- Supplier: Hangzhou Shengtong Technology Co. Ltd.
Share on (60797430154):
Product Overview
Description
Features
RF indoor GSM WCDMA 2 Way Combiner mobile signal booster diplexer DIN-Female
●\tCombiner for Feeder Sharing
● High Directivity / Isolation
●200W power handing, High Reliability
●Low Insertion Loss, Low VSWR, Low PIM(IM3)
Application scenes:
Specification
Frequency Range | 800-2170MHz | 2300-2390MHz | |
Bandwidth | 1400MHz | 90MHz | |
Isolation | >80dB @CH2 | >80dB @CH1 | |
Insertion Loss | <0.4dB | ||
VSWR | <1.3 | ||
Power Handling | 200W / Input port | ||
PIM (IM3) | <-150dBc @2×43dBm | ||
Impedance | 50Ω | ||
Temperature Range | -20 to +65℃ | ||
Environment Humidity | 5% to 97% | ||
Installation Environment | Indoor, IP54 | ||
Connectors | SMA-Female | ||
Material | Cavity: Aluminum silver-plated; Connector: Copper | ||
Size | 252×138×46mm | ||

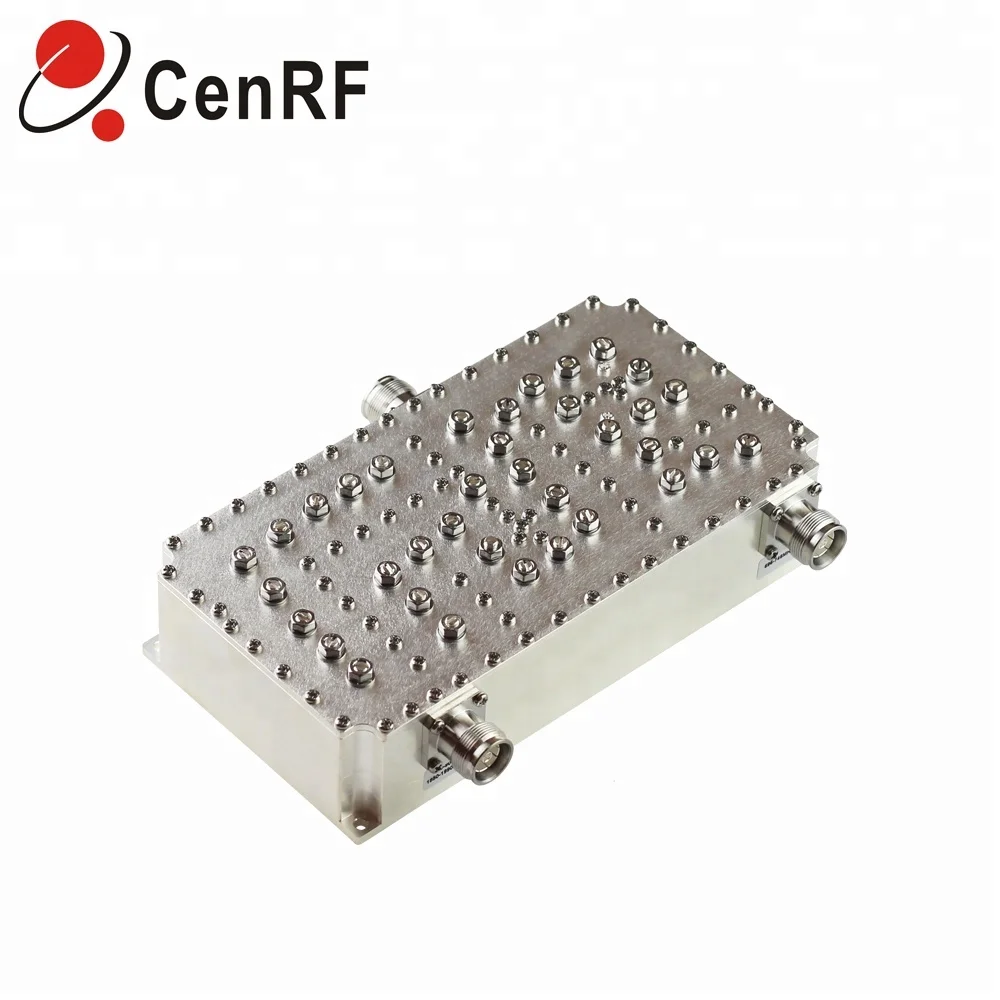

Product Show

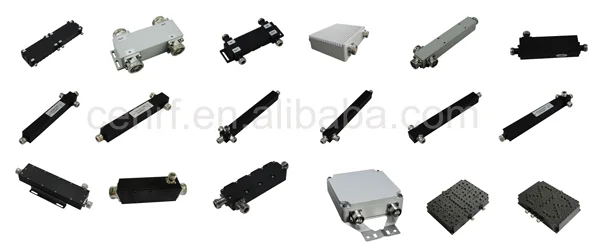

Other Products

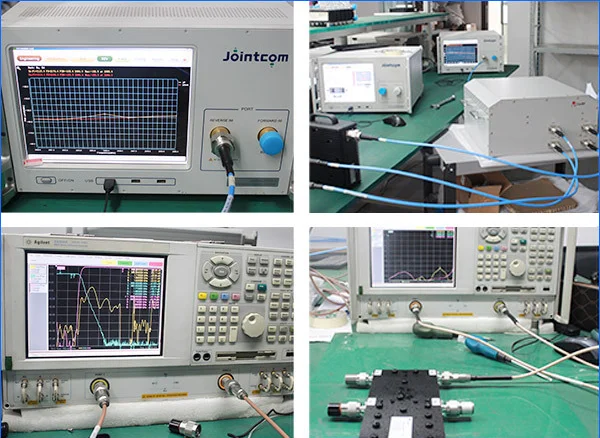

Test Equipments

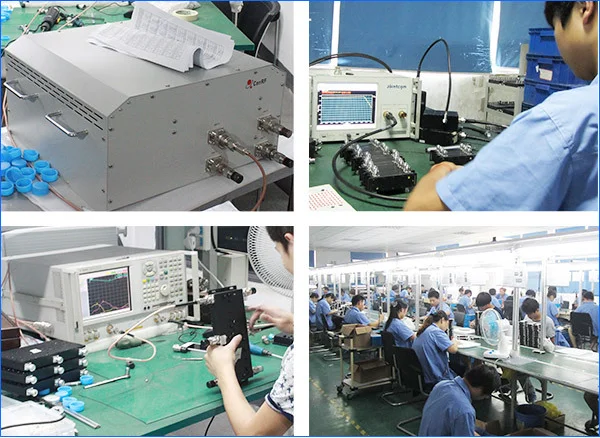

Workshop
Our service
CenRF promises reasonable price, short production time, and after-sales service.
