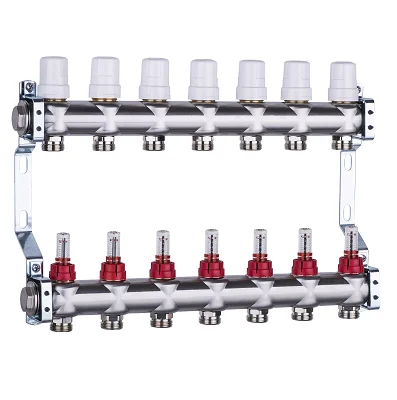

304 Stainless Steel Floor Heating Manifolds for floor heating system usage
- Category: >>>
- Supplier: Ningbo Hrale Plate Heat Exchanger Co. Ltd.
Share on (60797432274):
Product Overview
Description
VR
Products Description
Model no: | HL-303-N6 |
Main tube size: | 1" F G |
No. of circuits: | 2--13 circuits |
Hole distance: | 60mm |
Flow meter rate: | 0--5 L/m. |
Connectors: | for 16*2.0mm or 20*2.0mm pipes |
Brackets: | 200mm or 210mm |
Application for actuator: | M30*1.5mm |
Working pressure: | 1.0 Mpa |
Manifold made from special profile of stainless steel 1.4301 with delivery and return assembly. Nickel plated holders with rubber inserts.
Delivery:
2-12pcs integrated nickel plated water flow meters, visible scale 0-5 l/min
2-12pcs connecting fittings 3/4” with euro-cone
1 pcs special plug 1” on primary side
1 pcs female thread 1” on primary side
Return:
1-12pcs integrated thermostat valves(optional with thermoelectric actuators, M30x1.5)
2-12pcs connecting fittings 3/4” with euro-cone
1 pcs special plug 1” on primary side
1 pcs female thread 1” on primary side
1 pair Mounting brackets: 210mm or 200mm centering according to customers’ request.
Pressure tested according to DIN 3230, packed in cardbox
(manifold branches assembled)
Delivery:
2-12pcs integrated nickel plated water flow meters, visible scale 0-5 l/min
2-12pcs connecting fittings 3/4” with euro-cone
1 pcs special plug 1” on primary side
1 pcs female thread 1” on primary side
Return:
1-12pcs integrated thermostat valves(optional with thermoelectric actuators, M30x1.5)
2-12pcs connecting fittings 3/4” with euro-cone
1 pcs special plug 1” on primary side
1 pcs female thread 1” on primary side
1 pair Mounting brackets: 210mm or 200mm centering according to customers’ request.
Pressure tested according to DIN 3230, packed in cardbox
(manifold branches assembled)
Circuits | Length(mm) |
2 | 130 |
3 | 180 |
4 | 230 |
5 | 280 |
6 | 330 |
7 | 380 |
8 | 430 |
9 | 480 |
10 | 530 |
11 | 580 |
12 | 630 |
13 | 680 |
