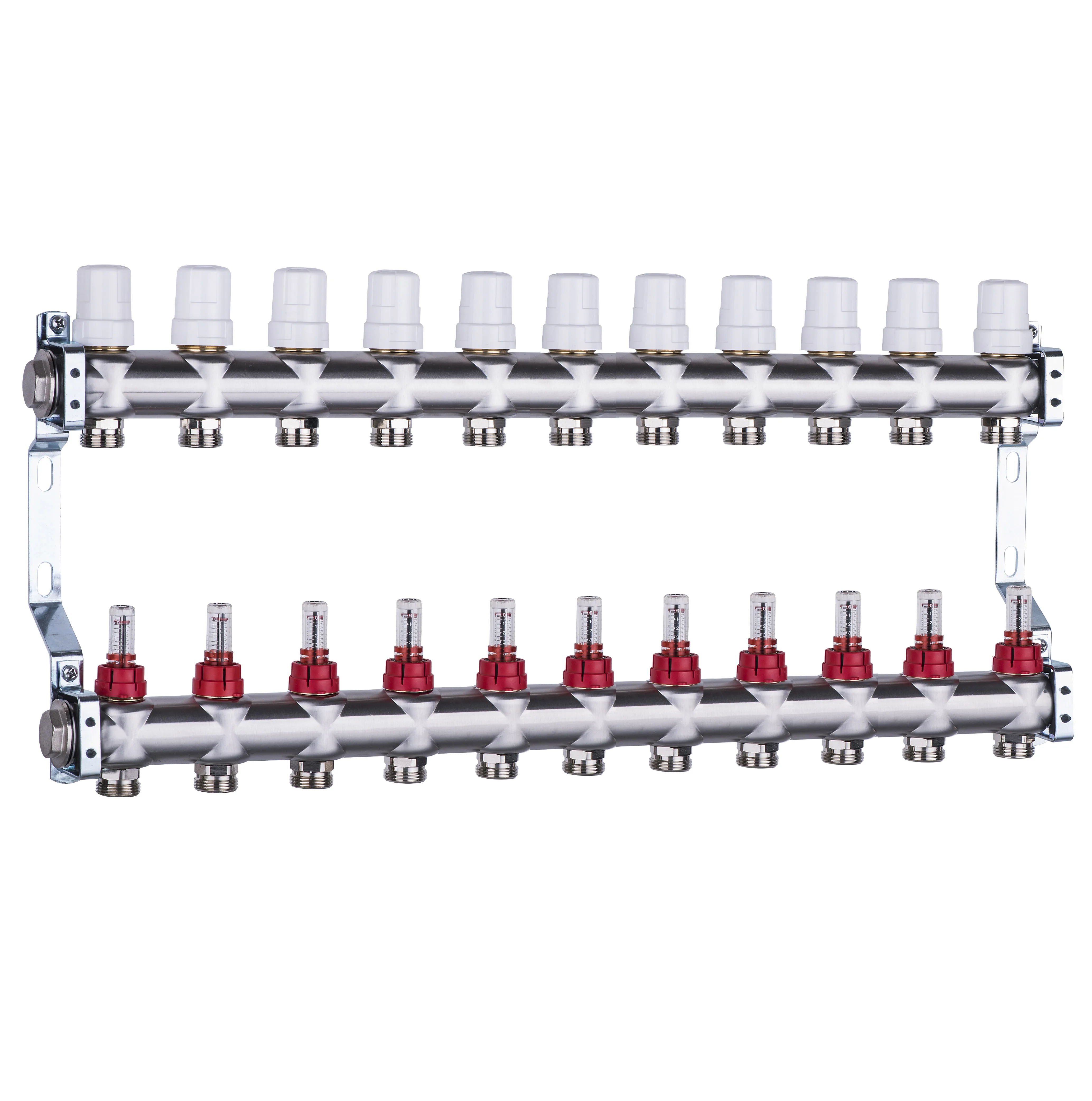

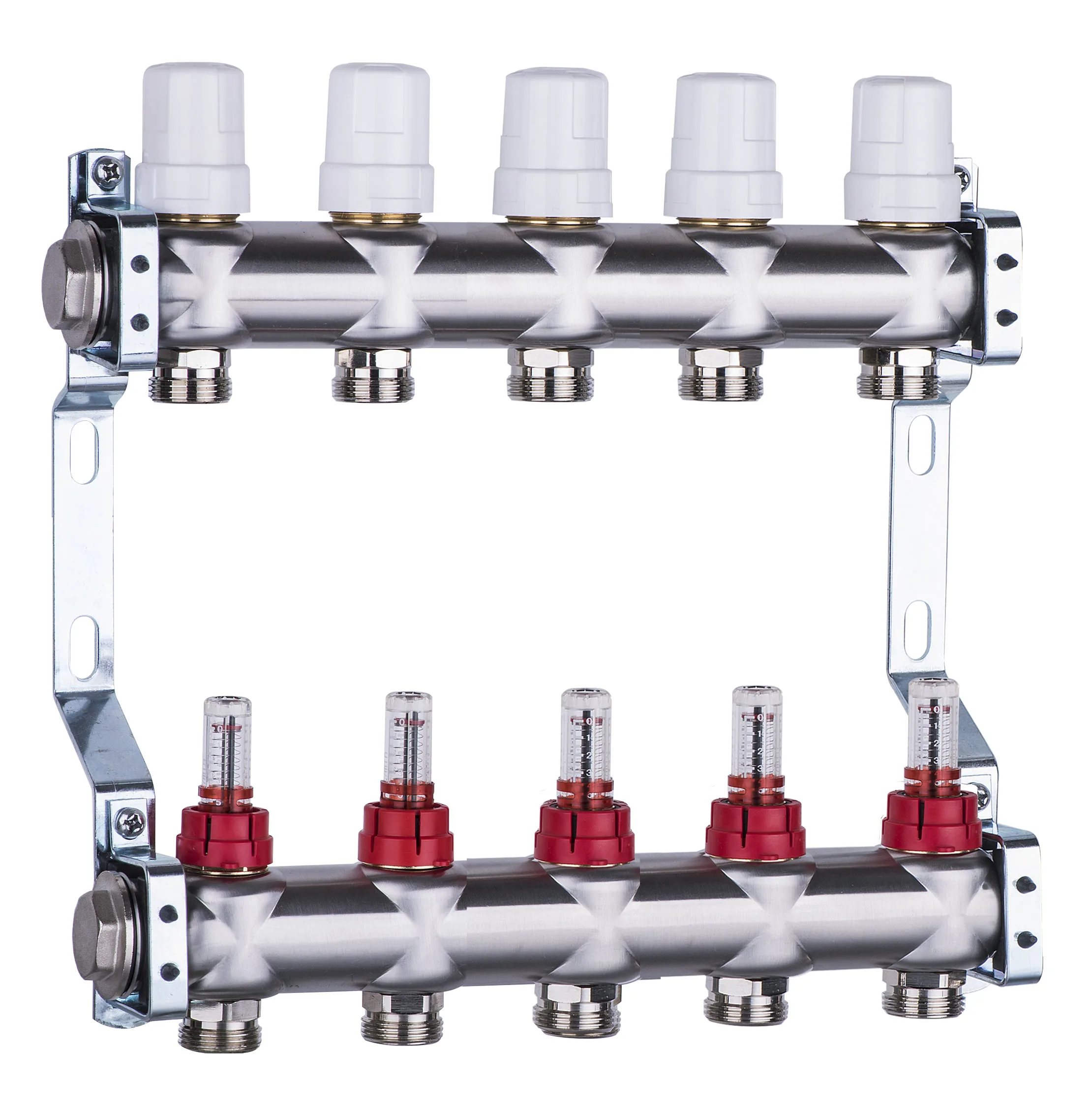

304 Stainless steel floor heating manifold tube, pipe (Bamboo joint shape tube)

Manifold made from special profile of stainless steel 1.4301 with delivery and return assembly. Nickel plated holders with rubber inserts.

Delivery:

2-12pcs integrated nickel plated water flow meters, visible scale 0-5 l/min

2-12pcs connecting fittings 3/4” with euro-cone

1 pcs special plug 1” on primary side

1 pcs female thread 1” on primary side

Return:

1-12pcs integrated thermostat valves(optional with thermoelectric actuators, M30x1.5)

2-12pcs connecting fittings 3/4” with euro-cone

1 pcs special plug 1” on primary side

1 pcs female thread 1” on primary side

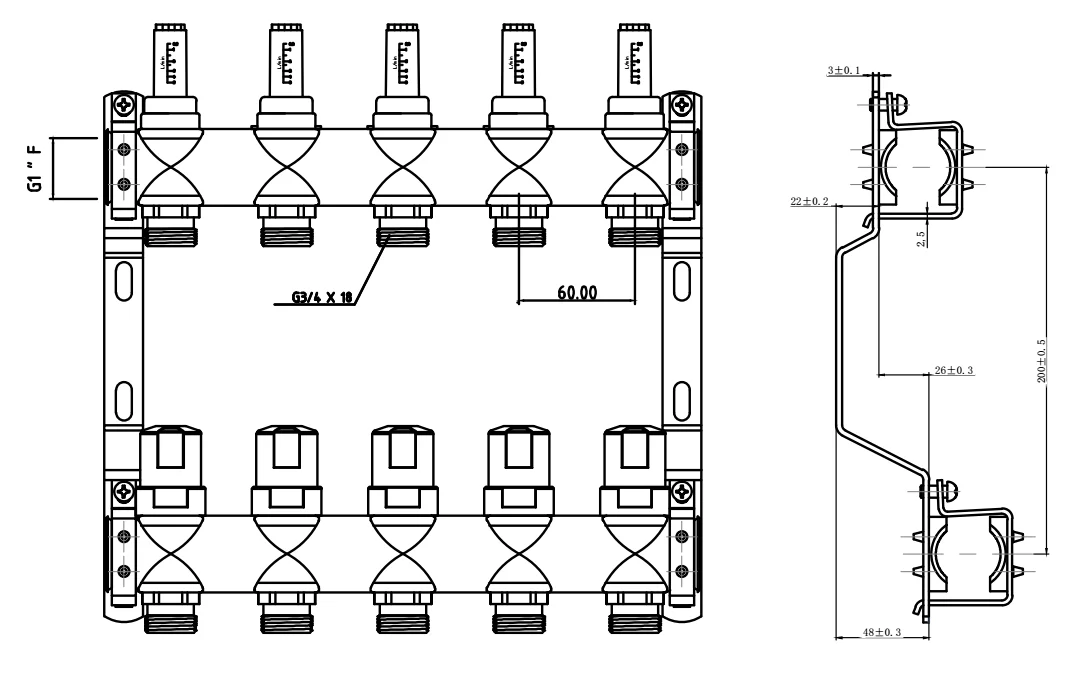

1 pair Mounting brackets: 210mm or 200mm centering according to customers’ request.

Pressure tested according to DIN 3230, packed in cardbox

(manifold branches assembled)
