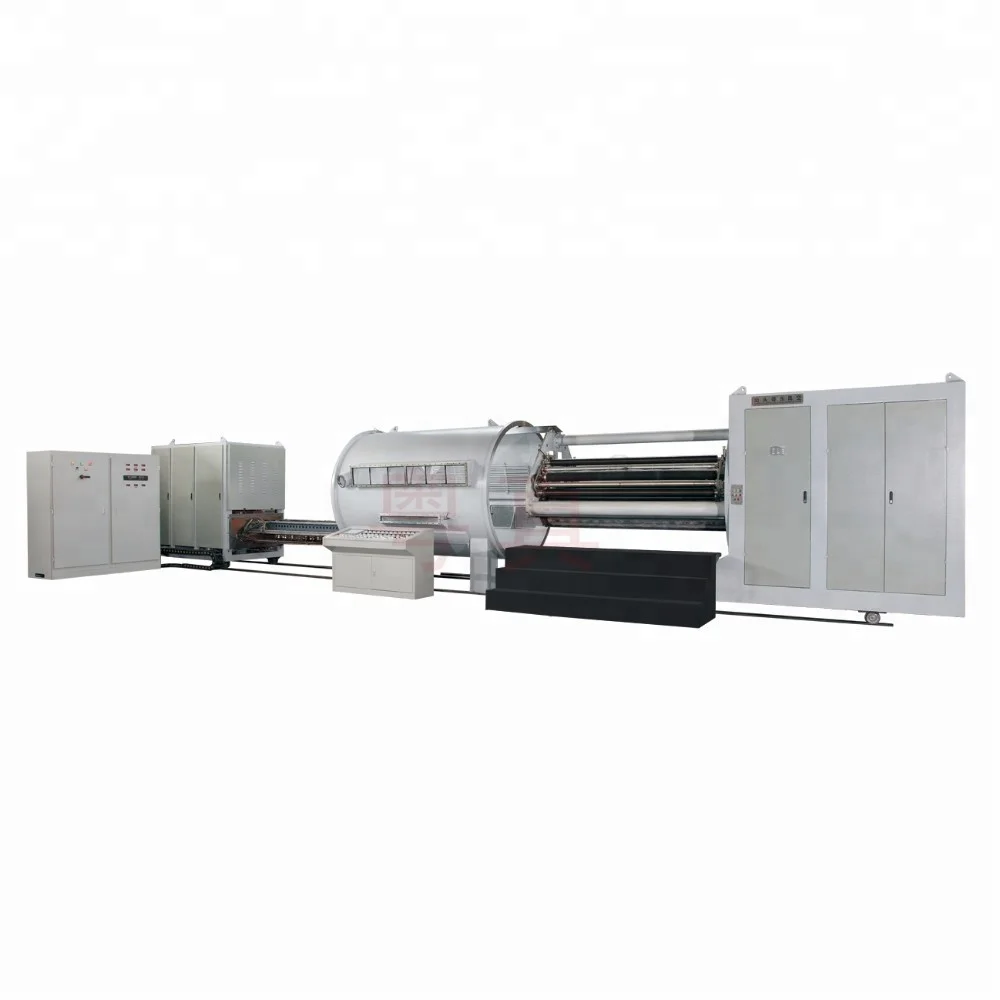

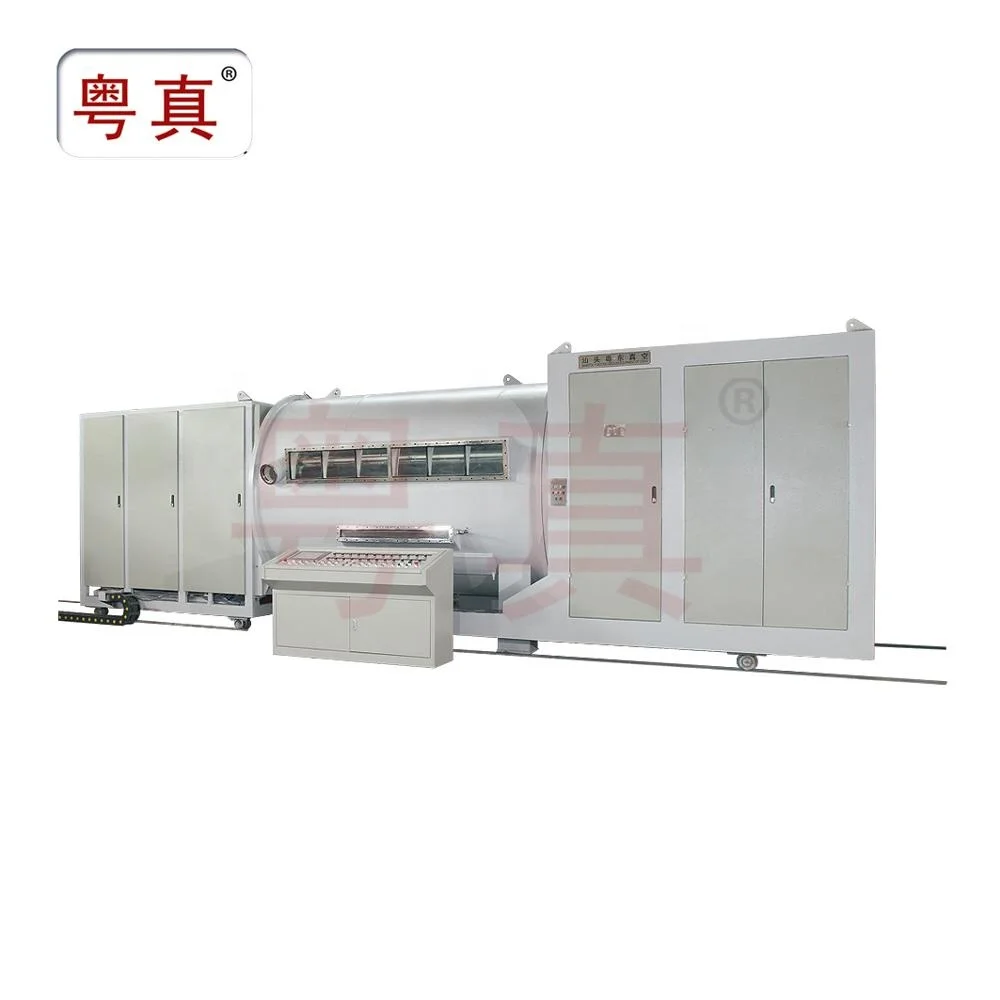

evaporated vacuum equipment plastic film label holographic laser paper vacuum metallizing machine free span of Yuedong Co.,Ltd.
- Category: >>>
- Supplier: Shantou Yuedong Vacuum Equipment Manufacture Co. Ltd.
Share on (60797499242):
Product Overview
Description
Product Description
Product Purpose

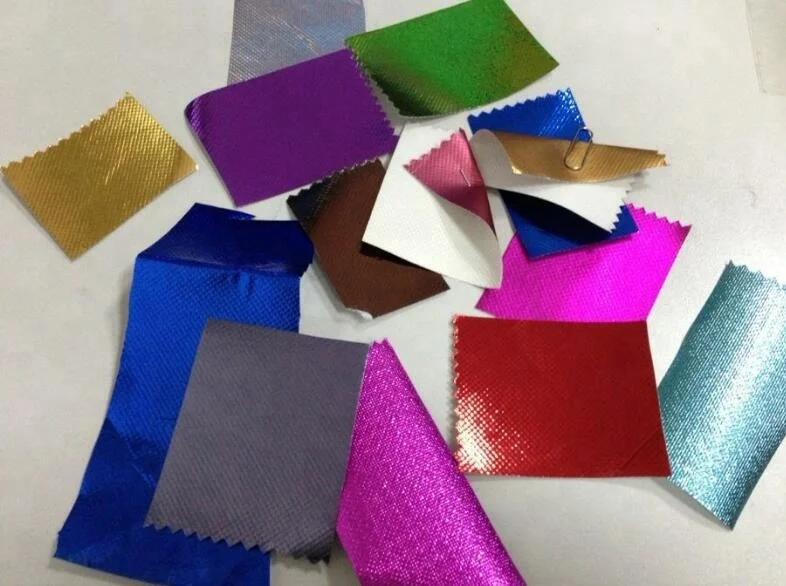

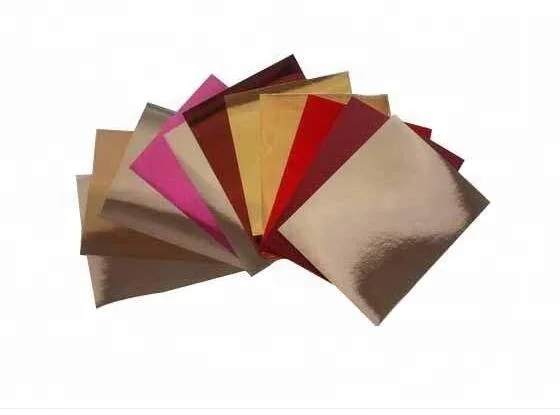

free span vacuum equipment can continuously metalizes metal of Aluminum on the surface of roll plastic films such as PET,PVC,CPP and BOPP. The metallized films can be used in many kinds of industries such as food packaging, pharmacy packaging of packaging industry, metallic yarn, sequins and glitter of textile industry also laser hot stamping foil and laser transferred paper in security industry.
SPECIFICATIONS FOR Roll to Roll Film Metallizing Machine HF1950-14 | ||||||
Model | HF1800 | HF2100 | HF2300 | |||
Dia of Chamber(mm) | 1800 | 2100 | 2300 | |||
Max.unwind dia.(mm) | 700 | 800 | 1000 | |||
Boats(pc) | 14-18 | 14-24 | 14-27 | |||
Web width(mm) | 1200-1800 | 1200-2200 | 1200-2500 | |||
Wire-feeding speed(m/min) | 0-5 | 0-5 | 0-5 | |||
Working power(kw) | 120-200 | 140-280 | 140-320 | |||
Winding speed(m/min) | 200-600 | 200-600 | 200-600 | |||
Occupied area(m) | 12x12x4.8 | 14x12x4.8 | 16x12x4.8 | |||
SYSTEM CONTROL By PLC:
1. Automatic start/stop all pumps of pumping section and manual operation for testing and checking also repairing the machine.
2. Emergency protection for film breakup.
3. Vacuum parameters can be set.
4. Glycold and Polycold can automatic strat and stop.
5. Parameters of winding section can be set and automatic start/stop the winding section.
Certifications
Detailed Images
Category of plastic films
Name: non-woven fabric,BOPET,BOPP,BOPA,CPP,PVC,LDPE,PAPER
Brand: YUEZHEN
Original: CHINA
Structure of chamber
Name: new design square chamber
Brand: YUEZHEN
Original: CHINA
1.Cylindrical and divided into winding section and metallizing section by a clapboard. Inner surface is painted with high vacuum paint.
2. 3 viewing windows, one for viewing evaporation condition, one for viewing unwind and rewind section, one for viewing winding section.

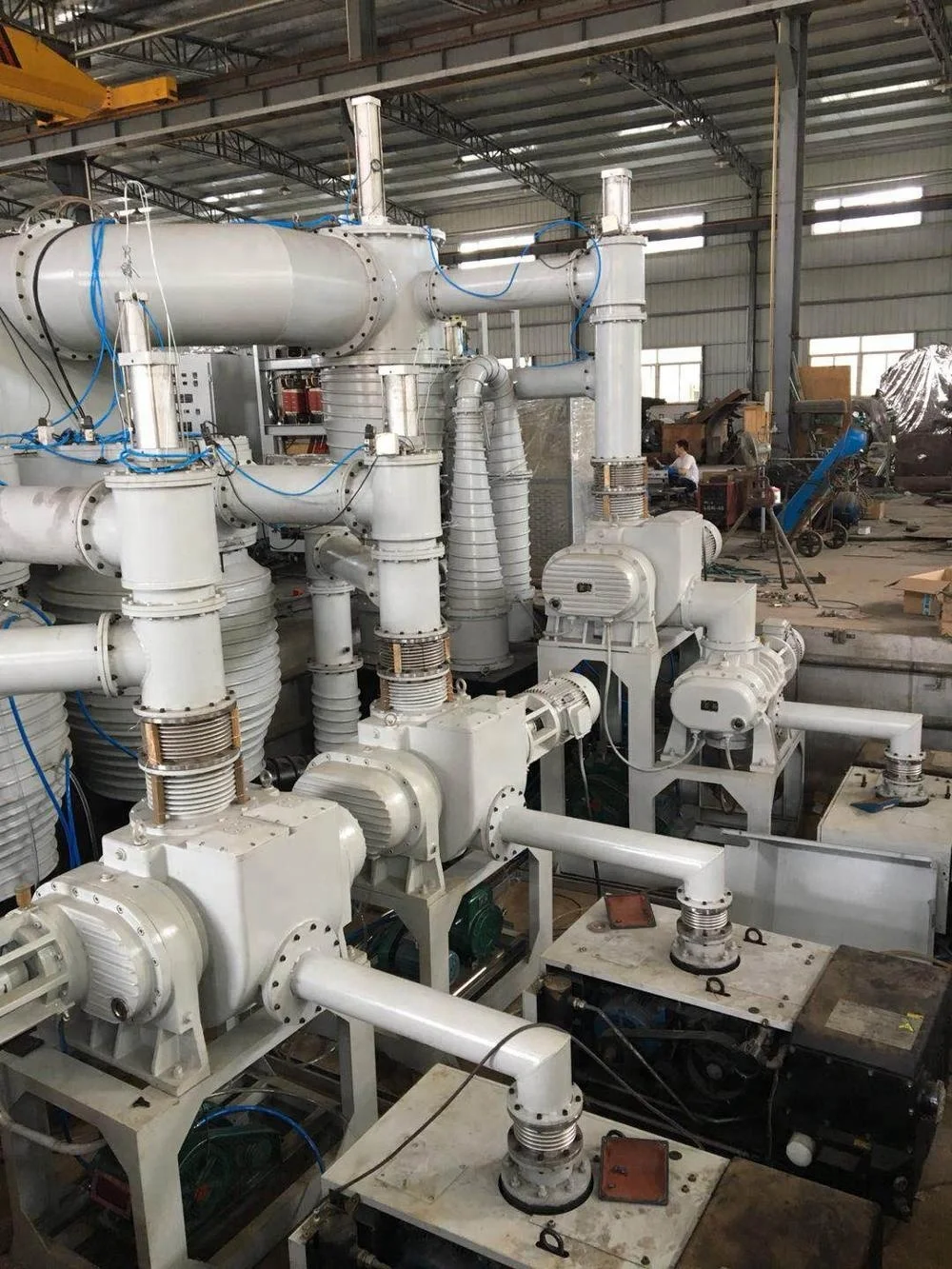

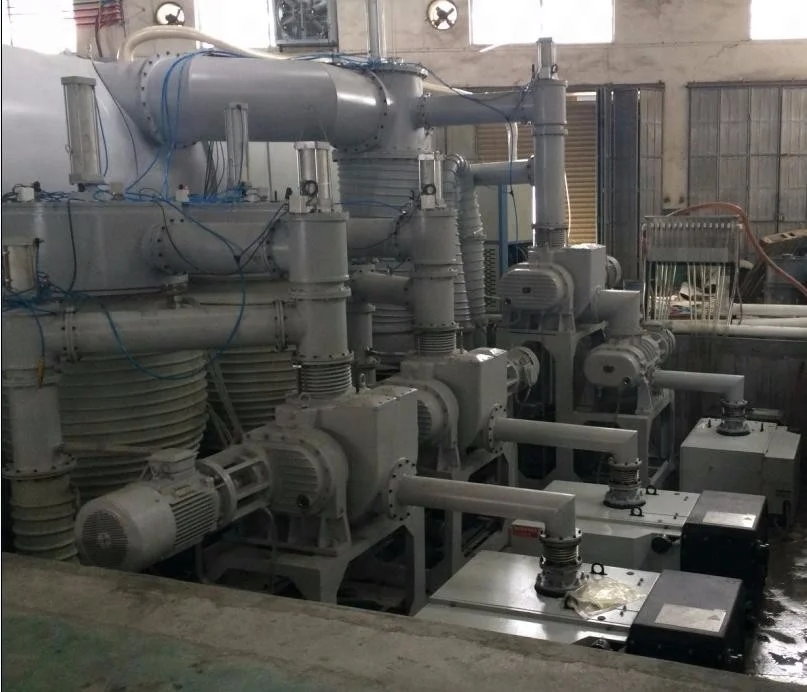

PUMPING SECTION:
Name: powerful pumping system
Brand: YUEZHEN
Original: CHINA
1)pumps for winding section: roots pumps and mechanical pump.
2)vacuum system in coating chamber: Diffusion pump, roots pump, mechanical pump, and maintain pump.
3)Vacuum valve: the vacuum valves are all pneumatic valves.

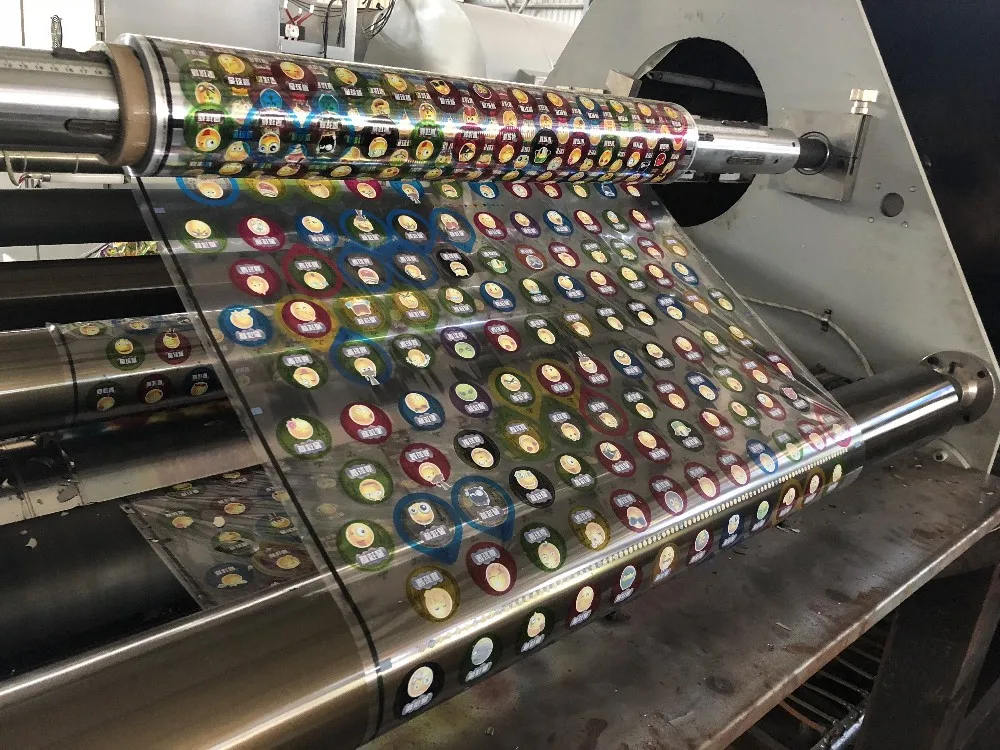

Winding system:
Name: two chill rollers
Brand: YUEZHEN
Original: CHINA
Metallizing roller, Flatter roller, unwind guide roller, unwind jacquard batten, unwind and rewind spools.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 12 months after-sales service and improve machine performance forever.
Packing & Delivery
Packaging | ||
Size | suitable for the machine | |
Weight | ||
Packaging Details | The normal package is plywood box(Size: L*W*H). If export to the client ,requirement, the plywood box will be fumigated.If container is too tighter,we will use polyfoam films for packing or pack it according to customers special request. | |
Packaging | ||
Size | suitable for the machine | |
Weight | ||
Packaging Details | The normal package is plywood box(Size: L*W*H). If export to the client ,requirement, the plywood box will be fumigated.If container is too tighter,we will use polyfoam films for packing or pack it according to customers special request. | |
