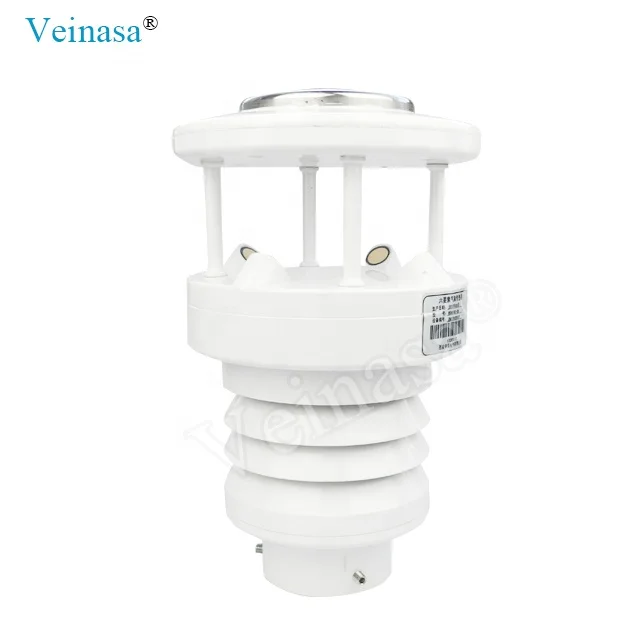

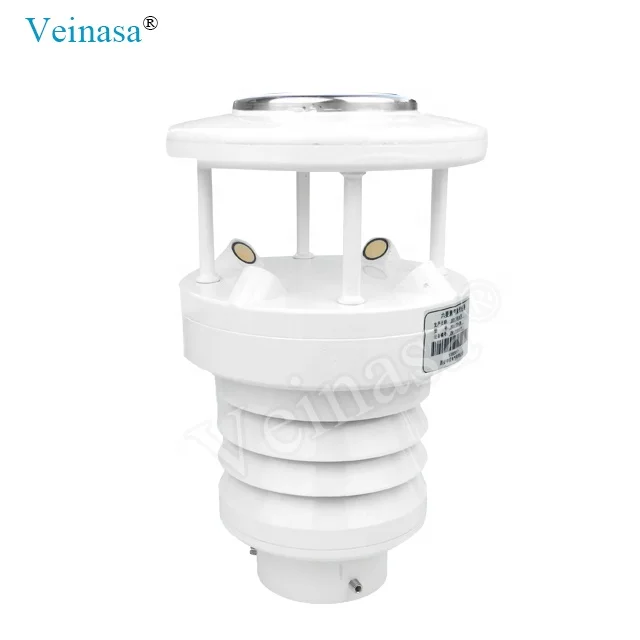

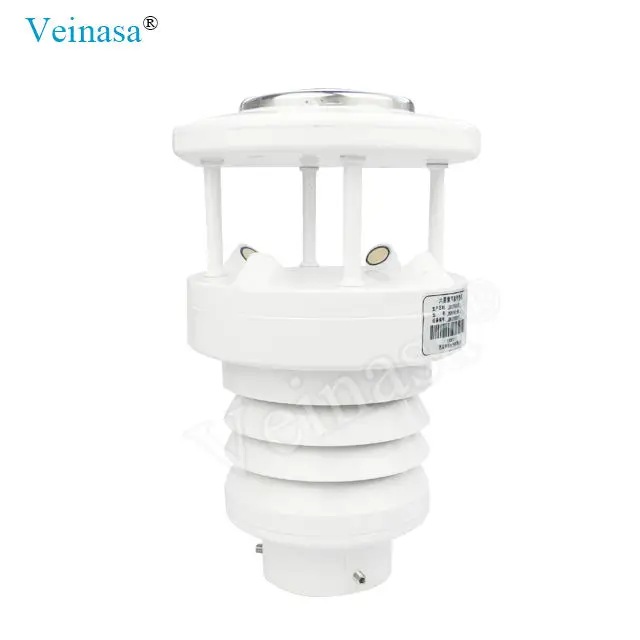

Veinasa THPRW Rainfall Air Ultrasonic Weather Station Wind Speed Wind Direction Sensor
- Category: >>>
- Supplier: Sichuan Weinasa Technology Co. Ltd.
Share on (60797521902):
Product Overview
Description
Veinasa-THPRW Rainfall Ultrasonic Weather Station Wind Speed Wind Direction Sensor
Products Description
* Rainfall Air Ultrasonic Weather Station Wind Speed Wind Direction Sensor integrates six meteorological elements such as wind speed, wind direction, rainfall, temperature, humidity, and atmospheric pressure. It has the characteristics of compact structure, no moving parts, sturdiness and durability, easy installation, and maintenance-free features. It is aimed at a wide variety of meteorological products. An intelligent sensor specially designed for on-site installation and maintenance. The sensor has low power consumption and can be equipped with a solar charging board for mobile weather monitoring.
* FEATURE:
• No moving parts
• Compact and easy installation
• Strong anti-interference
• High accuracy
• maintenance-free
APPLICATION:
• Environmental monitoring
• Airport
• Bridge and Tunnel engineering
• Emergency meteorological
• Traffic
• Urban environment
• Automatic weather station
• hydraulic engineering
• Wind power station
* FEATURE:
• No moving parts
• Compact and easy installation
• Strong anti-interference
• High accuracy
• maintenance-free
APPLICATION:
• Environmental monitoring
• Airport
• Bridge and Tunnel engineering
• Emergency meteorological
• Traffic
• Urban environment
• Automatic weather station
• hydraulic engineering
• Wind power station
Product Paramenters
Name | Parameters |
Power Supply | 12-24VDC |
Power Consumption | 8-15mA at 12VDC |
Output | RS232/RS485 |
Working Temperature | -40°C - +80°C |
Relative humidity | 0-100%RH |
Pressure | 10-1100hpa |
Main Features

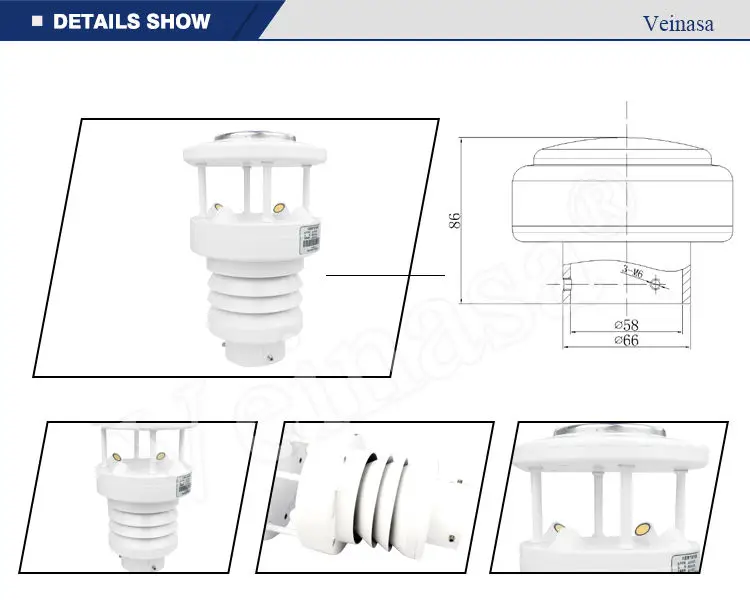

Rainfall Air Ultrasonic Weather Station Wind Speed Wind Direction Sensor's upper part high 86mm. The inside diameter of the lower part is 58mm, and the outer diameter is 66mm. Normal size, easy to install.
Application Field
Rainfall Air Ultrasonic Weather Station Wind Speed Wind Direction Sensor is suitable for meteorological stations (stations), hydrological stations, agriculture and forestry, national defense and other departments to telemetry of liquid precipitation, precipitation intensity, precipitation start and end time.
Related Products
Company Profile
FAQ
Q: Areyou a factory/manufacturer?
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather station Veinasa-THPPRW-02. It can measure 7 parameters: wind speed, wind direction, temperature, humidity, atmospheric pressure, rainfall and thermoelectric radiation.
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used weather station Veinasa-THPPRW-02. It can measure 7 parameters: wind speed, wind direction, temperature, humidity, atmospheric pressure, rainfall and thermoelectric radiation.
Q: What’s the main characteristics of this compact weather station?
A: Congratulations, it has robust structure, easy for installation, factory price but amazing quality.This compact ultrasonic weather can compact weather station can integrate several parameters in one but it still light weight.
Q: Can it add/integrate other parameters?
A: Yes it can add/integrate other parameters like light，PM2.5/10. We can customize as you need.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC7-30V, RS485. But we can customize for you as demands.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this Mini Ultrasonic Mini Compact Ultrasonic Weather Station?
A: At least 5 years long. It has its own calibration certificate or testing report.If necessary, we will provide you.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: What’s the standard cable length?
A: Its standard length is 4m. But it can be customized.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
Q: What’s the IP grade?
A: It’s IP65.
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
