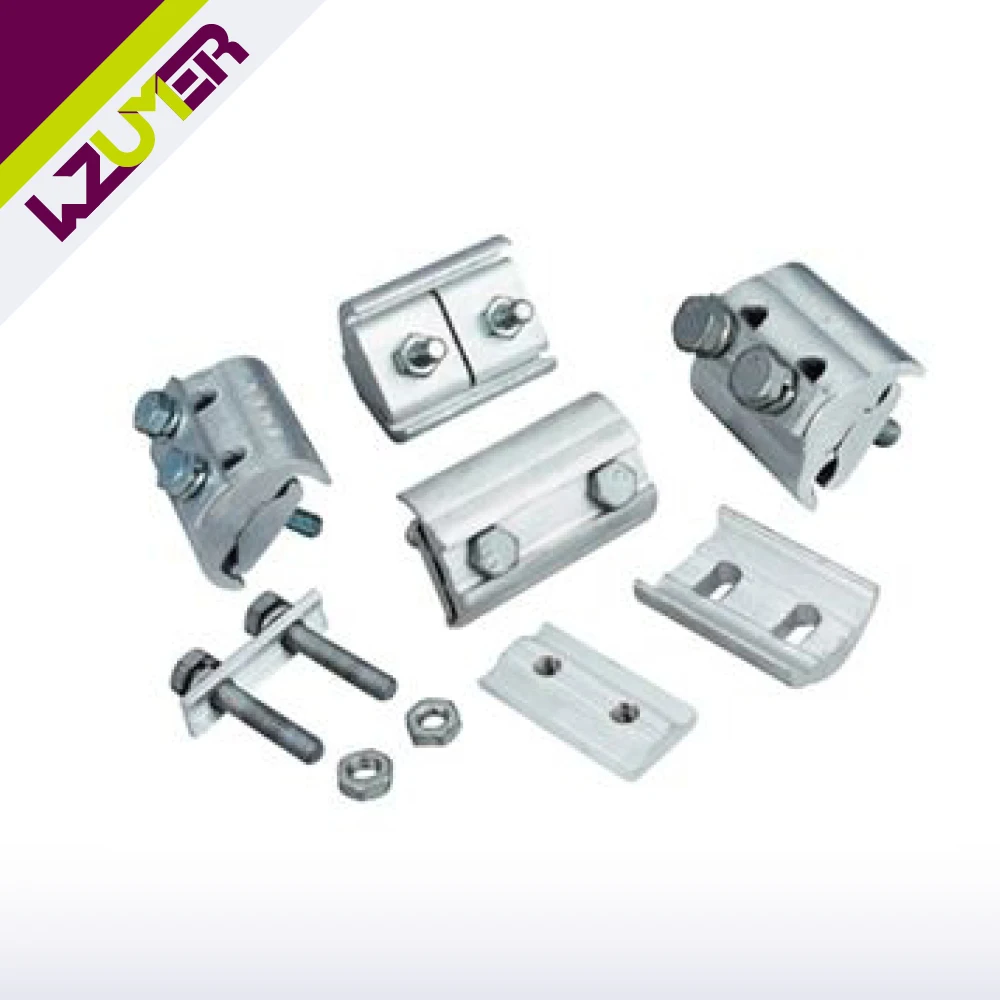

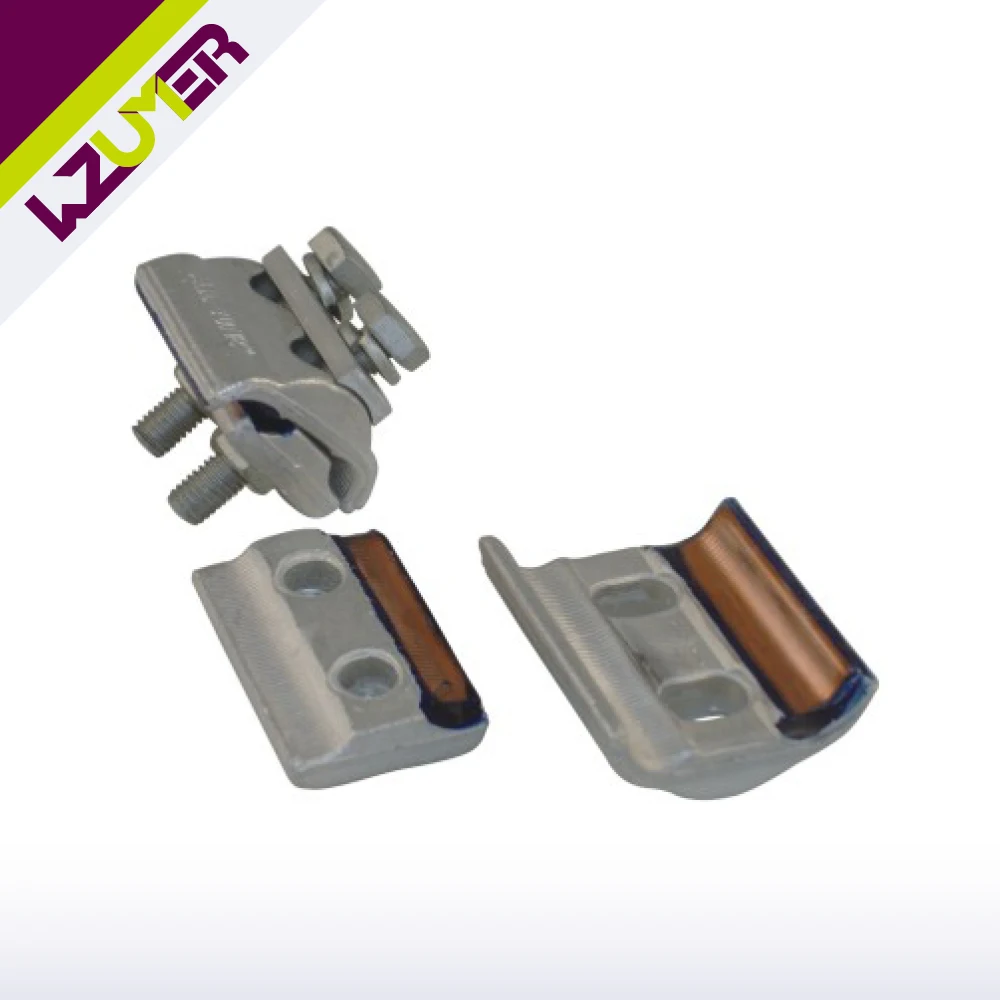

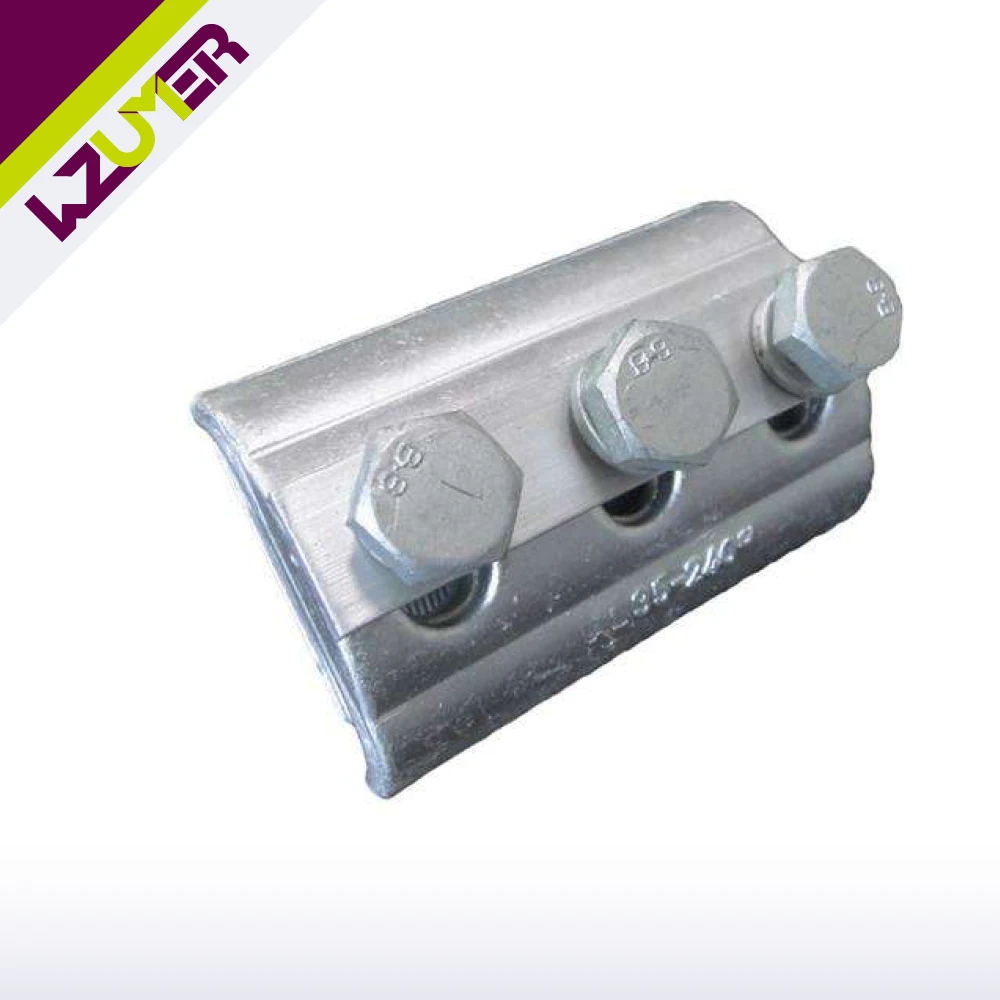

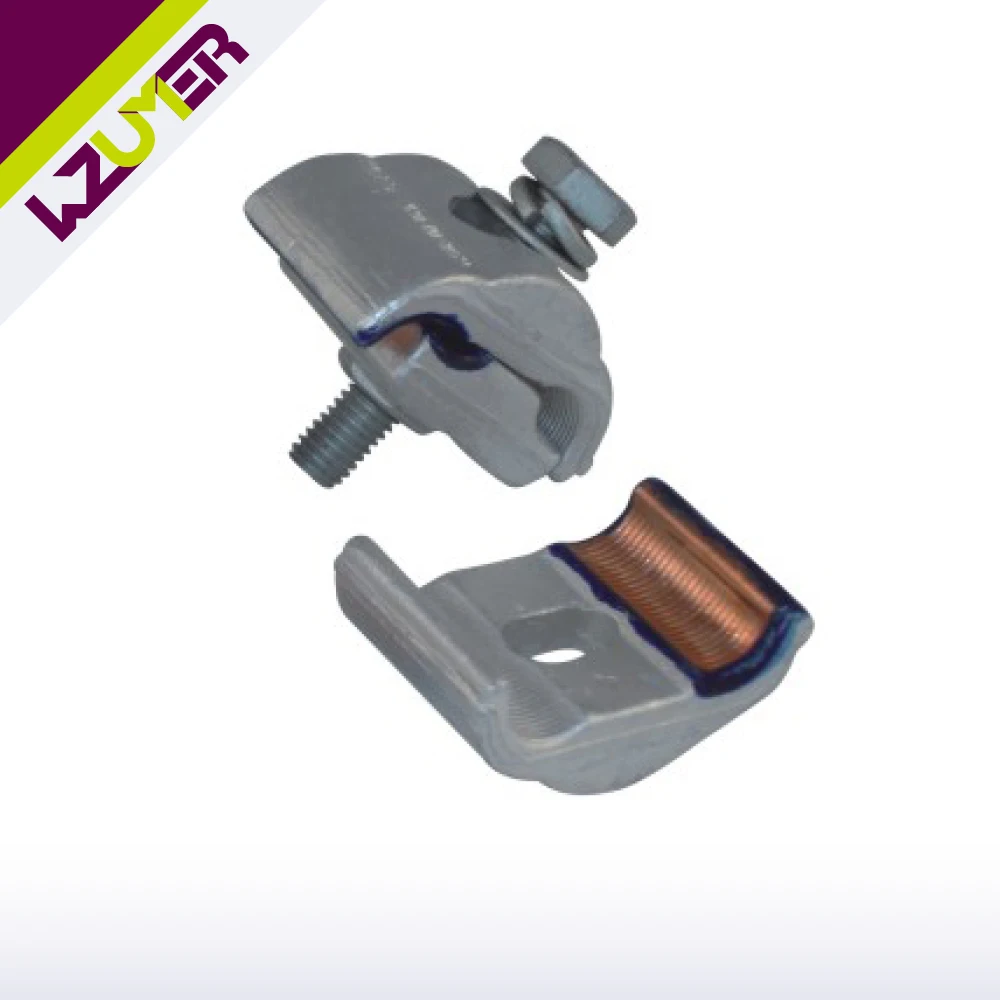

WZUMER CAPG Connector Copper and Aluminium Bimetallic Parallel Groove Wire Clamp

Usage

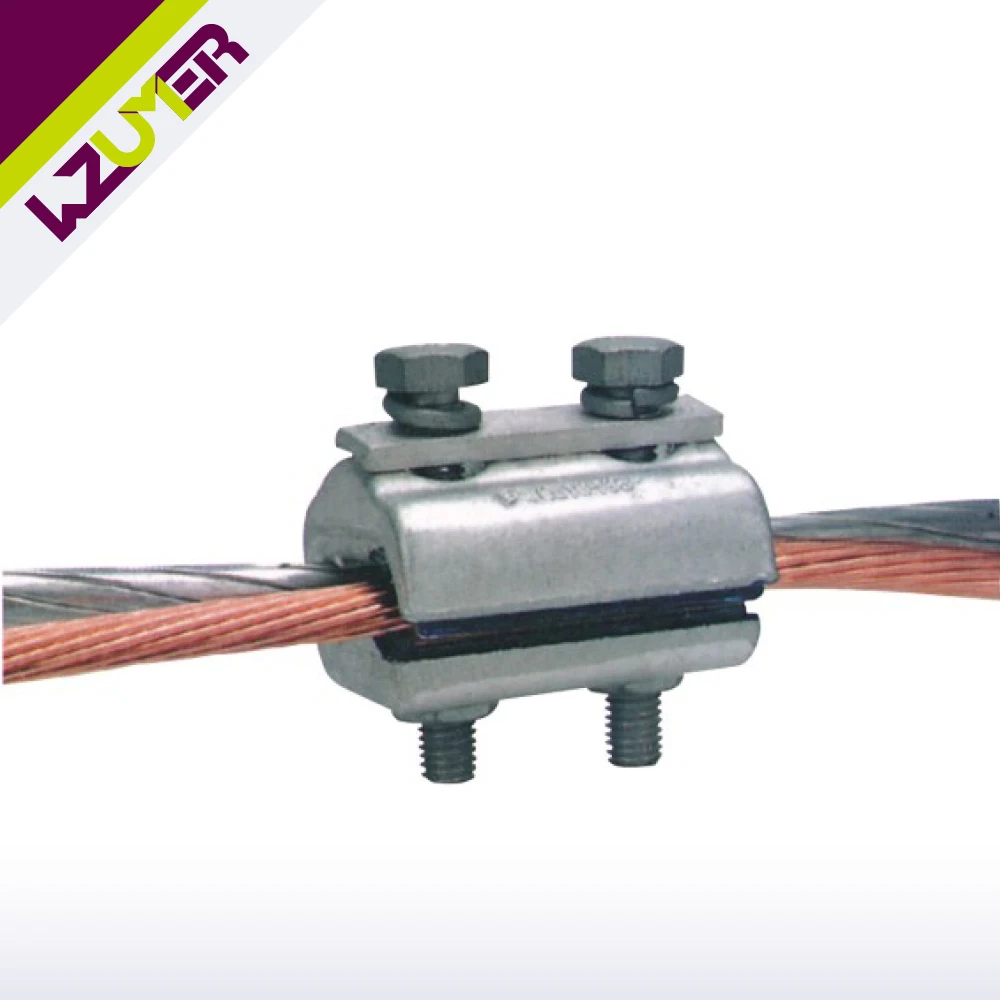

Copper-Aluminium Parellel Groove Clamp(CAPG) is used for the Non-bearing connection and offset of Aluminium stranded wire, copper
cpre aluminium steanded wire, copper brand wire, it is used with insulating cover for the effect of protective and insulation.

Raw Material

Body:High strength, corrosion resistant aluminium alloy and forging bimetal
Readle bar:Aluminium alloy
Spring washer/gasket:Iron DIN6796, corrosion resistant
Bolt:Iron8.8, DIN933, Dacromet plating
The bolt and nut can change to stainless steel material as customer's requirement

Structural Features

1.Choosing the high strength, corrosion resistant aluminium alloy and forging bimetal.
2.Tooth type, small contact resistance, reliable connection.
3.Siamesed parts, will not fall any part during assembly.
4.Hold a large area of arc, the contact surface will be closer which will improve the grip strength between clamps and conductors.

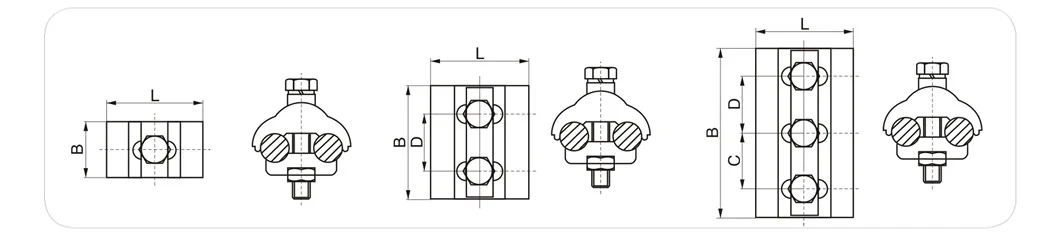

CAPG-A1

Cu 6-50 Al 16-70

1×M8×40

CAPG-A2

Cu 10-95 Al 25-150

1×M8×45

CAPG-B1

Cu 6-50 Al 16-70

2×M8×50

CAPG-B2

Cu 10-95 Al 25-150

2×M8×60

CAPG-B3

Cu 25-185 Al 35-200

2×M10×60

CAPG-C1

Cu 6-50 Al 16-70

3×M8×45

CAPG-C2

Cu 10-95 Al 25-150

3×M8×50

CAPG-C3

Cu 25-185 Al 35-240

3×M10×60

CAPG-C4

Cu 35-240 Al 35-300

3×M10×70
