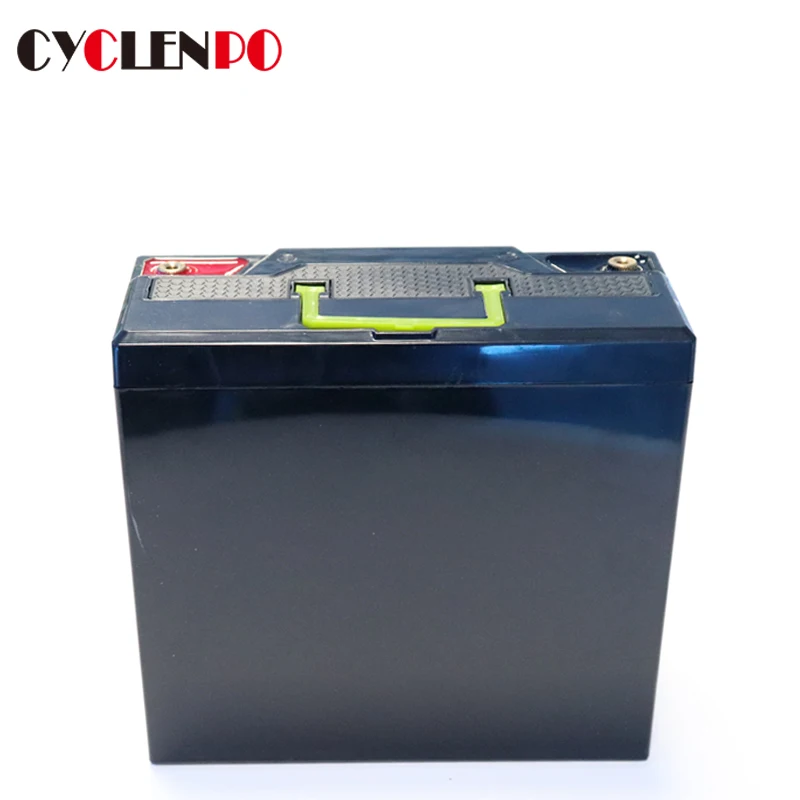

Customized deep cycle lithium lifepo4 12v 30ah lithium ion battery lifepo4 battery 30ah 36ah
- Category: >>>
- Supplier: Shenzhen Cyclen Technology Co. Ltd.
Share on (60797545389):
Product Overview
Description
Product Description
Customized deep cycle 12v 30ah 35ah 36ah lifepo4 battery
CYCLEN is a professional manufacturer offering research, development, production, and sales services of lithium ion battery cell, and battery packs.
We design and manufacture custom-made batteries and cells for the specific needs. Customized lithium lifepo4 battery pack from 3.2V-96V, 10AH-600AH, which can be used in RV ,EV, Solar system, E-bike, UPS, energy storage system, telecommunication base station, E-scooter, E-tools, golf cart, fork lift,cleaning car , electric wheelchair, and other deep cycle application.
NO | Item | General Parameter |
1 | Typical Capacity | 30.0Ah @ 0.2C Discharge |
2 | Standard capacity(0.2C5A) | 30.0Ah @ 0.2C Discharge |
3 | Nominal voltage | 12.8V |
4 | Standard Charge | CC/CV,0.2C 5 A,14.6V |
5 | Standard Discharge | CC,0.2C 5 A, 10.0V |
6 | Cut-off voltage | 14.6V±0.1V |
8 | End-of-charge Current | 0.02C 5 A (At CV mode) |
9 | Quick Charge Current | 15A (0.5C5rate) |
10 | Quick Discharge Current | 30A (1.0C5rate) |
11 | Max Discharge Current | 60A (2.0C5rate) |
12 | Battery dimension | 178*178*127mm |
13 | (Approx.)Total weight(Approx.) | About 4kg |
14 | Operating temperature | Charging: 0℃~45℃ Discharging:-20℃~60℃ |
15 | Storage temperature | -5℃~35℃ |
16 | Storage Humidity | ≤75% RH |
17 | Appearance | Without scratch, distortion, contamination and leakage |
18 | Standard environmental condition | Temperature : 25±2℃ Humidity : 45-75%RH Atmospheric Pressure : 86-106 KPA |
19 | (Max, at 1000Hz.)Impedance(Max, at 1000Hz.) | ≤ 180mΩ |
20 | (CC/CV) Charge method (CC/CV) | Standard |
discharge | ||
storage | ||
cell | Rated voltage/capacity | 32700-3.2V -6Ah |
Weight of the battery single cell | 0.15kg±0.02kg | |
Dimension | 32700mm | |
Working temperature | Charge and discharge at -20℃-60℃ | |
Cycle life | More than 3000 cycle | |
capacity retention rate | ＞90% |
Detailed Images
Lifepo4 12v 6ah battery pack is widely used in the following field:
-Fire control system equipment
-Security&protection system equipment
-Door bell&door lock
-Emergency lighting
-UPS
-Backup power supply
-Security&protection system equipment
-Door bell&door lock
-Emergency lighting
-UPS
-Backup power supply
Reliability Test
Our battery has passed the following tests:
Our battery has passed the following tests:
-High&low temperature performance
-Electrical load maintenance ability
-Constant Humidity & Heat Requirement
-Vibration,bump,free drop,heavy Collision
-Overcharge protection
-Over discharge protection
-Short-circuit Protection
No fire,no smoke,no leak-out and no explosion.
-Electrical load maintenance ability
-Constant Humidity & Heat Requirement
-Vibration,bump,free drop,heavy Collision
-Overcharge protection
-Over discharge protection
-Short-circuit Protection
No fire,no smoke,no leak-out and no explosion.
