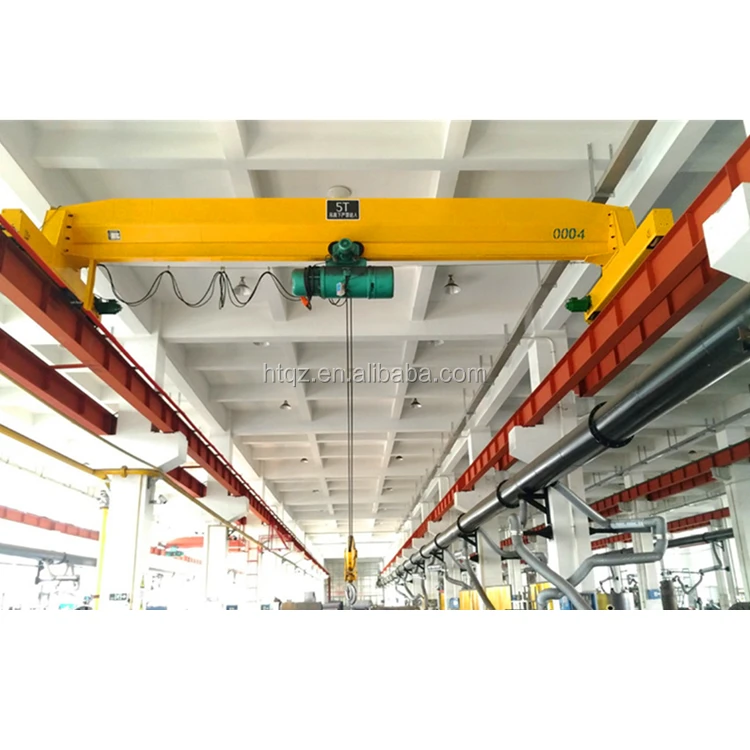

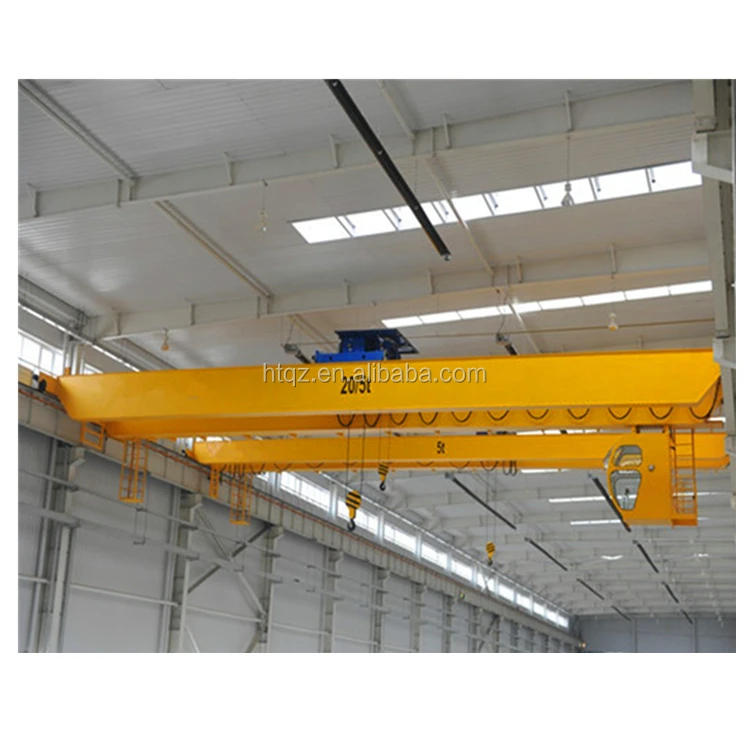

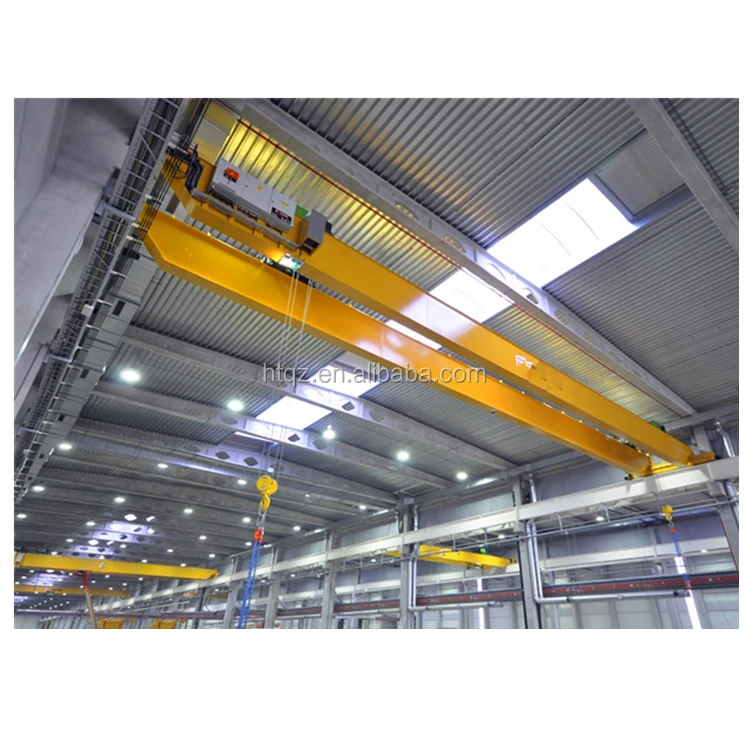

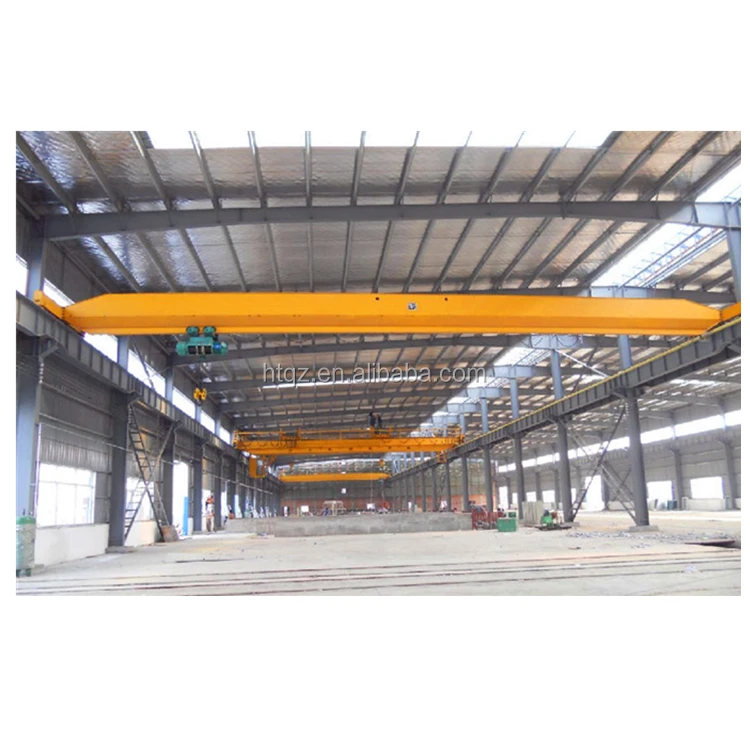

LH Type Electric Hoist Double Girder Bridge Overhead Cranes
$1,800.00-2,000.00
double hook 200t swl double beam overhead crane
- Category: >>>
- Supplier: Henan Hengtai Heavy Industry Group Co. Ltd
Share on (60797693746):
Product Overview
Description
Product Description
mini type electric hoist double girder gantry crane 10 ton 50 ton
A gantry crane is a lifting device used for cargo handling in outdoor places such as warehouse terminals, stations, and construction sites. Within the working radius, the gantry crane can lift, descend and move horizontally to carry out cargo lifting, which greatly reduces physical labor and improves work efficiency.
Detailed Images
mini type electric hoist double girder gantry crane 10 ton 50 ton
According to the industry standard GB/T14406, the gantry crane is mainly composed of the following components
1, cylindrical wheel 2, buffer
3, block brake 4, wire rope
5, lifting hook 6, the driver's office
7, reducer 8, casting pulley
9, casting reel 10, the motor
11, electronic control
1. Ordinary gantry cranes These cranes are mostly box-type and truss-type structures and are the most widely used. It can handle all kinds of articles and bulk materials with a weight of less than 100 tons and a span of 4 to 39 meters. Ordinary gantry cranes with grabs have a higher working level. Common gantry cranes mainly refer to hooks, grabs, electromagnetic, hoist gantry cranes, and also include half-gantry cranes.
2. Hydropower station gantry cranes are mainly used for lifting and opening and closing gates, and can also be installed. The lifting capacity is 80~500 tons, the span is small, 8~16 meters; the lifting speed is low, 1~5 meters/min. Although such cranes are not often lifted, they are very heavy once they are used, so it is necessary to raise the level of work.
3. Shipbuilding gantry cranes are used to assemble hulls on the hull. There are two hoisting trolleys: one with two main hooks running on the rails on the upper flange of the bridge; the other with one main hook and one auxiliary hook. Running on the rails of the lower flange of the bridge to flip and hoist large hull sections. The lifting capacity is generally 100~1500 tons; the span is 185 meters; the lifting speed is 2~15 meters/min, and the fretting speed is 0.1~0.5 m/min.
Product Overviews
mini type electric hoist double girder gantry crane 10 ton 50 ton
Loading capacity | 5 ~ 500t |
Lifting height | 3 ~ 30 m or customized |
Lifting speed | Vary with lifting capacity, or customized. |
Span | 10.5~31.5 m/min |
Lifting mechanism | Wire rope hoist or electric chain hoist |
Working class | A5-A8 |
Working temperature | -20~40 |
Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
Control voltage | DC -36 / 48V |
Motor protection class | IP54 IP55 IP65 |
Control way | Cabin, wireless remote, pendant push button |
Safety device | Buffer,current overload protection,overload device |
Application area | Factory,workshop,warehouse,power station, |
Company Information
Since 1995,more than 20 years crane, hoist and winch produce Experience; Send Inquiry
The only designated supplier for China War Industry and Aerospace Lifting Equipment;
Asian biggest crane production independent workshop with 40,000 square meters;
> 6S management system with strict quality control;
Packaging & Shipping
FAQ
mini type electric hoist double girder gantry crane 10 ton 50 ton
1.Q:Can you accept payment terms?
A:T/T,L/C,Western union3.
2.Q:Delivery time?
A:10~20days
3.Q:Can you provide OEM/ODM?
A:Allowed OEM/ODM;
4.Q:Warranty?
A:One year for the whole machine ,half year for electric appliance.
5.Q:Does your products can be customized?
A:Yes,our all kinds of jib crane can be customized design according to each client's demands.
6.Q:What kinds of certificates about your products?
A:Normally,we have CE,ISO,SGS certificates,of course our products make some other certificates according to our clients' specific requirements.
7.Q:What kinds of jib crane you can offer?
A:We can produce column mounted jib crane,wall mounted jib crane,wall travelling jib crane type.
