automatic Rubber Mixing Mill Machine/rubber mill/rubber granule mixing mill machine
- Category: >>>
- Supplier: Qingdao Jiuzhou Jucai Machine Co. Ltd.
Share on (60797697709):
Product Overview
Description
Product Description
Product Application

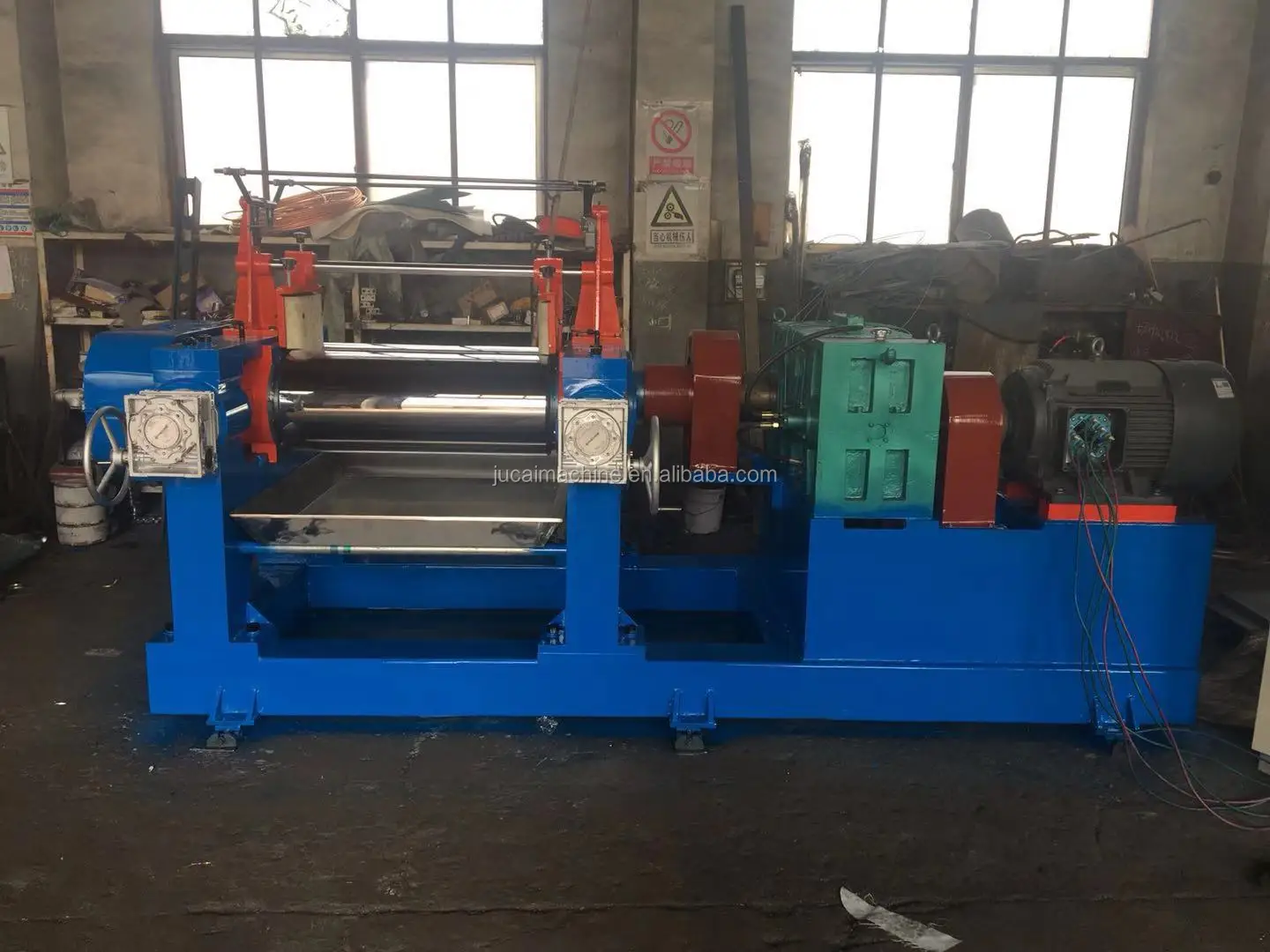

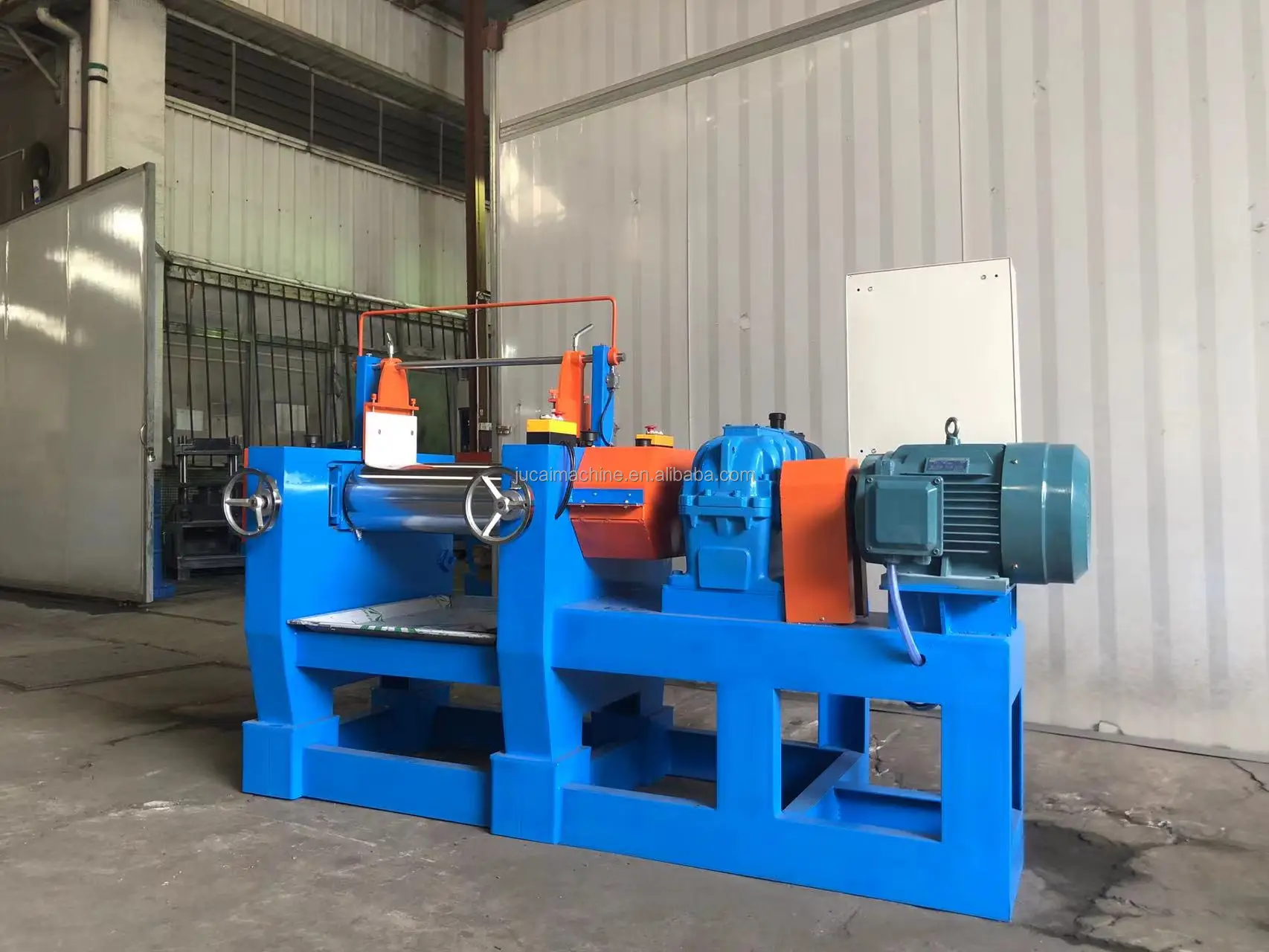

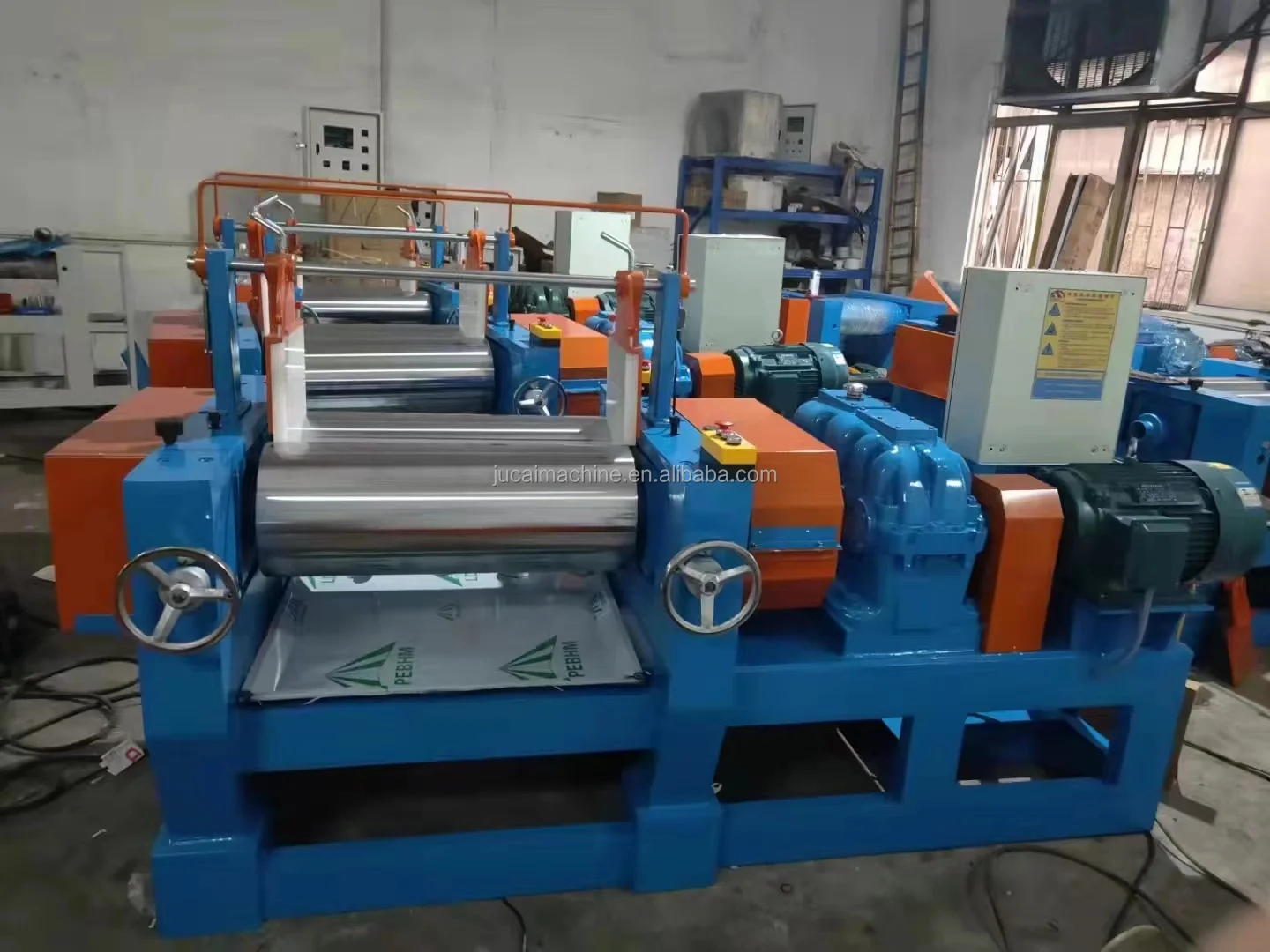

This machine mainly consists of rollers , ZQbull gearbox (except XK-160), electrical cabinet ,nylon bush transmission device , main motor , etc . It is widely used for mixing , warming and sheeting rubber , etc .
Main Features

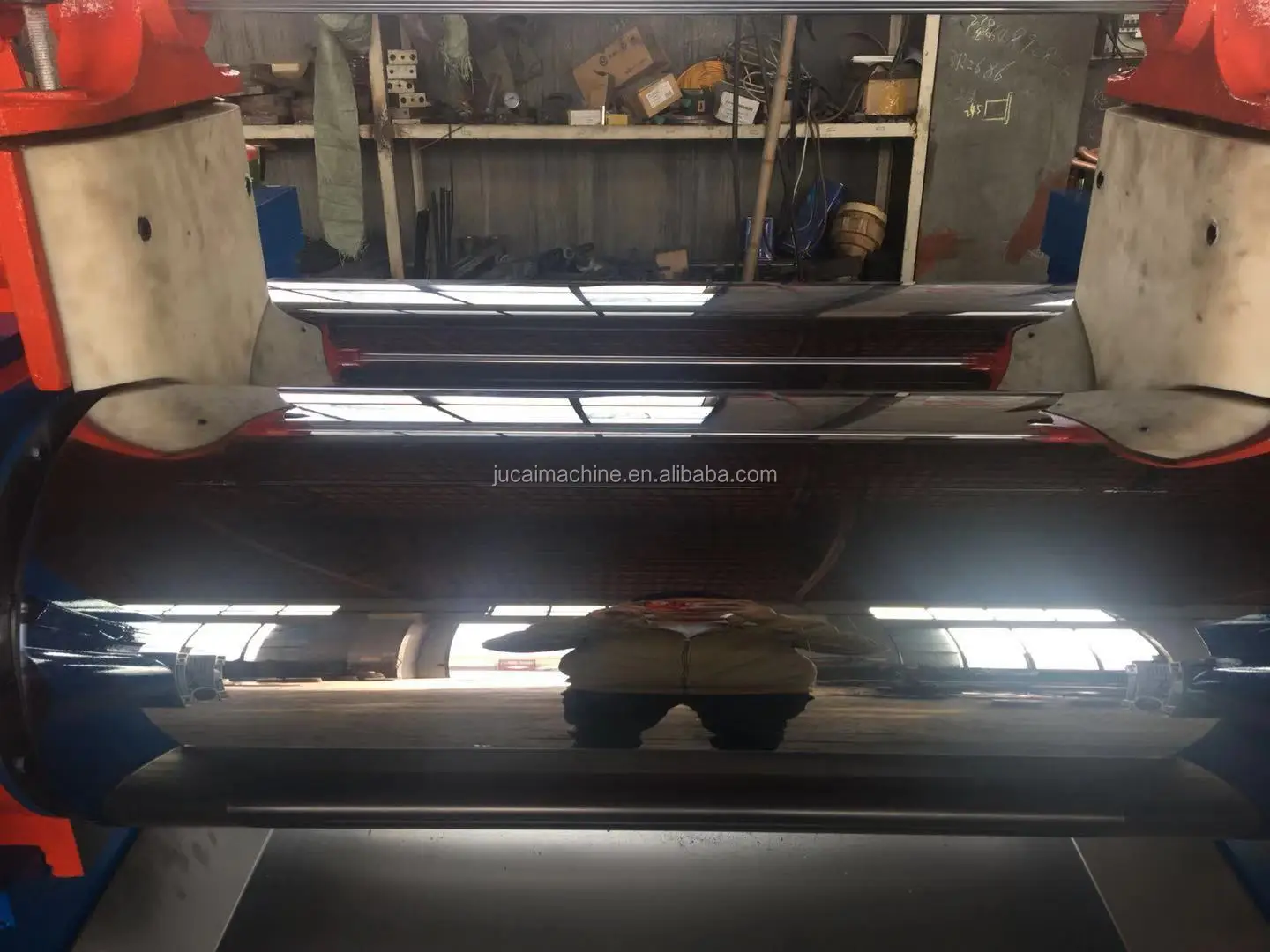

1.The roller is made of alloy chilled cast iron .Their surfance are hard and wear resistance . Its hardness of surface is HRC68-75
2.The end of rollers are supported by the roller ball bearing bush .It has the advantages of running smoothy ,energy saving , low noise and long life
3.The roll gap adjustment is manual control type . It is simple for operation
4.The machine is equipped with overloading protection device , in order to protect the main parts from being damanged
5.The machine adopts the single drive type transmission structure . It adopts the nylon pin coupling to prevent main parts from being damanged due to the overload of transmission part
6.The base is integral type , the transmission mode is of closed transmission . so it is safe and easy for use
7.The machine is installed with the emergency button and pulling rope as the safety device
8.This machine are installed with four sets lubrication device and suitable for grease lubrication

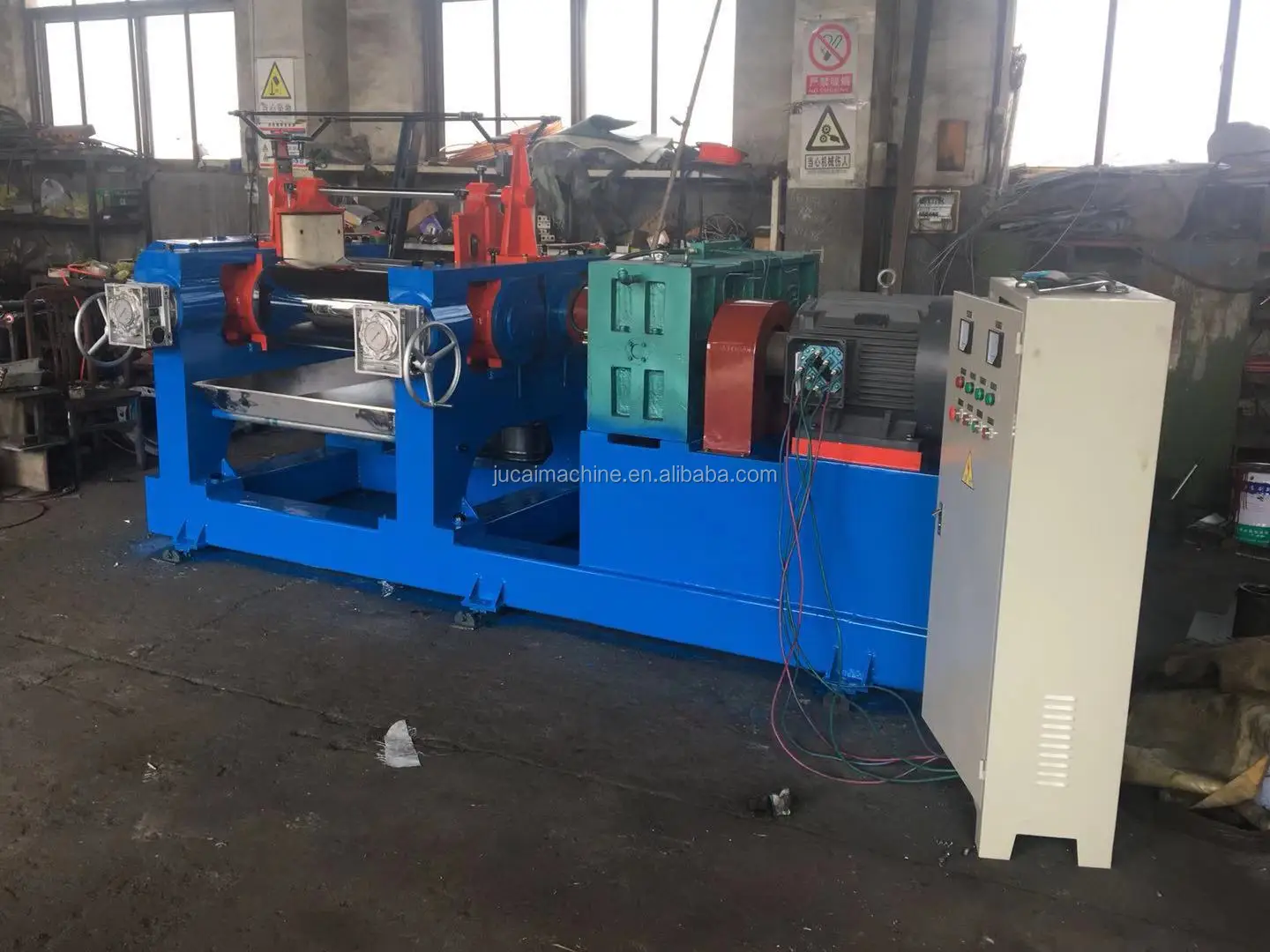

9.The machine adopts the PLC control cabinet , the machine will be suitable for your local industrial voltage and frequency
Model | XK-160 | XK-250 | XK-360 | XK-400 |
roller diameter | 160 | 250 | 360 | 400 |
roller length | 320 | 620 | 900mm | 1000 |
front roll linear speed | 9 | 15.1 | 16.25 | 18.65 |
friction ratio | 1:1.35 | 1:1.1 | 1:1.25 | 1:1.27 |
batch capacity | 1-2 | 10-15 | 20-25 | 18-35 |
driving motor | 5.5 | 18.5 | 30 | 37 |
machine size | 1380*860*1320 | 3400*1350*1500 | 3940*1780*1740 | 4200*1850*1870 |
weight | 1000 kg | 3500 kg | 5600 | 7600 |
model | XK-450 | XK-550 | XK-560 |
roller diameter | 450mm | 550mm | 560/510mm |
roller working length | 1200mm | 1500 | 1500 |
front roll linear speed | 24.5 | 27.94 | 27.87 |
frictio ratio of roller | 1:1.27 | 1:1.22 | 1:1.2 |
motor | 55 | 110 | 90 |
Batch capacity | 25-50 | 50-60 | 50-60 |
machine size | 5200*2380*1770 | 5900*2680*2080 | 6500*2300*2000 |
machine weight | about 12000 kg | 27000 kg | 19500 kg |
1.Are your company a trading one or a factory?
Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.
