Product Overview

Description





General introduction

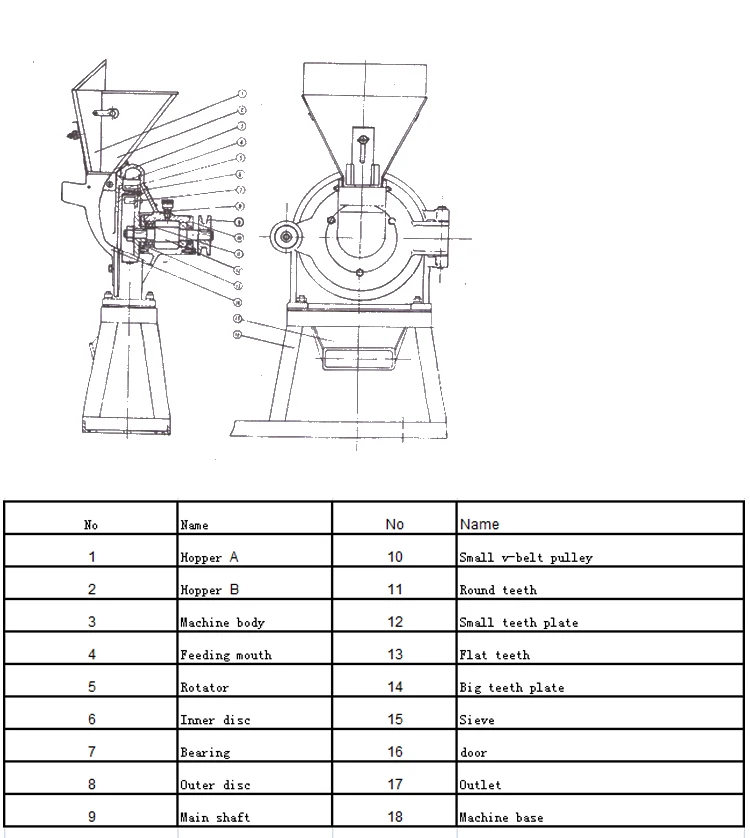

FFC 45D is composed of feeding system, crushing system (rotator, main shaft, flat teeth, round teeth, sieve), and material discharging system (wind blower, material collecting cylinder, dust collecting bag). It is widely used all purpose crushing machine, suitable for all materials that are required to cut smaller or be made to powder. It is high efficient, no special requirement for workshop and operator, practical and functional. It is mostly popular among town or rural area small and medium scale grain processing factories or animal feed factories.



Work process

Raw material flows into silo via a hopper, then into crushing room and get smashed to be crushed between rotating teeth and fixed teeth. Crushed material is discharged out of machine at outlet via sieve.



Work principle

When disk mill is working, round teeth of moving teeth disc is moving between flat teeth of fixed teeth disc. When raw material comes to feed, it is impacted, smashed and rubbed. Finally a substance of powder and grit mixture is discharged out of machine. Line speed of moving teeth is 80-85m/second. Gap between moving teeth and sieve is 16-20mm. Gap between moving teeth and fixed teeth is 3.5mm. The speed and gap is enough to give strong crushing power.



Advantages and wide application

1)Disk mill is suitable for home, small factory or unit use.

2) It is small, strong and reliable. It can use single phase 2.2kw motor. It can work without motor power.

3)It is mostly wide use crushing machine. In life and industrial activities, it is really an ideal all purpose crushing machine.



1) All kind of grains of corn, sorghum, rice, soybean, etc.

2) Water soaked soybean.

3) All kind of animal feed

4) Chemical industrial material

5) Herbal medicine

6) Agricultural plant including fresh sweet potato, fresh potato, pepper, fresh fruit, etc.

7)  Pepper etc spice material

8) Peanut hull,  rice hull, wheat hull, corn cob, tree bark, leaves, straws.\\

9) Shrimp, fish powder, sea food

10) Dehydrated vegetables, cakes, tea. Etc.





Model	FFC-45D
Brand	Kingrunda
Usage area	All purpose
Crushing fineness	12-40 mesh
Capacity	500-550kg/hour
Motor power	15kw
Weight	320kg
Main shaft R/min	3000-3500
Rotator outer diameter	450mm
Flat teeth qty	hammer 20pcs
Round teeth qty	2 pc
Outer dimension	1200x1120x2000mm



Production capacity for different grain material
Material	Sieve hole size(mm)	Mesh	Capacity (kg/H)
Corn	1.2	20	1800
Soy bean	0.6	40	500-550
Millet/sorghum	0.5	60	500-550
Soy bean cake	0.5	60	1600



CAPACITY
Acticles	Sieve size of screen(mm)	output(kg/hours)
		FFC-45	FFC-37C	FFC-23C	FFC-15
corn	1.2	480	380	190	28
Soyabeans	0.6	250	210	80	12
sorghum	0.6	350	280	110	15
Dried sweet-potato silces	0.6	750	600	·	·
Soyabeans cake	3.5	1100	820	·	·
Soaked soyabeans	3.5	·	·	104	·
Soaked soyabeans	1.2	·	·	·	16
jingjie(chinese herbal medicine)	0.6	·	·	33	12
Da Huang(chinese herbal medicine)	0.6	·	·	·	15
TECHNICAL DATA
Type	Motor	Packing size	Speed	Weight	20‘ Packing quantity
FFC-15	1.1KW	500*245*285	2840RPM	18KG	824PCS
FFC-15	168F	560*250*250	2840RPM	18KG	752PCS
FFC-23	3KW	510*510*420	2840RPM	65KG	220PCS
FFC-37	7.5KW	870*670*658	1455RPM	150KG	72PCS
FFC-45	11KW	880*640*670	1455RPM	200KG	63PCS
