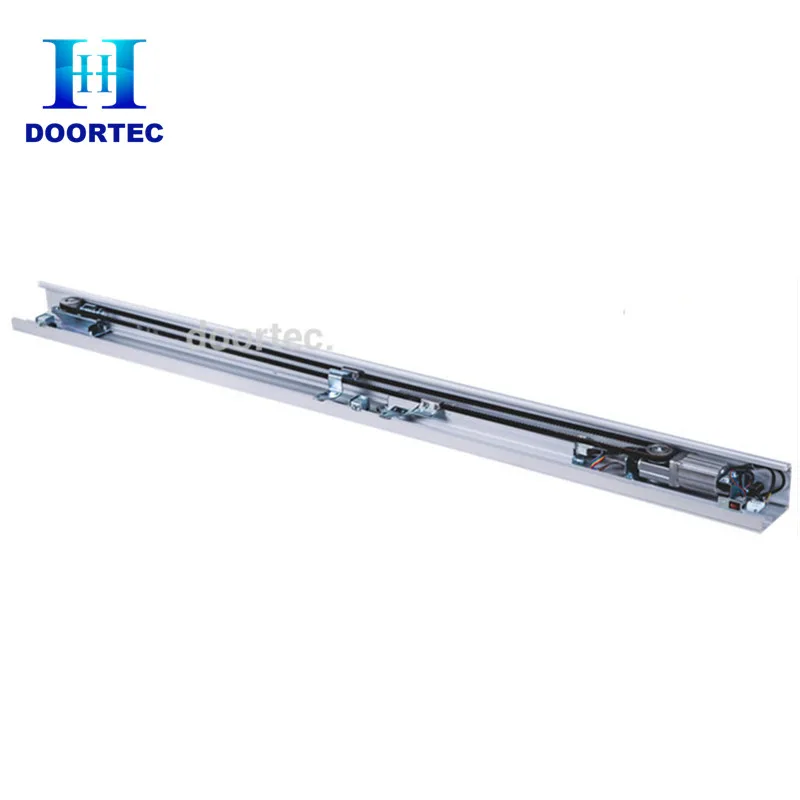

Doortec standard type automatic door glass sliding door operator with sensor 55w motor door opener system mechanism HH130

AUTOMATIC DOOR SLIDING DOOR OPERATOR

                                                           WITH DIGITAL DISPLAY CONTROLLE(HH130)

AUTOMATIC DOOR SLIDING DOOR OPERATOR(HH130)

Technical specifications:

Product features:

Microprocessor control technology and advanced mechanical manufacture.
Self-learning when power on, this function is selectable by user.

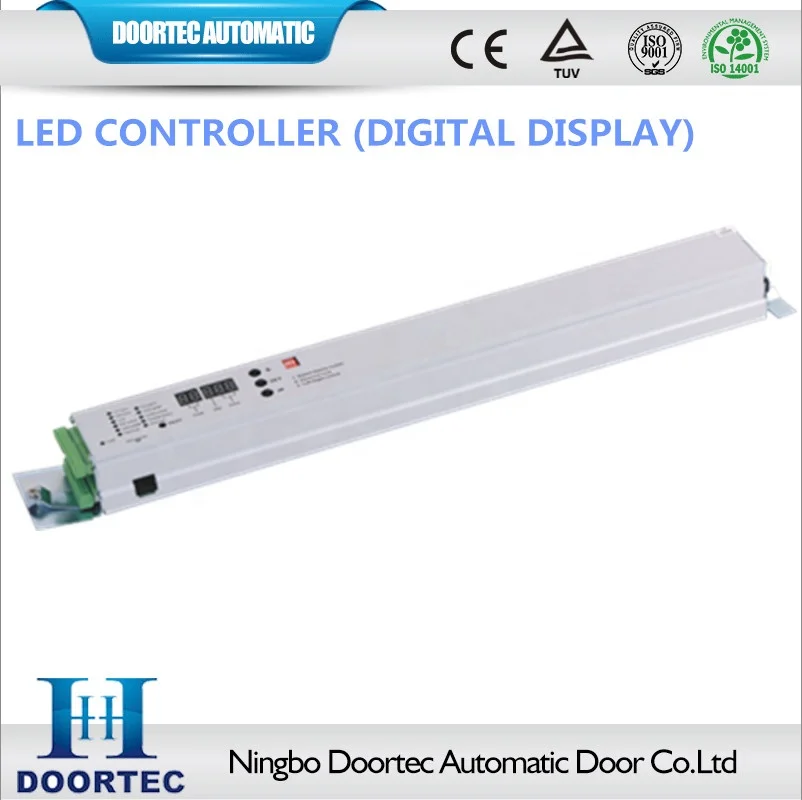

Digital screen, easy and exact to adjust working data.
Brushless DC motor, long working life and low noise ( less then 40dp).
Anti-clamp when close and open.
Function terminals for electronic lock, access keypad, function keypad, function
remote and so on.
Special terminals for anti-clamp side sensor, more safety.

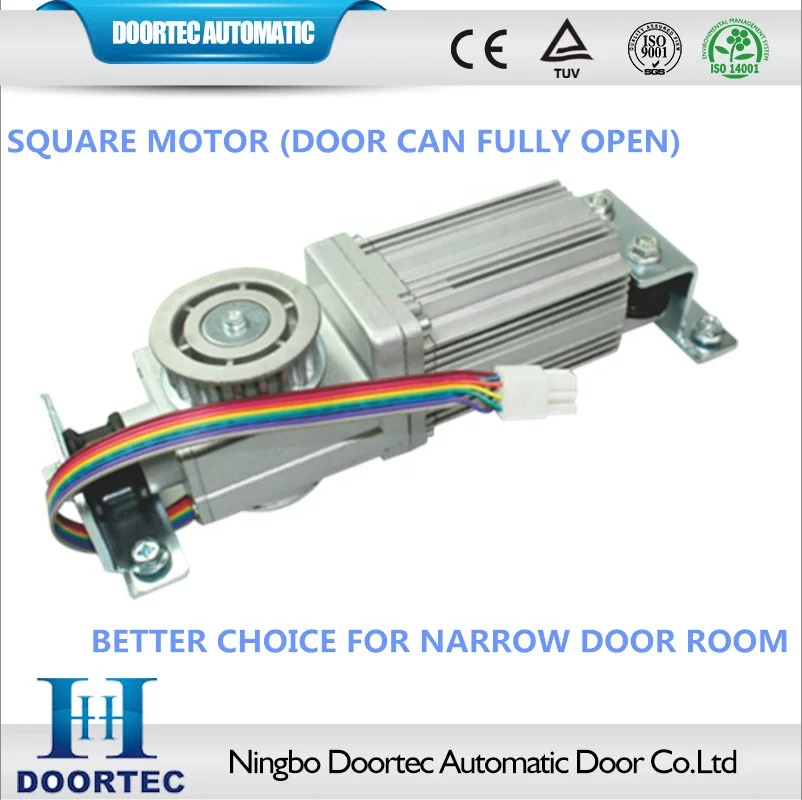

Square motor for narrow door entrance (HH130).

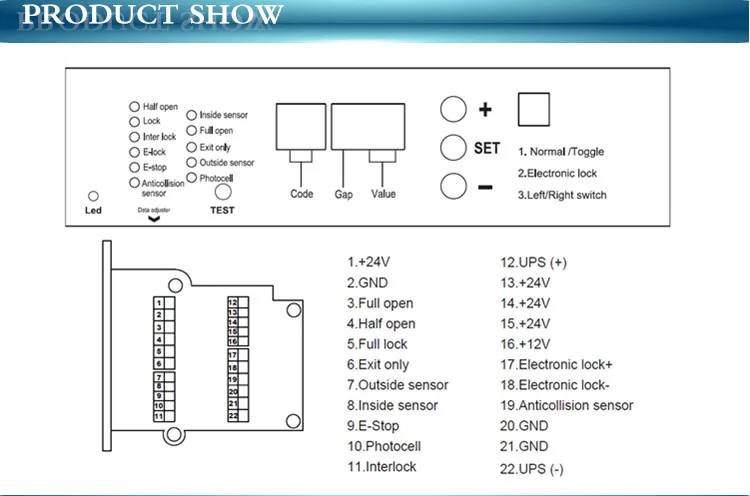

Terminal details of controller

controller with operating distance memory, if need set a new operating distance should follow these step
1.Keep press the test button before power on
2.Keep press the test button 3seconds
3.The learning mode is entered after digital display show 12121

Doortec Automation Co.,Ltd. is a leading manufacturer of automatic sliding door ,automatic swing door ,automatic folding door,telescopic door,hospital door,break up system ,sensors ,control systems and releative accessories .
