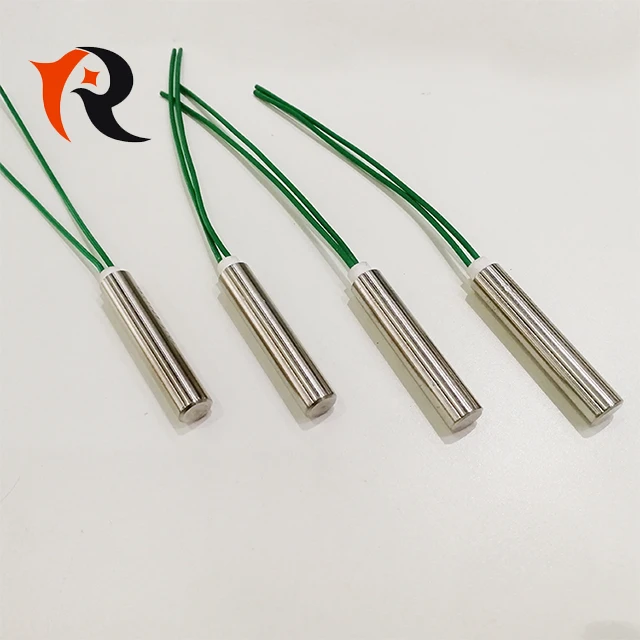

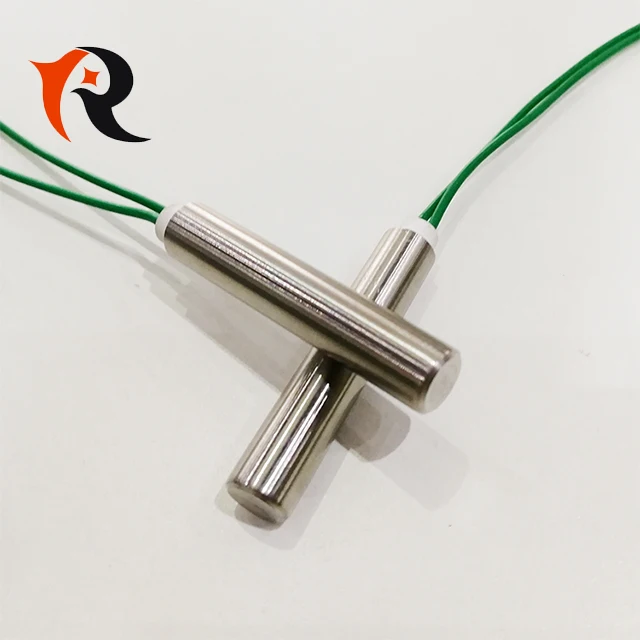

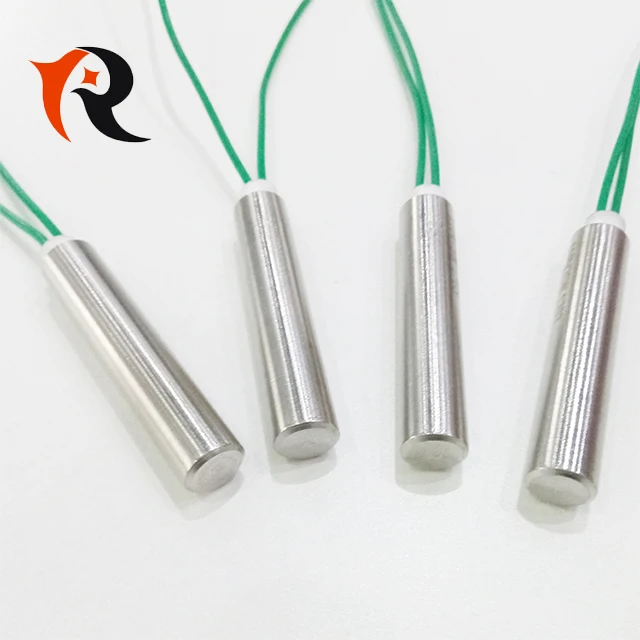

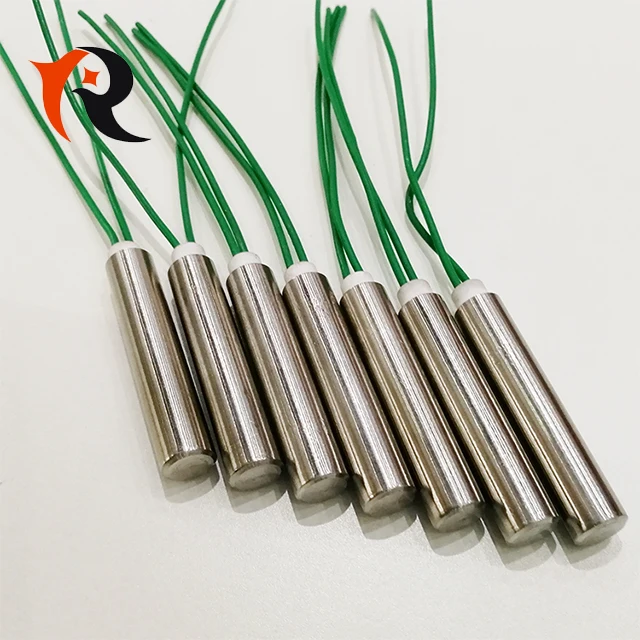

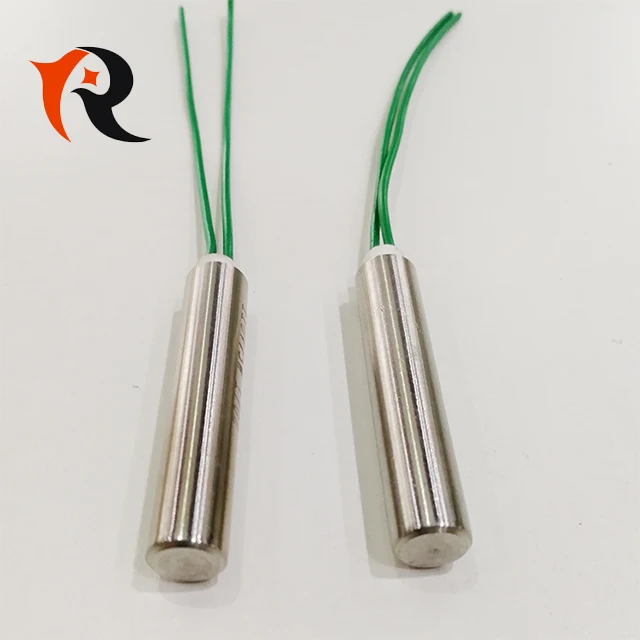

Нагреватель картриджа высокой плотности с одной головкой нагреватель картриджа 220 В 350 Вт
- Category: >>>
- Supplier: Yancheng Xinrong Electronic Industries Co. Ltd.
Share on (60797871402):
Product Overview
Description
Product Description
Cartridge heaters are an extraordinarily versatile and durable product that is used to heat a myriad of different processes from heavy industrial – plastics and packaging applications to critical care medical devices and analytical test instruments to being used on aircrafts, railcars and trucks. Cartridge heaters are capable of operating at temperatures of up to 750℃ and achieving watt densities of up to 30 watts per square centimeter. Available from stock or custom manufactured to your individual application need, they are available in many different imperial and metric diameters and lengths with many different style terminations, wattage and voltage ratings.
Cartridge heaters are an excellent choice to use as a conductive source for heating solid metal plates, blocks and dies or as a convective heat source for use in a variety of liquids and gases. Cartridge heaters can be used in a vacuum atmosphere with proper design guidelines.
Cartridge heaters are an excellent choice to use as a conductive source for heating solid metal plates, blocks and dies or as a convective heat source for use in a variety of liquids and gases. Cartridge heaters can be used in a vacuum atmosphere with proper design guidelines.

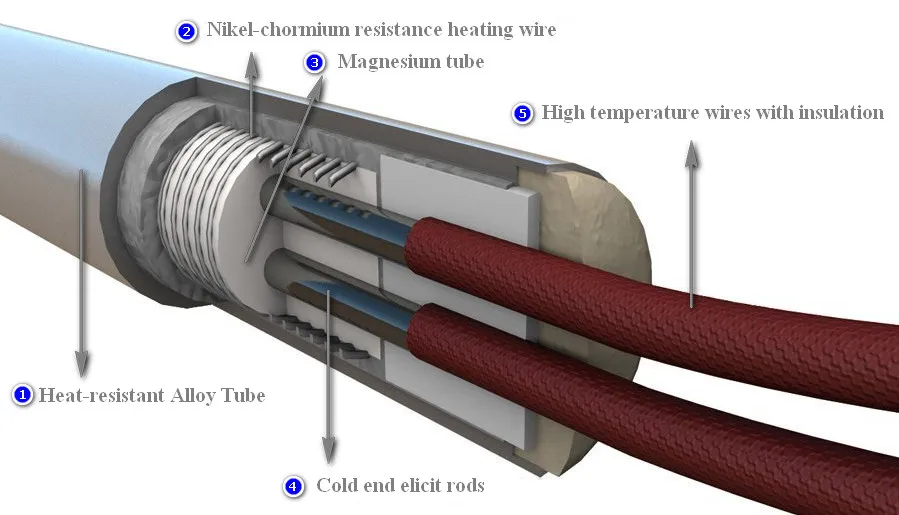

Item name | High power water heating element cartridge immersion heater |
Resistance heating wire | Ni-Cr or FeCr |
Sheath | stainless steel 304,321,316, Incoloy 800, Incoloy 840, Ti |
Insulation | High-purity Mgo |
Maximum temperature | 800 degree Celsius |
Leakage current | 750℃,＜0.3mA |
Withstand voltage | ＞2KV， 1mins |
AC on-off test | 2000 times |
Voltages available | 380V,240V, 220V,110V,36V,24V or 12V |
Wattage Tolerance | +5%, -10% |
Thermocouple | K type or J type |
Lead wire | 300mm length; Different type of wire (Teflon/silicone high temperature frberglass) is available |
Specification
Size (Dia*L mm) | Power (low density W) | Power (high density W ) | Size (Dia*L mm) | Power (low density W) | Power (high density W) |
φ6*60 | 60 | 120 | φ14*100 | 200 | 450 |
φ6*100 | 100 | 200 | φ14*120 | 250 | 520 |
φ6*200 | 190 | 350 | φ14*150 | 330 | 650 |
φ8*50 | 65 | 120 | φ14*200 | 400 | 880 |
φ8*100 | 125 | 250 | φ14*250 | 550 | 1000 |
φ8*150 | 200 | 350 | φ14*300 | 650 | 1300 |
φ8*200 | 250 | 500 | φ16*100 | 250 | 500 |
φ10*60 | 100 | 200 | φ16*120 | 300 | 600 |
φ10*80 | 125 | 250 | φ16*150 | 350 | 750 |
φ10*120 | 200 | 375 | φ16*200 | 500 | 1000 |
φ10*150 | 235 | 475 | φ16*250 | 600 | 1250 |
φ10*200 | 300 | 600 | φ16*300 | 750 | 1500 |
φ10*300 | 470 | 900 | φ18*100 | 250 | 550 |
φ12*60 | 115 | 225 | φ18*150 | 400 | 850 |
φ12*100 | 200 | 375 | φ18*200 | 550 | 1150 |
φ12*120 | 225 | 450 | φ18*300 | 850 | 1500 |
φ12*150 | 280 | 550 | φ20*100 | 300 | 650 |
φ12*200 | 375 | 750 | φ20*150 | 450 | 950 |
φ12*300 | 550 | 1000 | φ20*300 | 950 | 1800 |
Other specification customized

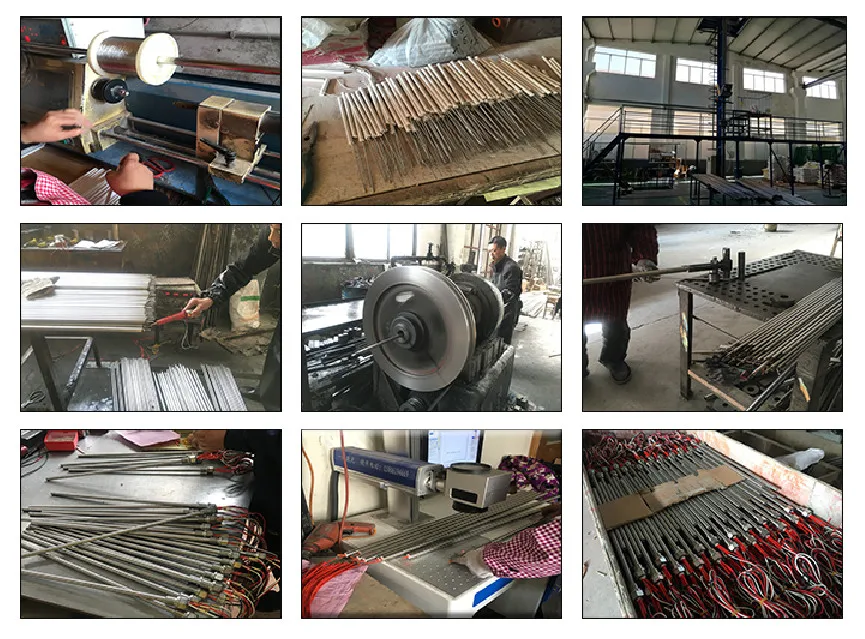

Product Process

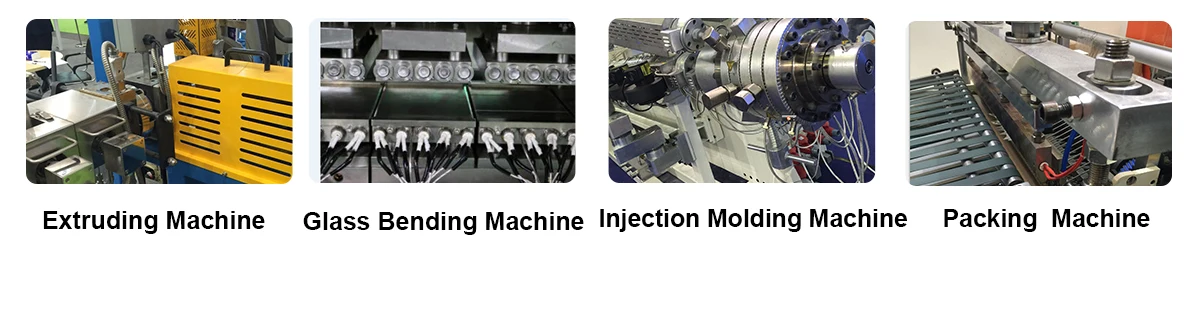

Application
* Liquid Immersion
* Plastic Molds
* Labeling/Sealing
* Medical Equipment
* Packaging Equipment
* Hot Stamping
* Plastic Molds
* Labeling/Sealing
* Medical Equipment
* Packaging Equipment
* Hot Stamping
* 3D Printers
* Hot runner systems - Heating of manifolds
* Laboratories - Heating of analytical equipment
* PCB Equipment, Smokeless barbecue furnace
* Glass Bending Machine, Hole Punched
* Injection Molding
* Hot runner systems - Heating of manifolds
* Laboratories - Heating of analytical equipment
* PCB Equipment, Smokeless barbecue furnace
* Glass Bending Machine, Hole Punched
* Injection Molding
Company Profile
Yancheng Xinrong Electronic Industries Co.,Ltd
is a comprehensive high-tech enterprise focusing on design, production and sales for electric heating equipment and heating elements, which is located on Yancheng City, Jiangsu Province, China. For a long time, our company is specialized on supplying the superior technical solution, our products have been export to many countries.
Our Company adhere to the “Be strategic Partner With Our Customers”business philosophy, and insist to be“the comprehensive enterprise with high quality and excellent service”.We would like to provide best support to environmental protection industry.
Main Products: electric tubular heating elements, heating pad, and electric Heating Equipment.
Our Company adhere to the “Be strategic Partner With Our Customers”business philosophy, and insist to be“the comprehensive enterprise with high quality and excellent service”.We would like to provide best support to environmental protection industry.
Main Products: electric tubular heating elements, heating pad, and electric Heating Equipment.
Why Choose Us
"Quality First, Customer First"
We believe that quality and customer satisfaction are key factors for enterprise
development. Only by adhering to this concept, an enterprise can establish an excellent brand and achieve long-term market competitiveness.
development. Only by adhering to this concept, an enterprise can establish an excellent brand and achieve long-term market competitiveness.
In order to ensure the production of high-quality, safe and reliable products, our company has established a complete quality
control system to ensure that every process meets the required standards. We strictly control the quality in every link from the
selection and inspection of raw materials to product processing and quality inspection to ensure that every finished product meets
the requirements of customers.
