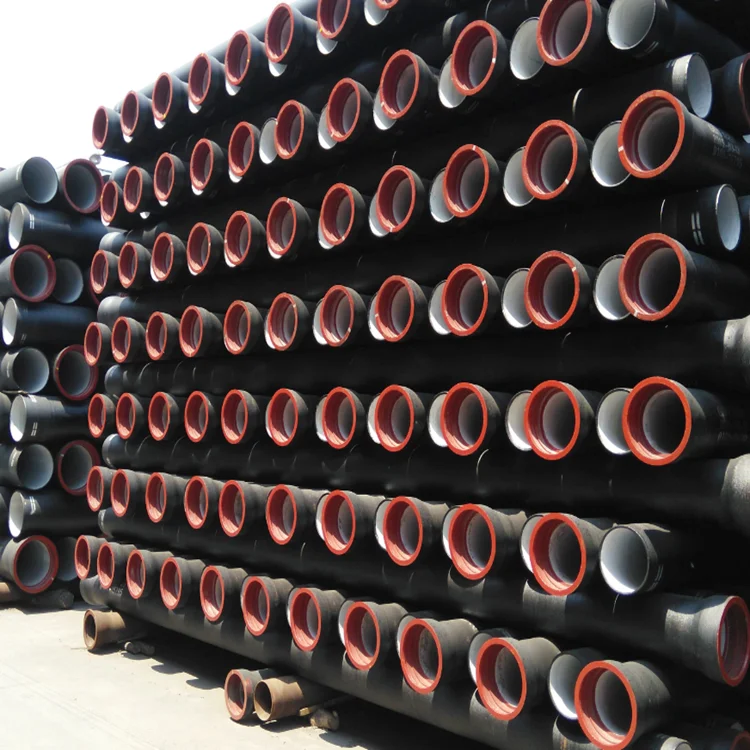

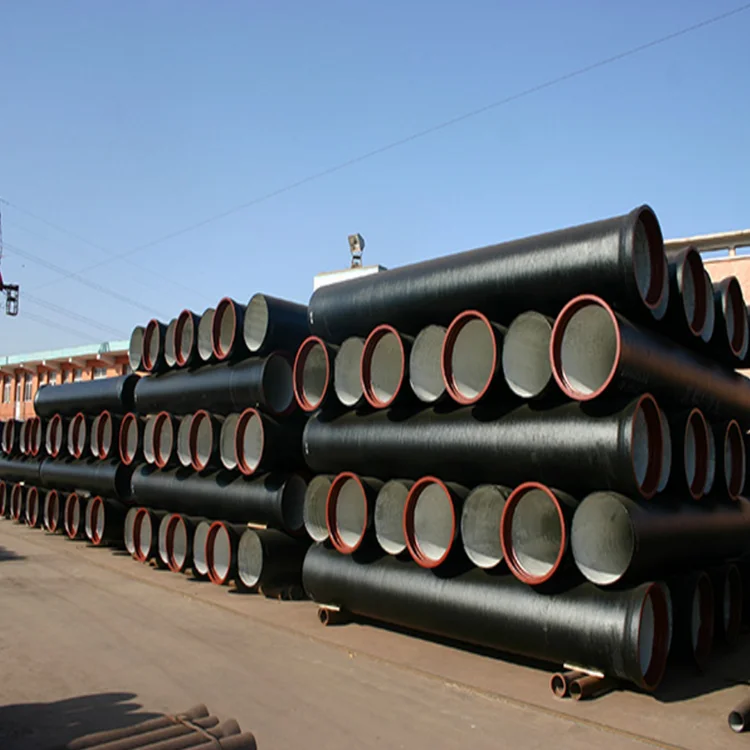

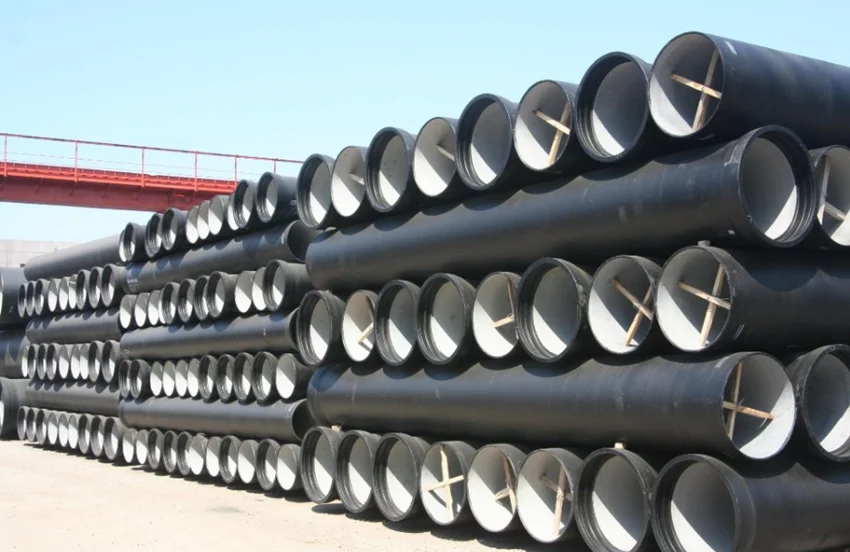

Price K9 Ductile cast iron DI Pipe

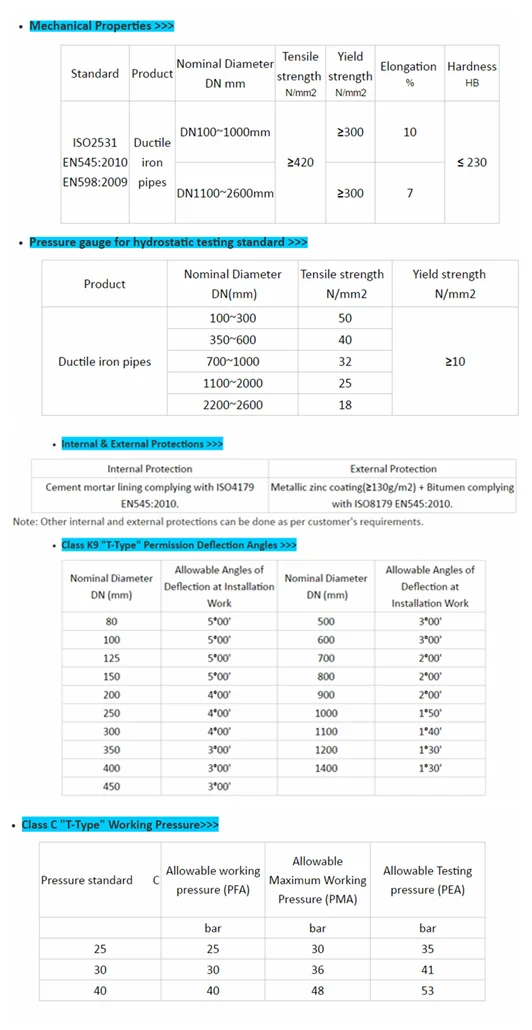

Specifications:

1)  The standard of pipe: ISO 2531, EN545 , EN598.

2)  Pipe class: K9, C40, C30, C25, etc.

3)  Pipe joint: push-on joint(Tyton joint), K type joint, self-restrained joint

4)  Effective length: in general, the pipe length is 6m for bulk shipment and  5.7m for container shipment.

5)  Internal lining: cement mortar lining as per ISO4179

6)  Zinc coating: at least 130g/m2 as per ISO 8179

7)  Bitumen painting: at least 70um as per ISO 8179

8)  Gaskets are NBR rubber, natural rubber, SBR rubber or EPDM rubber ring as per ISO4633

9)   DN 80 - 2,600 mm

10)   High strength, lighter than gray iron, good corrosion resistance, no furring, small flow resistance, easy fixing, long life time

11)   Checked by automatic inspection equipment

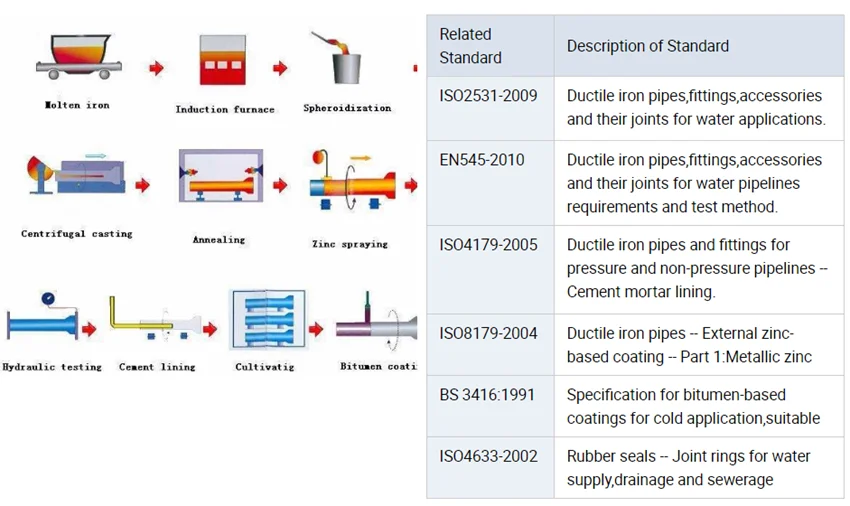

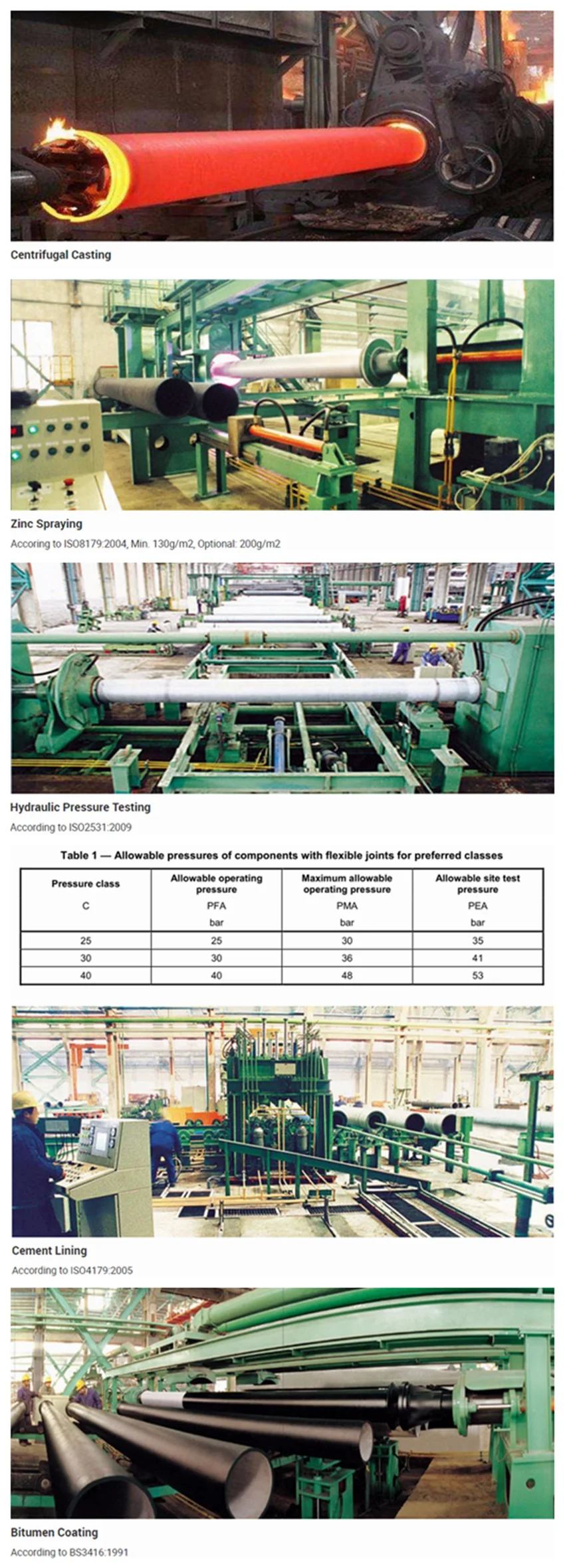

Process line :

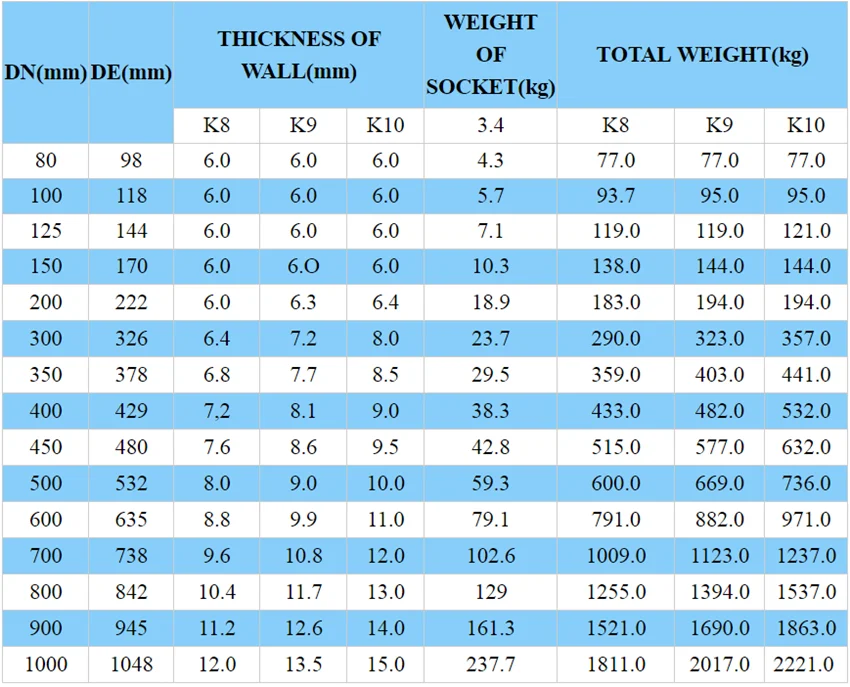

Weight:

Application:

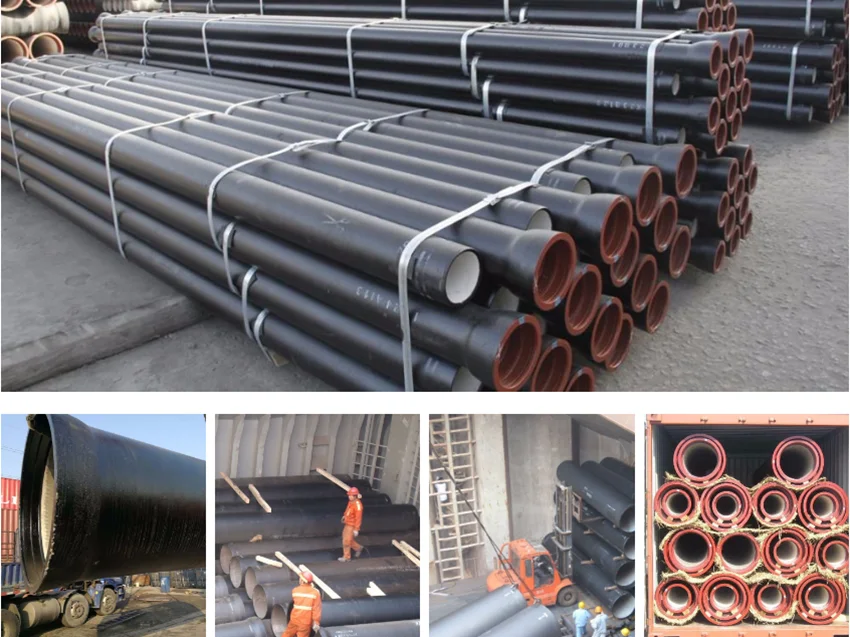

Packing: bundled with steel belts or in bulk

Shipment: in bulk or container

 We are one of the leading manufacturers steel products and stainless steel products . Our products are made according to different standards, such as ISO2531, EN545, EN14525, ISO4422, ISO7005, DIN3352, BS5163, DIN3202, BS2494, BS4504, EN124 and other relevant ISO, EN, BS, DIN and ANSI standards. Moreover, our products have been selling well in European, Middle East, Southeast Asian, South African and South American countries for more than 10 years. We can also make the castings and forgings according to customers' drawings or samples. Presently, we are looking forward to your inquiries and to establishing long term cooperation relationship based on mutual benefits.
