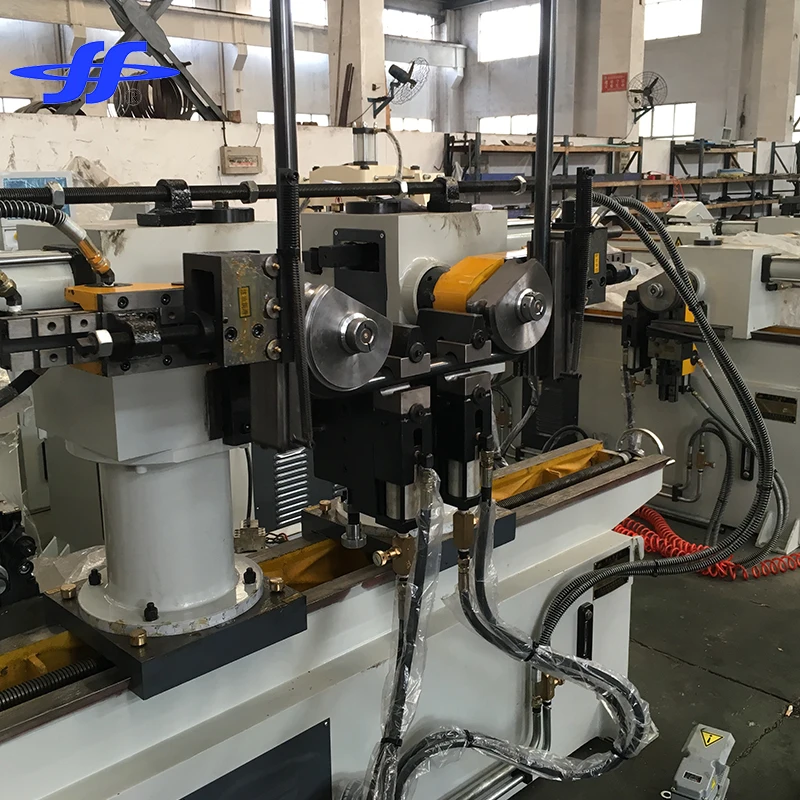

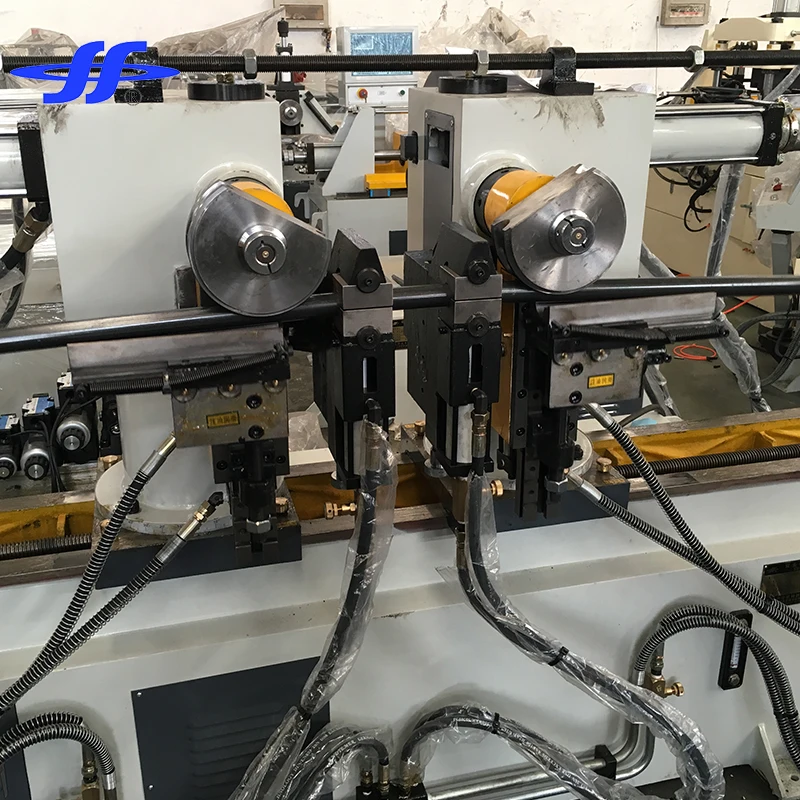

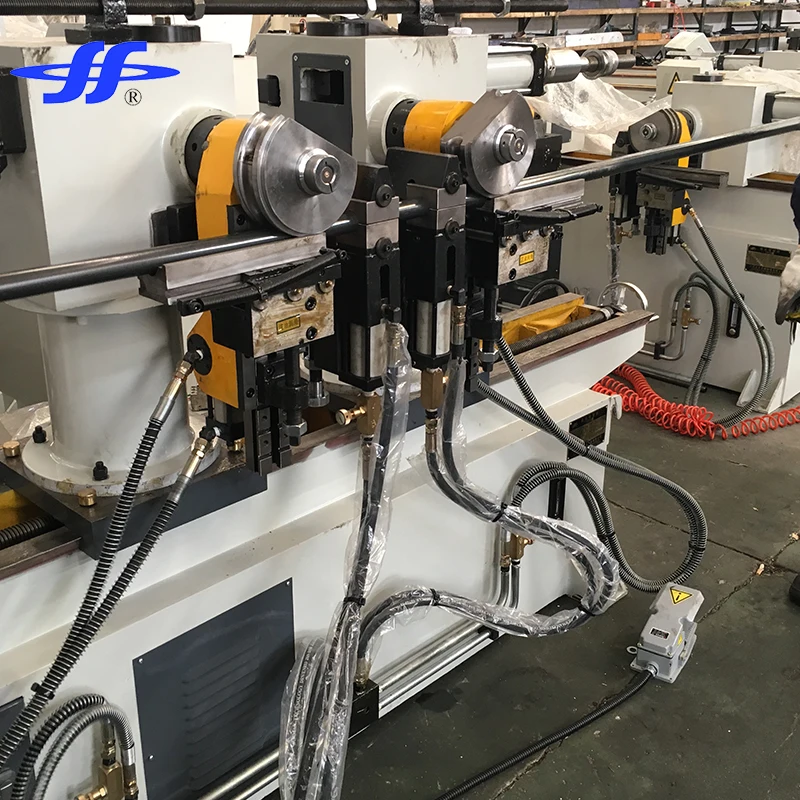

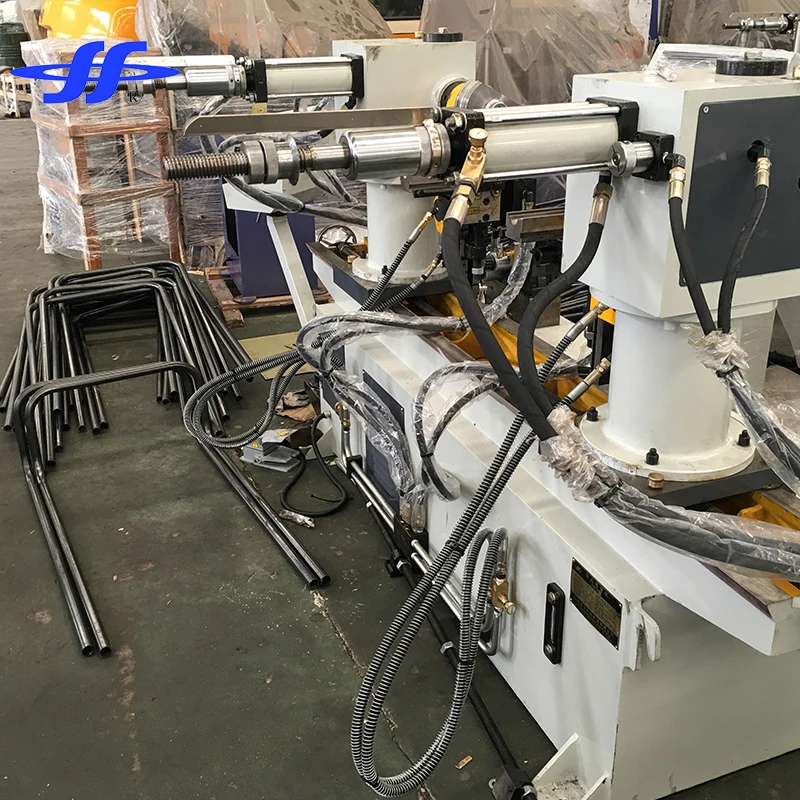

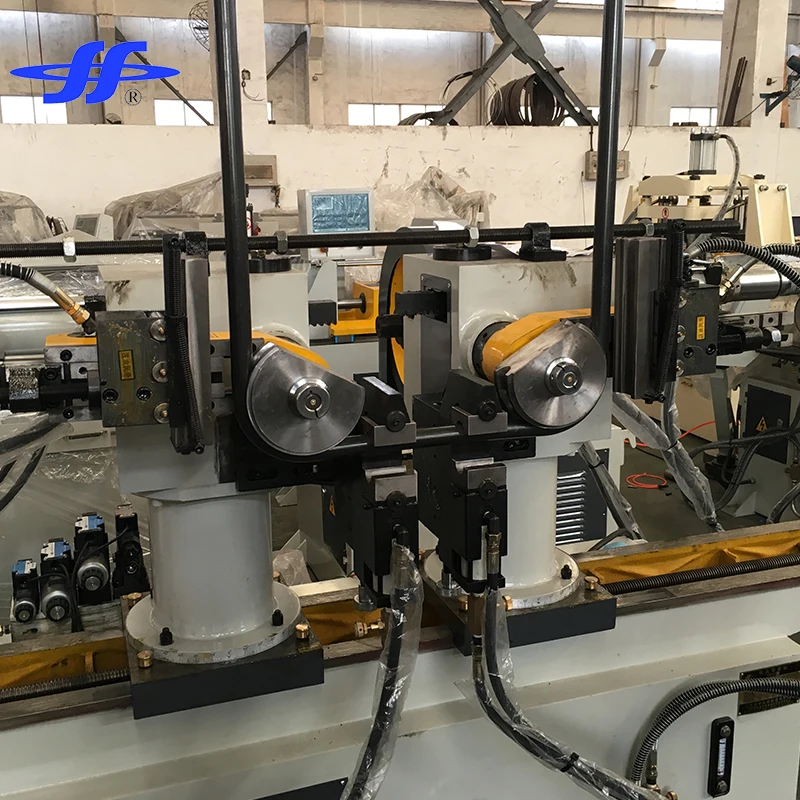

SW38 Hydraulic Double Head Cnc Control Tube Bending Machine
- Category: >>>
- Supplier: Jiangsu Hefeng Mechanical Making Co. Ltd.
Share on (60797887330):
Product Overview
Description
Product Detail

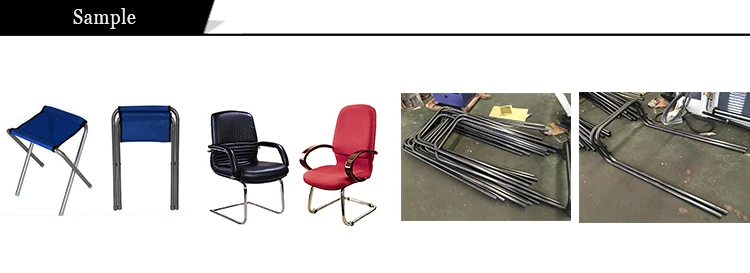

Suggestion&Sample

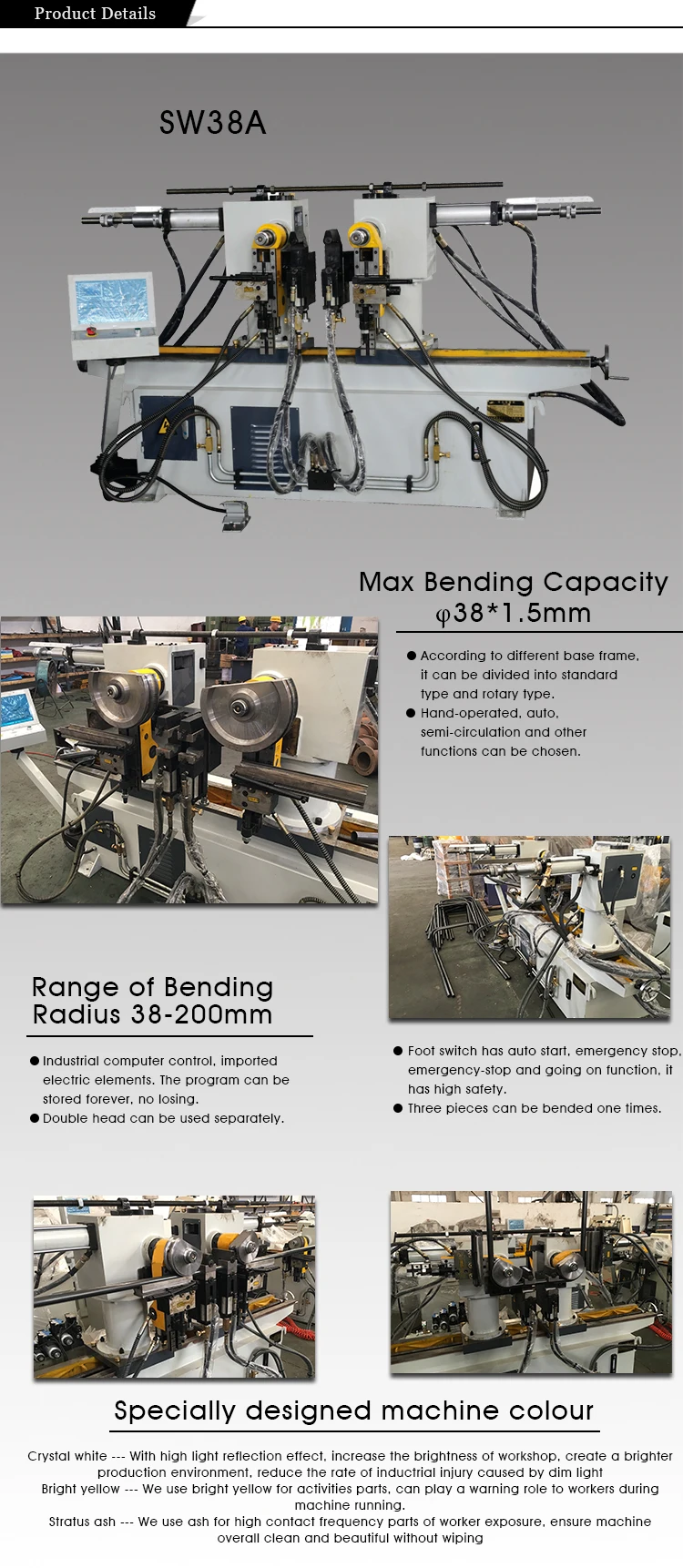

| Machine Model | Units | SW38A |
| Max Pipe O.D. x W.T. | mm | 38x2 |
| Min/Max Bend Radius | mm | 38 - 200 |
| Max Bend Angle | Deg | 185 |
| Min/Max Distance Between Heads | mm | 170 - 1700 |
| Working Height | mm | 1220 |
| Bending Speed | Deg/Sec | 50 |
| Accuracy of Bending | +/-Deg | 0.3 |
| Hydraulic Motor | Kw | 5.5 |
| Total Power | Kw | 5.5 |
| Hydraulic Pressure | Bar | 120 |
| Hydraulic Tank Capacity | L | 120 |
| Machine size | mm | 2700*900*1360 |
| Machine Weight | Kg | 1400 |
| Remarks: | · SW25/SW25A ------ Max Pipe O.D. x W.T. ----- φ25x2mm | |
| · SW38/SW38A ------ Max Pipe O.D. x W.T. ----- φ38x2mm | ||
| · SW40/SW40A ------ Max Pipe O.D. x W.T. ----- φ40x2mm | ||
| Can realize 2 or 3 or 4 pipes bending at the same time, according to the pipe dimension. | ||
Related Product
Company Profile
Certificate&Logistic
Contact Us
FAQ
Q: Are you a manufacturer or trading company? |
| A: We are a manufacturer. We focus on metal pipe/tube processing machinery for over 30 years. |
Q: How to choose the pipe/tube bending machines? |
A: You have to inform us following details:Max. outside diameter,Wall thickness,Bending radius (CLR), The pipe material,The drawings if possible |
Q: What is the biggest bending capacity you could offer? |
A: As of now the biggest bending capacity is 168mm outside diameter for cold bending. |
Q: Where is your factory located? How can I visit there? |
A: Our factory is located in Zhangjiagang city (beside to Shanghai). You can fly to Shanghai Hongqiao or Wuxi airport directly. All our clients, from home or abroad, are warmly welcome to visit us! |
Q: How does your factory do regarding quality control? |
A: Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained SGS, CE certificate.
|
