Product Overview

Description

Soundproof polycarbonate door panel sheet

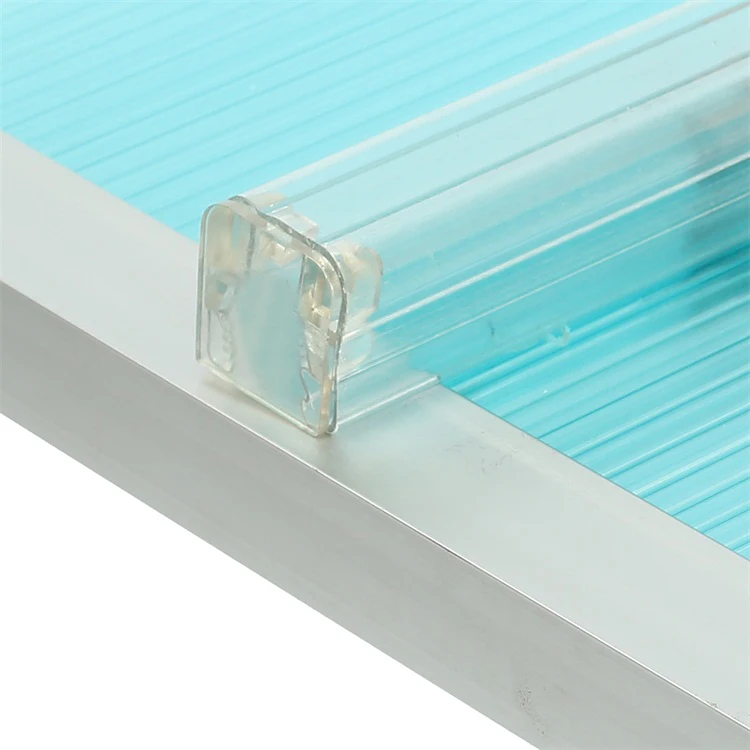

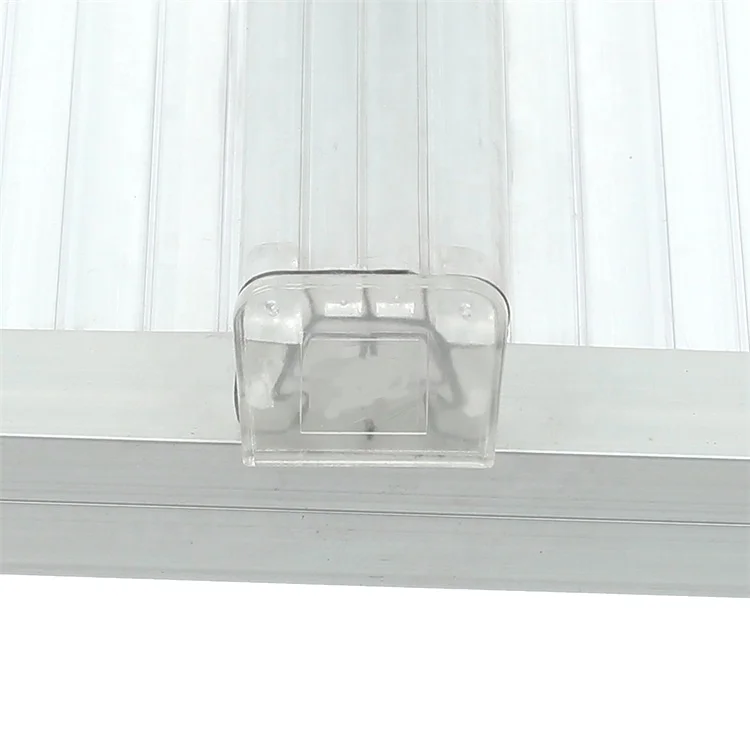

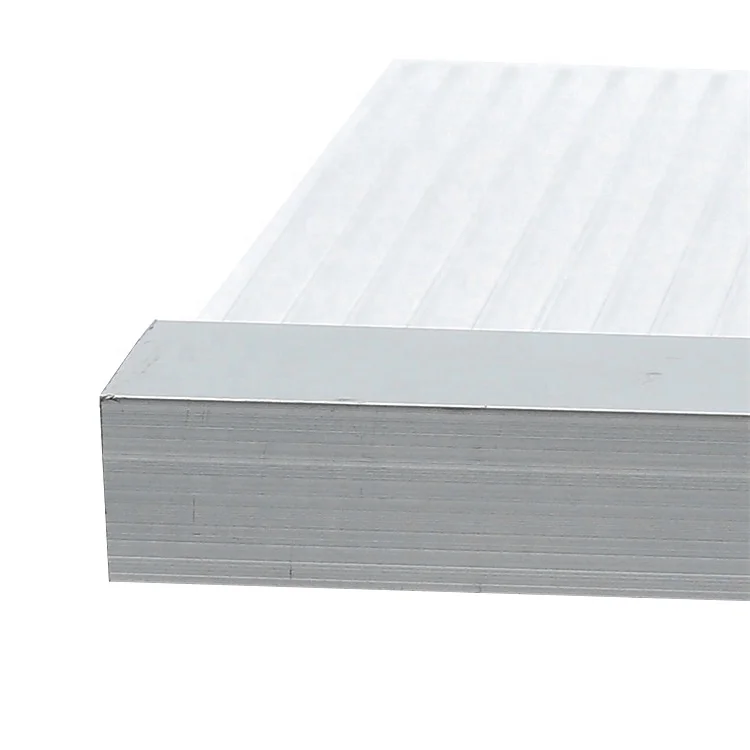

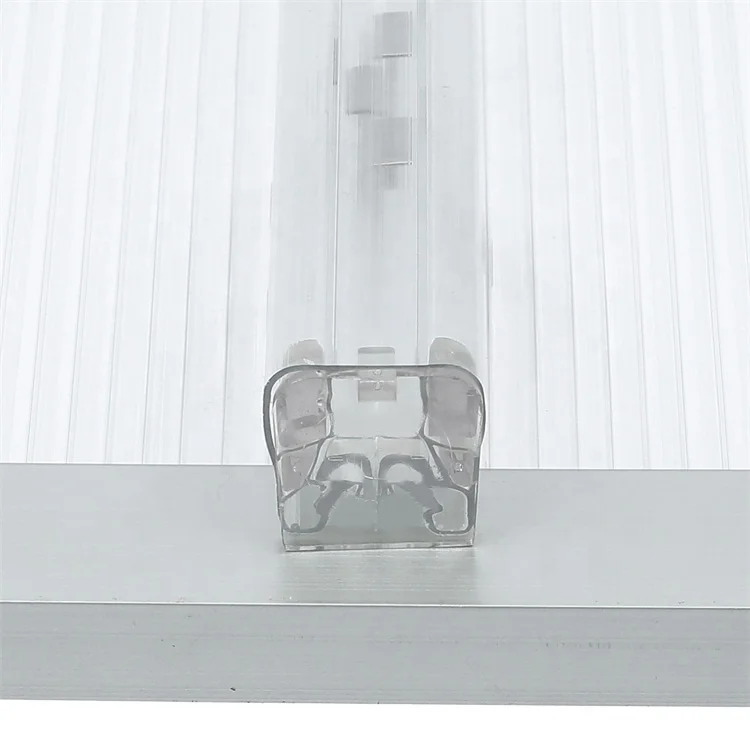

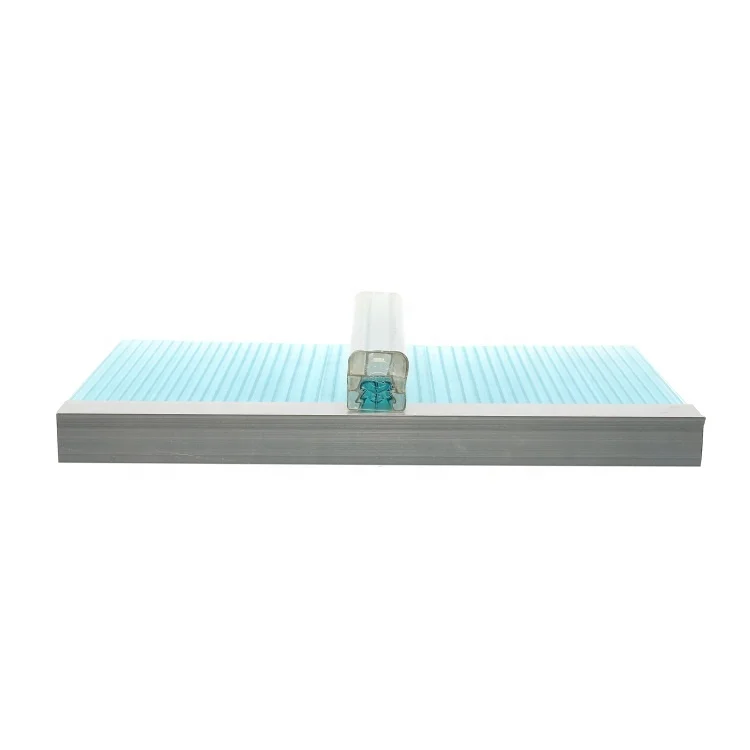

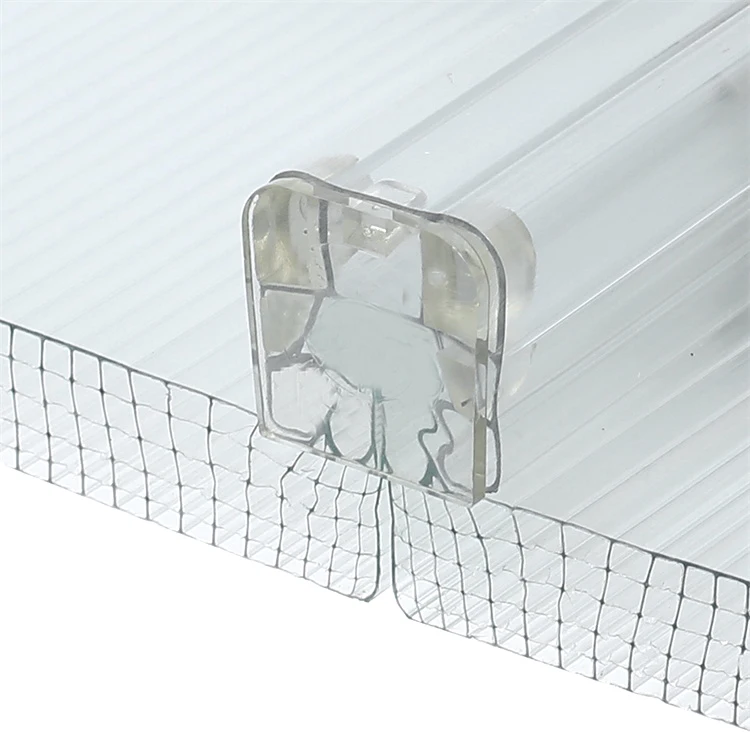

As a new kind of structure sheet system, U-shaped/U-Lock/Click Clock sheet is connected by the polycarbonate or aluminium connector with its own fastening systems and no any screws in the PC sheet, which can warrant 100% water proof and dust proof.  U-shaped sheet is characterized by low cost and quickly&easy installation, which makes it widely used in the roofing and the wall cladding with graphic or bending design.
Advantage:
1) 100% water-proof and dust-proof.
2)  Easy to assemble and install.
3)  Longer service life time.
4)  Beautiful roofing and wall appearance
5)  Higher heat insulation and sound insulation.
Specifications:

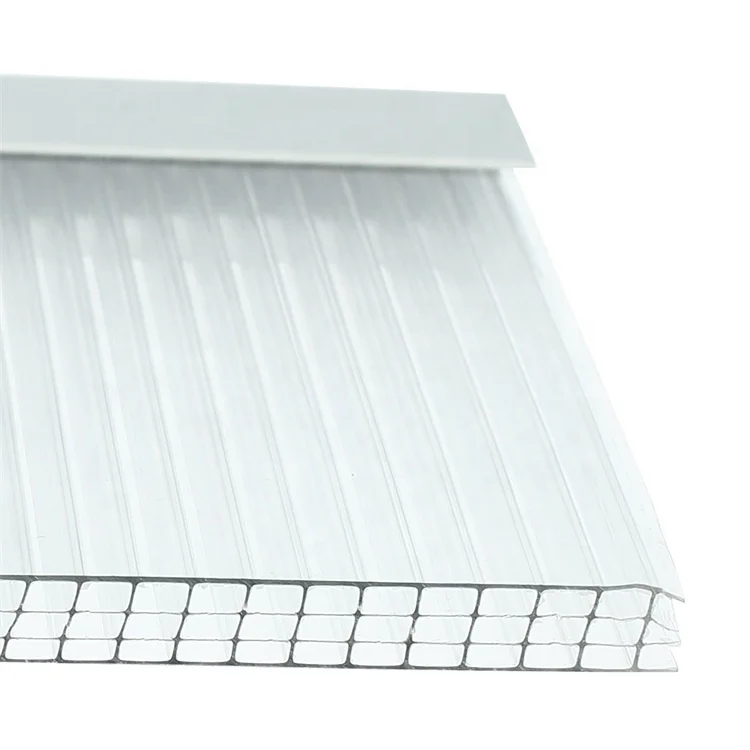

1) 4-wall R-structure; Thickness: 8mm, 10mm,12mm
2) Standard width: 600mm
3) Length: Any dimension
4) Color: Clear, blue, green, opal, brown, blue green etc.
5) Customized colors and dimensions are available





Technical data sheet of Polycarbonate Solid Sheet
NO.	Item	Unit	Data
1	Specific Gravity	g/cm3	1.2
2	Impact Strength	J/m	850
3	Tensile Strength	N/mm2	>60
4	Flexural Strength	N/mm2	100
5	Modulus of Elasticity	Mpa	2400
6	Elongation at Break	%	100
7	Coefficient of Thermal Expansion	mm/m℃	0.065
8	Specific Heat	KJ/kgk	1.17
9	Heat Conductivity	W/m2℃	2.3~3.9
10	Continuous Use Temperature	℃	-40~+120
11	Heat Deflection Temperature	℃	140

Walls	Model Number	Thickness   (mm)	Weight(kg/m2)	UV Side	K-Value(w/m2*k)	LT(%) Clear	LT(%) Opal	Minimum Bending radius (mm)
2-WALL Polyshine-U R-structure	PCU62RS1600	6	1.60	1/2	3.56	77	46	1050
	PCU82RS1900	8	2.00	1/2	3.26	76	44	1400
	PCU102RS2200	10	2.20	1/2	3.02	73	44	1750
4-WALL Polyshine-U R-structure	PCU84RS2200	8	2.00	1/2	2.56	71	42	1400
	PCU104RS2500	10	2.20	1/2	2.39	71	41	1750
	PCU124RS2800	12	2.40	1/2	2.19	70	41	2100
5-WALL Polyshine-U X-structure	PCU145DS3000	14	2.70	1/2	2.11	68	39	2450
	PCU165DS3600	16	3.00	1/2	2.00	66	38	2800
	PCU185DS4000	18	3.30	1/2	1.88	65	37	3150
	PCU205DS4800	20	3.60	1/2	1.69	63	36	3500
7-WALL Polyshine-U R-structure	PCU228RS3800	22	3.80	1/2	1.63	61	34	3850
	PCU258RS4000	25	4.00	1/2	1.52	60	31	4375
	PCU308RS4500	30	4.50	1/2	1.50	58	30	5250







Application:

·Industrial workshop, warehouse lighting roof

·Stadium lighting roof

·Swimming pool, greenhouse

·Residential and commercial lighting velarium

·Lighting materials of steel structure workshop

·Channel, parking shed

·Indoor partition
