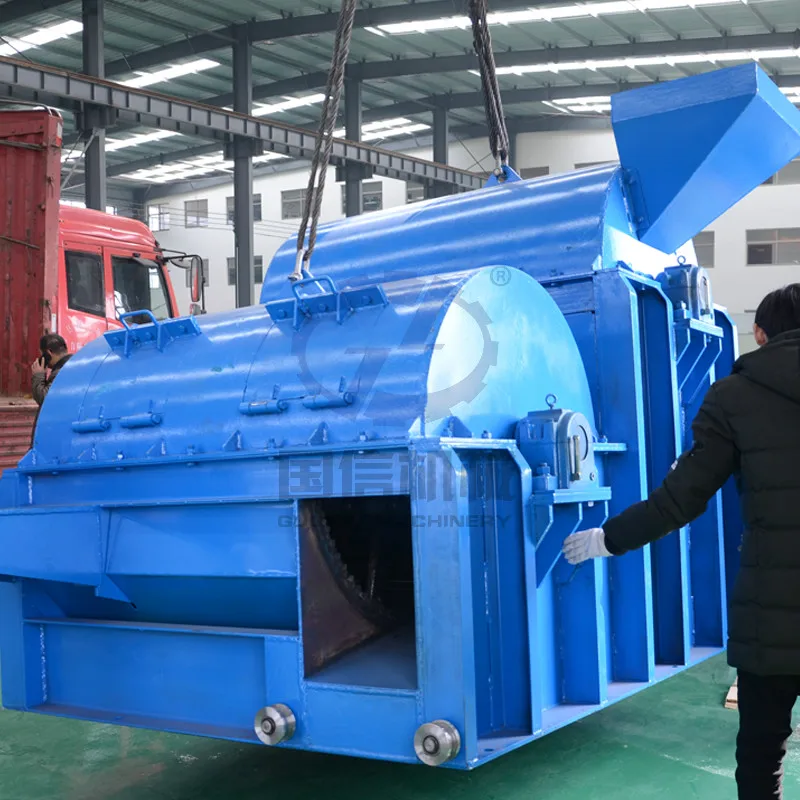

GUOXIN brand coconut coir fiber extracting machine

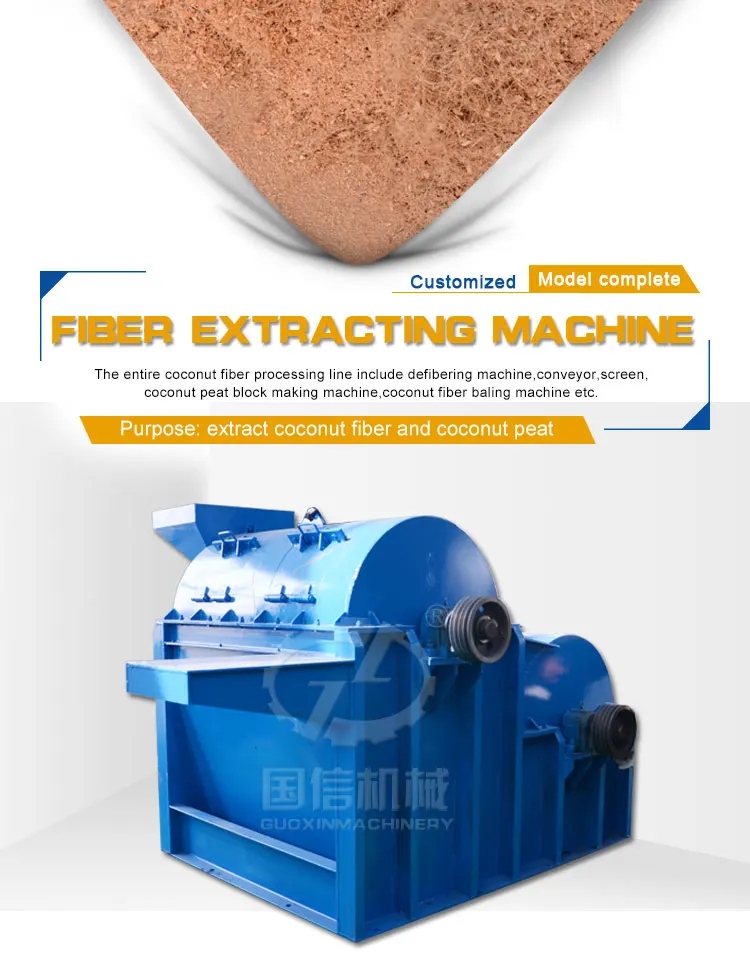

The coconut coir fiber extracting machine is mainly used for loosing and rubbing,kneading the hard facial fiber of oil palm, palm, coconut shells,jute,bamboo etc. The final product shape through extracting machine is wirelike. The wirelike fiber has a very potential and large market in Chinese and foreign countries. It is the original material of mattress,insole,seat cushion,etc.


For the structure of coconut coir fiber extracting machine, it has 2 kinds of type, one is single drum,it is mainly extract soft material like oil palm,jute etc..Another is double drum that is used for extracting hard material. Like coconut shells etc.

Single drum coconut coir fiber extracting machine

\t
Model
\t
Power
\t
Capacity(kg/h)
\t
Weight(kg)
\t
Dimension(mm)
\t
JPD-I
\t
37
\t
300
\t
1800
\t
1800×1200×1600
\t
JPD-II
\t
45
\t
400
\t
2100
\t
2000×1500×1600
\t
JPD-III
\t
55
\t
500
\t
2500
\t
2200×1700×1700
\t
JPD-XI
\t
75
\t
600~700
\t
3100
\t
2500×2000×1900
\t
95JPD-XII
\t
75
\t
800~900
\t
3500
\t
2700×2100×1900
\t
JPD-XY
\t
110
\t
1200~1500
\t
4200
\t
3100×2200×2000

Double Drum coconut coir fiber extracting machine

\t
Model
\t
Power(kw)
\t
Capacity(kg/h)
\t
Weight(kg)
\t
Dimension(mm)
\t
JZD-I
\t
37+55
\t
500
\t
3400
\t
3410×2300×1720
\t
JZD-II
\t
55+75
\t
600-700
\t
4100
\t
4800×2250×1800
\t
JZD-III
\t
75+95
\t
900-1000
\t
4800
\t
5750×2400×1900
\t
JZD-XI
\t
95+110
\t
1500-1800
\t
5100
\t
6100×2600×2100
Working principle

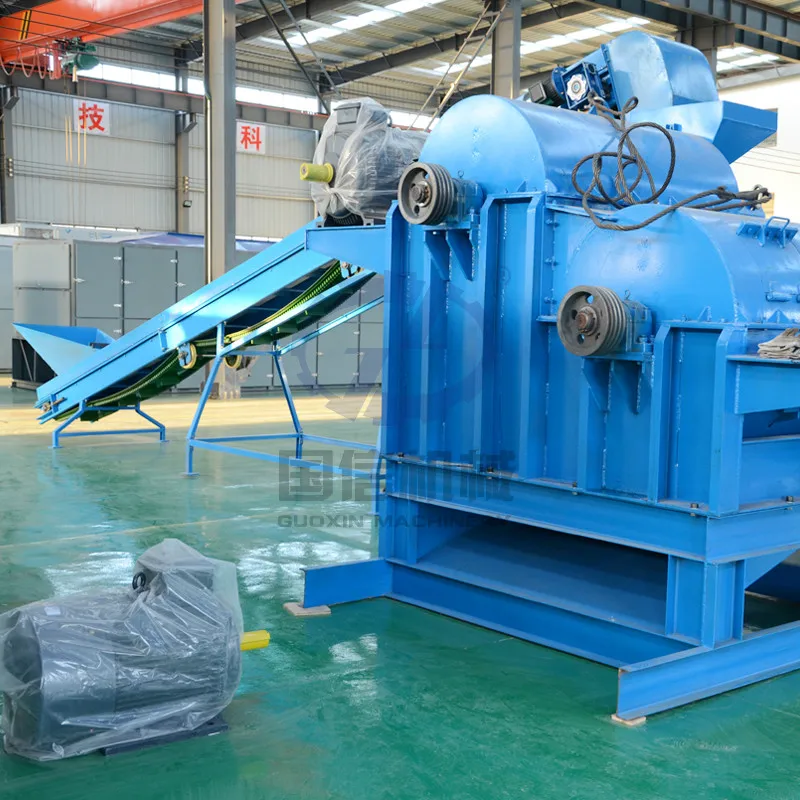

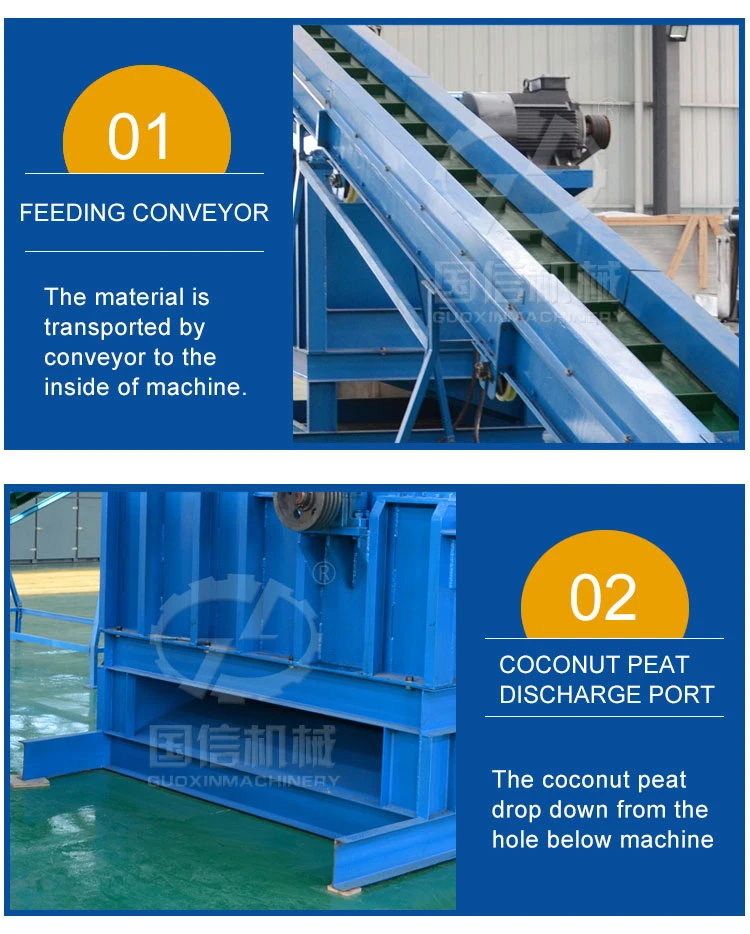

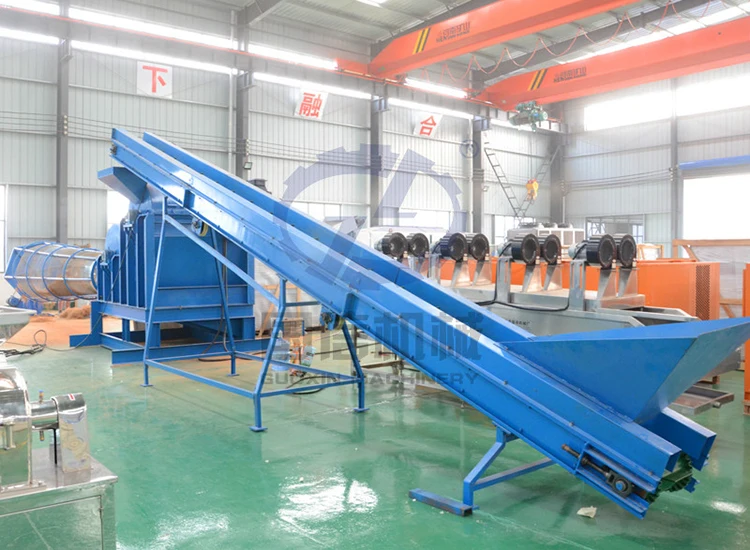

1. The material is feed into the machine by belt conveyor or manual ;

2. The raw material is broken by the blades on the rotating main shaft ;

3. Breaking principle:The material is rotated, stirred and rubbed into fiber by machine, come out from outlet.

4. On the rubbing box of machine, there are drain holes, which can drain the impurities from breaking and don't mix with the final fiber;

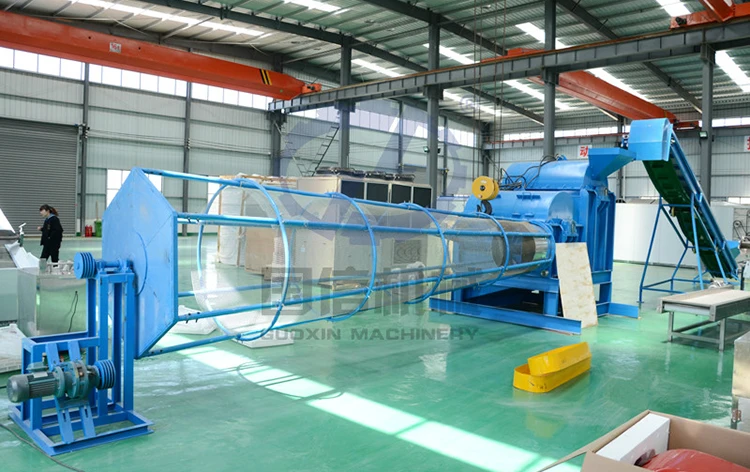

5. Generally, it can be connect by the conveyor to the drum screener, dryer, fiber press machine to make further process.

Detailed Images
Related products

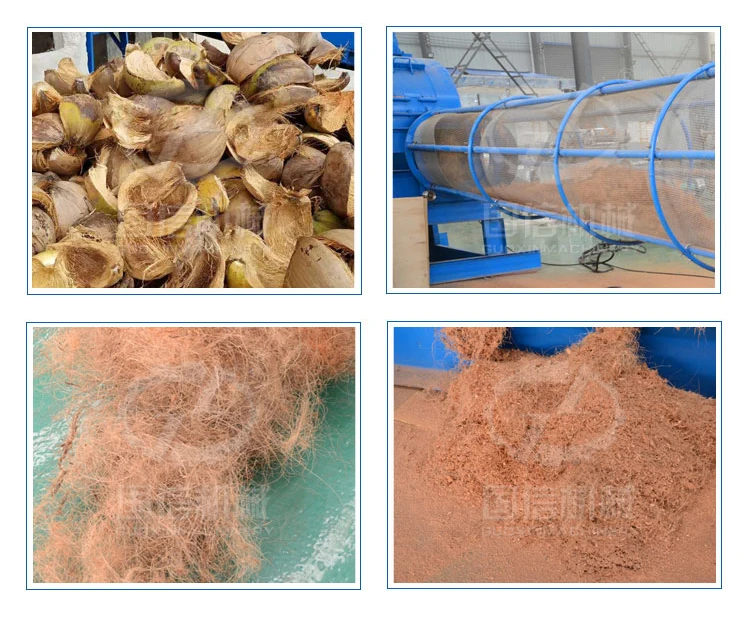

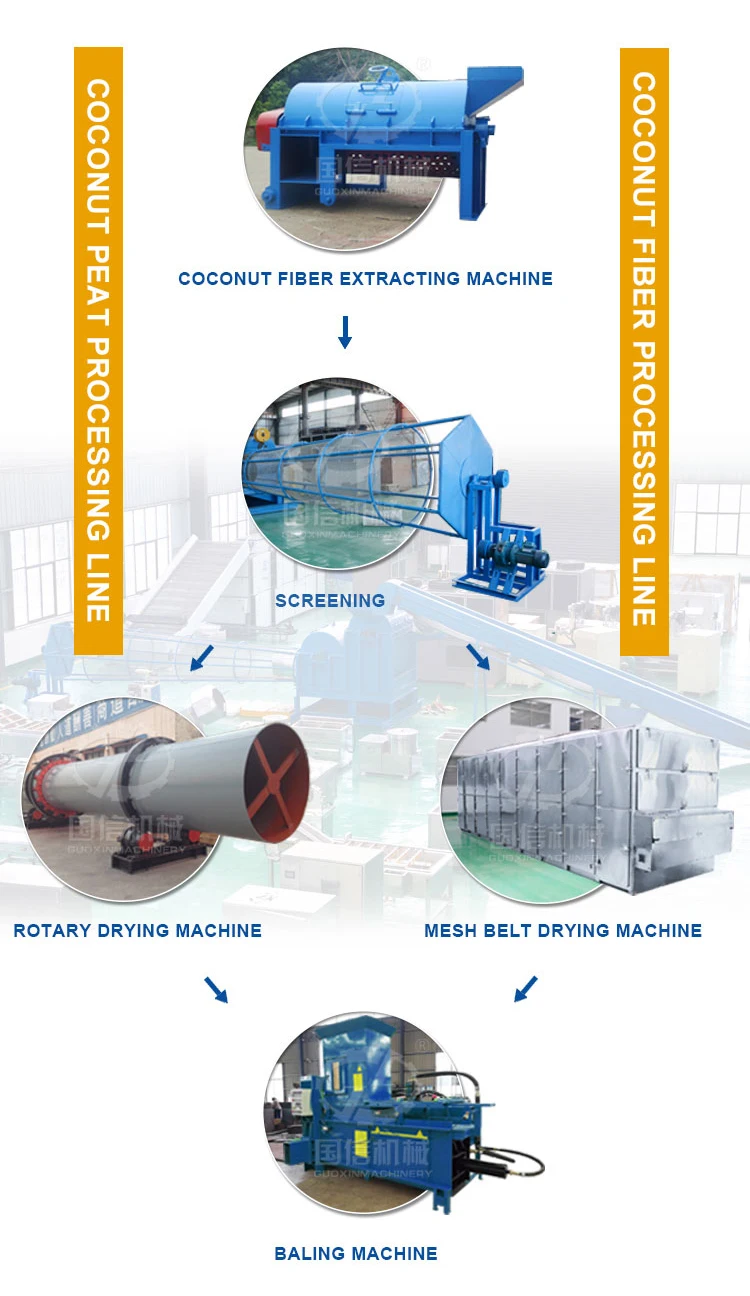

The whole processing line about coconut fiber:

1. coconut coir fiber extracting machine

Function:To open the palm fruit and coconut shell and get the fiber.

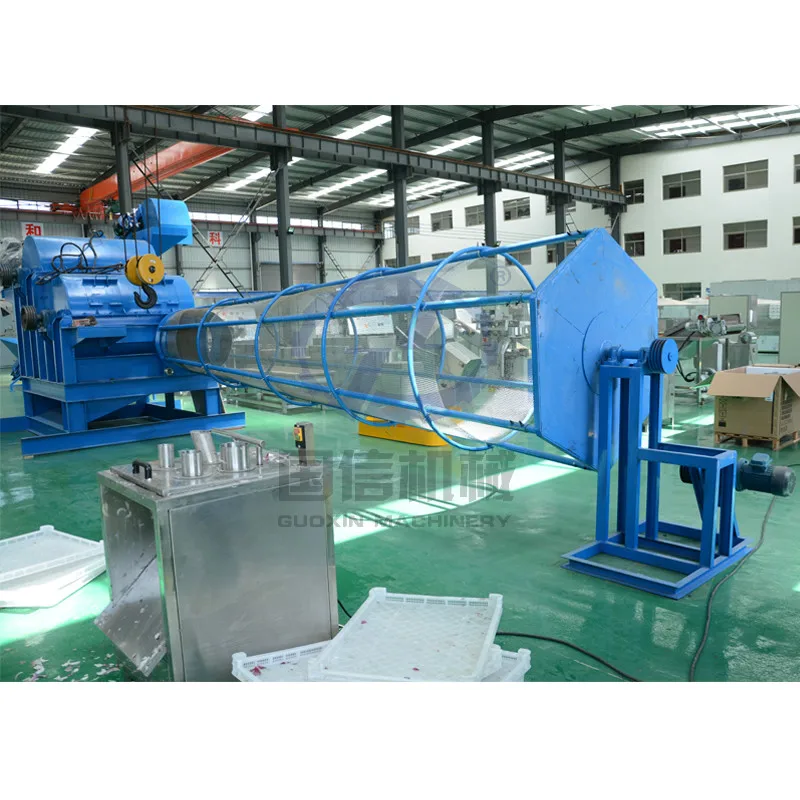

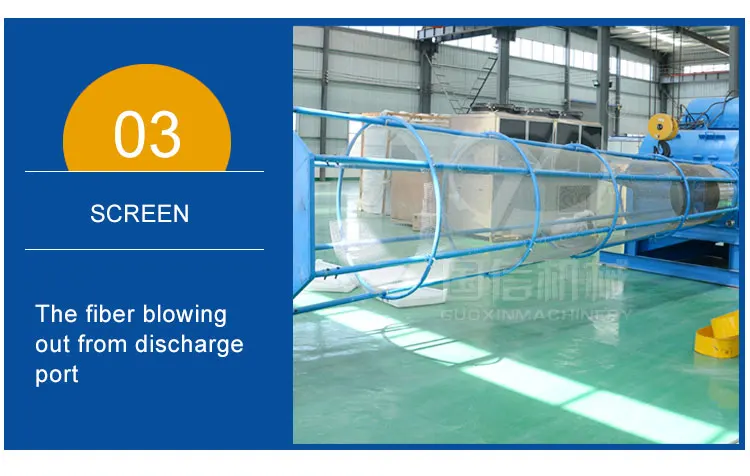

2. Rotary drum screen

Function:  Separate the coconut /palm long fiber and residual peat

3. Coconut fiber drying machine.

Using hot air to dry coconut fiber and get final product with moisture 12-15%.

4. Packing machine for coconut fiber.

Function: Press the palm fiber into bales and convenient to store.

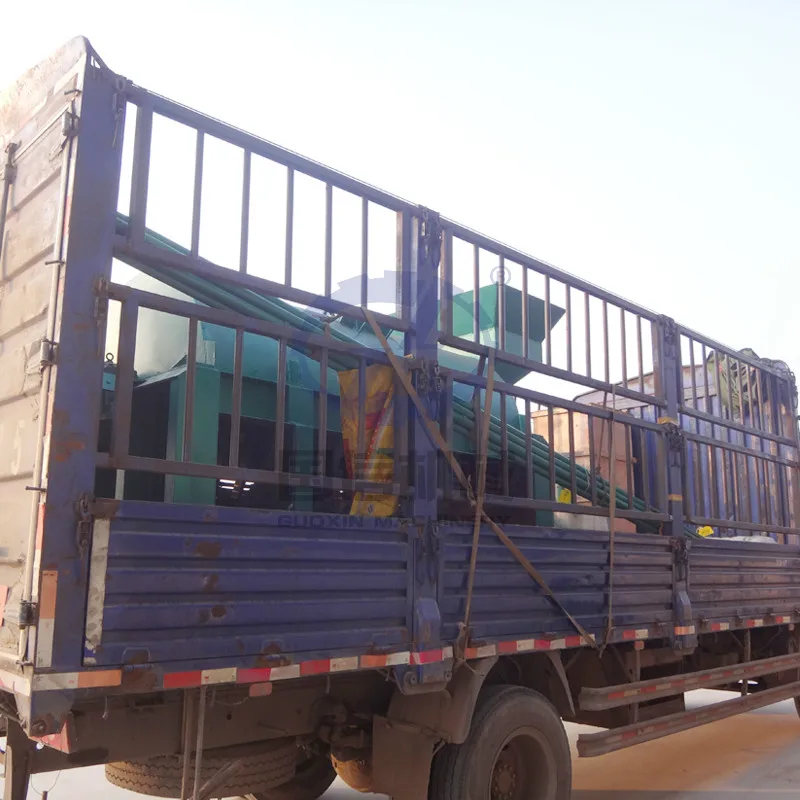

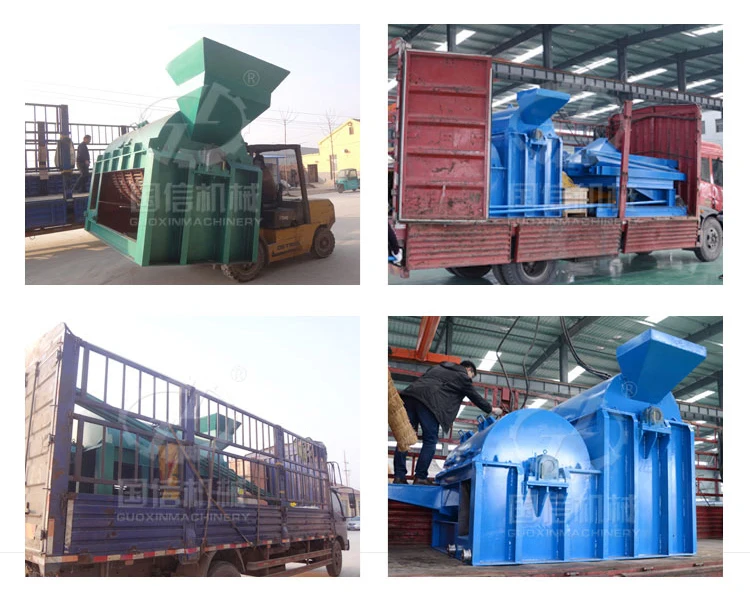

Packing & Delivery

For coconut coir fiber extracting machine, packaged with wooden box, or delivery with Container without packing, to prevent them from destroying during transportation.

Then, we will choose the most convenient and economic way to delivey goods. Besides, if our customer have specific demand with delivey, we can make it.

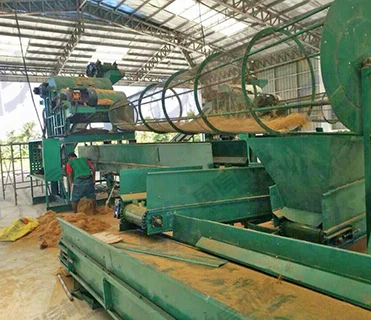

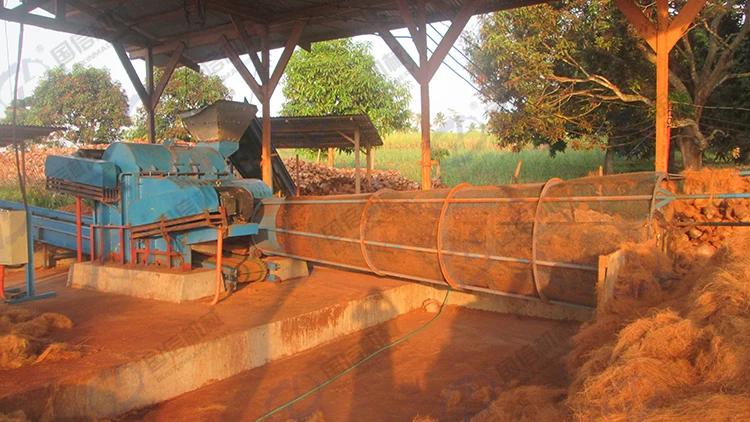

Working site
Contact us

Please contact Lily if you are interested in our coconut coir fiber extracting machine


Gongyi Guoxin Machinery factory

Fax:0086-0371 - 68530223

Tel: 0086-15890130773 (WhatsApp ID) (Wechat ID)
