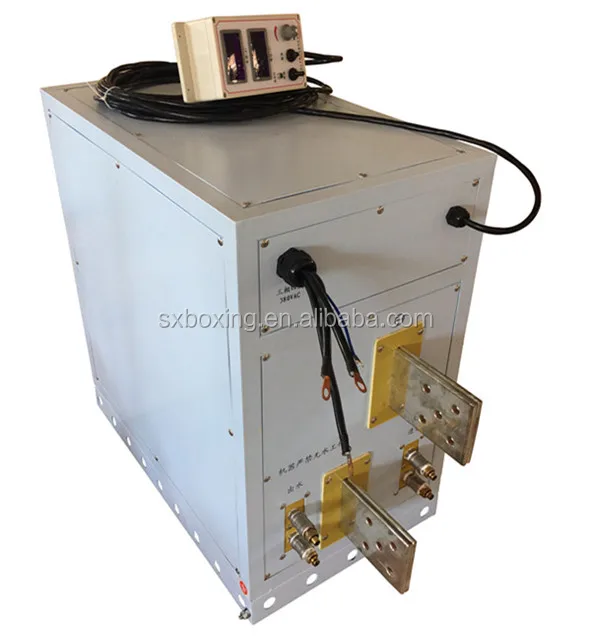

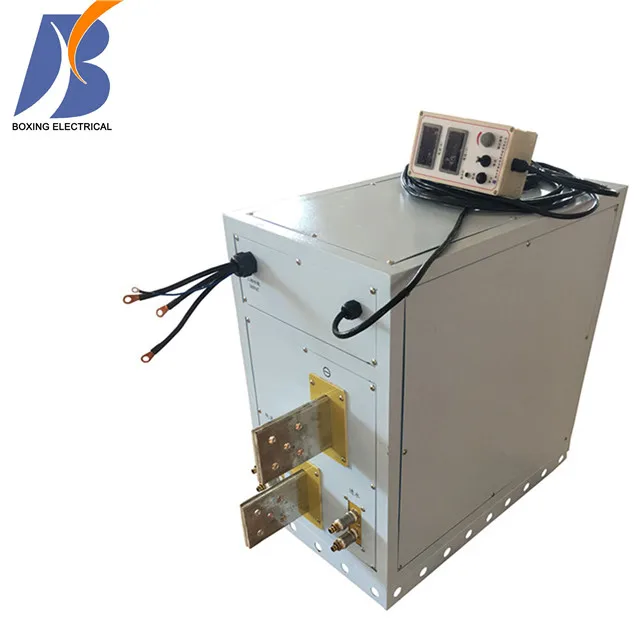

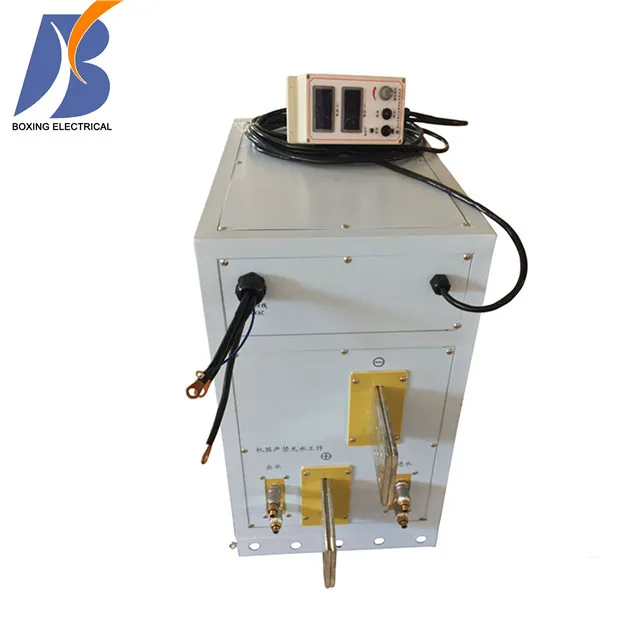

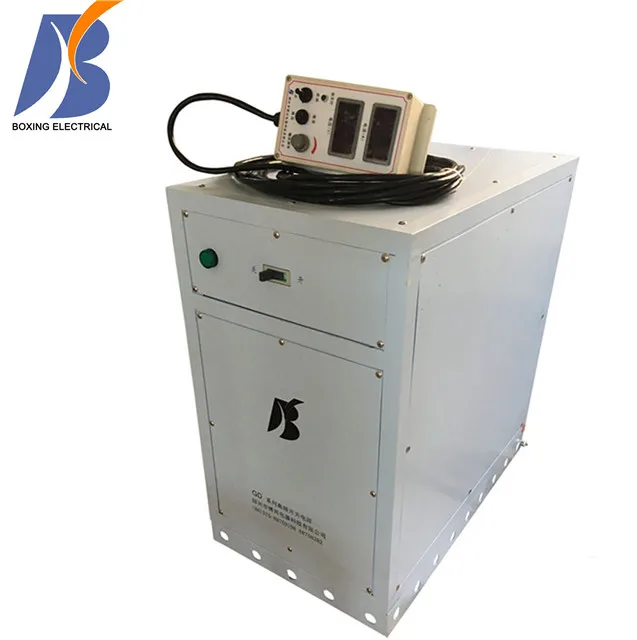

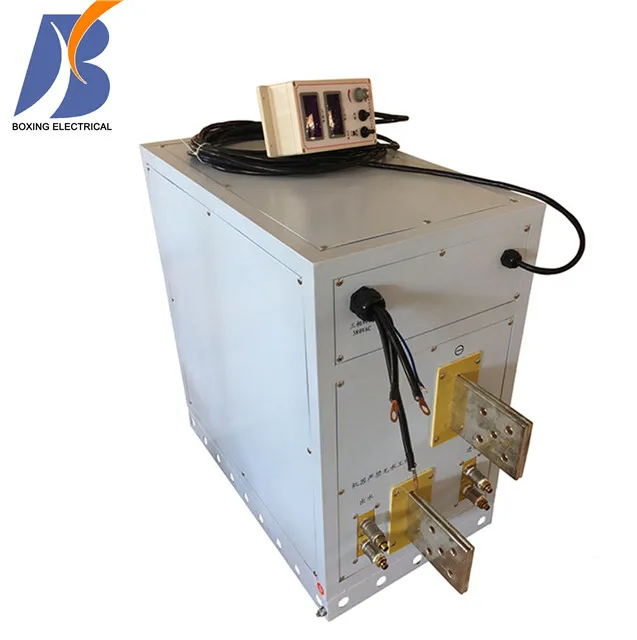

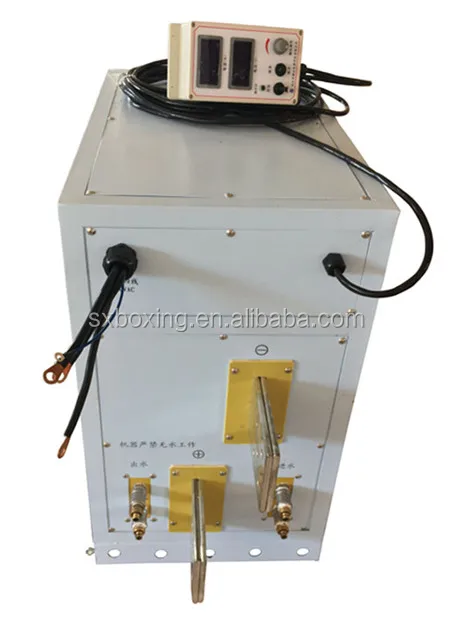

Water Cooled Plating 5000 Amp Rectifier

Product Overview

Description

Input voltage	380V,400V,415V,480V AC(Three-phase four-wire) 50-60HZ
Output DC current	300-20000A  Arbitrary choice
Output DC voltage	6V,12V,15V,18V,24V,36V  Arbitrary choice
Voltage stability	≤1%
Current stability	≤1%
Ripple factor	1%-2%

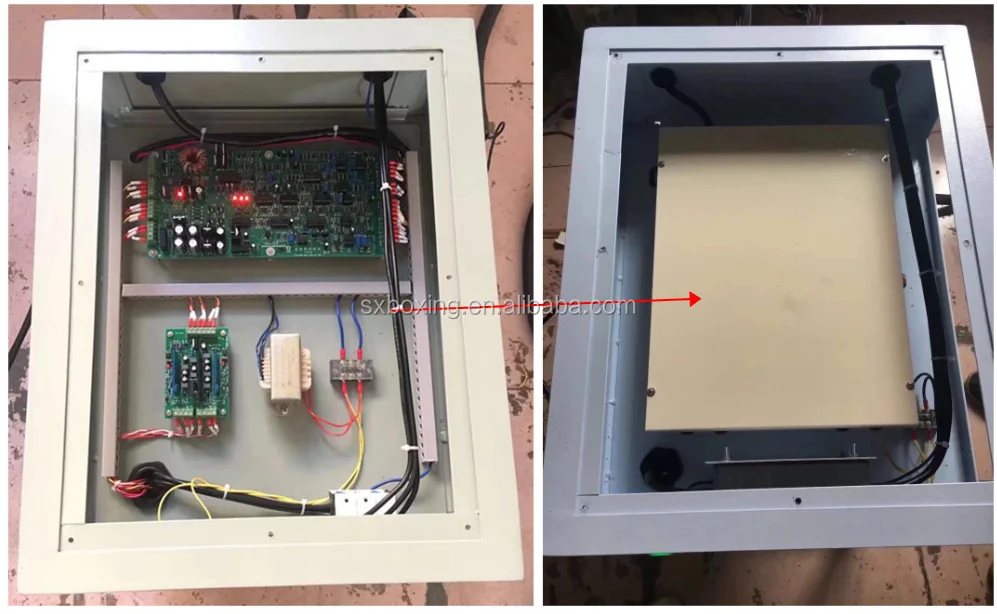

Cooling Mode	Water cooled
water quality	Deionized water or Running water,PH:7~8 Water pressure:0.1~0.25MP,   temperature:5-35℃
Efficiency	≥90%
workload	Full capacity operation, more than 1,000 meters above sea level, reduced load operation
Working condition	Ambient Temperature range -10 ℃ ~ 40 ℃,Less than 90% humidity(when ambient temperature is  20℃±5℃).























Workshop











































1. Q: Are you a factory or trading company?

A: We are a factory and we have professional team of workers , Designers and inspectors

2. Q: How many workers in factory?

A: We have one factories which is more than 30 workers totally

3. Q: What is your main products?

A: High frequency plating rectifier, Silicon controlled rectifier, Lab power supply,water treatment

power supply

4.Q: What’s your advantage?

(1) competitive price

(2) high quality and special internal structure

(3) one stop purchasing

(4) fast response and professional suggestion on all inquiries

(5) fulfill European standard like CE and ISO 9001

5. Q:What is your Minimum quantity ?

A: One unit of rectifier.

6. Q: How long to deliver the products?

A: The exact delivery date need to according to your style and quantity. Usually within 10 work days

after receive the 100% payment If you choose the items which we have stock, we can deliver in 3 days.
