DOT air brake push in fittings

Product Overview

Description

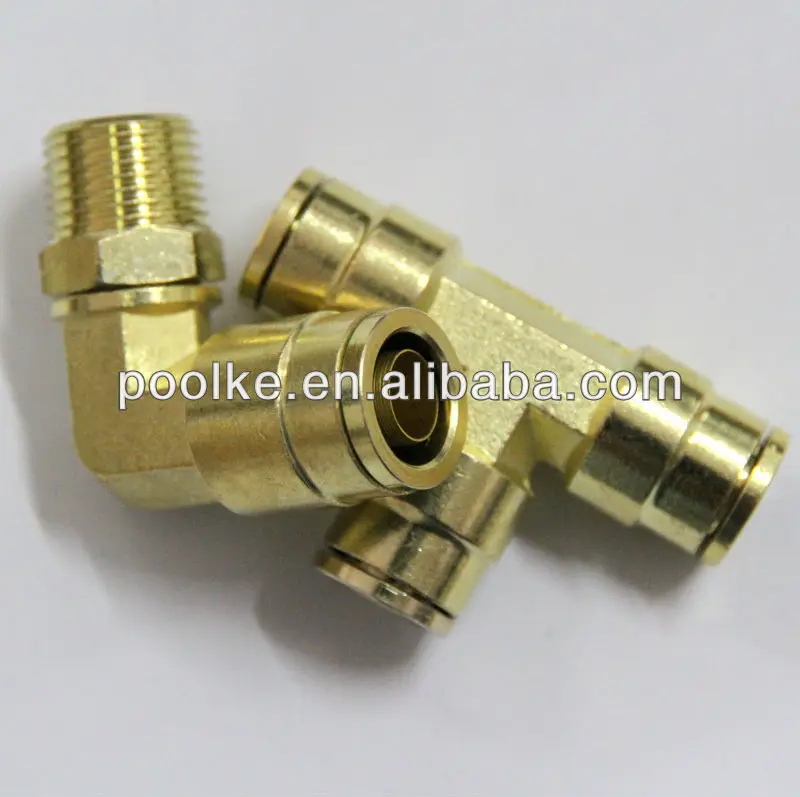

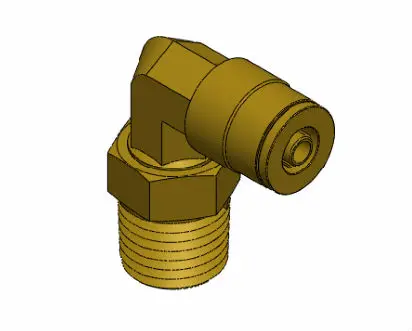

DOT-HLS, Swiveling elbow,male
PART NO.	Thread	Tube O.D.*I.D.	D2	L1	L2	L3	CH
DOT-HLS-06-R01	R1/8	6*4	12.7	22	22	20	9.5
DOT-HLS-06-R02	R1/4	6*4	12.7	22	22	23	9.5
DOT-HLS-08-R01	R1/8	8*6	15	25	25	23	12
DOT-HLS-08-R02	R1/4	8*6	15	25	25	24	12
DOT-HLS-08-R03	R3/8	8*6	15	27	27	26	12
DOT-HLS-10-R02	R1/4	10*8	17.5	28	28	25	12.7
DOT-HLS-10-R03	R3/8	10*8	17.5	28	28	25	12.7
DOT-HLS-10-R04	R1/2	10*8	17.5	31	31	31	16
DOT-HLS-12-R02	R1/4	12*9	19.5	31	31	26	16
DOT-HLS-12-R03	R3/8	12*9	19.5	31	31	26	16
DOT-HLS-12-R04	R1/2	12*9	19.5	31	31	31	16
DOT-HLS-IN02-N01	NPT1/8	6.35*4.3	12.7	22	22	23	9.5
DOT-HLS-IN02-N02	NPT1/4	6.35*4.3	12.7	22	22	23	9.5
DOT-HLS-IN03-N02	NPT1/4	9.52*6.38	17.5	25	25	25	12.7
DOT-HLS-IN03-N03	NPT3/8	9.52*6.38	17.5	27	27	25	12.7
DOT-HLS-IN04-N02	NPT1/4	12.7*9.55	19.5	31	31	27	16
DOT-HLS-IN04-N03	NPT3/8	12.7*9.55	19.5	31	31	27	16
DOT-HLS-IN04-N04	NPT1/2	12.7*9.55	19.5	31	31	31	16
