YS 350A Adhesive Label Die Cutting Machine with low price

Product Overview

Description

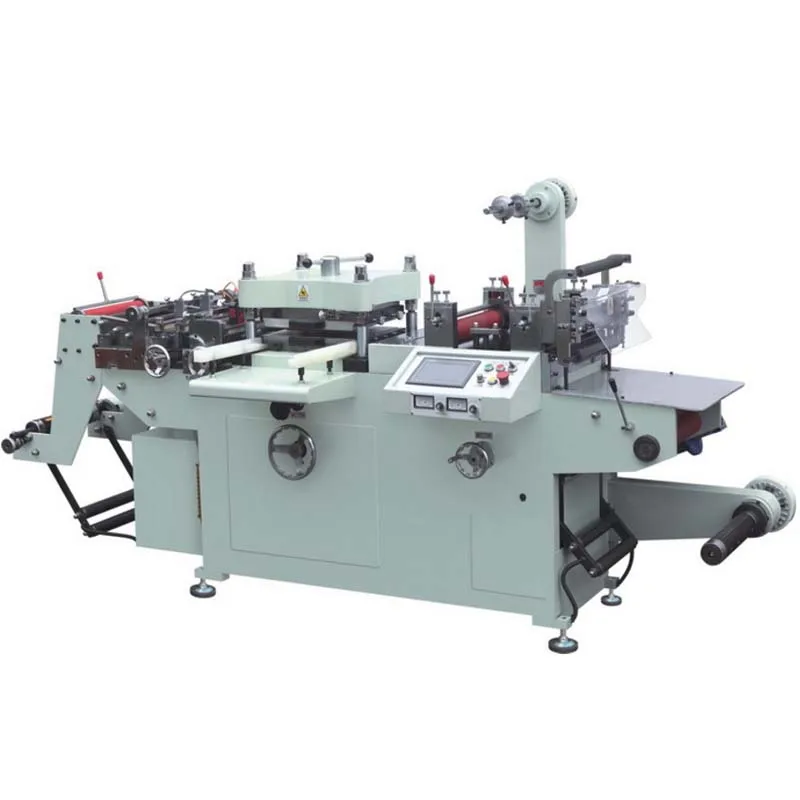

YS-350A Adhesive Label Die Cutting Machine with low price

Additional functions: 1. hot stamping 2.hole punching 3.lamination

Standard functions: unwinding-die cutting-waste discharging-cutting into pieces-rewinding


The paper adhesive label, nylon membrane trademark and the radium anti-fake trademark.this machine is matching with different

printing machine and slitting machine, such as roll paper printing machine,flexo printing machine,screen printing machine,gravure printing machine.
This machine is widely used in electronic line, adhesive product line and so on.



Model	YS-350A	YS-450A
Max. Feeding width	320mm	420mm
Cutting area	300*350	400*450
cutting speed	30-220 press/min	30-200 press/min
Position accuracy	±0.10mm	±0.10mm
Power of main motor	2.2kw	2.2kw
Size(L*W*H)	2750*1250*1400	3000*1500*1450mm
Unwinding/rewinding diameter	550mm	550mm
Voltage	220V/380V	220/380v
Total power	4kw	4.5kw
weight	1700kg	2000KG
Hot stamping speed	30-160 press/min	30-150 press/min



Packing and Shipping



If you have any question for the machine ,just contact us !
