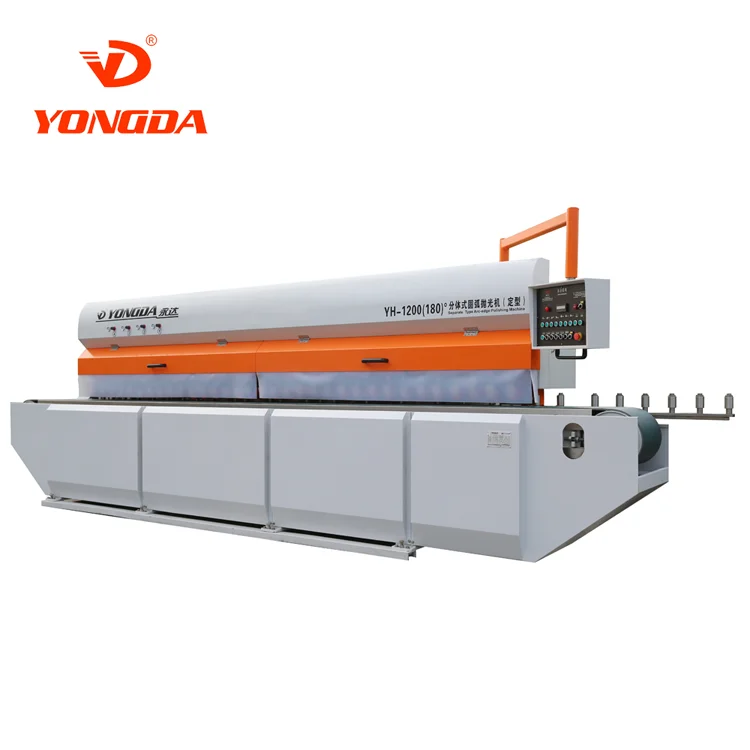

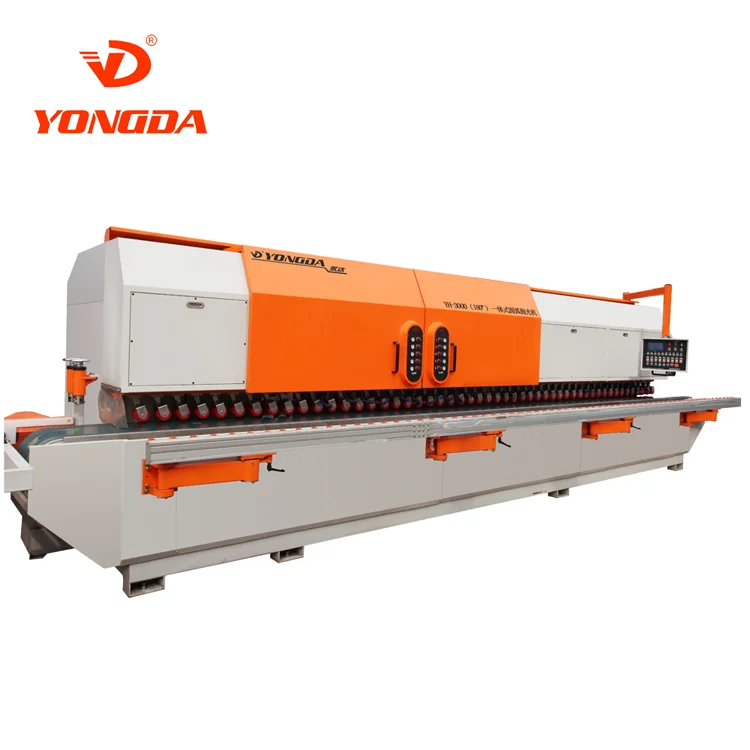

YONGDA YH 1200 1/2 180 degree Stone Arc edge Grinding and Polishing Machine high precision and high output (separated type)
- Category: >>>
- Supplier: Foshan Yongshengda Machinery Co. Ltd.
Share on (60797978298):
Product Overview
Description

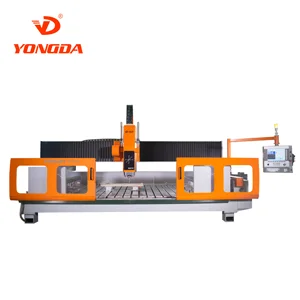

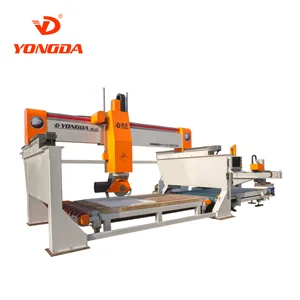

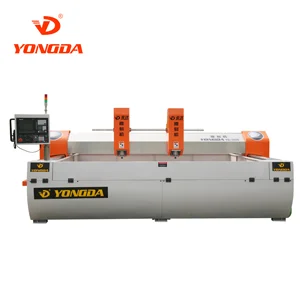

| PRODUCT RECOMMENDED |
| PRODUCT SPECIFICATIONS |
| The YH-180°Arc-edge Grinding and Polishing Machine is the new product which is developed by our company. It's a great breakthrough compare with our original arc-edge polishing machine which just can polish 1/4(90°) arc-edge, this Arc-edge Grinding and Polishing Machine can extend to polish 1/2(180°), extend the processing scope. It can process half-round table-board and thickly step-board. It's fully automatic to process the straight edge, bevel edge and arc edge. Its processing thickness can reach 5cm,even the boards with different widths can be processed continuously. Up to now, this machine is highly acknowledged in the stone deep processing industry. Two options for customer choice: integrated & separated |
| Items | Unit | Separated | Integrated | |
| nos of polishing head | pc | 12 | 10 | |
| dia of polishing head | mm | 120 | 120 | |
| nos of chamfering wheel | pc | 6 | 4 | |
| dia of chamfering wheel | mm | 200 | 200 | |
| working width | mm | 200~1200 | 200~1200 | |
| working thickness | mm | 20~60 | 20~60 | |
| polishing speed | m/min | 0.2~1 | 0.2~1 | |
| water consumption | L/min | 150 | 150 | |
| air consumption | L/min | 80 | 80 | |
| total power | kw | 55 | 38 | |
| outer dimension | M | 5.3×2.3×2.2 6.1×2.3×2.2 | 8×2.3×2.2 | |
| weight | kg | ≈6000 | 6500 | |

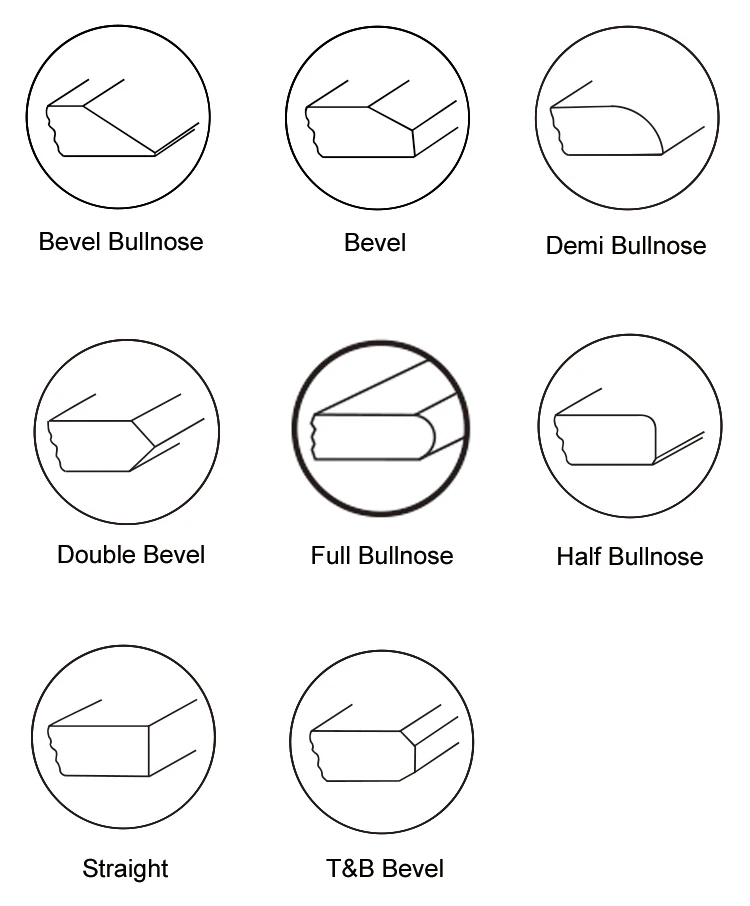

| PRODUCT FUNCTION |
 |
| PRODUCT ADVANTAGES |
1. Polishing Arc-edge range reach 1/2 (180°) 2. Full automatic processing of square-edge,bevel-edge,arc-edge 3. The processing thickness is up to 5CM 4. Material of different width can also be produced continuously 5. Gloss reach more than 90 °, even higher than the gloss of stone surface 6. 100 times faster than manual edge grinding and polishing 7. Fast processing speed and low cost; |

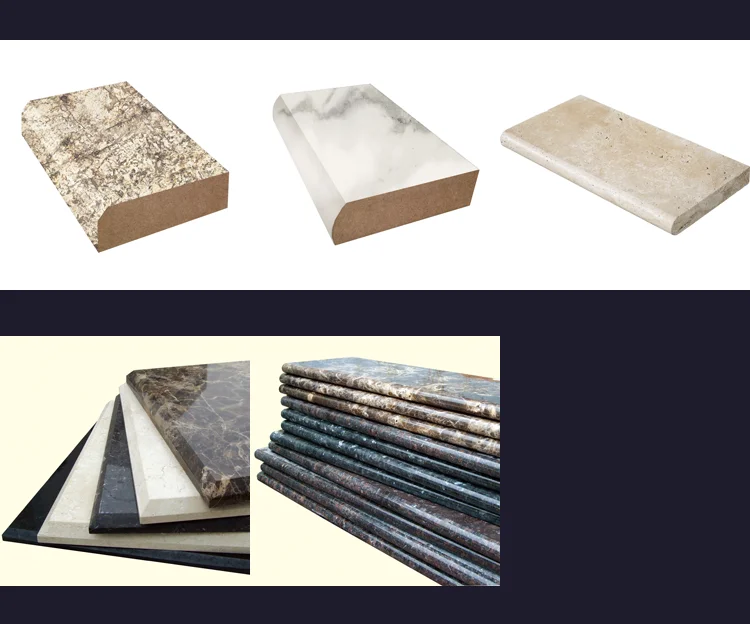

| CUTTING EFFECT |
 |

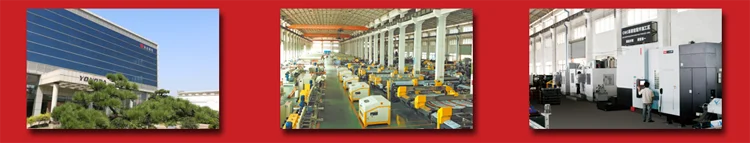

| COMPANY INTRODUCING |
 |
 |
| CUSTOMER PHOTO |
 |
| CERTIFICATION REPORT |
 |
| ISSUE |
 |
| AFTER-SALES SERVICE |
 |
