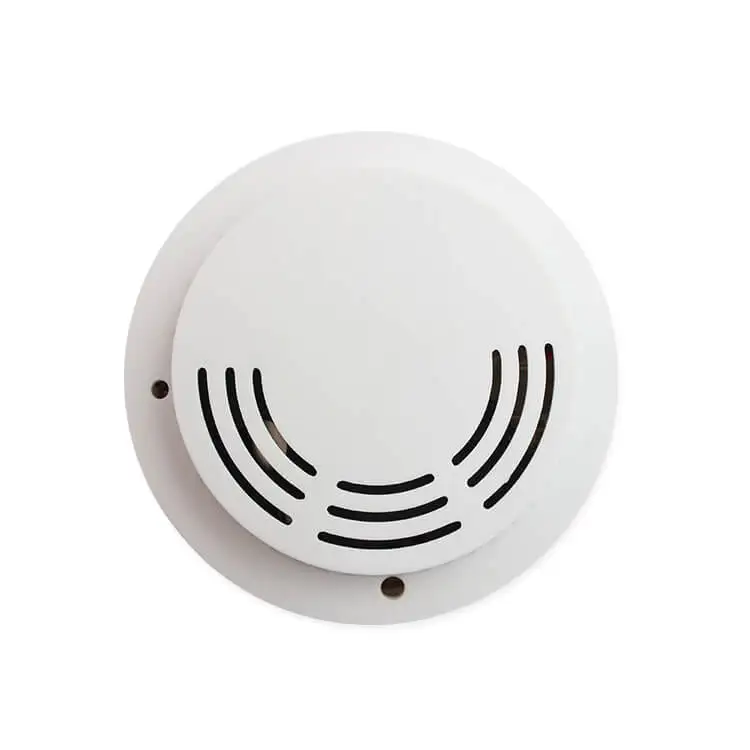

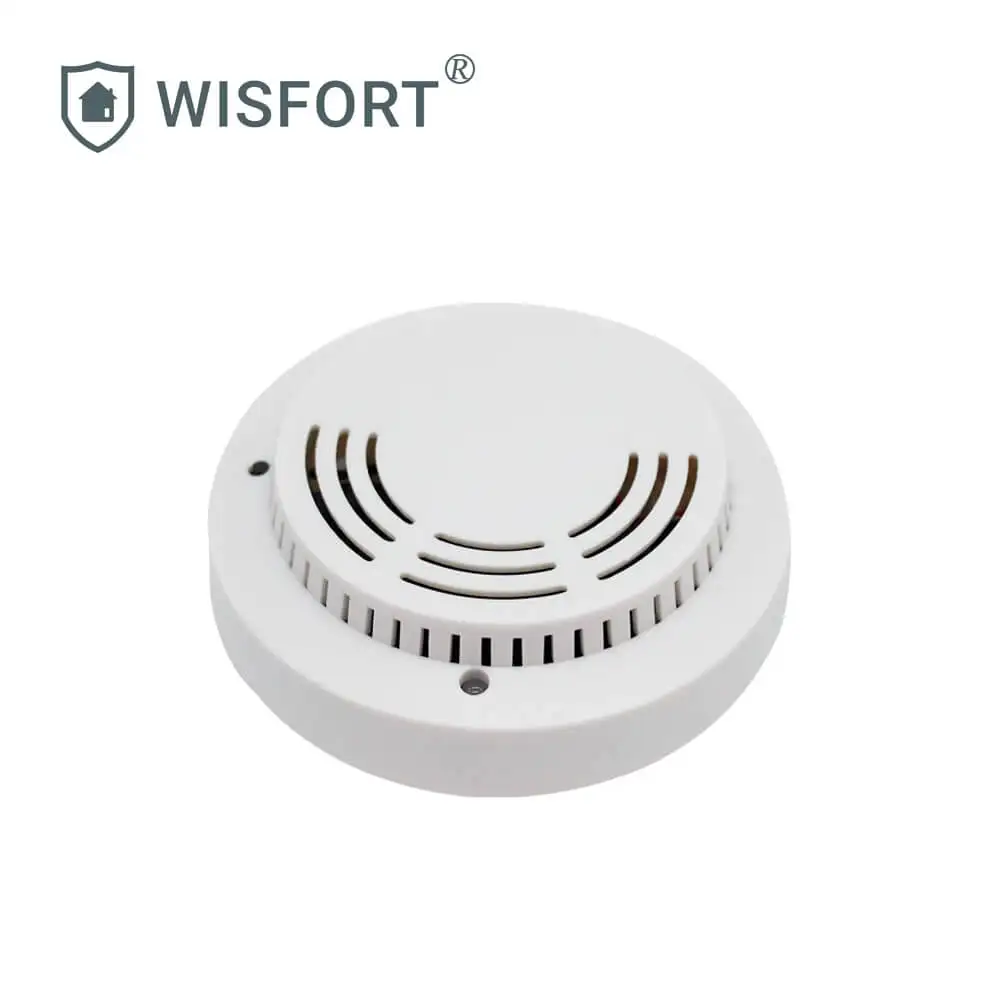

Wireless Smoke Detector With UL Listed For Kitchen/Hotel

Product Overview

Description

Wireless Smoke Detector With UL Listed For Kitchen/Hotel



Wireless photoelectric smoke & heat sensor for providing potentially life-saving warnings, it has built-in alarm buzzer and flash LED, making warning sound when detects fire. Additionally, it has built-in RF transmitter, intended to work with wireless burglar alarm and IP camera through 433MHz RF signal.



Photoelectric smoke detectors utilize a light beam that shines into a receptor inside the devices. If smoke interrupts the beam in any way, the alarm sounds. Photoelectric detects react best to long and smoldering fires, while ionization detectors respond more rapidly in case of high flames.





Technical Specification



• Operating voltage: DC9V Battery
• Standby current: less than 200uA
• Alarm current: less than 20mA
• Operating temp.: -10 to +50 degrees
• Working humidity: less than 95%RH
• Alarm mode: Wireless /Sound & LED indicator
• Detecting area: 20 square meter
• Sensitivity: class I
• Alarm output: sound&flash,radio(315MHz or 433MHz)
• Dimension: 107mm dia.*35mm deep



Main features

• ASIC control
• Manual test, auto-reset
• Infrared photoelectric sensor
• Network output / LED indicator
• Strong adaptability to circumstance
• SMT adopted
• Dustproof, mothproof and anti-white light
• Low power indication
• 868MHz or 433MHz are available
