3 inch thermal printer mechanism with Auto cutter KTPC638 401 Compatible with FTP 638MCL401 80mm thermal printer head
- Category: >>>
- Supplier: Xiamen Apt Electronic Tech. Co. Ltd.
Share on (60798002895):
Product Overview
Description
3 inch thermal printer mechanism with Auto-cutter KTPC638-401 Compatible with FTP-638MCL401 80mm thermal printer head
Product Specification
Features
1. Low voltage supply
The voltage used to drive the thermal printer head is equal to the logic voltage, or is driven by a 5 V single power line, the range of operating voltage is 4.2V-8.5V.
2. Auto Cutter
Auto cutter with long lifespan
3. Compact and lightweight design
The mechanism is compact and light, dimensions: 103.2mm (width)x42.4mm (depth) x21.8mm (height)
4. Printing with high resolution
A high-density printer head of 8 dots/mm makes the printing clear and precise
5. High speed printing
It can print at 60 mm/s (480 dotlines/s) maximum at 8.5v with standard thermal paper
6. Easy paper loading
Detachable rubber roller structure makess the paper loading easier. Our unique platen release mechanism allows a wide paper route even if the printer is ultra-compact, so paper can be easily inserted. Conventional auto loading is also available.
7. Low noise
Thermal line dot printing is used to guarantee low noise printing.
Technical parameters
| Item | KTPC638-401(3inch with auto cutter) | |
| Printing method | Thermal line dot printing | |
| Resolution | 203DPI, 8 dots/mm | |
| Dot structure | 576 dots/line | |
| Printing width | 72mm | |
| Dot pitch | 0.125mm (8 dots/mm) | |
| Paper width | 80mm | |
| Paper thickness | 60 to 100 µ m (some paper in this range may not be used because of paper characteristics) | |
| Printing Speed | Maximum 60mm/sec. (480 dot line/sec.) at 8.5V | |
| Paper feeding method | Friction feeding (1 dot line/4 pulses, bipolar 1-2 phase excitation) | |
| Power supply | For print head | 4.2 - 8.5 VDC average current, 1.8 (2.4)A at 7.2V (print ratio: 12.5%, print speed: 60mm/sec. ) |
| For motor | 4.2 - 8.5 VDC, 1A maximum | |
| For cutter motor | 7.2 - 8.5 VDC, 1A maximum | |
| For logic | 3.3 to 5.25 VDC, 0.1A maximum | |
| Dimensions | Mechanism with cutter | 103.2 x 42.2 x 21.8 mm (WxDxH) |
| Weight | Mechanism with cutter | Approximately 118g |
| Life | Head | Pulse resistance: 100 million pulses/dot (under our standard conditions); Abrasion resistance: paper traveling distance 50km (print ratio: 12.5% or less) |
| Cutter | 500,000 cuts (cutting synchronization: 20cut or less/1 minute) | |
| Platen | 5,000 times (regarding open/close as one time) | |
| Operating environment | Operating temperature | 0 to 50 |
| Operating humidity | 20 to 85% RH (no condensation) | |
| Storage temperature | -20 to +60 (paper not included) | |
| Storage humidity | 5 to 90% RH (no condensation) | |
| Detection function | Head temperature detection | Detected by thermistor |
| Paper out/mark detection | Detected by photo-interrupter | |
| Platen release | Detected by sliding switch | |
| Movable edge Initialization | Detected by photograph sensor (penetrated type) | |

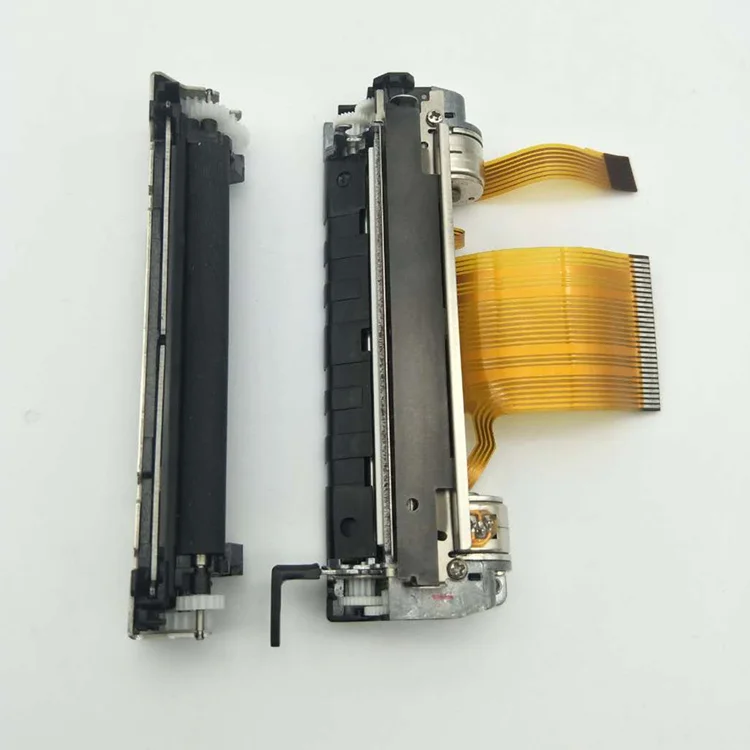

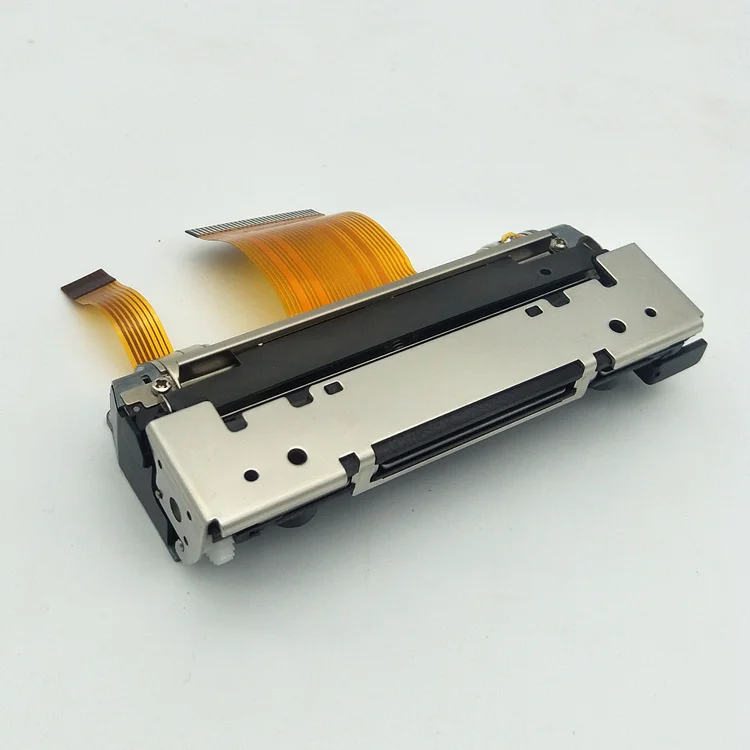

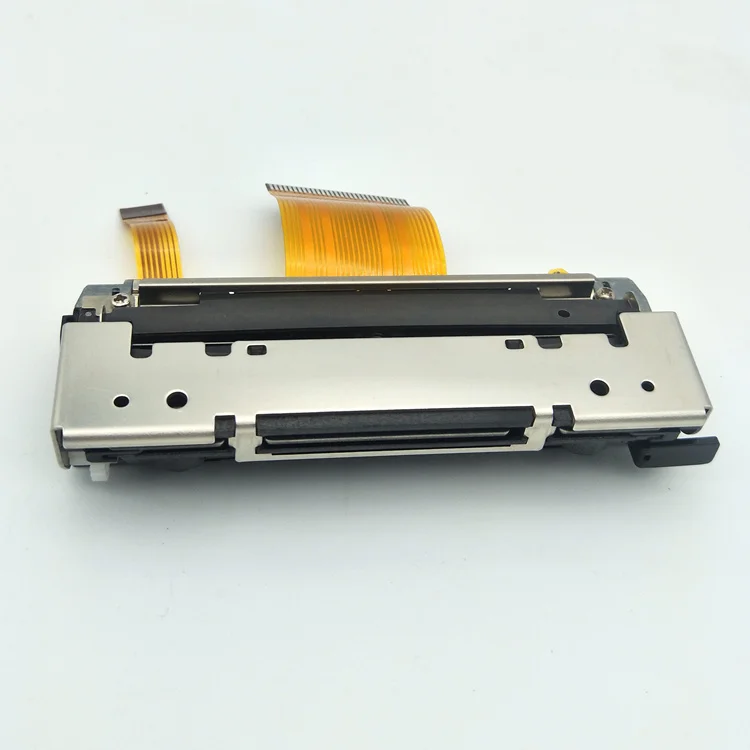

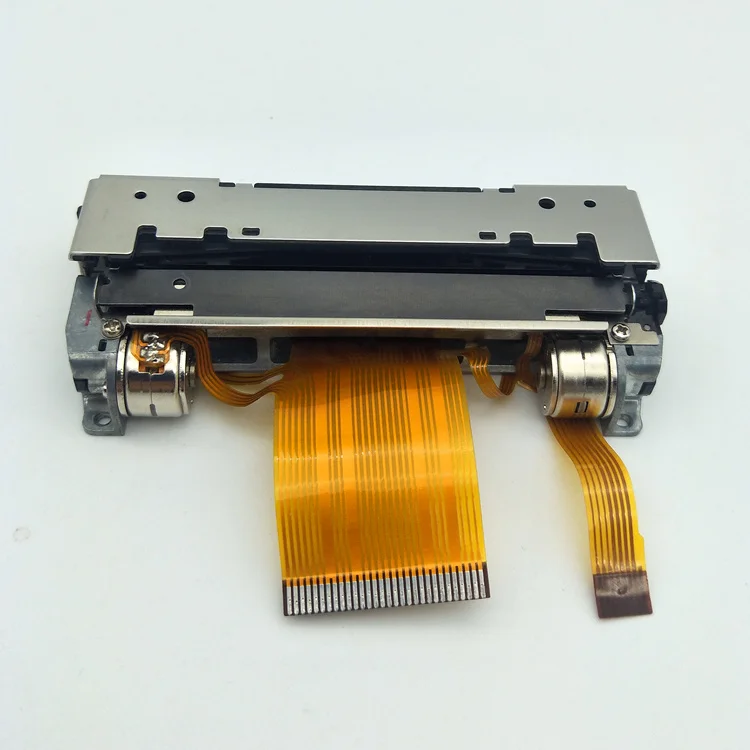

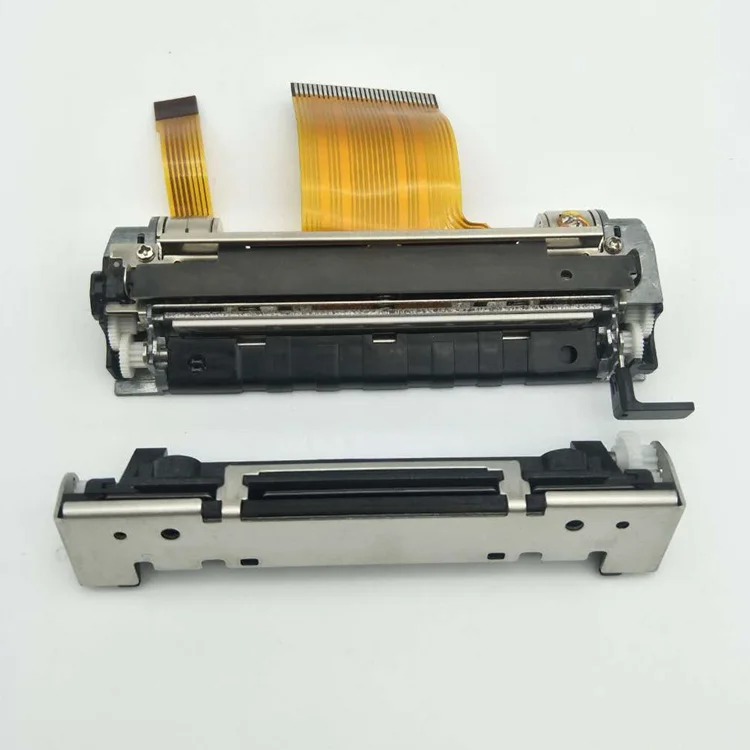

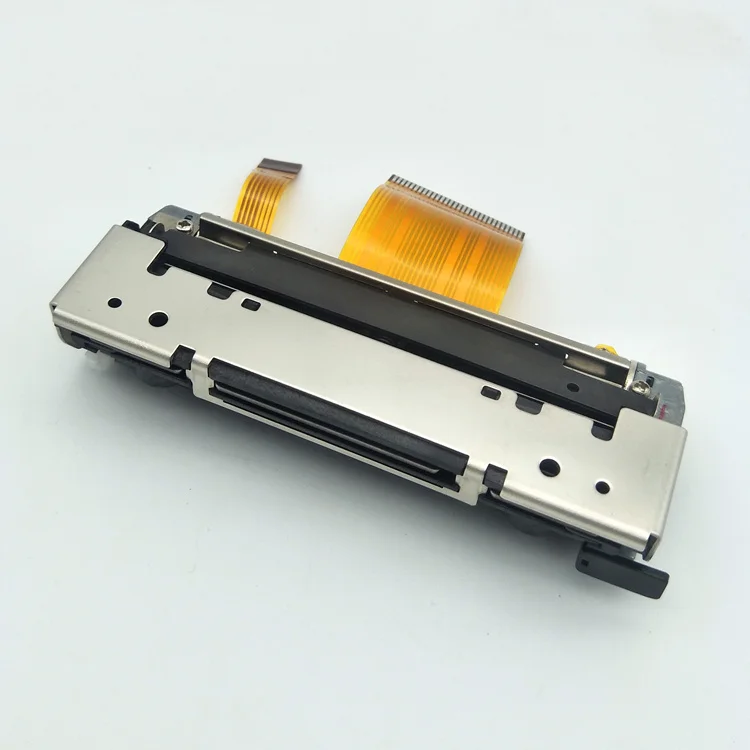

Product Show
