Product Overview
Description
Product Description

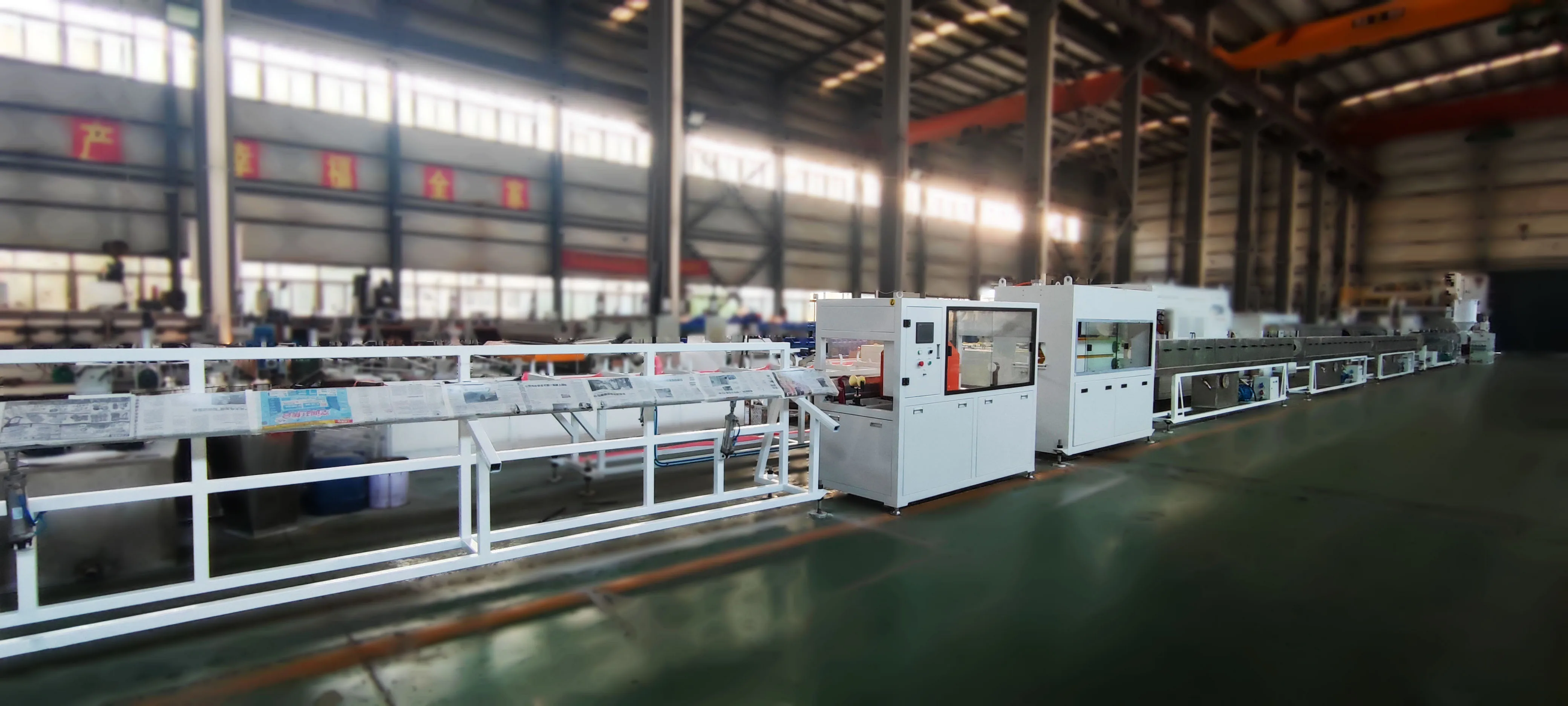

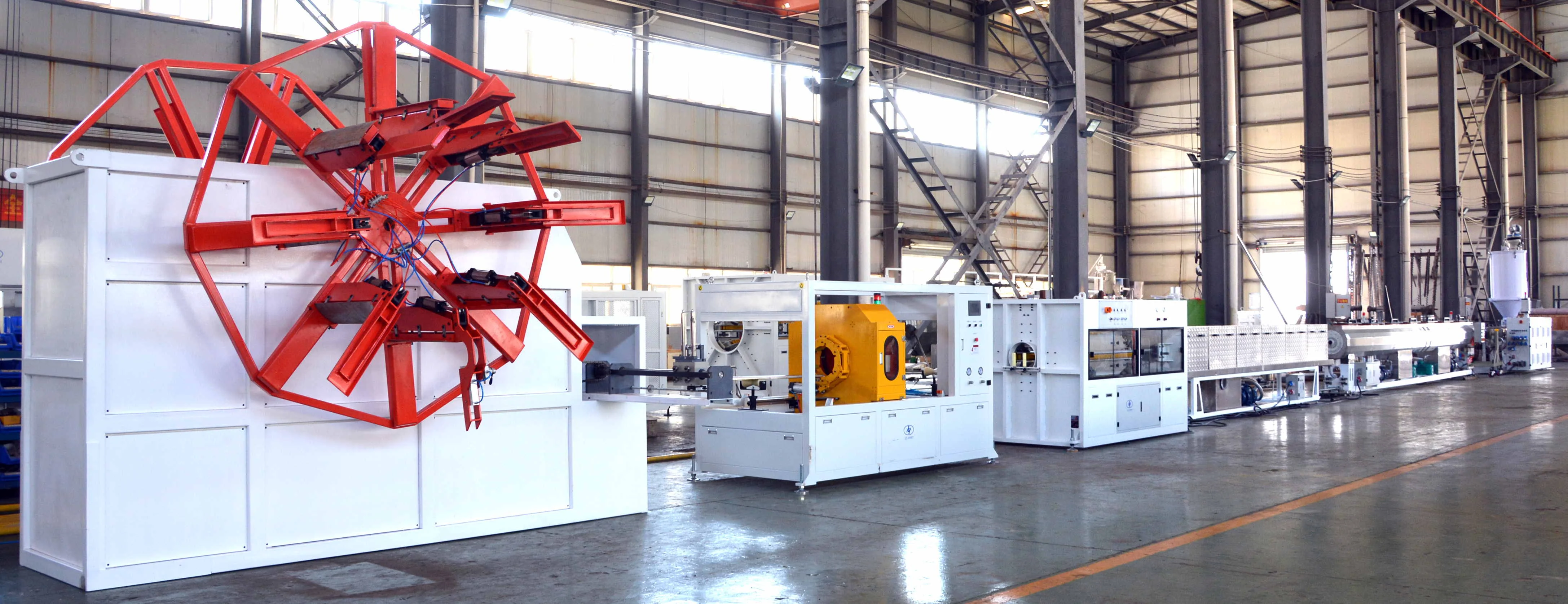

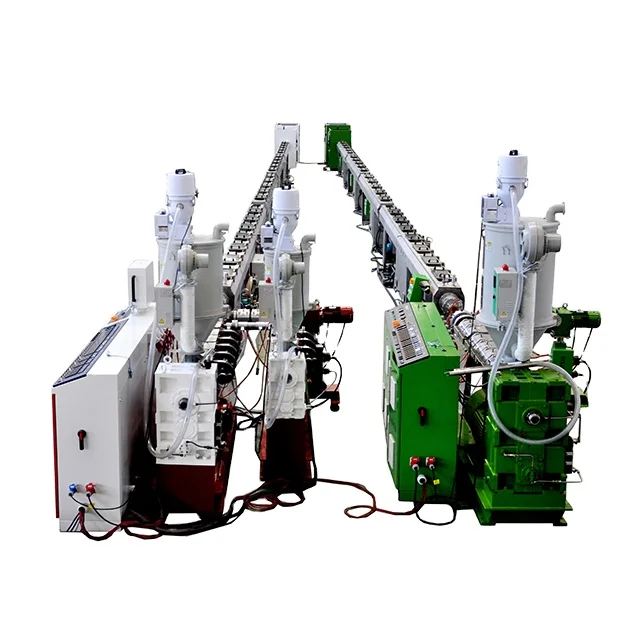

PE HDPE PPR PPH pipe production line
1. High output: Ensure you the highest output as compared with others
2. New technology gear box:High torque gear box
3. Screw and barrel:Bi-metal material ensure you longer working life, ensuring 24months
4. Electric elements and box:In detachable, with world famous brand such as ABB, Siemens, Schneider, Delta, well organized.
5. HYPET PLC control system:With operation easy, management full, energy saving and counting, and intelligent control system
6. Pipe brighten device:To make the pipe shining and smoothing
7. Vacuum tank 304 stainless:Water level and temperature controlled automatically
8. Chipless cutter:In new device for cutting pipe to save the material
2. New technology gear box:High torque gear box
3. Screw and barrel:Bi-metal material ensure you longer working life, ensuring 24months
4. Electric elements and box:In detachable, with world famous brand such as ABB, Siemens, Schneider, Delta, well organized.
5. HYPET PLC control system:With operation easy, management full, energy saving and counting, and intelligent control system
6. Pipe brighten device:To make the pipe shining and smoothing
7. Vacuum tank 304 stainless:Water level and temperature controlled automatically
8. Chipless cutter:In new device for cutting pipe to save the material

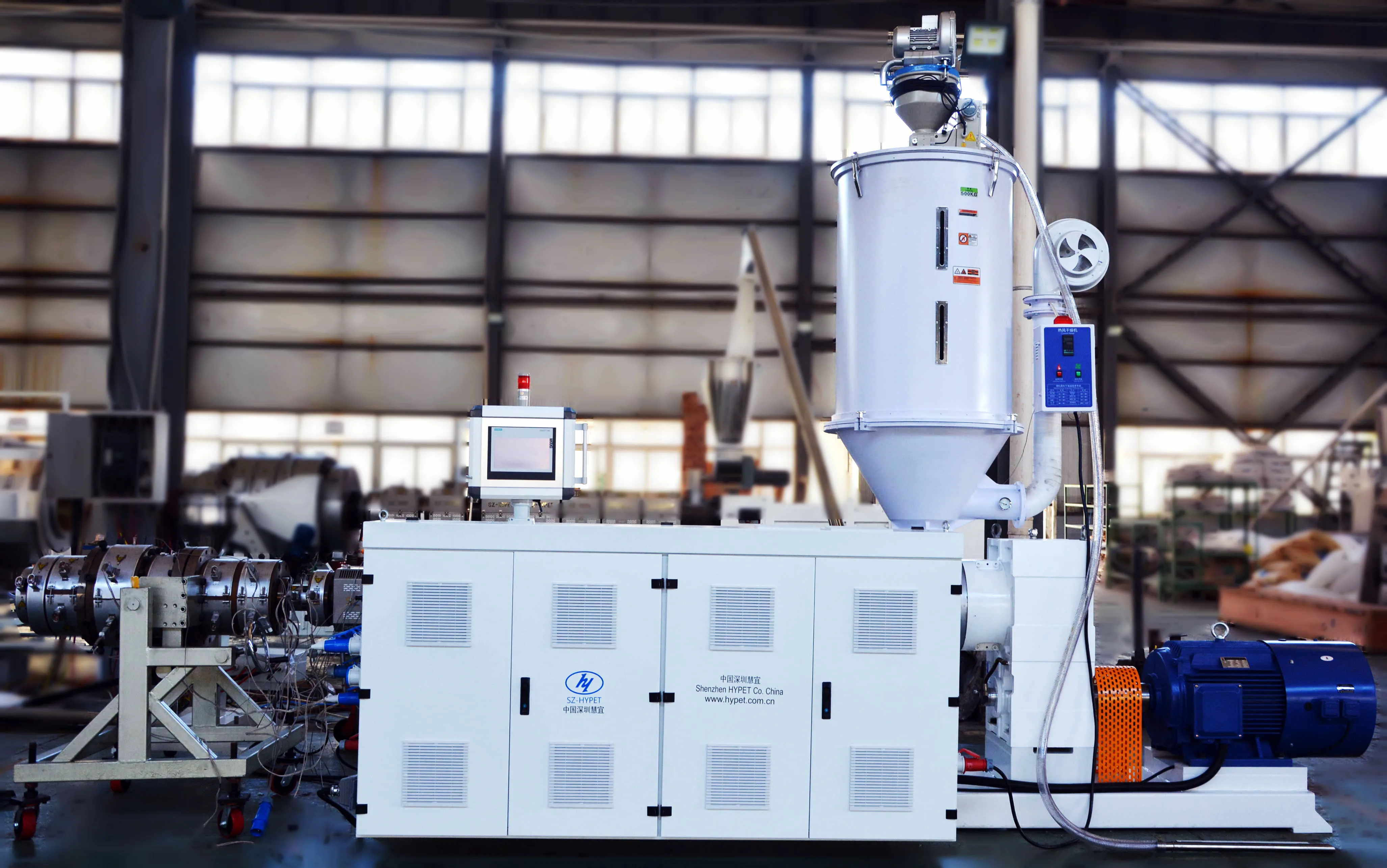

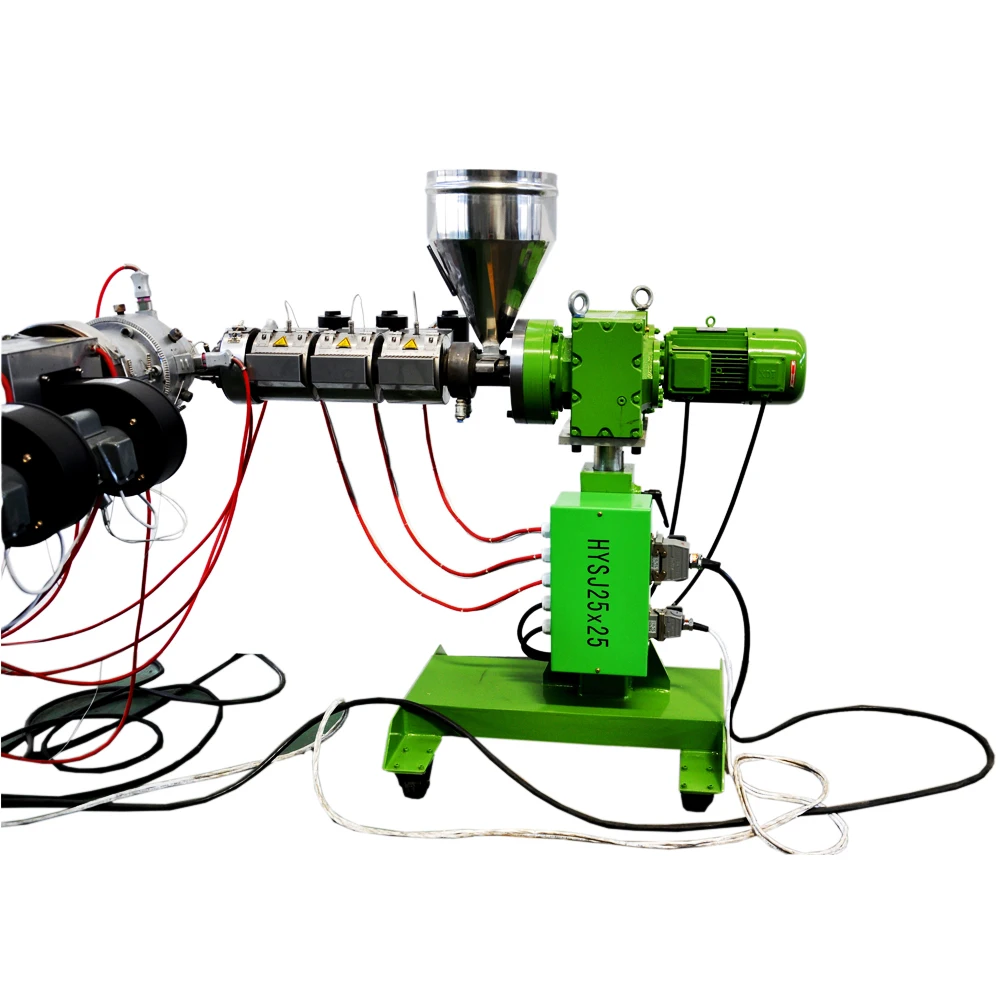

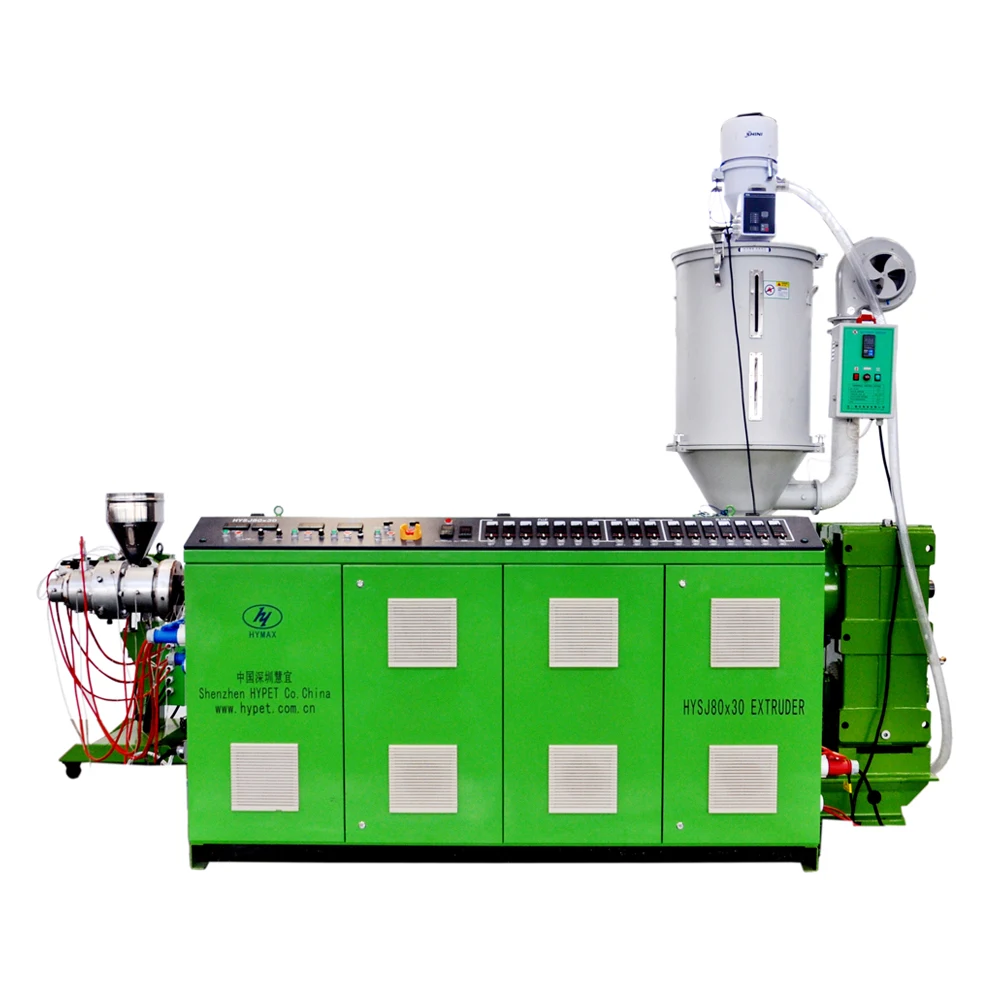

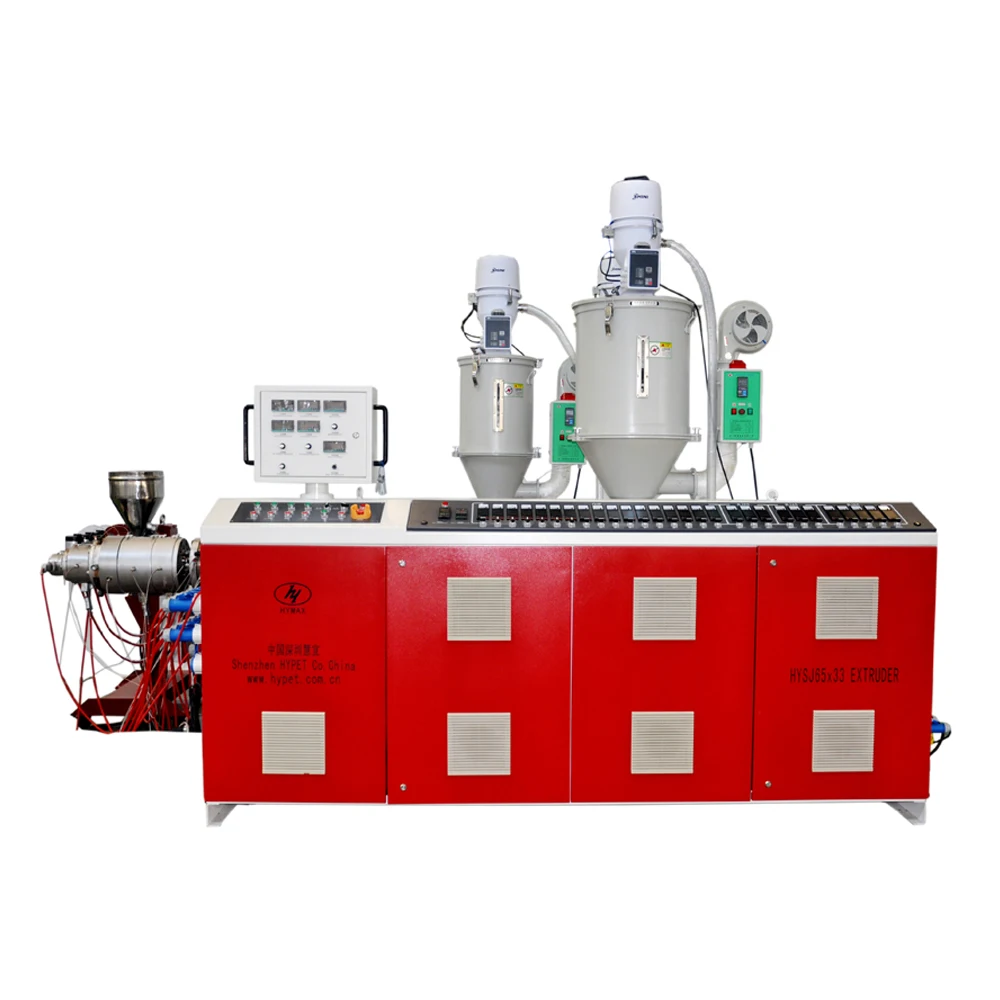

HIGH EFFICIENT SINGLE Screw Extruder
High output / Long L/D /Better plasticizing
Self designed screw
Drying type feeder
Super size touch screen
Energy saving heaters
Low noisy blower
Top brand inverter
Strong motor
Operating Screen
Super size operating screen to keep operation easily and well
Control system
Top brand Siemens PLC control sytem as operating heart
Heaters & blowers
Energy saving type heaters and low noisy blowers
Dosing sytem
Best brand for option
Frequency inverter
ABB or Heavy type Delta
Gear box
High precise gears

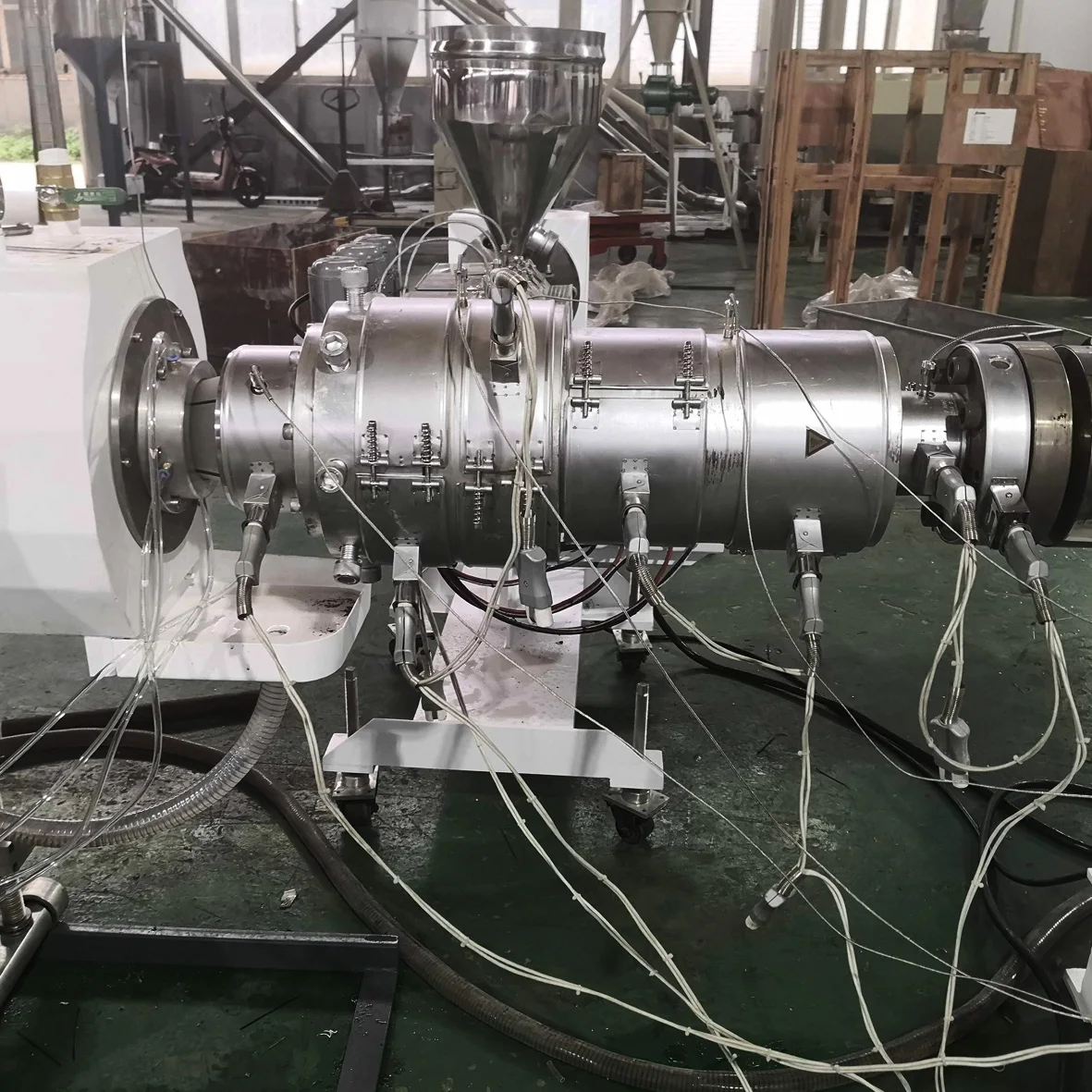

CO-EXTRUSION DIE HEAD
With HYPET brighter which make the pipe surface is bright.
The pressure class and pipe standard will be made according to the requirement.
The spider concept ensures excellent, outstanding & consistent pipe quality due to ideal dwell time of melt throughout.
The cross section of the die. Homogenous melt distribution with temperature control through number of zones for high through puts.
The flow path are milled and are highly polished. .
The pressure class and pipe standard will be made according to the requirement.
The spider concept ensures excellent, outstanding & consistent pipe quality due to ideal dwell time of melt throughout.
The cross section of the die. Homogenous melt distribution with temperature control through number of zones for high through puts.
The flow path are milled and are highly polished. .

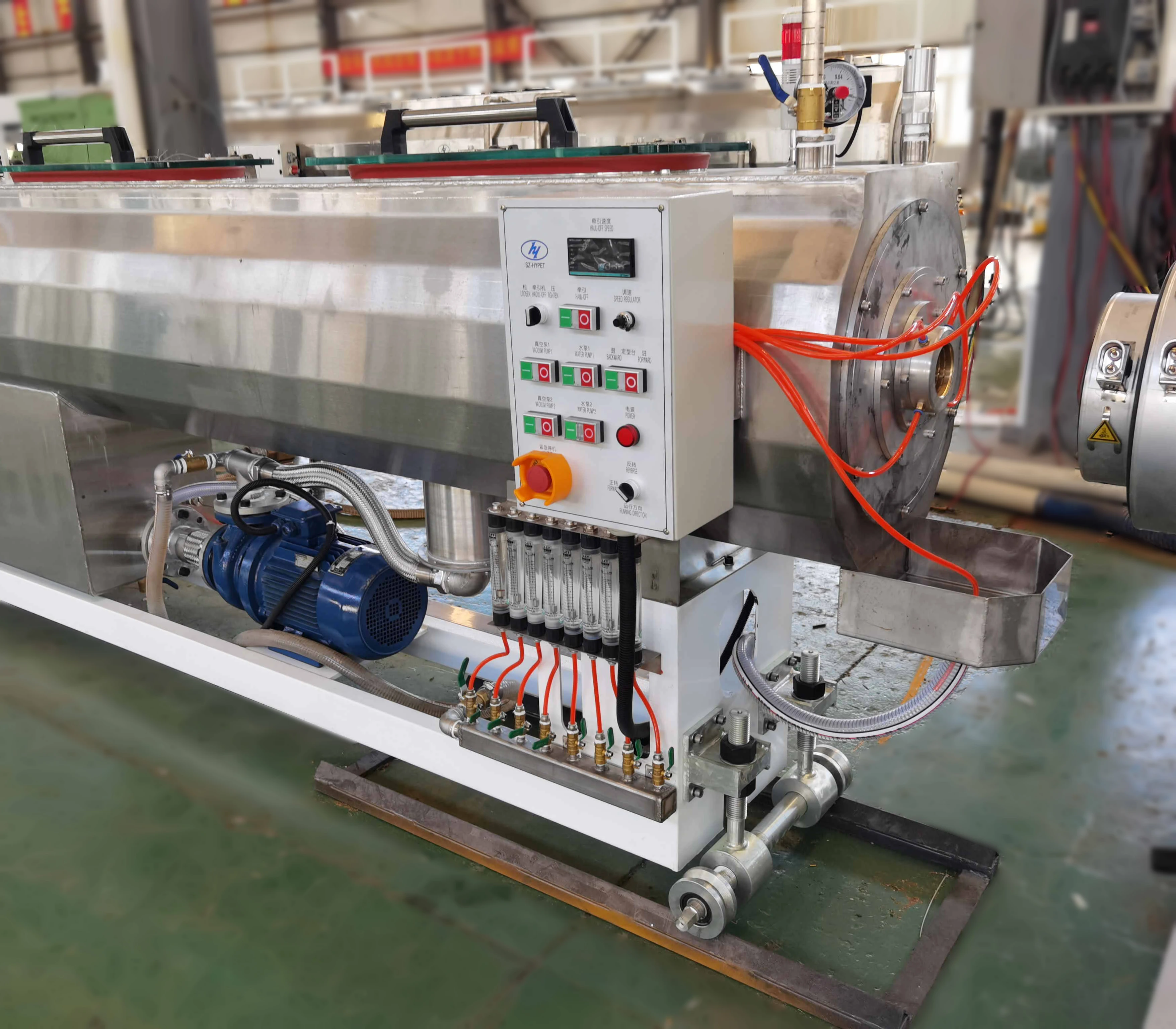

VACUUM TANK
Temperature controller in close loop water temperature system to maintain water level & temperature in the tank.
Vacuum release valve manual as well as solenoid operated.
Visual inspection window is provided at the entry of the tank.
Height adjustment on wheels & Motorized longitudinal movement & manual cross adjustment.
Vacuum release valve manual as well as solenoid operated.
Visual inspection window is provided at the entry of the tank.
Height adjustment on wheels & Motorized longitudinal movement & manual cross adjustment.

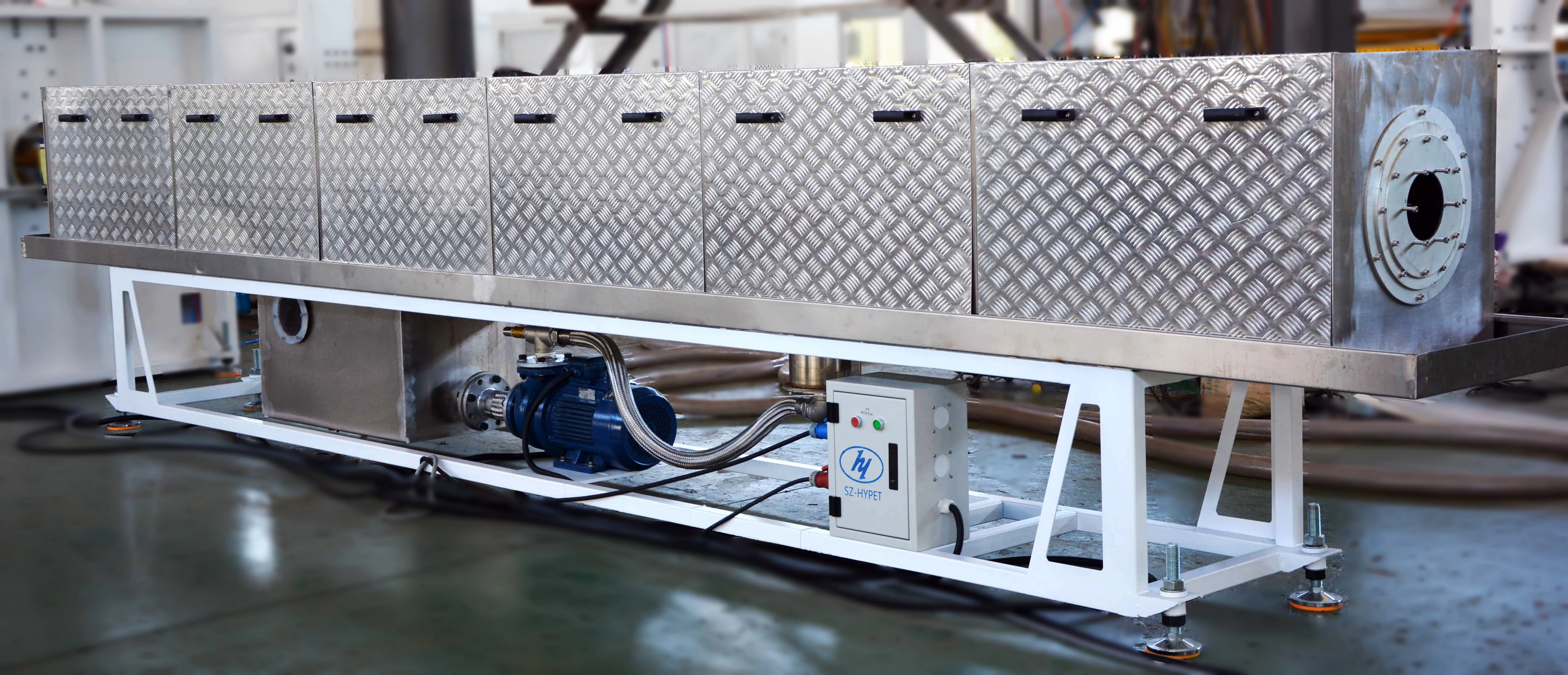

SPRAY TANK
Raw material is stainless steel 304.
Spraying nozzles will be better and fast cooling.
Pump with strong power supplying water.

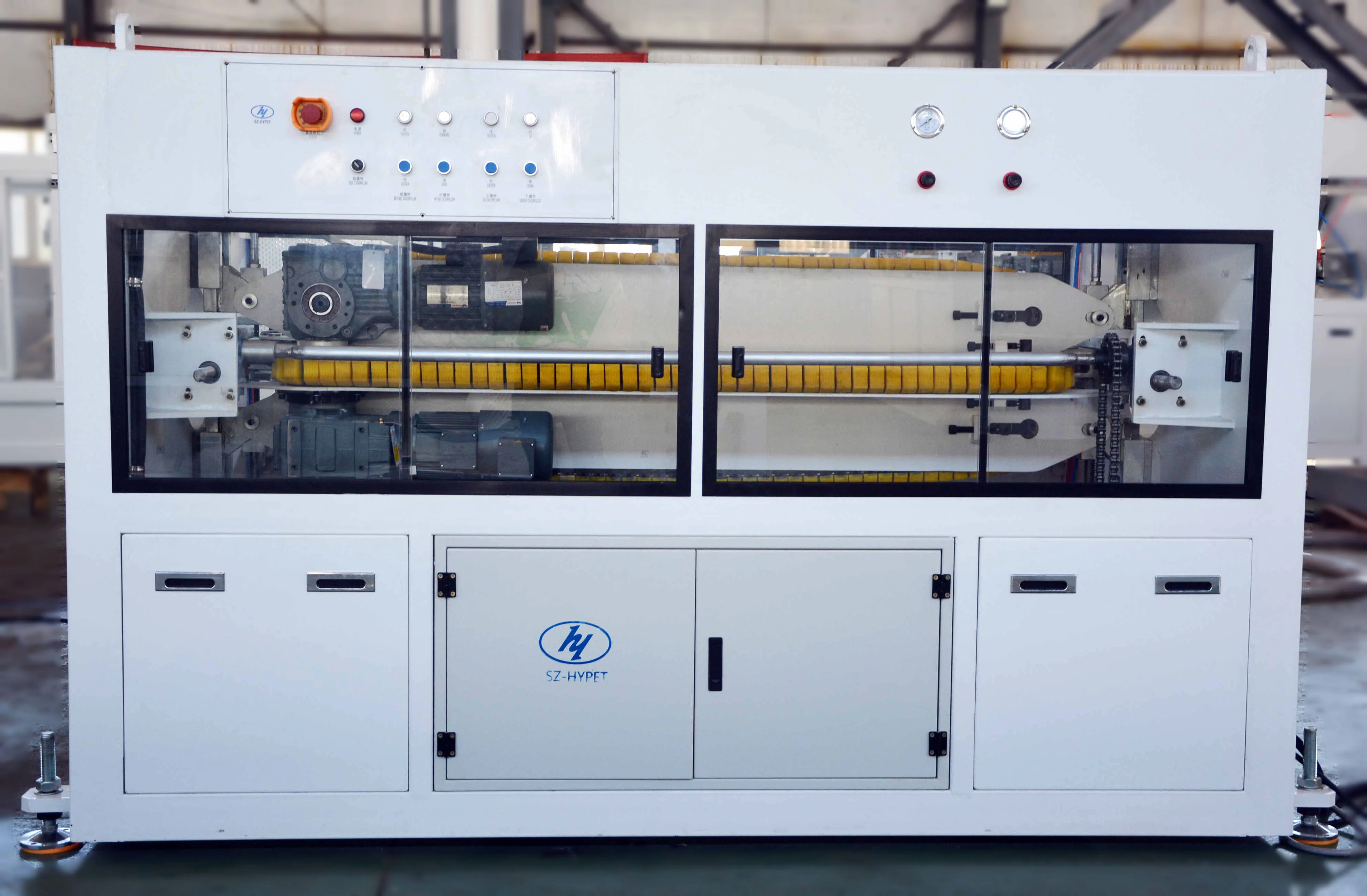

HAUL OFF MACHINE
Consists of top and bottom support which houses chain driven jaws with V- rubber profile.
Bottom support is fixed one and top support is pneumatically operated by two sets of cylinders on either side.
Independent special characteristic Vector AC strong Geared motor for each traction.
Independent special characteristic Vector AC strong Geared motor for each traction.

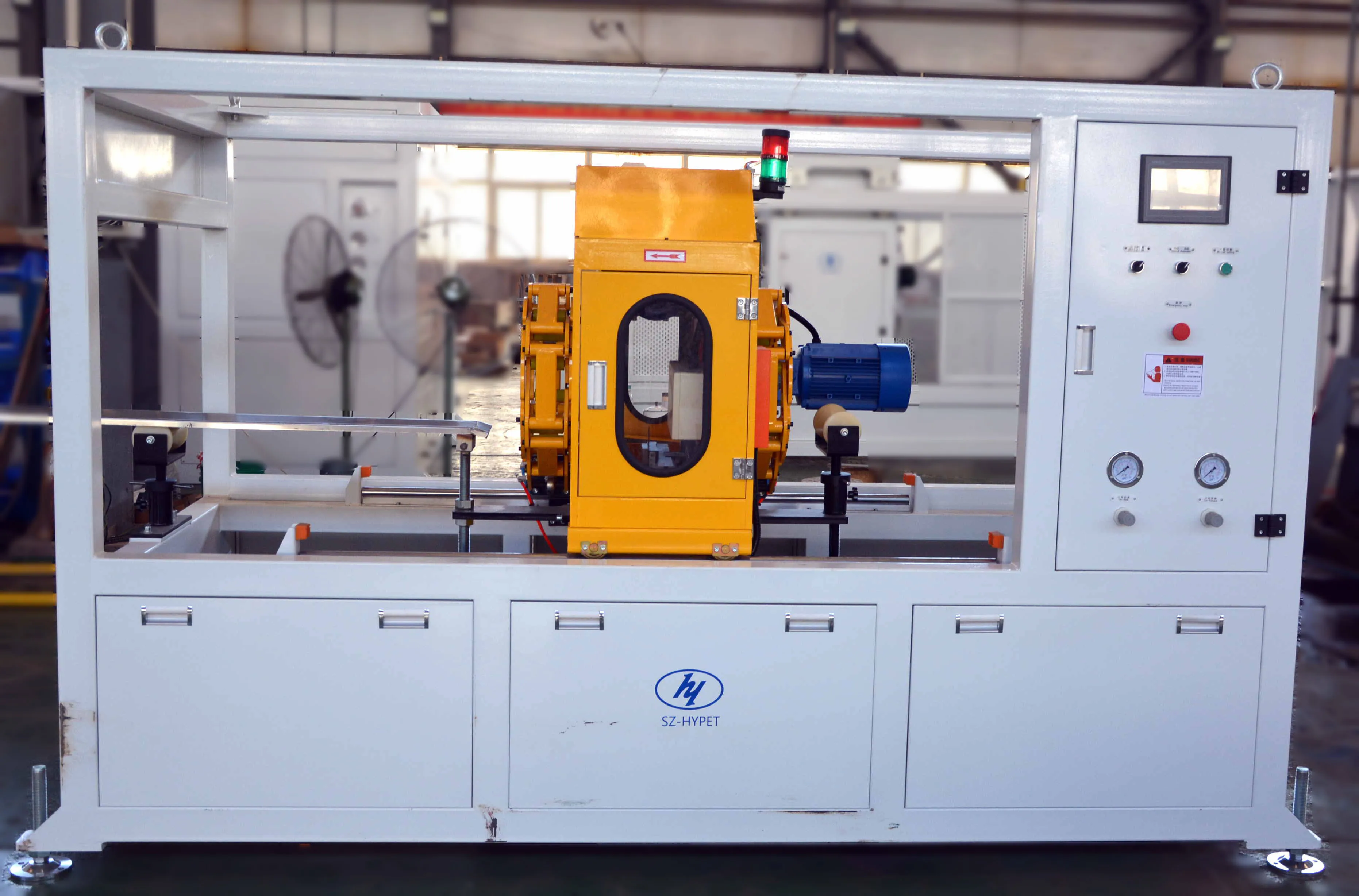

CUTTER
Swarfless cutter to save the material and Environmental protection
Cut neatly bright
No noise and energy saving.
Cast aluminum blocks for Clamping pipe
Carriage made of Aluminum is mounted on hardened and hard chrome plated guide bar with linear motion bearings.
Cut neatly bright
No noise and energy saving.
Cast aluminum blocks for Clamping pipe
Carriage made of Aluminum is mounted on hardened and hard chrome plated guide bar with linear motion bearings.

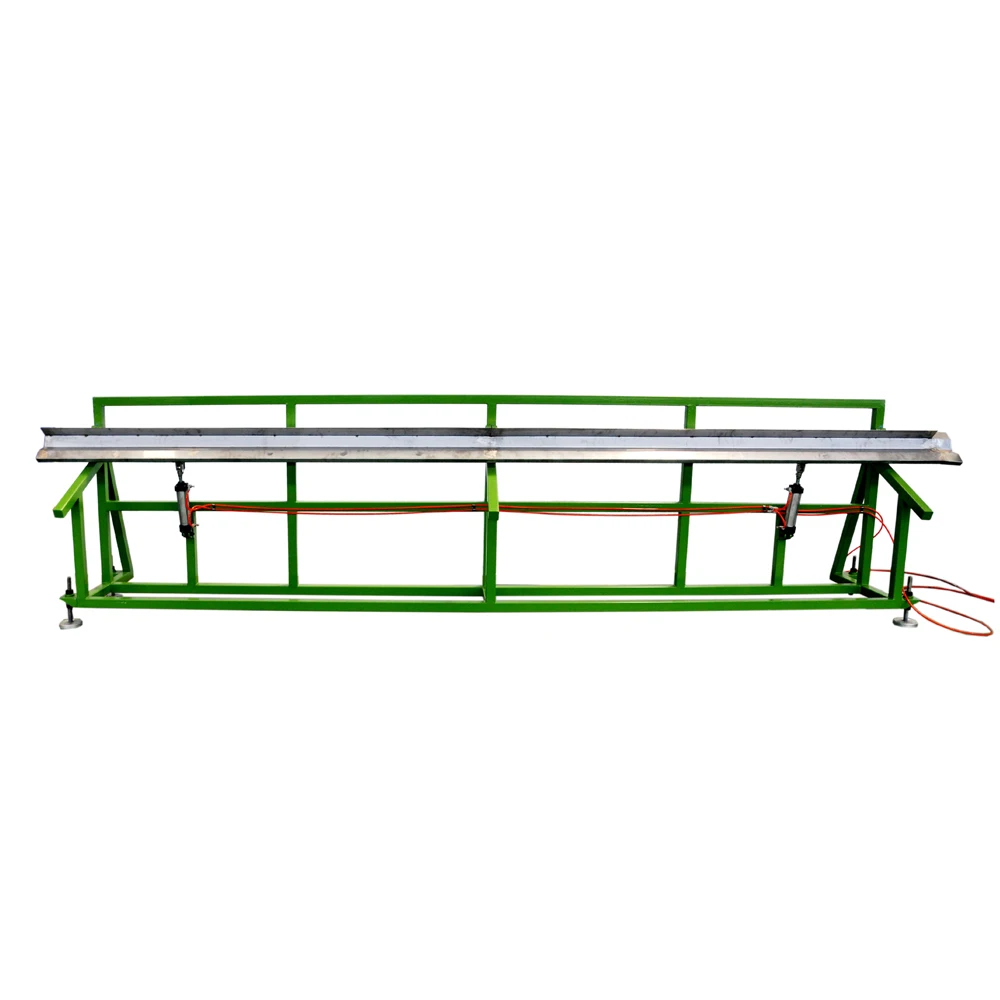

STACKER
The tripping chute is made from MS rigid structural steel.
Stainless flat type Tilting table provided for smooth scratch less pipe moment.
Tilting table is Pneumatically operated
Limit switches with adjustable bracket provided to cut various pipe length.
Integral Stand provided for pipe stacking.
Stainless flat type Tilting table provided for smooth scratch less pipe moment.
Tilting table is Pneumatically operated
Limit switches with adjustable bracket provided to cut various pipe length.
Integral Stand provided for pipe stacking.
Cooperative brands
Auxiliary machine for option
Laser printer
Laser logo and words
Dryer
Material drying feeder
PE pulverizer
Recycle PE bad products
Series Lines & Data
No. | Pipe range | Extruders | Main Motor | Output |
1 | 16-63 PPR | 60/36 | 45 | 130 |
2 | 20-110 PE | 60/36 | 55 | 220 |
3 | 110-250 PE | 60/36 | 90 | 360 |
4 | 160-315 PE | 75/36 | 110 | 420 |
5 | 200-400 PE | 75/36 | 132 | 520 |
6 | 315-630 PE | 90/36 | 185 | 720 |
