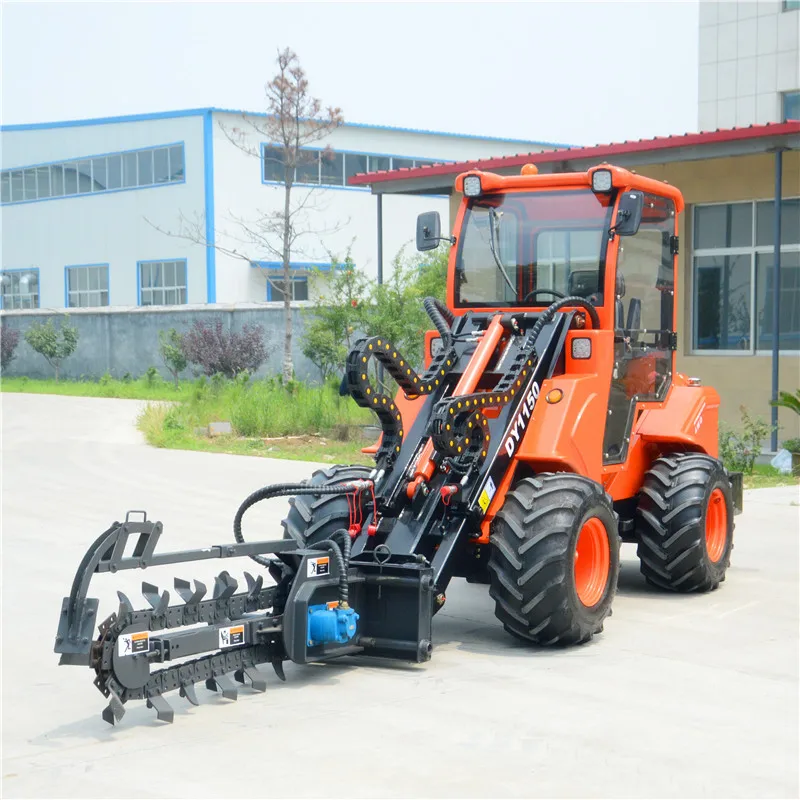

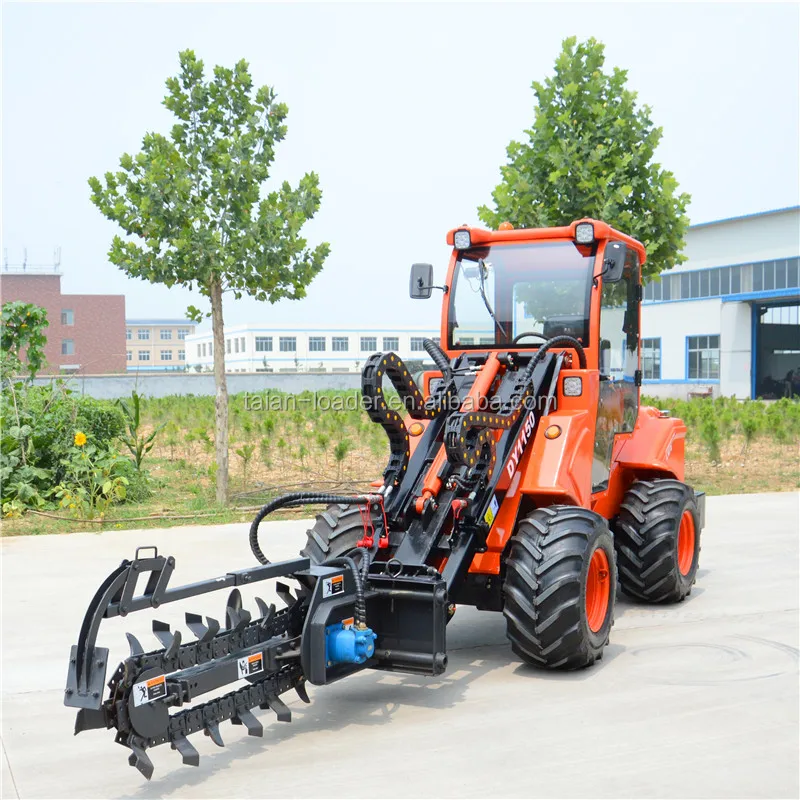

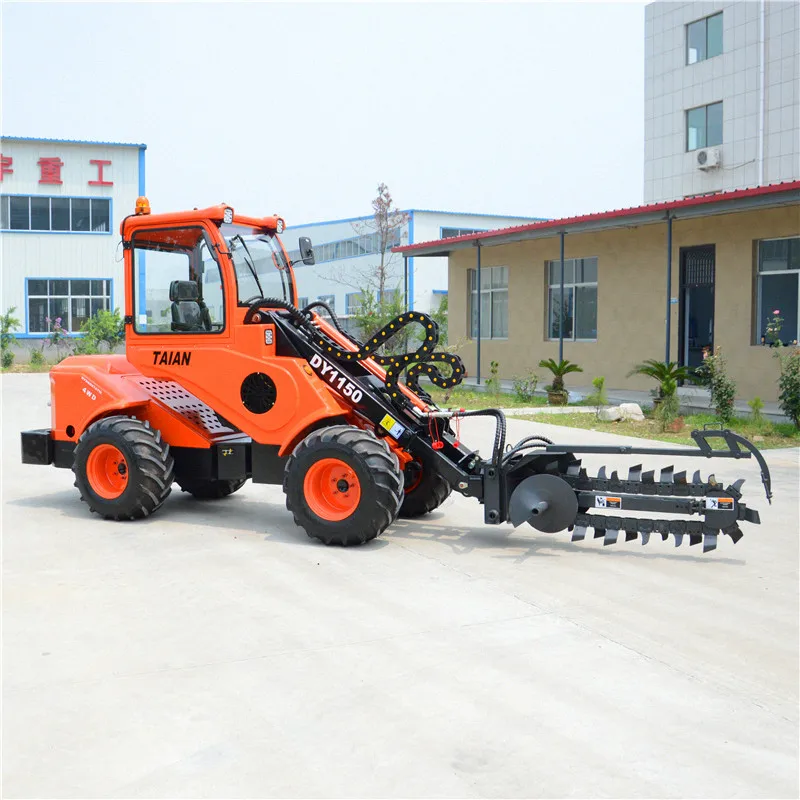

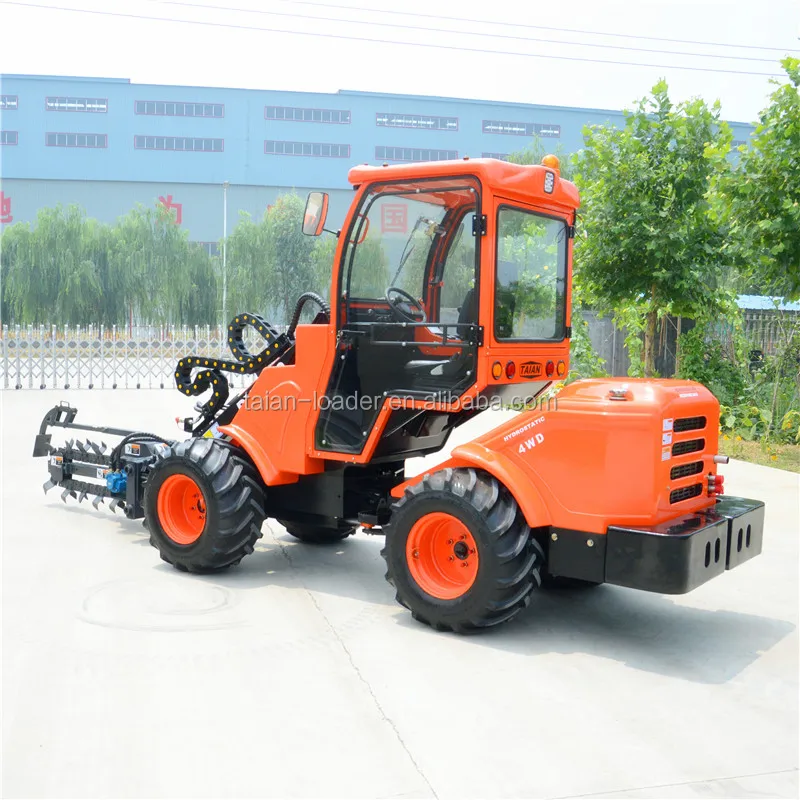

TAIAN DY1150 Multi Functions Articulated Mini Wheel Loader
DY1150 | |
Dimension (LxWxH) | 3410mm*1500mm*2350mm |
Max. reach(boom extended) | 3540mm |
Max. reach(boom retracted) | 2910mm |
Bucket capacity | 600L |
Rated loading capacity | 1600kg |
Tipping load | 2600kg |
Min. turning radius | 2818mm |
Ground clearance | 330mm |
Turning angle | 45 |
Speed | 16.5 km/h |
Weight | 2300 kg |
Standard tire | 31X15.5-15 |
Tire pressure | 2.8 bar |
Oil tank capacity | 70L |
Pressure | 200bar |
Working oil flow | 82L/min |
Tracking oil flow | 117L/min |
Oil model(mineral oil) | L-HL46 |
Engine brand | Yanmar 4TNV94L |
Number of cylinder | 4 |
Cooling system | Water cooling |
Rated power | 36.5 Kw |
Rotation speed | 2600 r/min |
Fuel tank capacity | 32L |
Battery capacity | 70Ah |
Voltage | 12v |
China mini garden tractor TAIAN DY1150 , multifunction kubota walking tractor
With the first class components, world famous Kubota engine, oversea famous brand hydraulics and seals, guarteens it's a reliable long lasting machine.
The telescopic boom which can reach 3.5m makes it outstanding among same size machines.
Excellent self leveling makes it keep leveling from the bottom to the highest point.
Four independent hydraulic wheel motor ensures the power of it.
Many outside reachable maintenance points and the warning lights, alarms, makes the maintenance and operation safe and simple.
Opptional rear hydraulic output and the three point hitch enable customer to use some attachments at the rear part of the machine.
All kinds of attachments available, meet requirement for different felds.
Different colour and OEM acceptable.




1. Quick response to every inquiry.
2. Professtional and detailed answer to any of customer's questions.
3. Strict QC and in time delivery
4. Offer all relative material for customer to know and better use the machine.
5. Periodically after service follow up, offer any necessary support if needed.
6.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
7.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
8.The repairation or replacement for the parts should not exceed the warranty period.
9.The warranty is valid on the condition of all the terms listed in the contract was observed.
