Gabion Wire Mesh Knitting Automatic Boxes Making Machine
- Category: >>>
- Supplier: Anping Success Wire Mesh Equipment Co. Ltd.
Share on (60798043716):
Product Overview
Description

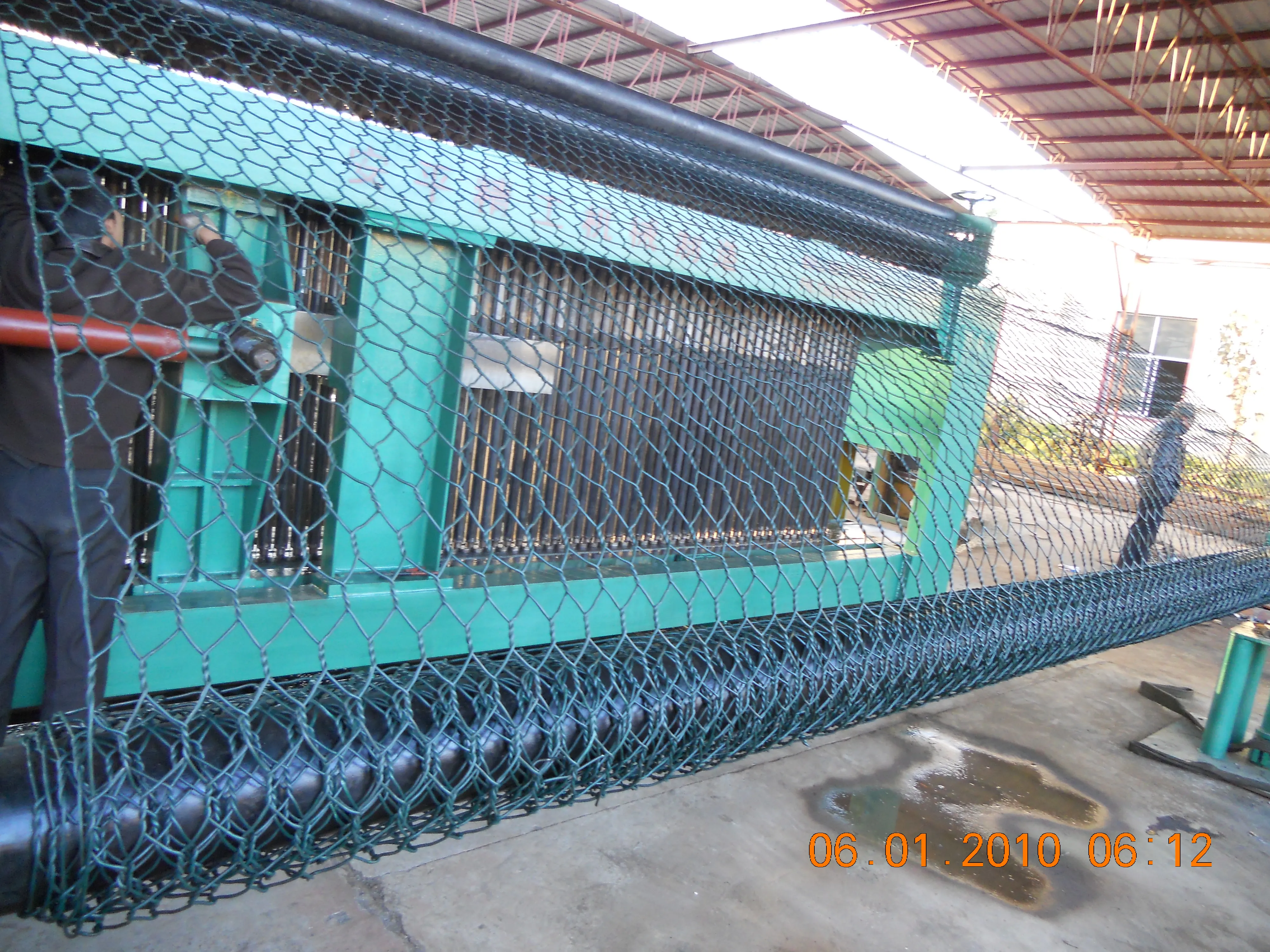

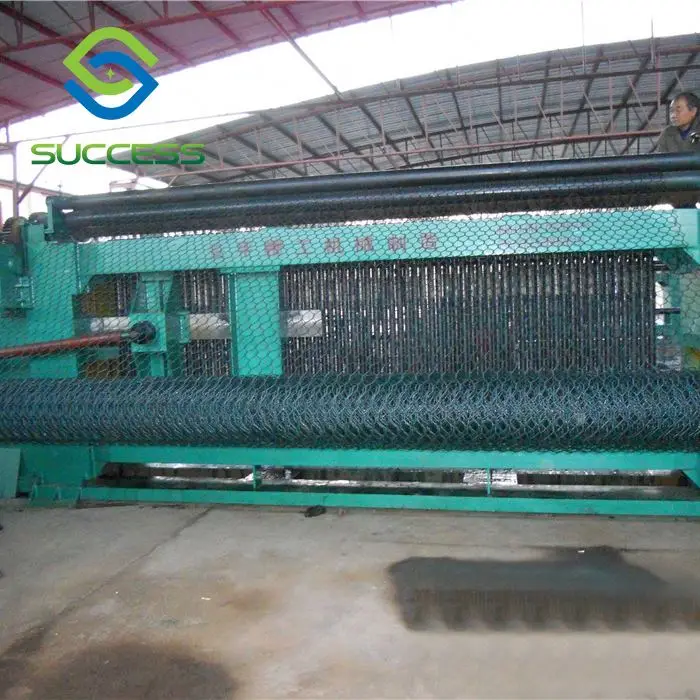

Gabion Wire Mesh Knitting Automatic Boxes Making Machine

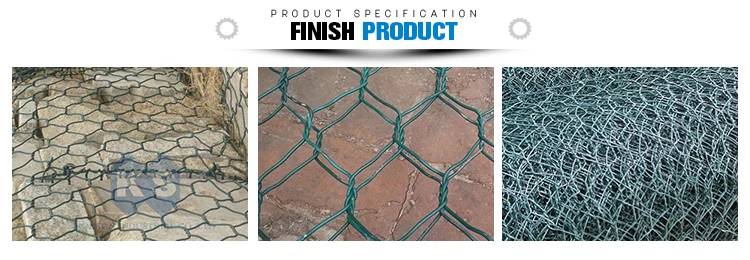

1.Gabion mesh machine is the professional machine to produce gabion mesh box, which is wildly used in protecting and sustaining bank, hillside, road and bridge, reservoir and other construction project, and it is the good material to prevent or control flood.
2.Gabion mesh machine adopt PLC automatic control, it has the characteristics of moving steadily, low noise, high potency, it is ideal machine for weaving gabion mesh with big specifications, big width, and big diameter.
3.YNW series hydraulic heavy hexagonal wire mesh weaving machine adopts PLC automatic control and hydraulic drive, has stable operation, low noise and high efficiency, and is an ideal machine for weaving large specification, broad width and thick wire diameter hexagonal wire mesh.
Model | Nominal Size of Mesh | Maximum Wire Diameter | Maximum Width | Weaving Speed | Motor Power |
YNW60X80-24 | 60X80-24mm | φ2.2-2.8mm | 2.4m | ≥1.5m/min | 18.5kw |
YNW80X100-24 | 80X100-24mm | φ2.2-3.5mm | 2.4m | ≥2m/min | 22kw |
YNW60X80-46 | 60X80-46mm | φ2.2-2.8mm | 4.6m | ≥1.5m/min | 30kw |
YNW80X100-42 | 80X100-42mm | φ2.2X3.5mm | 4.2m | ≥2m/min | 30kw |
Mechanical Drive
Product Specification (mm) | Maximum Breadth (mm) | Maximum Wire Diameter (mm) | Twist Ridge Count | Spindle Speed | Motor Power (kw) | Theoretical Production Speed |
|
| |
Twist Mesh Hole Number/min | m /h | Overall Dimensions (LXWXH) mm | Quality (T) | ||||||
60X80 | 2300 | 3 | 3 | 25 | 11 | 25 | 165 | 5200X1400X2400 | 14 |
3300 | 3 | 3 | 25 | 15 | 25 | 165 | 6200X1400X2400 | 15 | |
4300 | 3 | 3 | 25 | 22 | 25 | 165 | 7200X1400X2400 | 16 | |
80X100 | 2300 | 3 | 3 | 25 | 11 | 25 | 195 | 5200X1400X2400 | 14 |
3300 | 3 | 3 | 25 | 15 | 25 | 195 | 6200X1400X2400 | 15 | |
4300 | 3 | 3 | 25 | 22 | 25 | 195 | 7200X1400X2400 | 16 | |
100X120 | 2300 | 3 | 3 | 25 | 11 | 25 | 225 | 5200X1400X2400 | 14 |
3300 | 3 | 3 | 25 | 15 | 25 | 255 | 6200X1400X2400 | 15 | |
4300 | 3 | 3 | 25 | 22 | 25 | 225 | 7200X1400X2400 | 16 | |
Advantages:
1. New type double rack drive gabion knitting machine
2. High efficiency: theoretic output=4.25m/min
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
7. The knitting machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.
8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.
