Price:$19.50 - $39.50

Quantity:


Product Overview

Description



Product Description


ODM/OEM CUSTOMIZED DESIGN IS WELCOME!

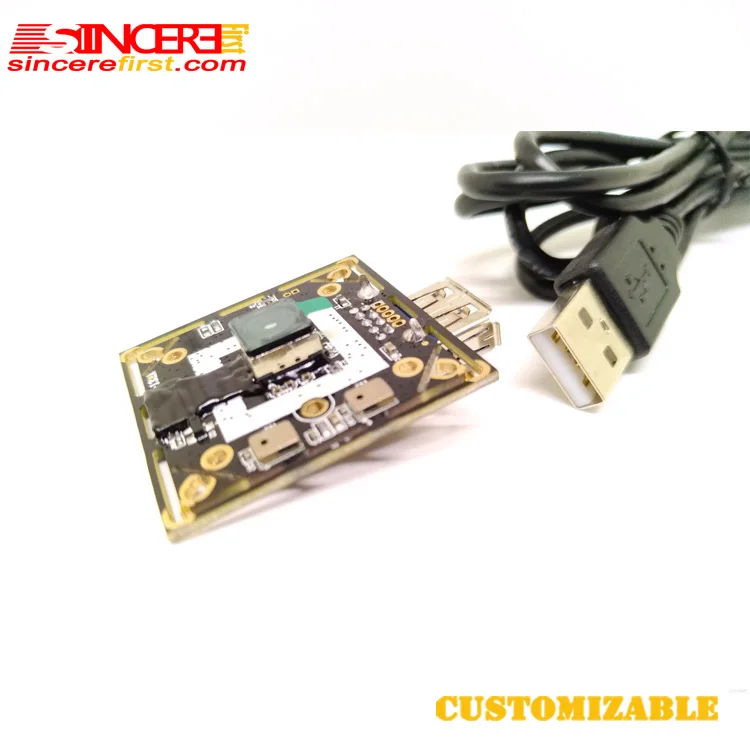

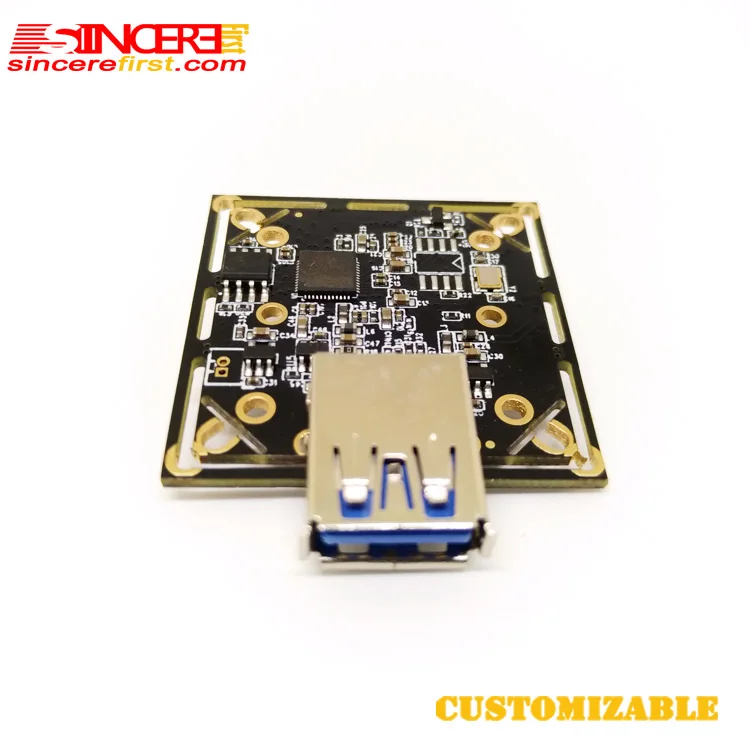

Factory direct sale HD 8MP USB Camera Module with auto focus free drive USB3.0 camera

This 8MP USB3.0 UVC Camera Module enables image capturing along with the 720p,1080p video streaming capability.
Video streaming through UVC and audio streaming through UAC is possible without any special drivers on Operating Systems that have built in support for these UVC and UAC standards,Because of this high speed USB Camera Board is fully compliant with USB Video Class (UVC) 1.0 Standard.

This Usb camera module Is the latest development of high-speed USB3.0 interface and SONY large area array CMOS image sensor 1 / 3.2 composed of high-resolution digital camera.It has a true hardware 8 megapixel high resolution image sensor.

It provides a wide range of real-time image interface control, and can be widely used in computer image acquisition, human and biometric acquisition, pattern recognition, industrial inspection, medical microscopy and traffic management and machine vision.






Item
SR8132A
Remarks
Description
USB3.0 Color CMOS 800MP Camera Module
SENSER
Diagonal 5.7mm(Type 1/3.2) 800MP SONY CMOS Imaging Sendsor
Pixel
1.4μm×1.4μm
Scanning method
line-by-line scan
Exposure mode
Electronic shutter
Image dynamic image resolution and transmission rate
3264*2488/15fps,1920*1080/30pfs;1600*1200/30fps;
MJPG
1280*720/30fps;960*540/30fps;800*600/30fps;640*480/30fps;848*480/30fps;640*480/30fps; 640*360/30fps; 420*240/30fps; 320*240/30fps; 320*180/30fps;
848*48030fps;640*480/30fps; 640*360/30fps; 420*240/30fps; 320*240/30fps; 320*180/30fps;
YUY2
Pixel size
3264*2488
AEB
automatic / manual
AEC
automatic / manual
Output image
USB3.0,480Mb/s
Output image format
YUY2/MJPG
Power supply
USB3.0 power supply
Minimum illumination
71.5dB
Programmable control
Image size, brightness, gain, exposure time
SDK
Software features
Image display, image processing, video.
SDK
Operating temperature
-30°C~70°C
SDK support language
VC6;VC8
Brightness







automatic
Contrast
Saturation
Hue
Clarity
Gamma
Backlight contrast
Zoom
Exposure contro

automatic / manual
White flat horizontal
Focus (AF)
Panoramic
automatic
Tilt
automatic
Throwing dice
automatic
Color space / compression
YUY2 / MJPG
Output Pins
Standard USB3.0 interface
Operating Voltage
5V
USB
Power consumption
150mW/50µW
Board size / weight
32*32mm(Other sizes can be customized by customer)
Supported System
Win 2000,Win XP,Win 7 ;WIN10
Free drive
Wince 6.0; Linux2.6.20Above;Android system
Need driver
SDK support language
VC6;VC8
Available upon request
Lens
Plus adapter for micro-high-resolution lens, adapter C / CS standard lens, no lens adaptation microscope
Finished product

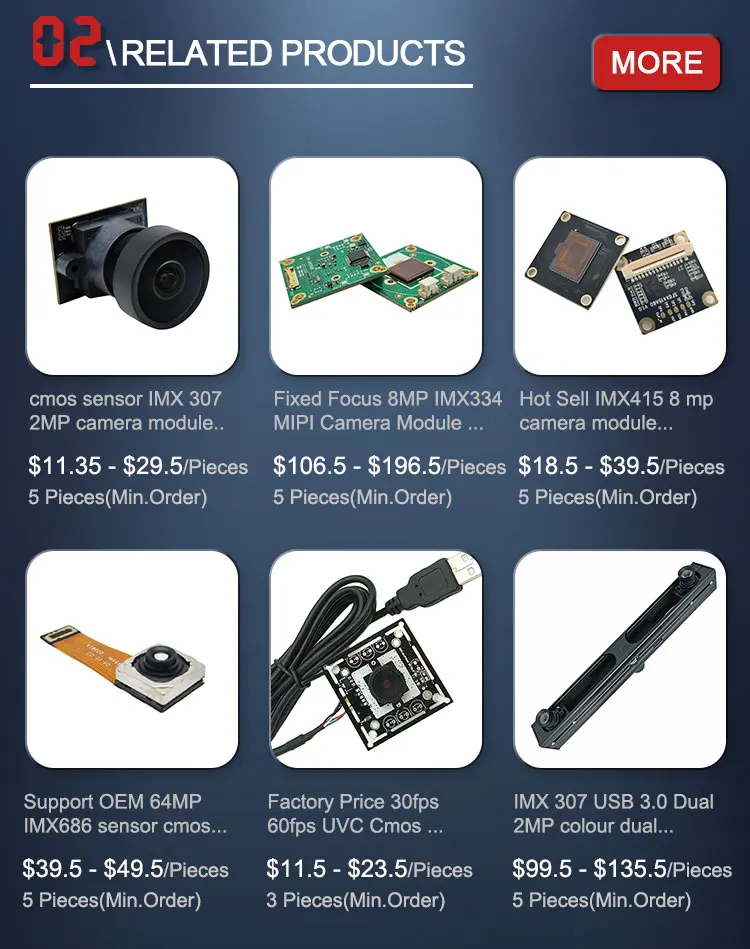

Recommend Products




Application Areas




Why Choose Us

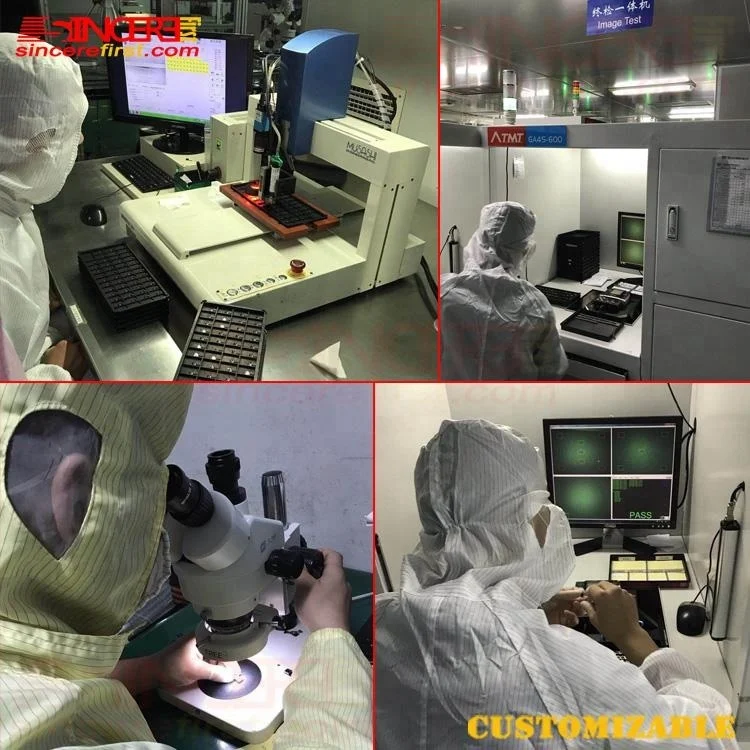

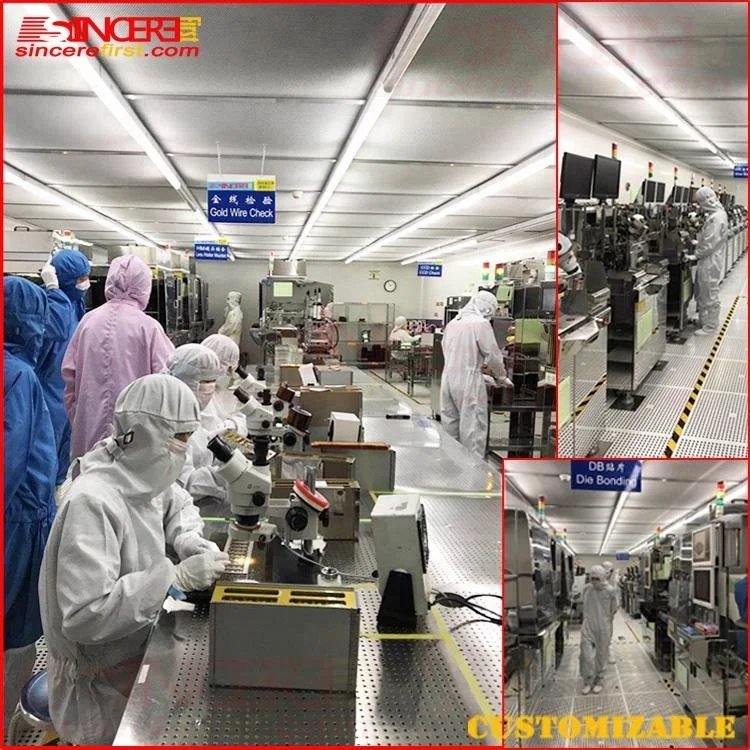

Company Profile




Certification




FAQ


Q:Are you factory or trade company?

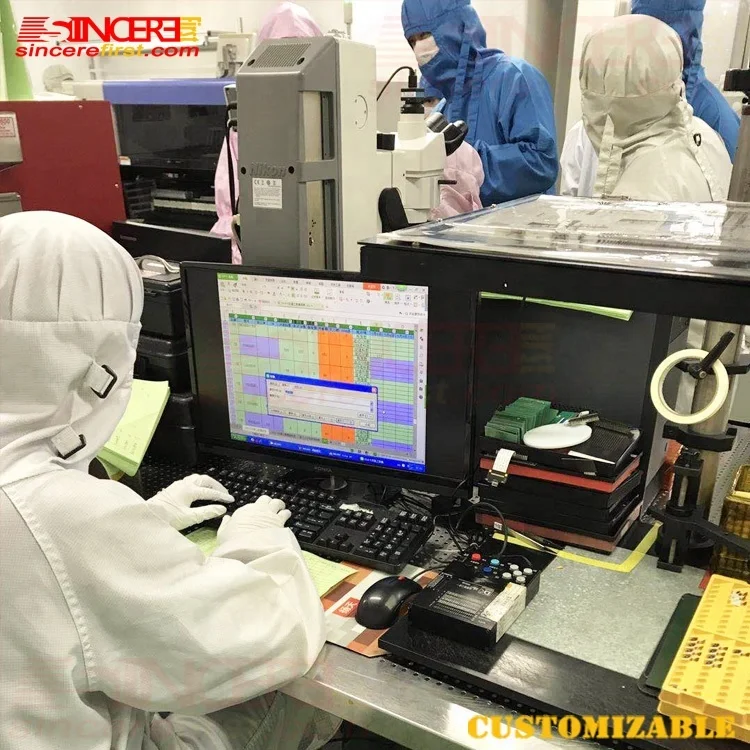

A: We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.

Q: Could you offer OEM&ODM service?
A: Yes: we are able to provide OEM&ODM service. The number of customization starts at 5.

Q:Do you guarantee the quality of products?
A: We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.

Q: How long is the production cycle?
A:Sample order is 4-5days. Bulk orders take 9-10 days.

Q:What shipping ways do you have?
A: We could ship the goods by DHL, UPS, Fedex, Air Mail

Q: Whats is the payment terms?
A: T/T, Ablibaba trade assurance.
