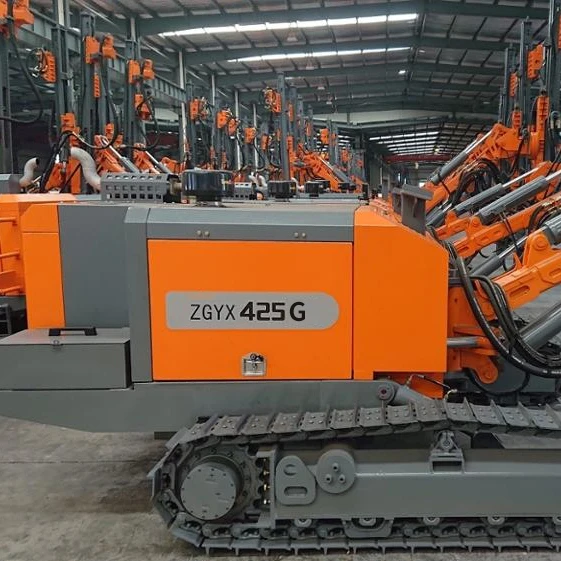

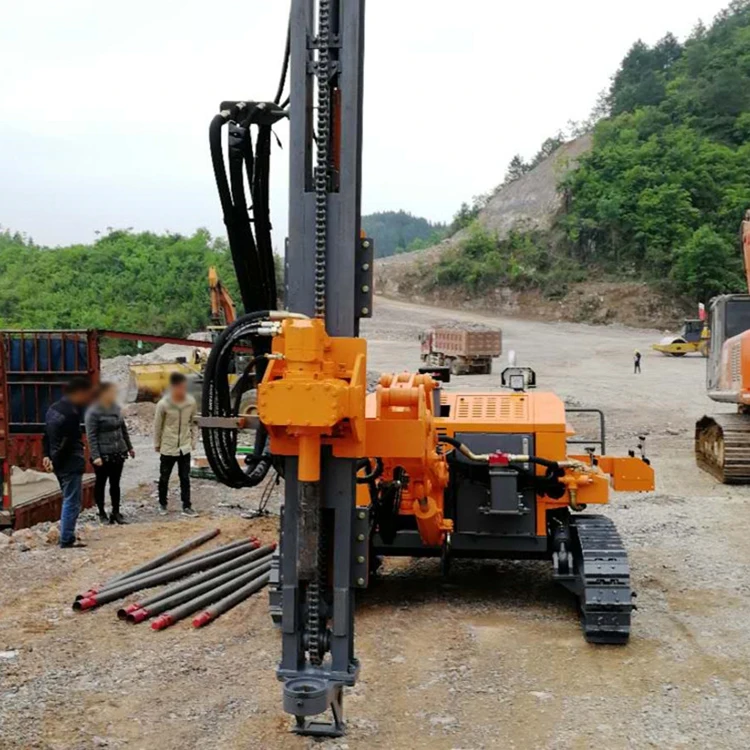

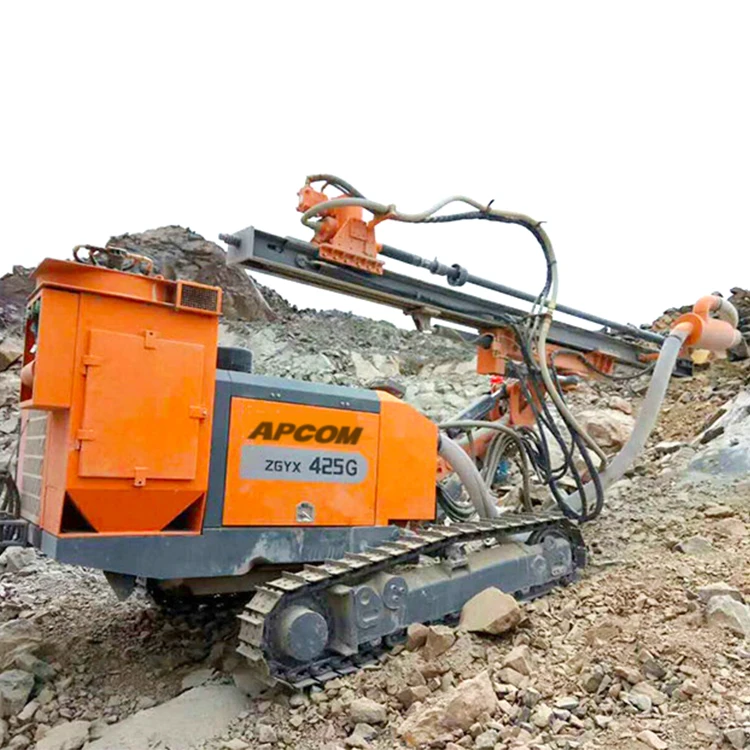

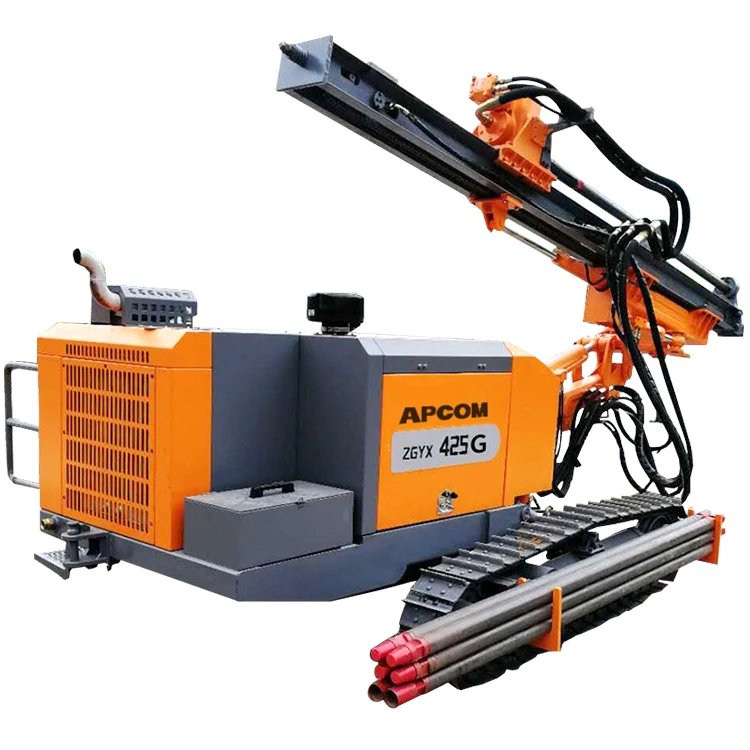

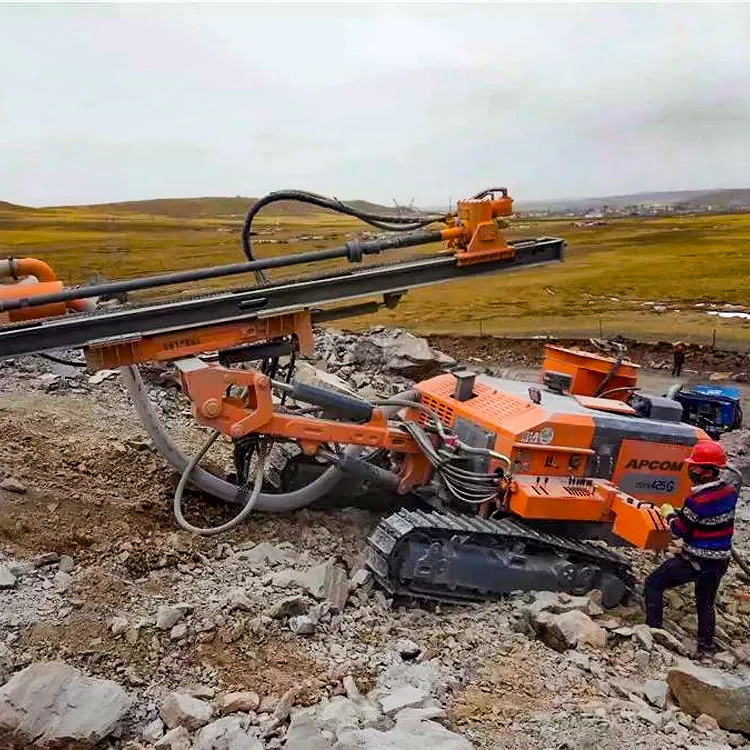

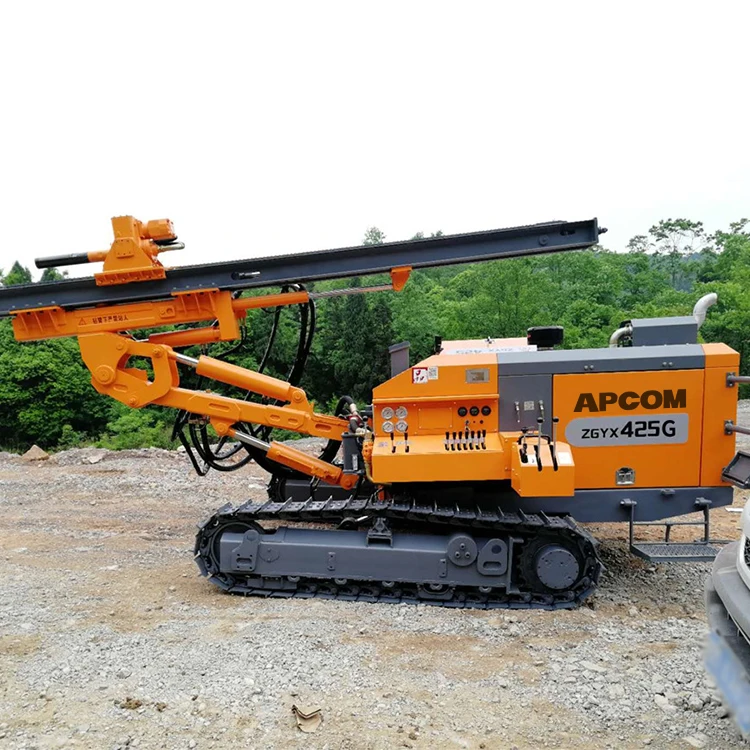

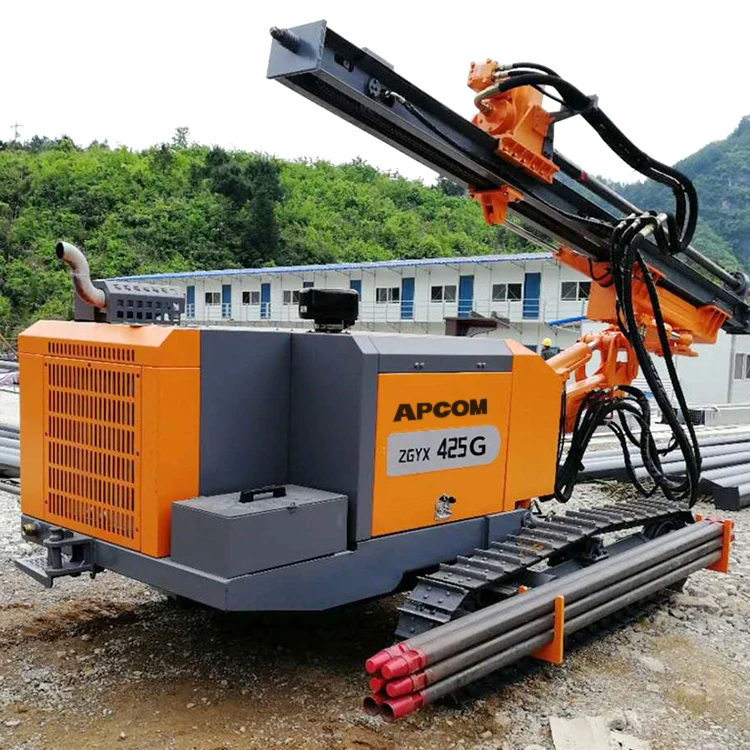

APCOM ZGYX 425G ZEGA portable drilling rig Kaishan portable mining blast hole drill rig for sale
- Category: Mine Drilling Rig >>>
- Supplier: Shanghai APCOM Compressor Machine Co. Ltd.
Share on (60798068127):
Product Overview
Description
ZAYX-425G Rig Parm
Matching Air Compressor | ||
Working Pressure | 0.7~2.5 Mpa | |
F.A.D | 8~20 m3/min | |
Diesel Air Compressor Model | HG300-8/HG550-13 | |
ZAYX-425/425-1/425G Specifications | ||
Hole Depth | 30 m | |
Drill Pipe Sizes | Φ 76 x 3000 mm | |
Hole Dia | Φ 110 - 152 mm | |
Hammer | 4" / 5" | |
Rotation Torque(Max.) | 3200 N.m | |
Rotation Speed | 0-100 rpm | |
Length of Feed Beam | 5645 mm | |
Feed Travel Length | 3660 mm | |
Feed Extension | 960 mm | |
Feed Speed | 26 m/min | |
Feed Force | 20 kN | |
Pull Up Force | 45 kN | |
Feed Type | Chain / cylinder | |
Tramming Speed(Max.) | 2.5 km/h | |
Gradient | 25° | |
Gradient Clearance | 280 mm | |
Weight | 5700 kg / 6000 kg | |
Dimension | 7000 x 2250 x 2700 mm | |
Dry Dust Collector | Option | |
Power Pack-( ZAYX-420) | YuChai YC4DK-80 58KW | |
Power Pack - (ZAYX-420-1) | YuChai YC4DK-100 73.5KW | |
Model | Rig Power | Capacity | Pressure | Diameter | Depth |

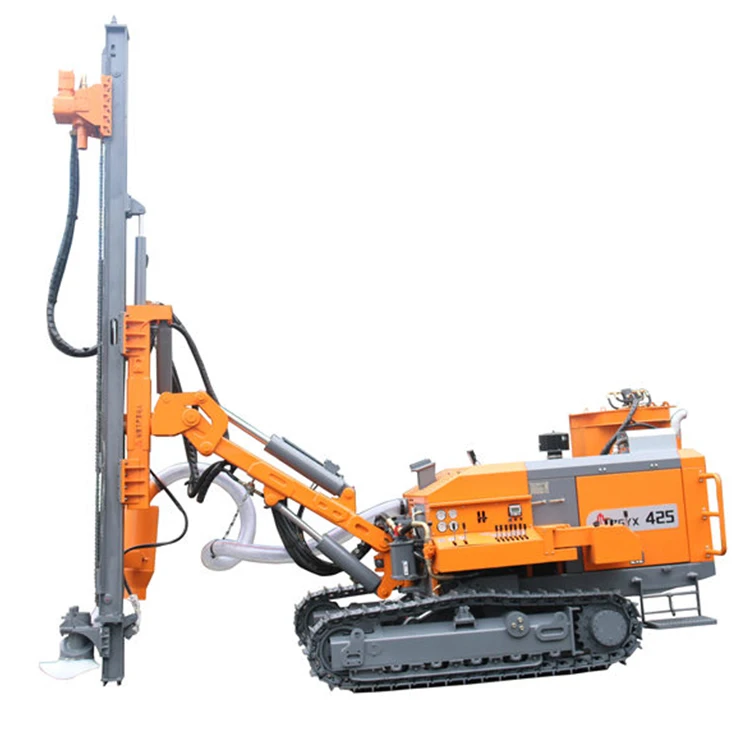

ZAYX-425 | Diesel 58KW | 8-20 m3/min | 7-25 bar | 110-152 (mm) | 30 (m) |
ZAYX-425-1 | Moter 73.5kw | 8-20 m3/min | 7-25 bar | 110-152 (mm) | 30 (m) |
ZAYX-425G | Diesel 90KW | 8-20 m3/min | 7-25 bar | 110-152 (mm) | 30 (m) |
ZAYX-430 | Diesel 58KW | 10-20 m3/min | 7-20 bar | 110-165 (mm) | 30 (m) |
ZAYX-425 Video
ZAYX-425 ecchang pipe
Contact Us
24 Hours For You
WhatsApp: +86 137 0579 6425
WhatsApp: +86 189 6700 9313
WhatsApp: +86 181 6701 6615
Drill rig Intro
Surface Drilling Rig
APCOM brand Surface drilling rig are used for blast hole drilling in construction, quarrying, and open-pit mining, covering a hole range between 80-203 mm. A total of 56 products.
1 ) Click on ==> Automated hydraulic drilling rig ( Drilling method: Tophammer ), 7 products found:
ZAYX-T422 / ZAYX-T423 / ZAYX-T424 / ZAYX-T425; ZEGA-T630 / ZEGA-T635 / ZEGA-T640
2 ) Click on ==> Anchor surface drilling rig ( Drilling method: Down-the-hole ),3 products found:
ZGM 1240A / ZAYX-420S / ZAYX-425S
3 ) Click on ==> Water well surface drilling rig ( Drilling method: Down-the-hole ), 8 products found:
SJ-180 / SJ-200 / SJ-250 / SJ-300 / SJ-400 / SJ-450 / SJ-600 / SJ-700
4 ) Pneumatic drilling rig ( Drilling method: Down-the-hole ) , 28 products found:
Click on ==> 16 products separate drilling rig
Click on ==> 4 products integrated drilling rig no cabin
Click on ==> 8 rigs are fully automatic pneumatic DTH rigs
Face drilling rig (Jubmos)
Face drilling rig (jubmos), Underground tunneling, 7 products found:
Click on UP-45 / UJ-18 / UJ-19 / UJ-21 / UJ-33
Integrated Rig Parm
ZAYX-421T & ZAYX-452
High Current Price Ratio
High Efficiency
High Quality
High Quality
An integrated drilling rig, which means that the air compressor has been installed in the rig and is driven by the same diesel engine.
Integrated DTH Surface Drill Rig With Air Compressor | ||||||||||
Model | Power | Compressor | Diameter | Depth | Cabin | |||||
ZAYX-421T | YUCAI 140KW | 10m3/min 15bar | 80-100mm | 25m | No | |||||
ZAYX-452+ | YUCAI 191 KW | 15m3/min 17bar | 108-127mm | 25m | No | |||||
ZAYX-423 | YUCAI 162KW | 11m3/min 15bar | 90-115mm | 25m | Yes | |||||
ZAYX-453 | YUCAI 230KW | 16m3/min 17bar | 90-138mm | 25m | Yes | |||||
ZAYX-454 | Commins 266KW | 20m3/min 18bar | 110-152mm | 28m | Yes | |||||
ZAYX-455 | Commins 287KW | 20m3/min 24bar | 138-165mm | 35m | Yes | |||||
ZAGA-470 | YUCAI 294KW | 20m3/min 24bar | 138-178mm | 40m | Yes | |||||
Top Hammer Drilling Rig | ||||||||||
Model | Power | Compressor | Diameter | Depth | Cabin | |||||
ZAYX-422T | Commins 93KW | 3.4 m3/min 7bar | 42- 89mm | 15 m | yes | |||||
ZAYX-423T | Commins 119KW | 4.7 m3/min 9bar | 64-102mm | 17 m | yes | |||||
ZAYX-424T | Commins 179KW | 8.0 m3/min 10bar | 76-115mm | 25 m | yes | |||||
ZAYX-425T | Caterpiller 168KW | 8.0 m3/min 10bar | 76-115mm | 25 m | yes | |||||
