YC 300 Suspended PTFE Micropowder 3 5 um additive for coatings plastics rubber inks

Share on (60798071564):


Price:$10.00 - $14.50

Quantity:


Product Overview

Description


Product Description

YC-300 type polytetrafluoroethylene micropowder is a low molecular weight micron-sized polytetrafluoroethylene white powder prepared by a special method.Molecular weight is 10000-3000.

Technical Parameters

\t
Performance
\t
Unit
\t
Index
\t
Test Methods
\t
D50(The average particle size)
\t
μm
\t
3-5
\t
ASTM D4464
\t
D99(Maximum particle size)
\t
μm
\t
≤15
\t
ASTM D4464
\t
Bulk density
\t
g/L
\t
200-450
\t
ASTM D4895
\t
Melting point
\t
°C
\t
327
\t
ASTM D4591
\t
Specific surface area
\t
m2/g
\t
1.5-4.0
\t
ASTM D5675
\t
Water content
\t
\t
≤0.05
\t
150°C/2h
\t
Proportion
\t
g/cc
\t
2.1-2.2
\t
ASTM D5675
\t
Appearance
\t
\t
White
\t
Visual inspection

Polytetrafluoroethylene (PTFE) is a synthetic fluoropolymer of tetrafluoroethylene that has widely applications.PTFE is hydrophobic because of its high electronegativity of fluorine. At the same time, PTFE has one of the lowest coefficients of friction against any solid. PTFE has excellent dielectric properties, making it as an excellent insulator in cables and connector assemblies. The advantage by mixing PTFE with elastomers is to keep the seal from creeping too much, PTFE also improve wear resistance and reduce friction. PTFE is also well-known by its application as a non-stick coating for cookware.

PTFE micropowders are low molecular weight; micronized white particle and the particle size are around 3-5 um in diameter. They are additives in polymers, inks, or paintings which offer the great abilities to against friction, chemical resistance and the role as an insulator.

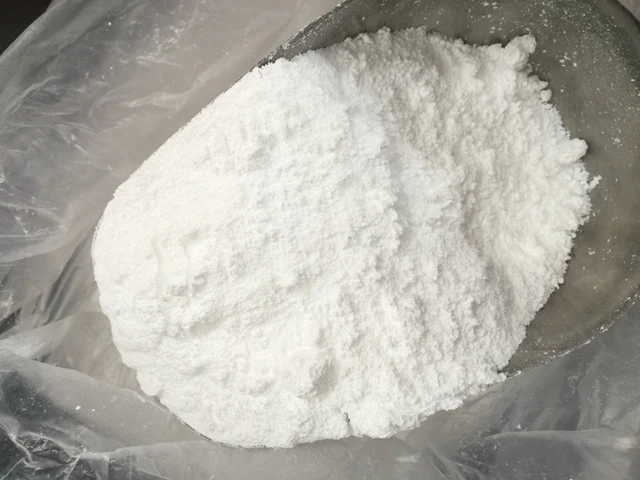

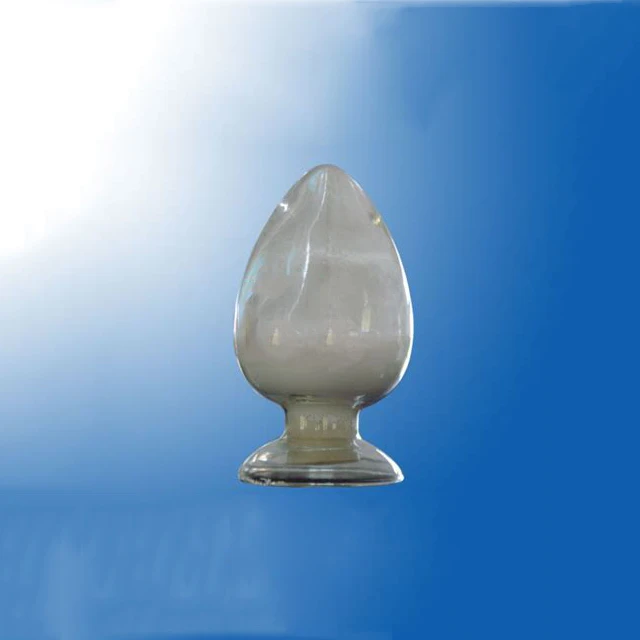

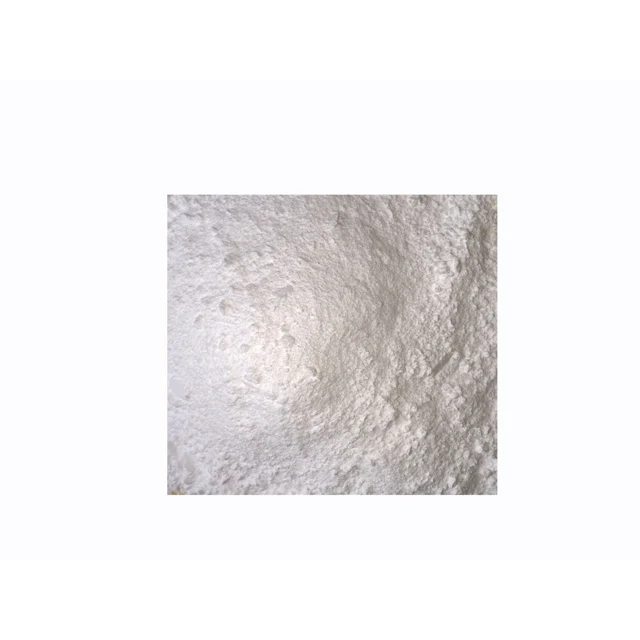

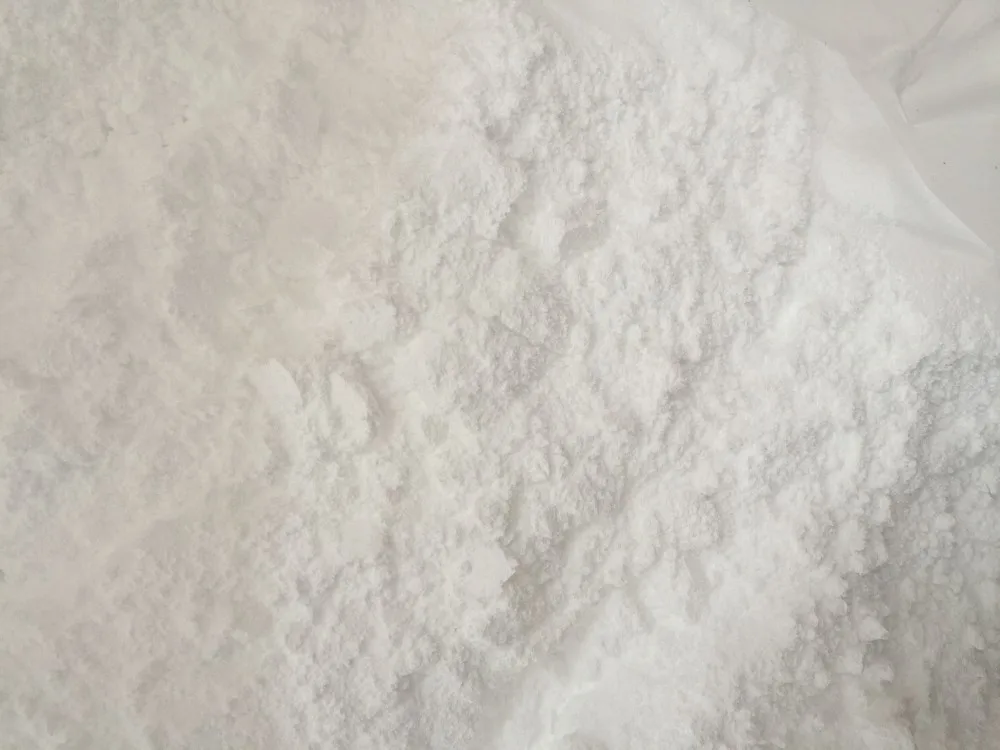

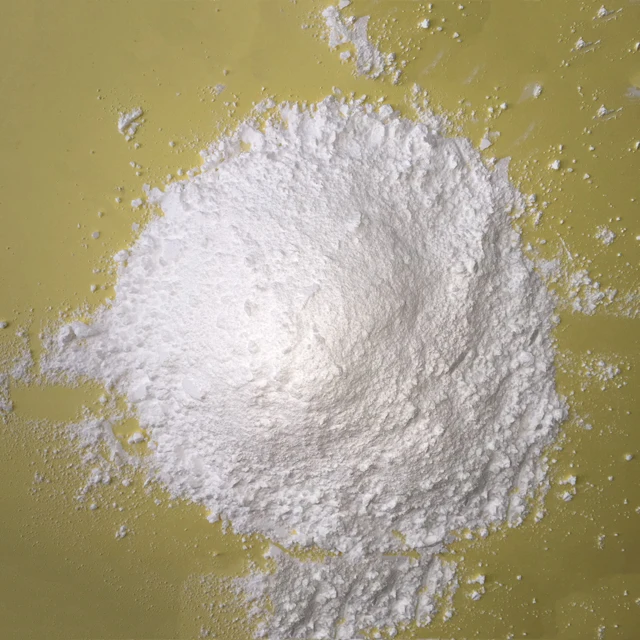

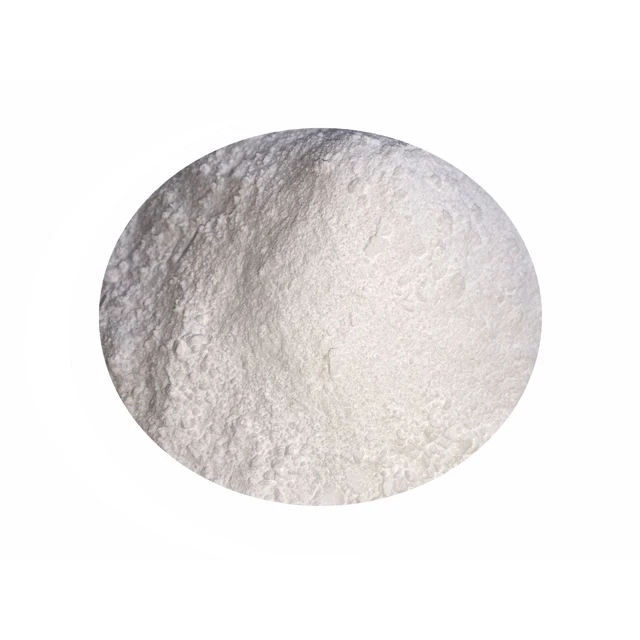

Detailed Images

Applications

Additive to thermoplastics, thermoset plastics, and elastomers
Being added in PC, POM, PA, PPS, ABS, PS, HIPS, PP, thermoset plastics and elastomers ( EPR, silicone rubber, SBR etc.), it can obviously reduce the attrition to the sliding parts, and the friction coefficient of the base substance.


Additive to printer's inks

It's an ideal additive and modifier to various kinds of printer's inks that achieves anti-sticking, less abrasion, improved definition and luster of the prints, durability against fading, good water-proof and moth-eaten proof, etc.. Its application in hectograph / gravure inks improves slippery performance, surface smoothness, luster and abrasion resistance that facilitates high-speed printing.

Additive of paints
It can be mixed with paints used in spray coating of industrial quipment, household goods, or used in anti-corrosion paints, special waterproof paints, and coating of wound metal strips providing benefits of anti-stickiness, flexibility, heat conductivity, durability and toner resistance etc.
Additive of anti-sticky and wear-resisting varnish
To improve the varnish's properties of anti-sticky, lubricating, anti-corrosion, moisture-proof and wear resistance, also reduce its friction coefficient.

As an solid lubricant
1. Being added into rubbers and plastics, it can not only avoid sticky-sliding during processing, but also give the base materials with excellent properties of PTFE. It's also a quite effective mould-release agent for rubbers and plastics when the powder being mixed in at 0.25% by wt.
2. Used as a lubricant for gearing system in the circumstances that requires oil-free lubrication, such as high-speed engines, gearing system, and kneading machine, etc.
3. Added in oils, lubricating oils and rubber sealant to significantly improve their load-bearing capability, vacuum resistance, low temperature resistance and wear resistance.

Anti-sticky and wear-resistant spray
A spray could be made by mixing it with methane and butane to make the sprayed base substances with improved adhesion resistance and wear resistance.

Anhui Yuanchen Environmental Protection Science and Technology Co., LTD, was founded in 1997. The company is a High-tech industry, specializing in 3D printing powder,PTFE powder and dust filter bag.Our products covers nylon powder,ceramic powder,metal powder PTFE powder. ISO900114001 approved manufacturer, advanced experimental instruments introduced form Europe, CNAS Laboratory certificate and third party testing qualification CMA,Yuanchen focus on scientific and technological development to make sure quality and productivity.Our market includes all of China, and also export to Germany, Russian, South America, Europe, South East Asia and many other countries.

Packing & Delivery

Storage&Handing.
PTFE micropowders could store without limited time. The warehouse should designed to avoid airborne contamination and water condensation on the resin when opening
Package.
PTFE is package in 25kg(55lb), single layer, in drum

FRQ

Your questions:
Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DDU,EXW
Q3. How about your delivery time?
A: Generally, it will take 10to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: we could offer the sample for free charge but do not pay the cost of freight.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
Generally, It will take 10 to 20 days after receiving your advanced payment. The specific delivery time depends on your items and quantity of your order.
