We will provide full set of Offshore Container Documents
1) DNV2.7-1 Certificate issued by BV or LR or DNVGL and Sling Certificate.(When there is sling)
2) General Arrangement Drawing
3) Manufacturing Records, like material certificate, WPS & PQR.
4) Inspection reports of NDT, Dimensions, Loading, Lifting, Painting.

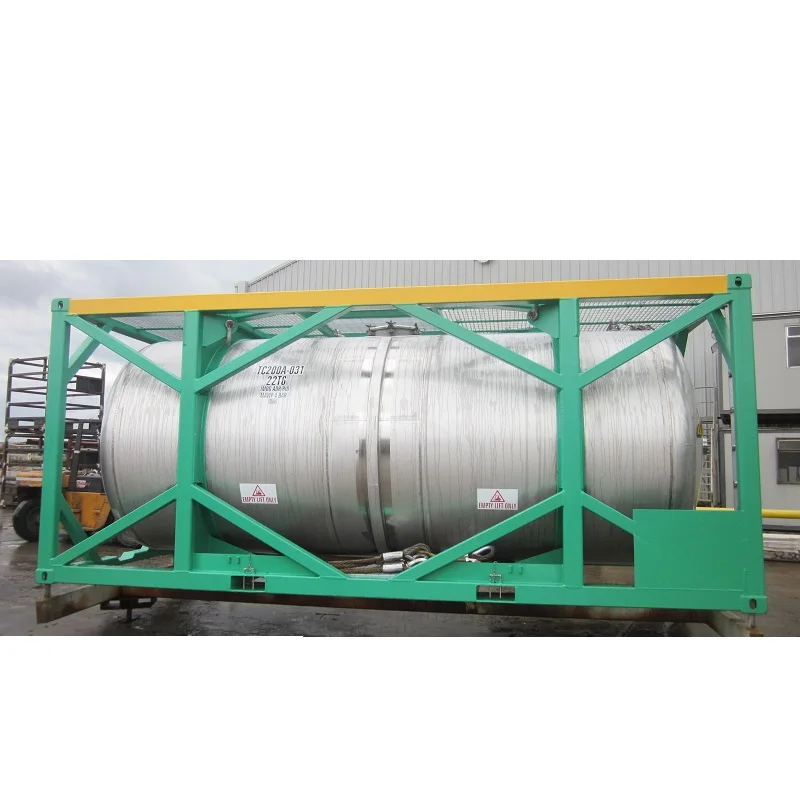

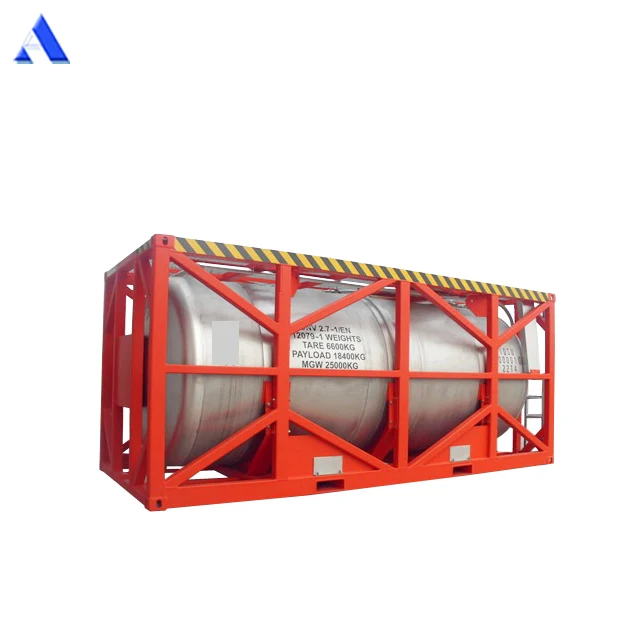

20ft Offshore Tank Container
1.1 General introductions:
DNV 2700L offshore tank container is design to loading hazardous liquid cargoes mounted in steel frame. The main application area is Oil offshore platform. These offshore tank must be complied with DNV2.7-1 & EN12079 standard. Please check as some details as follows:
* Complies with DNV2.7-1:2006 Standard. * Complies with EN12079-2006 Standard. * Materials: Frame: SPA-H, Tank Shell: 316L * Design Temperature: Frame: -20°C, Tank: -40 °C * DNV2.7-1 Certificate: Issured by DNV, LR * Design Standard: DNV2.7-1,EN12079,IMDG, ASME VIII Div 1, ADR/RID
1.3 Specifications_2700L offshore tank:
Specifications:
Dimensions (L x W x H)
External
2.150 x 1.850 x 2.134
M
85’’ x 73’’ x 84’’
FT-IN
Max. Capacity (Nominal)
2700
L
713
Gallon(US)
Max. Filling capacity
2565
L
678
Gallon(US)
Max. Gross Mass
8000
KGS
Tare Mass (Nominal)
1920
KGS
Max. Payload
6080
KGS
Pressure
Design pressure
0.267
Mpa
Test pressure
0.4
Mpa
Design Temperature
Frame
-20℃
Tank
-40℃
Stacking
in warehouse
2 high
in transport
1 high
Material
Frame
SPA-H,Q345D
Tank
316L
Seal Gasket
PTFE outer encapsulating EPDM inner
Finish
Tank
Internal & External surface: Weld seam: acid cleaning and passivation
Frame
Painted or hot-dip zinc (according to customer requirements)
SPECIAL FEATURES:
1. Approval by Main Classification Society: BV / DNV / LR
2. Complies With DNV2.7-1:2006 and EN12079:2006 Standard
3. Discharge valve: Have three serially fitted and mutually independent shut-off devices; Drip cap and chain.
5. Document box: PVC; With drip cap and chain; Water tight. Manhole: 460mm
6. Four points lifting with 45° Max to the vertical through 4 lugs; 4-way fork pockets (Internal dimensions 300mm x 120mm)
Details Images

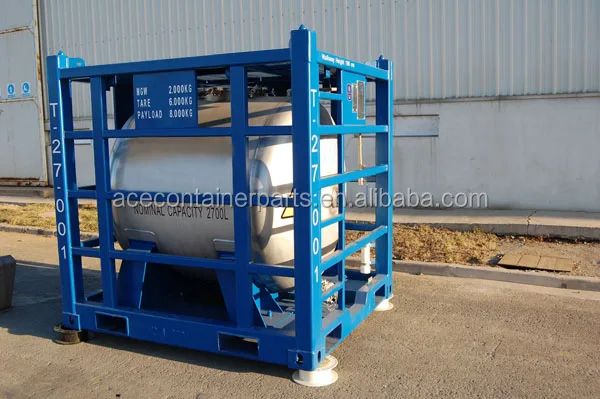

Photo Display_2700L offshore tank:

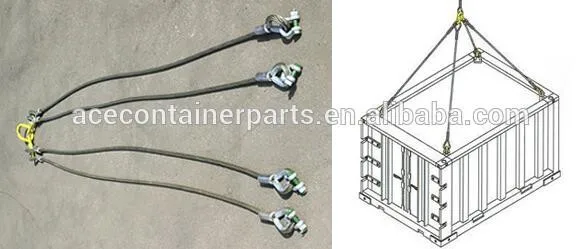

2700L offshore tank_Sling:
Offshore tank_Padeye:
Other Offshore Equipment:
Click Here and view more Shipping Containers .
1. 20HC, 40GP, 40HC ISO container 2. Open Side Container 3. Open Top Container 4. 10ft, 45ft, 48ft, 51ft 53 ft container 5. Flat Rack & Platform 6. Storage Container 7. DNV Offshore Container 10ft 20ft, 10OT, 20OT
Packing & Shipment
2.1 SOC, 2700L offshore tank have fork pocket for easy loading, has no any package, 2.2 Offshore tank Laoded into 40ft HC Container
Our Services
With development of container line, we are also further extending and improving our service, please check as follows:
* Buyer’s Logo and Color. * 45 day’s Free stock in our CY * Clearing Customs for the container for free. * Supply "Storage Service". We have storage in Tianjin, Shanghai, Ningbo, Guangzhou port. * Arrange “One Way” service to some mian ports. * OEM Tank is available * Accept third party inpection and testing * Supply all kinds of offshore equipments.
Company Profile
FAQ & Contacts
Are your offshore tank DNV2.7-1 & EN12079 Standard?
Yes.
5.2 Do your offshore tank also meet orther internation standard? 10ft offshore tank also meet IMDG, ADR/RID
5.3 Do you have any Certificate? Yes, we provide DNV2.7-1 / EN12079 Certificate issued by BV / DNV / LR
5.4 Can you delivery to our named port? Sure, we have shipped our container to over 45 countries.
5.5 Do you provided DNV Certified sling? Yes, we exported hundreds of offshore containers and the sling supplier will produce as per our requirement.
