Product Overview

Description

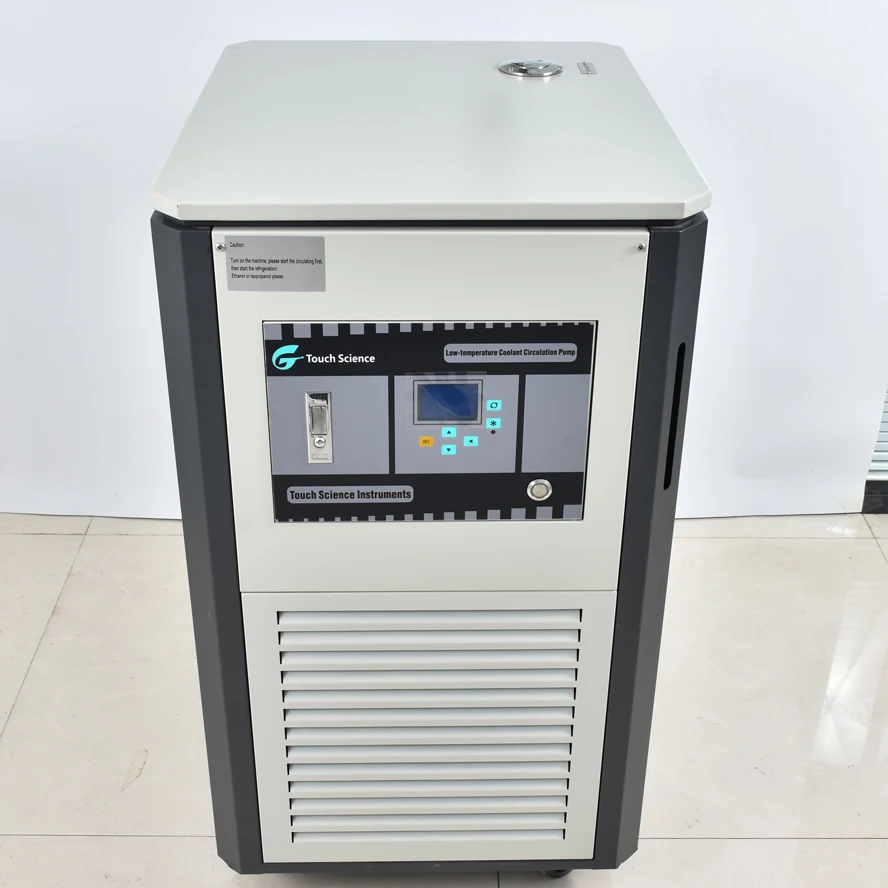

Hydrocooling Water  Air Cooling Wind Cold Type Big Small Mini Micro Scale China Manufacturer Suppliers Mobile Chiller Machine



Product Description





Tips:


#1. Except the model we offer, we can offer more choice, from for 1L rotovap condenser to 1000L jacket tank, from -10C to -120C(unload condition), you can tell me the machine that chiller work with, we can offer the proper solution for you.


#2. If you want a heater and chiller, we also can make it.





Water / air cooling suppliers mobile chiller machine also know as low temperature cooling water / liquid circulation pump, recirculating chillers, refrigerated circulator, circulation chiller, water chiller or recirculating chiller, This device adopt mechanical refrigeration, the main function is provide low temperature liquid for other device to achieve low temperature condition, usually are used wherever heat needs to be dissipated reliably and fast, e. g. in laboratories for rotary evaporators, distillation systems ,condenser, jacketed glass reactor or analytical devices.

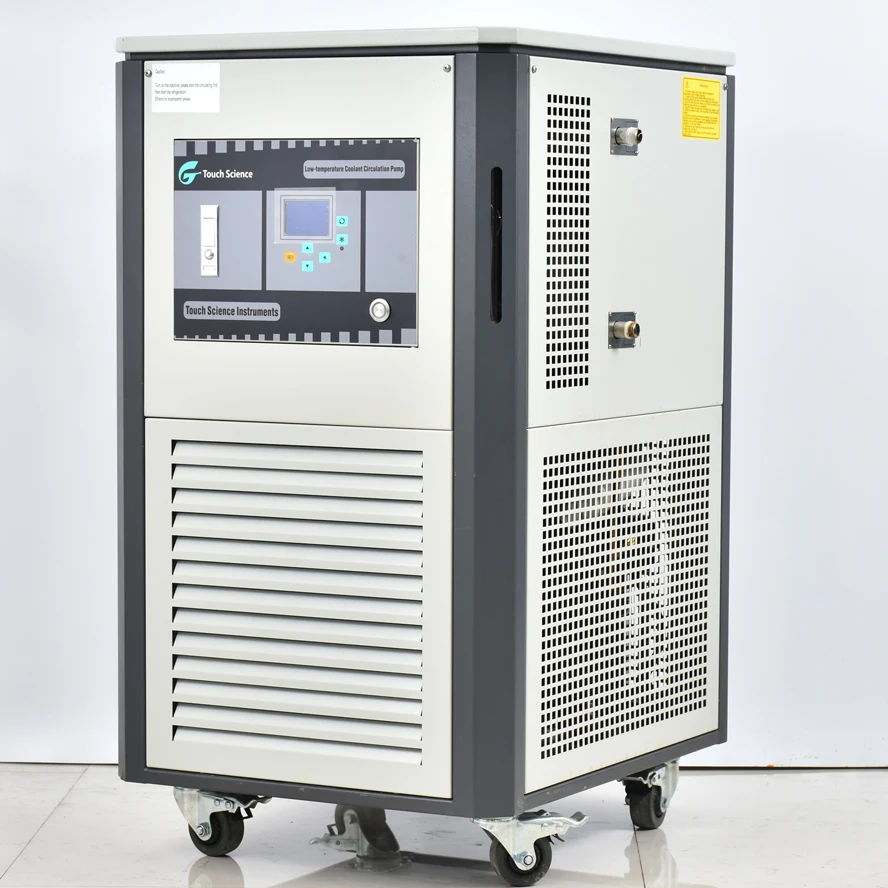

Hydrocooling Water  Air Cooling Wind Cold Type Big Small Mini Micro Scale China Manufacturer Suppliers Mobile Chiller Machine


Features of Water / Air Cooling Suppliers Mobile Chiller Machine:


 Hydrocooling Water  Air Cooling Wind Cold Type Big Small Mini Micro Scale China Manufacturer Suppliers Mobile Chiller Machine


1. Update to imported compressor, more suitable for oversea voltage, solve the feedback problem to a great extent.


2. Adopt plate-heat exchanger instead of the bath coil, get higher cooling efficiency.


3. New shell and structure, more stable and durable, also very beautiful.

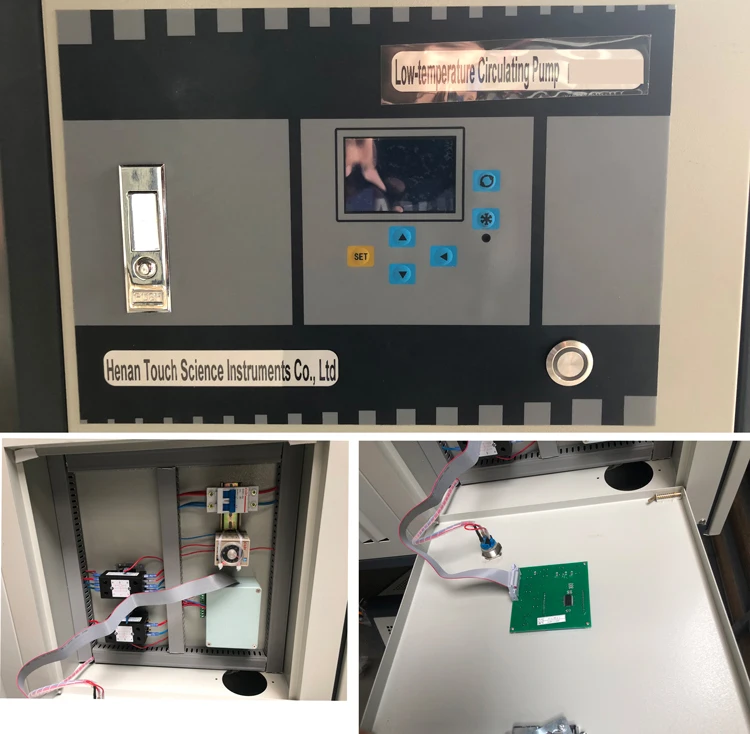

4. New control system, easy operate and more accurate.


Hydrocooling Water  Air Cooling Wind Cold Type Big Small Mini Micro Scale China Manufacturer Suppliers Mobile Chiller Machine


5.Faster cooling speed, greatly improve the working efficiency.


6.Closed working system,with thermostat,circulation functions, no oil mist and water vapor, suitable for continues working

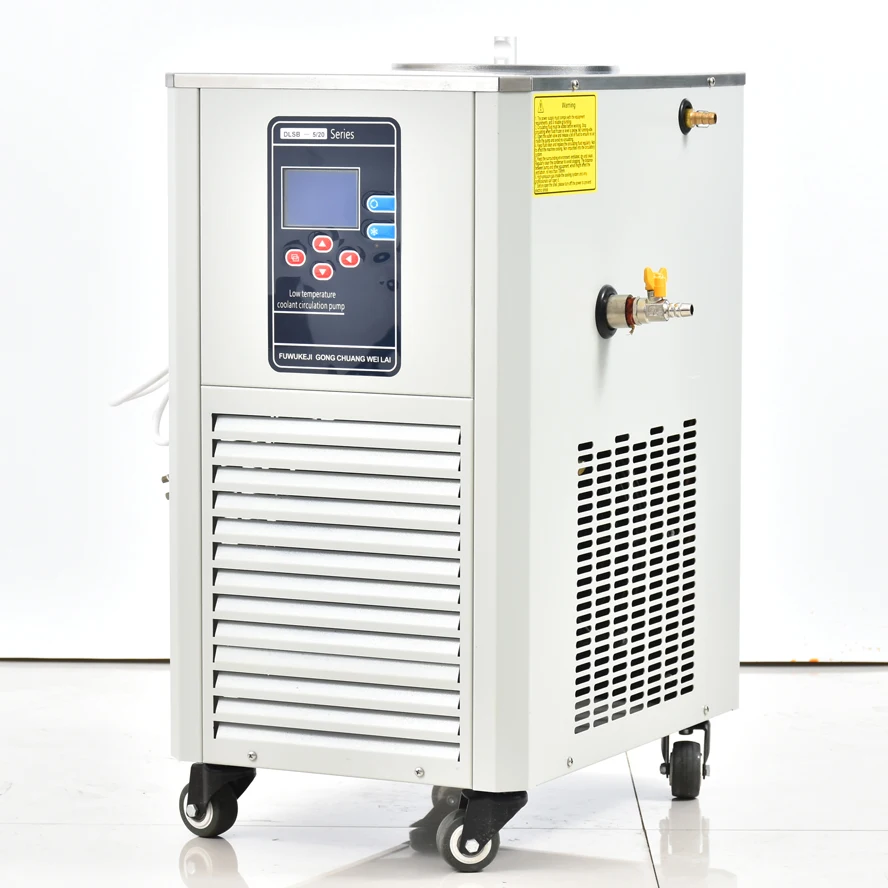

* The upper type is big one, If need other small volume and temp, like for rotovap.


Hydrocooling Water  Air Cooling Wind Cold Type Big Small Mini Micro Scale China Manufacturer Suppliers Mobile Chiller Machine


Parameters of Water / Air Cooling Suppliers Mobile Chiller Machine














































































ModelDLSB-10/30DLSB-20/30DLSB-30/30DLSB-50/30DLSB-50/40
Matched Rotovap5L10L20L50L
Reservoir7L7L10L17L17L
LowTemp.Range -30℃-RT-40℃-RT
Refrigerating Capacity600-2500W900-2800W1200-5745W5745-550W13140-2012W
CoolantR404R404A
Flow20L30L35L/MIN
Lift6M11M 12M
Rated power1100W1400W2300W3100W4900W
Power supply220V 60HZ
Imput Current6A7.3A12A14A16A

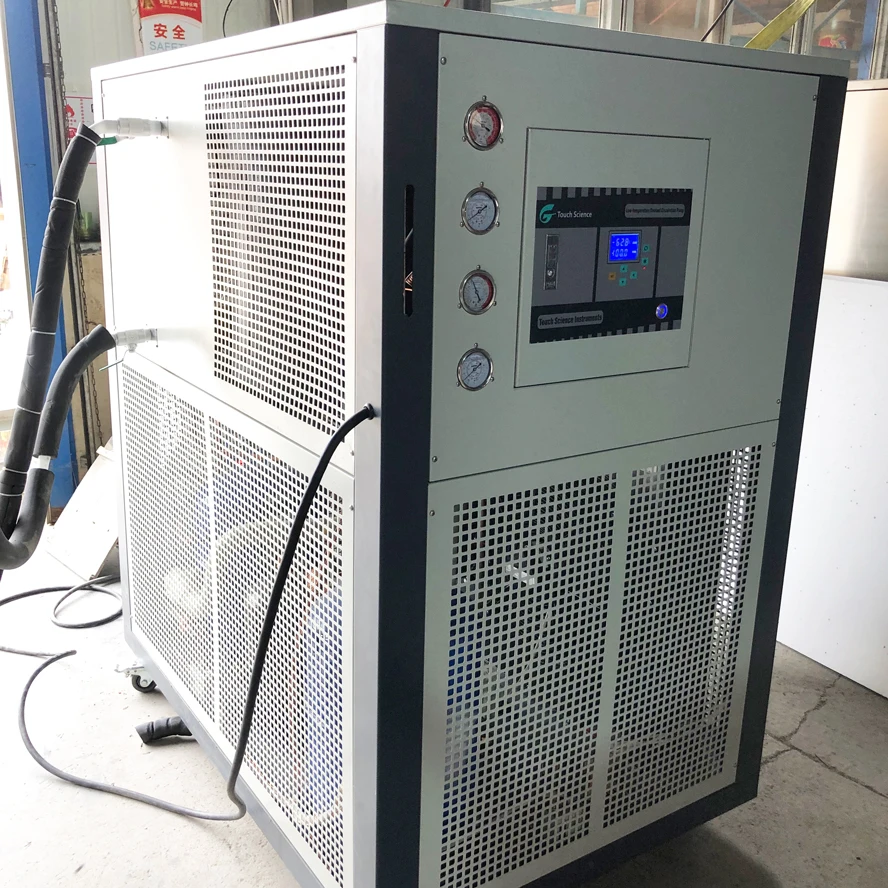

150L SS Jacketed Tank with Big Monster DLSB-300/80 Recommendation:


Hydrocooling Water  Air Cooling Wind Cold Type Big Small Mini Micro Scale China Manufacturer Suppliers Mobile Chiller Machine





New Updated Production of centrifuge with Soaking Function:


Hydrocooling Water  Air Cooling Wind Cold Type Big Small Mini Micro Scale China Manufacturer Suppliers Mobile Chiller Machine


Some Model Recommendation for Cold Extraction:











































































ModelDLSB-30/80DLSB-30/120DLSB-50/80DLSB-50/120DLSB-300/80
Reservoir10L17L100L
Low Temp.Range -80℃-RT-120℃-RT-80℃-RT-120℃-RT-80℃-RT
Refrigerating Capacity292-6600W150-6600W650-15330W13140-1350w50kw
CoolantR404A,F23R404A,F23,R14R404A,F23R404A,F23,R14R404/F23
Flow35L45L/MIN
Lift11M12M
Rated power4480W6870W10500W14000W21000W
Power supply220V 60HZ3 Phase 220V 60HZ460V/60Hz 3 phase
Imput Current22A30A21A30A35A

* If you need other bigger volume, Click to Tell Me Your Requirements !





Packaging & Shipping


Hydrocooling Water  Air Cooling Wind Cold Type Big Small Mini Micro Scale China Manufacturer Suppliers Mobile Chiller Machine




1. Your choice is our first option of we can make it, whatever the shipping way it is.


2. Our recommendation: In genneral.


    About 150kg and below, we prefer the Express.


    About 250kg and above, we like the Air, also we can charge the delivery and clearance.


3. The sea cost is cheapest, but, only your order is big enough and no hurry, it will be a excellent choice.


4. Please note:


    You need pay the tariff to your customs.


    If the customs clearance is delayed due to your reason, you need pay the storage fee


SO, When you send the inquiry, you can let us know your delivery address and zip code, then we can quote you with shipping cost for better reference.


  Click to Tell Your Address for Quote with Shipping Cost



Certifications


 Hydrocooling Water  Air Cooling Wind Cold Type Big Small Mini Micro Scale China Manufacturer Suppliers Mobile Chiller Machine





Related Product Link





Hydrocooling Water  Air Cooling Wind Cold Type Big Small Mini Micro Scale China Manufacturer Suppliers Mobile Chiller Machine


    1-5L Lab Scale Rotovap      10-50L Double Condenser Rotovap           New 10-50L Rotovap


Hydrocooling Water  Air Cooling Wind Cold Type Big Small Mini Micro Scale China Manufacturer Suppliers Mobile Chiller Machine


    Single Layer Glass Reactor              Jacket Glass Reactor                      Big Big SS Jacket Tank





Company Information


Henan Touch Science Instruments Co.Ltd
Founded and based in Henan, China, Touch Science is is a professional manufacturer and exporter that is concerned with the design, development and production of lab equipments, in the areas of heat treatment and material processing for universities, research facilities and labs. We have more than 15 years of manufacturing experience with rotary evaporator, glass reactor, drying ovens, water / air cooling suppliers mobile chiller machine, water ring vacuum pumps, and other lab instruments. We have gained a global sales network reaching USA, Canada, Europe, Chile, Japan, India, etc.
We attach importance to every customer and every order. 100% customer satisfaction is always our first priority. We provide quantity discounts and will reply to your requests within the same business day. Our goal is to build up business partnerships with friends around the world.


Hydrocooling Water  Air Cooling Wind Cold Type Big Small Mini Micro Scale China Manufacturer Suppliers Mobile Chiller Machine


Just Click ! !  to CONTACT ME OR SEARCH Merlin Yang In IG








Henan Touch Science Instruments Co., Ltd
Add: Room 1005, Block B, Huanqiu Building, 127 Zhengbian Road, Jinshui District, Zhengzhou City, Henan Province, China
