Product Overview

Description



Specifications:



Model	B2041
IIT	Gen2+
Magnification	1X
Resolution (lp/mm)	58
Photocathode type	S25
S/N (dB)	12-21
Luminous sensitivity(μA/lm)	450-600
MTTF (hrs)	10,000
FOV (deg)	40
Detection distance (m)	220-280
Diopter (deg)	+5/-5
Lens system	F1.2, 25.8mm
A range of focus (m)	0.25--∞
Dimensions (mm)	165*114*68 With eye cap
Weight (g)	620
Power supply (v)	2.0-4.2V
Battery type (v)	CR123A (1) or AA(1)
Battery life (hrs)	80(w/o IR)
	40(w IR)
Operating temperature(deg)	-50/+60
Relative humidity	98%
Environmental rating	IP66



Product description

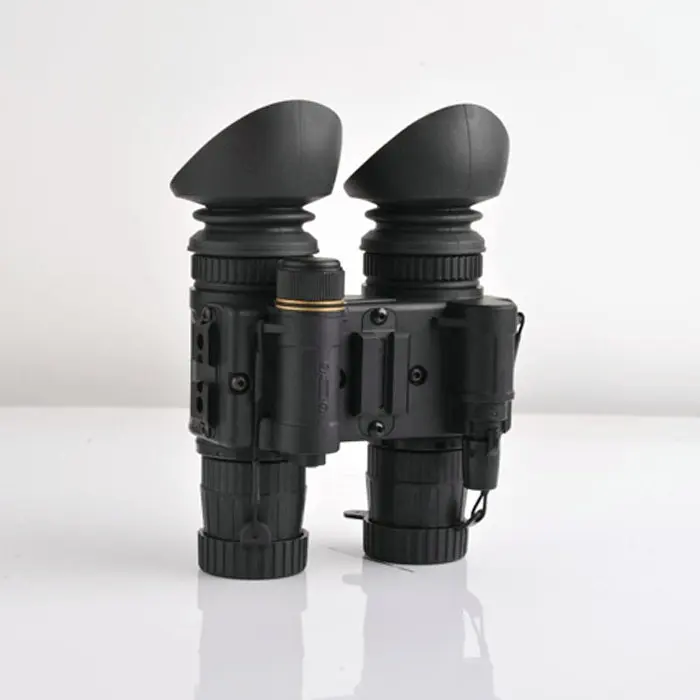

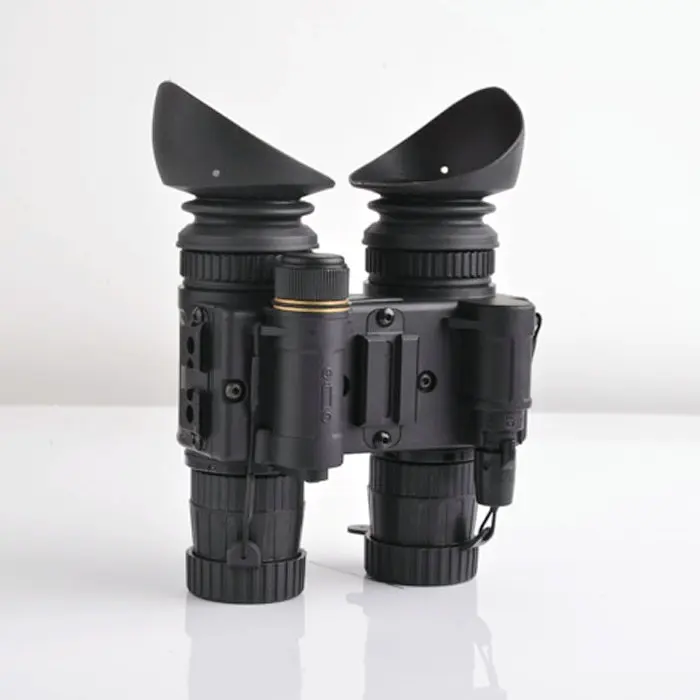

B2041 is a compact, lightweight and night vision binocular. It utilizes two high-performance image intensifier tubes to provide extremely clear and crisp images under the darkest conditions. A built-in IR illuminator lets the users easily read a map and function in a total darkness environment. It can be used handheld, head mounted or helmet mounted for hands-free or attached to a camera or camcorder for nighttime photography and law enforcement to document. This system enables walking, driving, short-range surveillance, map reading, vehicle maintenance, and administering first aid in both moonlight and starlight. With automatic protective system controls, the monocular will shut off automatically if the illumination level surpasses 40lux for the following 10seconds. And automatic brightness adjustment system always keeps IIT brightness level constant. They're easily replaced with 3x,5x,6x lens for enhanced range performance.

Kit includes
Night Vision Goggle, Protective carrying bag, Instruction manual, Lens cleaning cloth, Warranty card, Desiccant

Features
* IP66 weatherproof: The device can prevent the domestic water.
    Or IP67 weatherproof:  When the device is soaked in water, within the defined pressure and time, the device does not enter the amount of hazardous water.
*Automatic shut off when flipped up: The device will turn off automatically when pushing a button on the side of the mount and lifting the unit up until reaches in the top position. Push the same button to lower monocular to the viewing position, then the device will turn on for a continuation of the operation.
*No power consumption when in standby: It means no power consumption in case you forget to remove the battery for some days.
*Embedded spring in battery's cap: It makes screwing the cap easier and better protects the spring and contact with the battery.
*Fully adjustable head mount: The head mount can be adjusted according to head size.
*Mil-spec multi-coated optic: Multi antireflection film can restrain the reflex of a lens, which can reduce the loss of light so more light can go through the lens to get a sharp image.
*Automatic brightness control: When the ambient light changes, the brightness of the image detected will keep the same to ensure a stable viewing effect and also to protect users' eyesight.
*Bright source protection: The device will shut off automatically in 10 seconds to avoid the damage of the image intensifier tube when the ambient light exceeds 40 Lux.
*Low battery indication: A greenish light in the edge of eyepiece will start flickering when the battery is running low.

Precautions:
1. Do not disassemble the unit.
2. It's better to use the device under +5°C to +40°C. After the unit usage in temperatures below zero, wait at least 3 hours at room temperature, to avoid condensation accumulating on the internal lens surfaces and the consequent fogging caused by extreme temperature differences.
3. Keep the device in a soft carrying bag, ventilated and dry place with temperature which does not exceed +15°C. Keep away from the heating device and avoid direct sunlight and high humidity which does not exceed 70%.
4. NVD should be used in nighttime and can't be aimed at a strong light. If you have to test it during the daytime, the front lens cap should never be removed. You can observe the target through the hole in the protection cap.
5. Use good quality lithium battery or alkaline cell, as bad quality batteries will affect the performance of the NVD and easily damage the device.
6. Try to avoid the rain and mist, and avoid dropping, shaking and collision.
7. Use a clean soft cloth and dampened in alcohol, if necessary.
8. A useful tip is to remove the battery when the night vision will be not in use for over 3 days to prevent battery leakage and damaging the device.

NOTE: It is normal that the device can not be turned on when the ambient light exceeds 40 Lux. This device has a protection system, which cuts off the image intensifier when the ambient light level exceeds the limit of 40 Lux during a 10 seconds period.
Failure to follow the above precautions may cause the unit damage and will void the manufacturer's warranty.

Troubleshooting:
If the device does not turn on
1. Reinstall the battery with the correct polarity.
2. Replace the battery.
3. Clean the battery compartment, focusing on the contact points.
The observed image flickers or flashes
 This means there is too much light(e.g. observation during twilight conditions). Turn off the unit or place the objective lens cover. The unit will function normally in light conditions, not in excess of 0.1Lx(full moon).
The image is missing or not focused
1. Re-focus the unit by adjusting the objective lens. Adjust diopter setting by rotating eyepiece, if necessary.
2. Check the cleanliness of the objective surface and eyepiece and clean if necessary.
3. Replace batteries.
4. In extreme low light conditions, activate the built-in IR illuminator.
Image disappeared or its quality worsened
1. Automatic shut off might occurred to protect the unit from excessive light. Attach the objective lens cover and ensure that the unit started to function normally. Turn the unit off and wait until the conditions darken to continue observation.
2. Bright light sources(e.g. street lights)may cause visibility to decrease or disappear. Turn the monocular away from the light source, visibility will restore itself in several minutes.
You see black dots on the screen
 These dots are minor cosmetic blemishes resulting from the image intensifier production processes and are not a sign of a defective or low-quality unit. These dots do not interfere with the reliability and performance of the monocular.

Testing for all our devices:

vibration test, high-temperature test, lens resolution test, rain test, waterproof test, glass transmittance test, shock resistance test etc.

Warranty :
 Our warranty is 1 year from the date of purchase. For detailed warranty info, please refer to our warranty Service.
