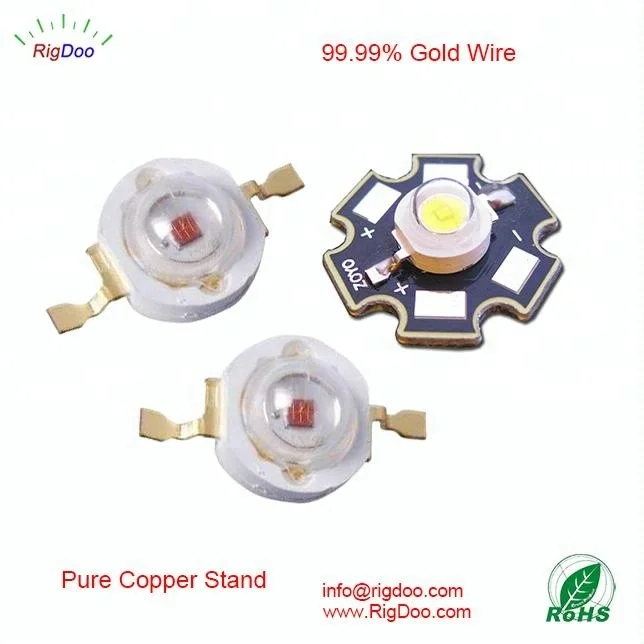

1W - 3W SMD LED Grow LED Plant Growth Lighting Chip 660nm LED
1W - 3W SMD LED Grow LED Plant Growth Lighting Chip 660nm LED
Products Description
Features
Package ( L/W/H ) : 14.6x8x5.1 mm Color : Ultra High Bright Deep Red 660nm Lens: Water Clear Flat Mold EIA STD Package Meet ROHS, Green Product Compatible With SMT Automatic Equipment Compatible With Infrared Reflow Solder Process
Package Profile & Soldering PAD Suggested
Absolute Maximum Ratings At Ta=25℃
Parameter
Symbol
Rating
Unit
Power Dissipation
Pd
1000-3000
mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)
IFP
800
mA
DC Forward Current
IF
350-700
mA
Reverse Voltage
VR
10
v
Operating Temperature Range
Topr
-40C ~ + 85C
Storage Temperature Range
Tstg
-40C ~ + 100C
Soldering Condition
Tsol
Reflow soldering : 260C For 5 Seconds
Hand soldering: 300C For 3 Seconds
Electrical Optical Characteristics At Ta=25℃
Parameter
Symbol
Min.
Typ.
Max.
Unit
Test Condition
Optical Power
340
360
mW
IF = 350mA
Viewing Angle
2θ1/2
---
120
---
deg
IF = 350mA
Dominant Wavelength
λd
660
nm
IF=350mA
Peak Wavelength
λp
662
nm
IF=350mA
Spectral Line Half-Width
Δλ
---
20
---
nm
IF=350mA
Forward Voltage
VF
1.8
---
2.6
V
IF=350mA
Reverse Current
IR
---
---
5
uA
VR=5V
Parameter
Symbol
Min.
Typ.
Max.
Unit
Test Condition
Optical Power
680
720
mW
IF = 700mA
Viewing Angle
2θ1/2
---
120
---
deg
IF = 700mA
Dominant Wavelength
λd
660
nm
IF=700mA
Peak Wavelength
λp
662
nm
IF=700mA
Spectral Line Half-Width
Δλ
---
20
---
nm
IF=700mA
Forward Voltage
VF
1.8
---
2.6
V
IF=700mA
Reverse Current
IR
---
---
5
uA
VR=5V
Packing
Certificates

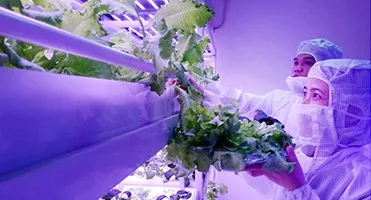

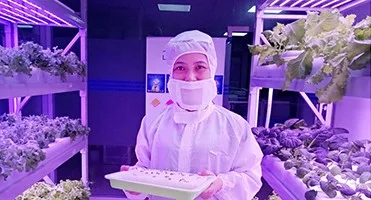

Applications
Plant Grow
Plant Growing
Plant Growing
Plant Grow
Plant Growing
Plant Grow
Company Information
Company Profile
Shenzhen RigDoo Optoelectronics Co., Ltd is awarded High-Tech enterprise by China with more than 18 years experience in LED industry.
RigDoo specially R&D, manufacture and sales LED, SMD LED, DIP LED (Lamp LED, Through Hole LED) and High Power LED. Good Quality, Competitive Price and Good Service!
For SMD LED, we have package 0402, 0404 (1010), 0603 (1608), 0605 (1615), 0805 (2012), 1206 (3216 3215), 1204 (3210), 3014, 3020, 3528 (1210), 2835, 5050 (5054), 5630 5730, 3030, 3535, Top View & Side View, Single Color, Bi-color and RGB Full color, Red, Blue, Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/White, Red/Green, Red/Yellow, Blue/Green, Yellow/Green, RGB full color etc..
For DIP LED (Lamp LED, Through Hole LED), we have 3mm, 5mm, 8mm and 10mm Single color, Bi-color and RGB Tri-Color, Red, Blue, Green, Pure Green, Yellow, Orange, White, Warm White, Purple, Pink, Red/Blue, Red/Green (Common Anode & Common Cathode), RGB full color etc..
For High Power LED, we have 1-300W, White, Red, Green, Yellow, Blue, Orange, Bi-Color, RGB etc.
Our factory are with certificates of ISO9001 and ISO14000. Our products are with certificates of RoHS, CE, SGS, Reach Test etc..
