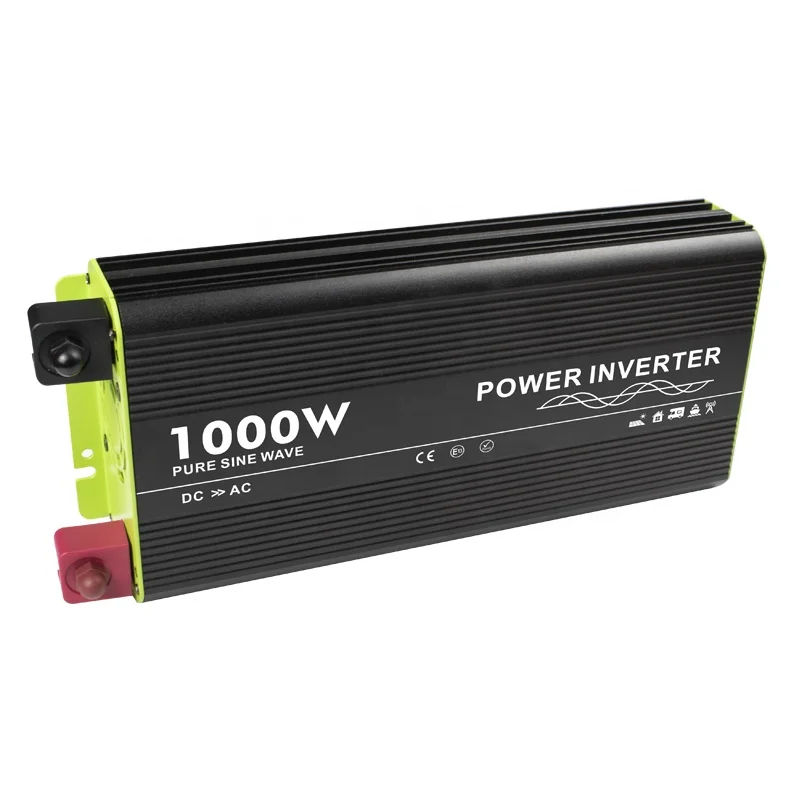

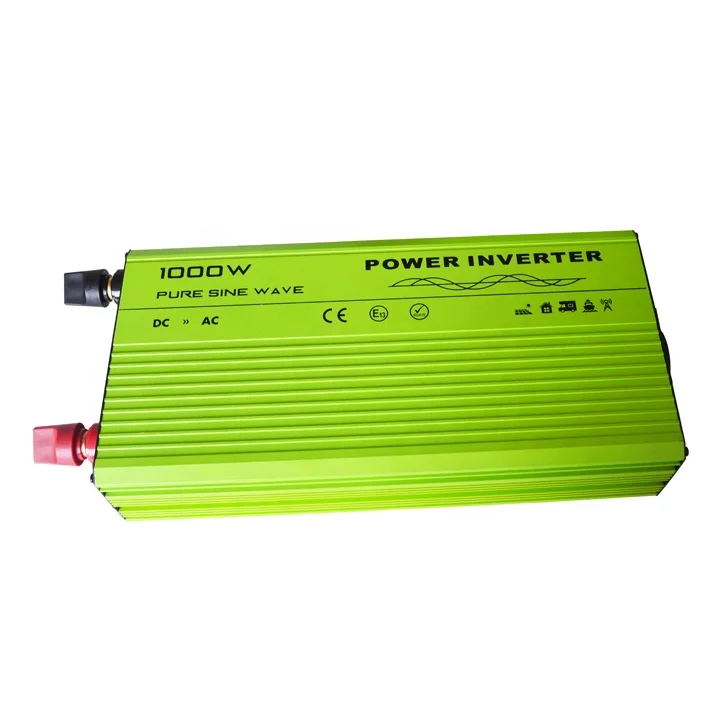

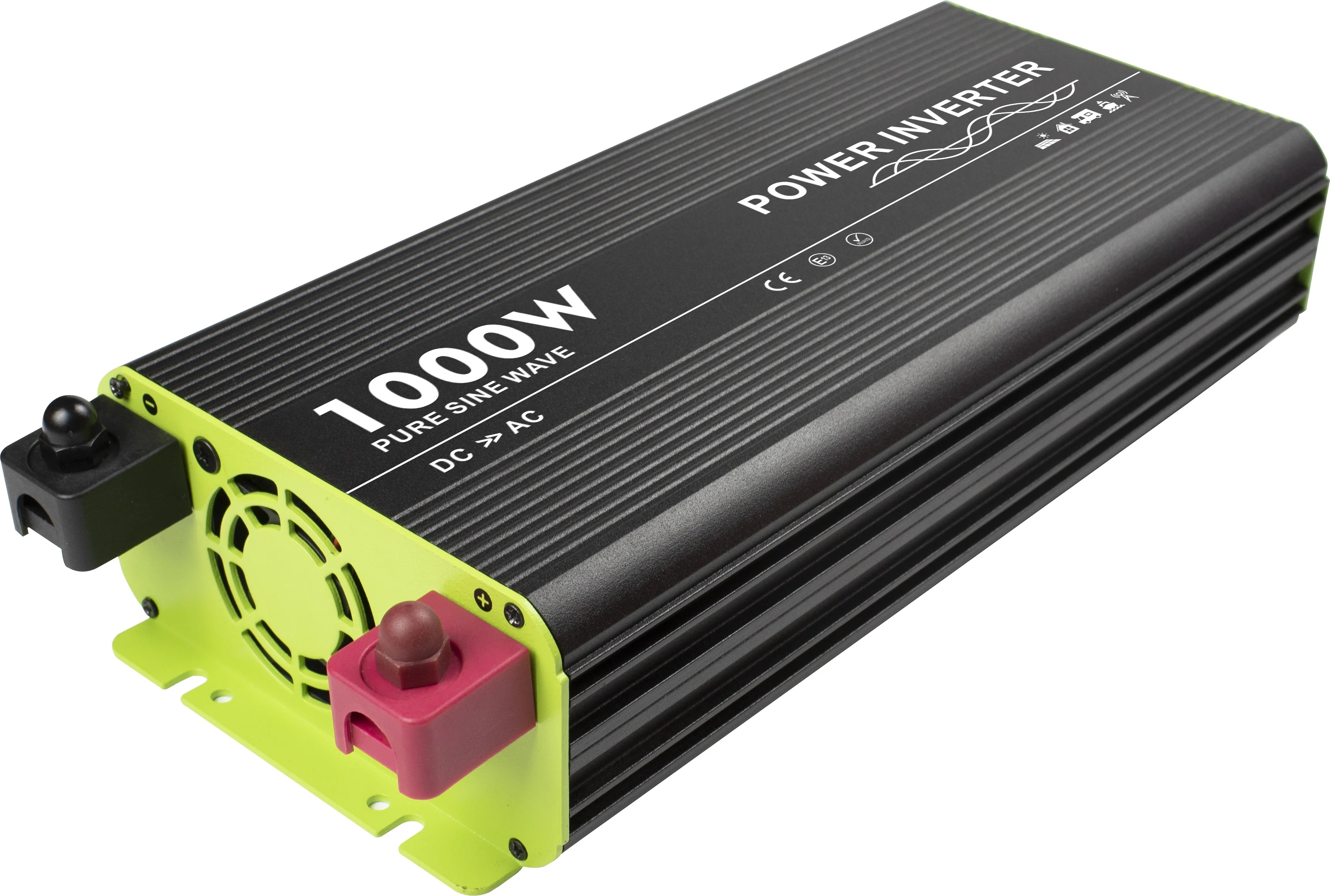

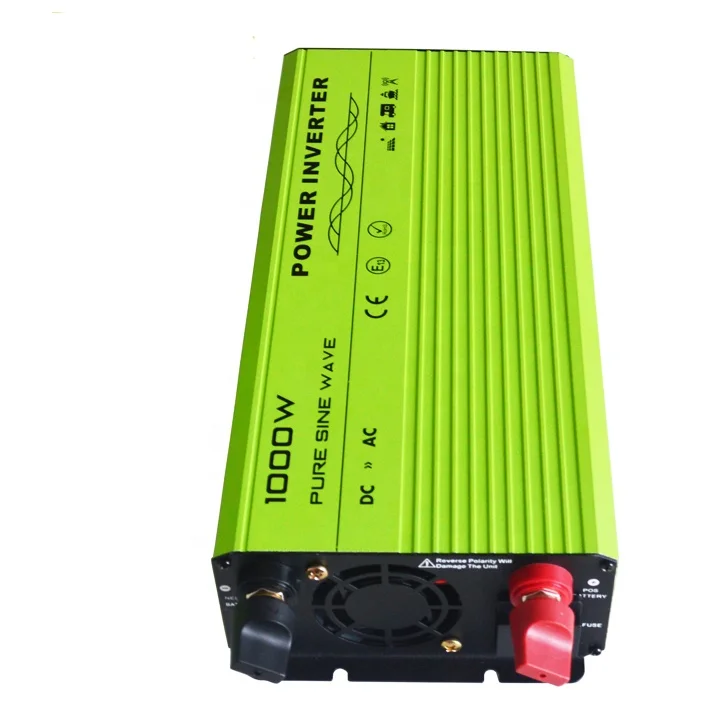

single phase power inverter dc to ac 1000w 2000w 3000w 4000w solar inverter for the new energy

Model

KS1000P

Output Waveform

Pure Sine Wave

Continuous Power

1000W

Maximum Constant Power Start

1200W continue 10s (Buzzer alarm sharply)

Peak Power

2000W

Input Voltage

12V/24V/48V

Output Voltage

100V/110V/115V/120V/220V/230V/240V

Frequency

50Hz/60Hz

No Load Current Draws

<0.9A

Dimensions

310*150*70mm

Weight

2.8±0.2KGS

Protection Function

Low voltage alarm(Buzzer alarm is sounded 2 times),

Low voltage shut down(Buzzer alarm is sounded 3 times),

Over input voltage(Buzzer alarm is sounded 4 times)

Over temperature(Buzzer alarm is sounded 5 times)

Over load(Buzzer alarm sharply)

Short circuit protection, Reverse Polarity (Fuse)

LED Indicator Light

Inverter, Fault, Power(5 levels:20%,40%.60%,80%,100%) mode

Distinct Characteristics

Remote Control: Control your Inverter at a distance with Remote Control Switch.

Fuse was built-out: To change the blown fuse easily.

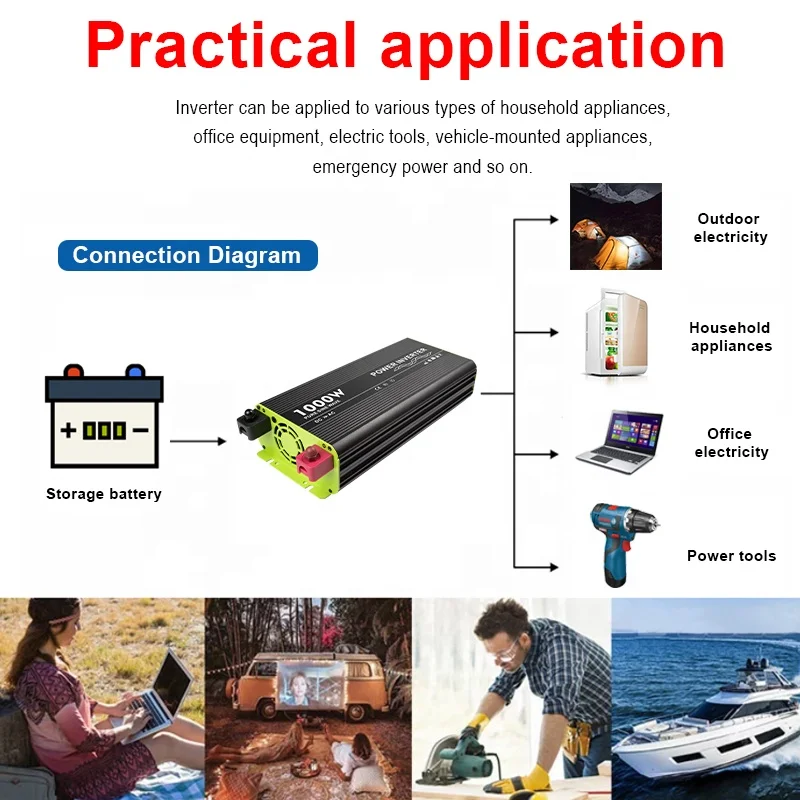

Application

Automobiles, RVs, Boats, tractors, trucks, Laptops, TV sets, Video Games, CD Players, DVD Players, Power tool, Office Equipment, Major Household Appliances, etc.

Environment

Operating temperature: -10°C~+50°C

Operating relative humidity: 20%~90%RH non-condensing

Storage temperature: -30°C~+70°C

Cooling Fan automatically run: inner temperature rising up is ≥45°C

Remarks: With Charger/USB are available.
