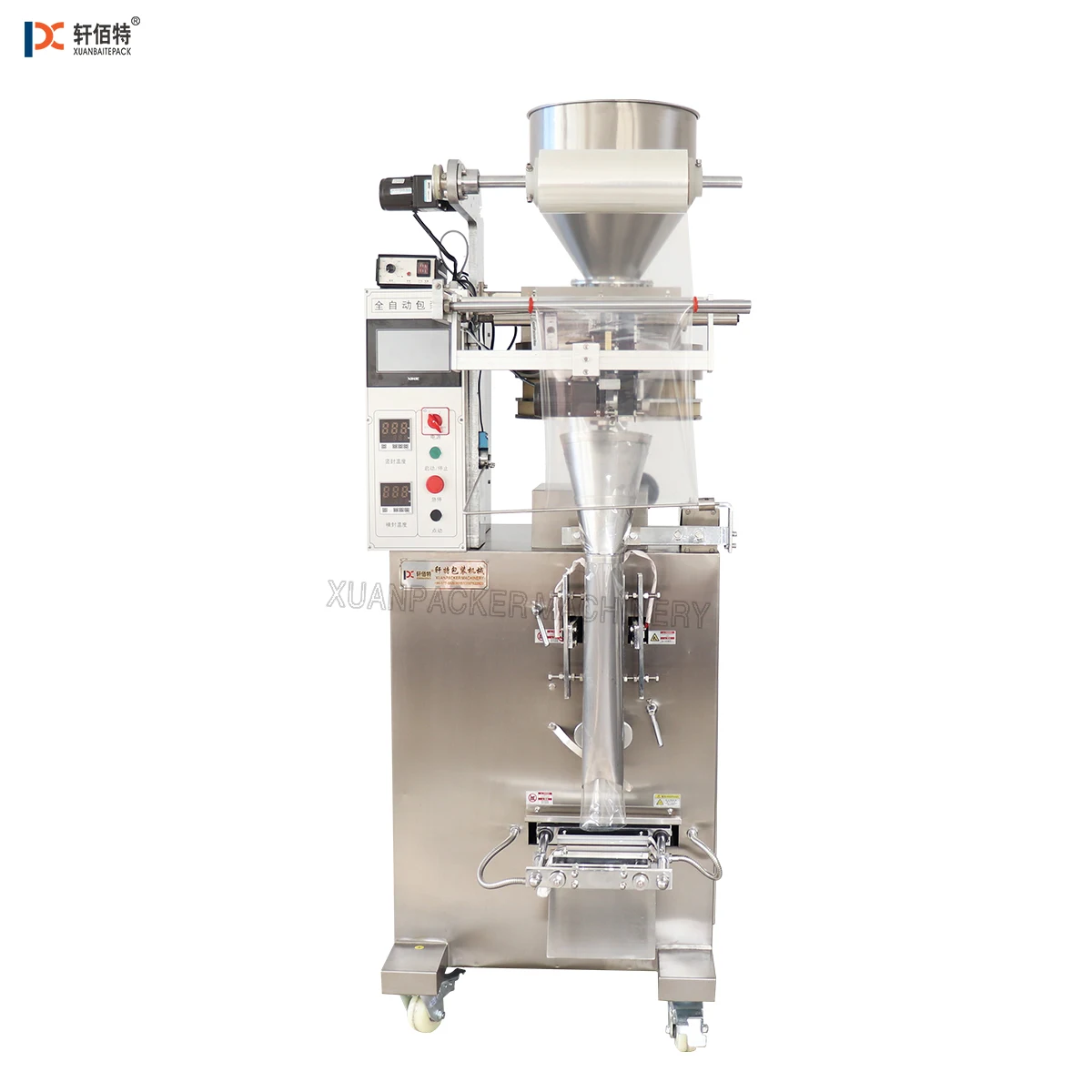

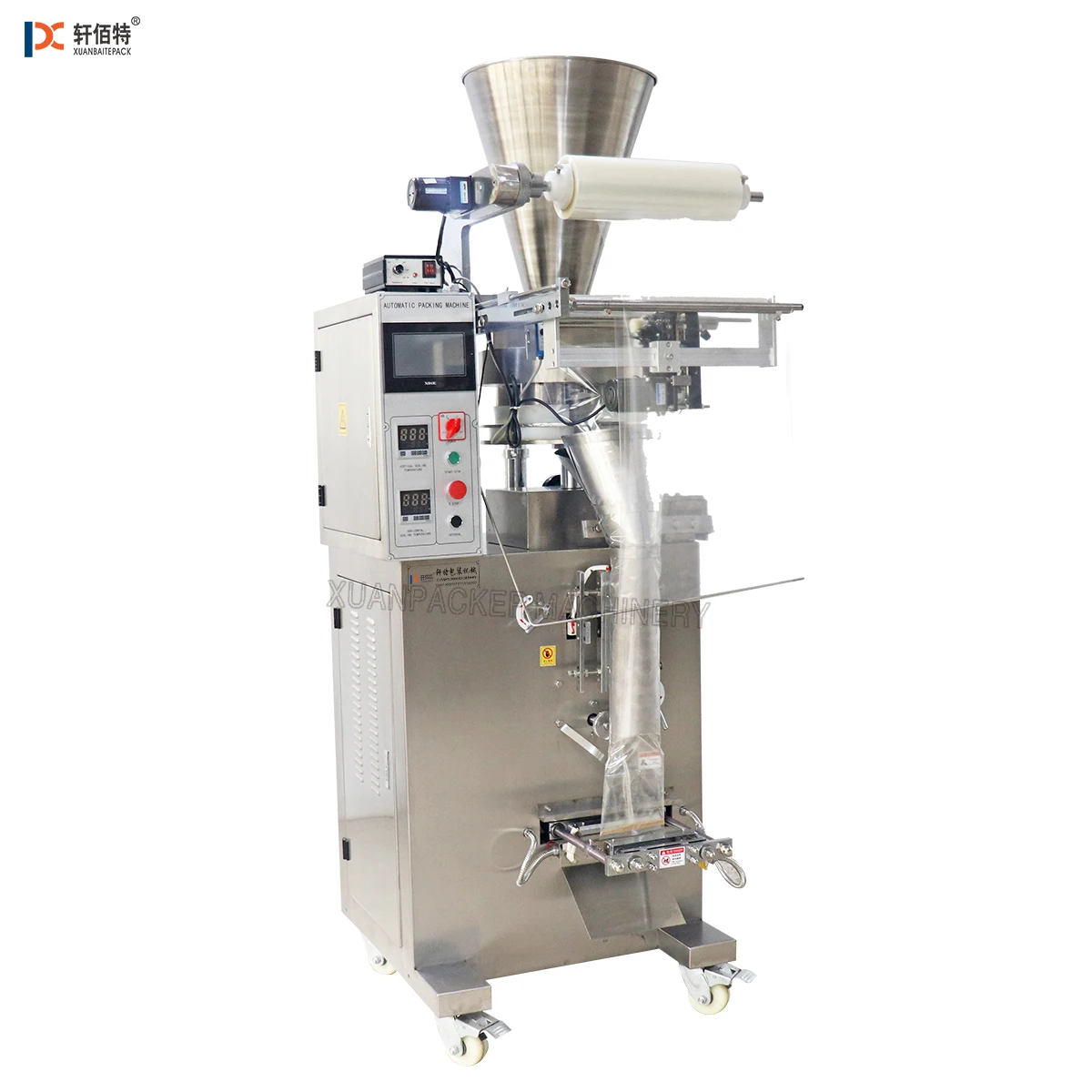

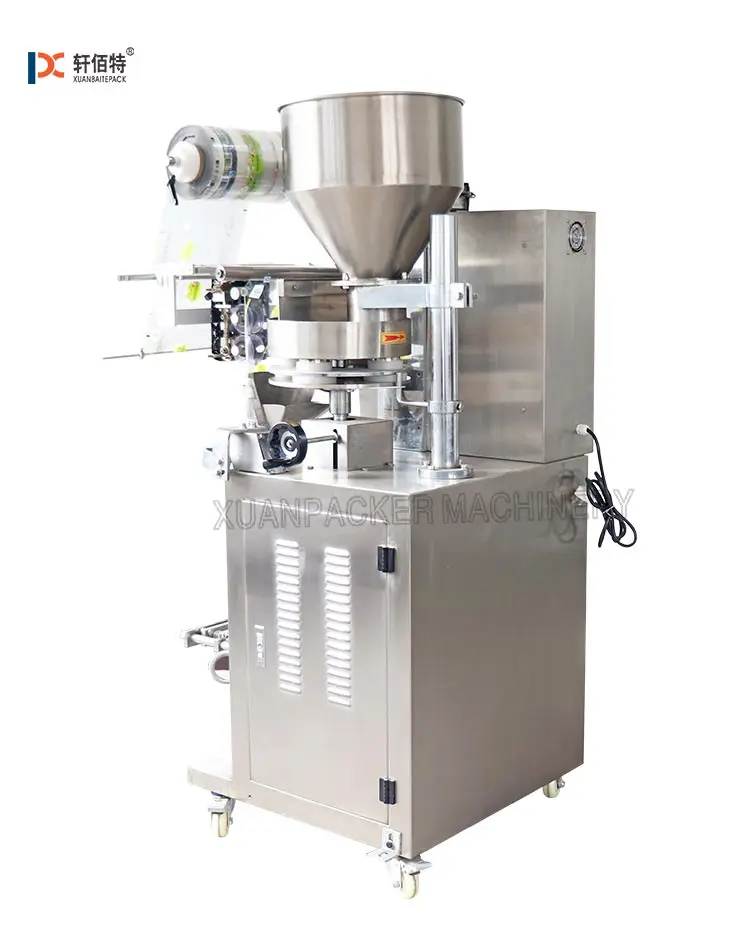

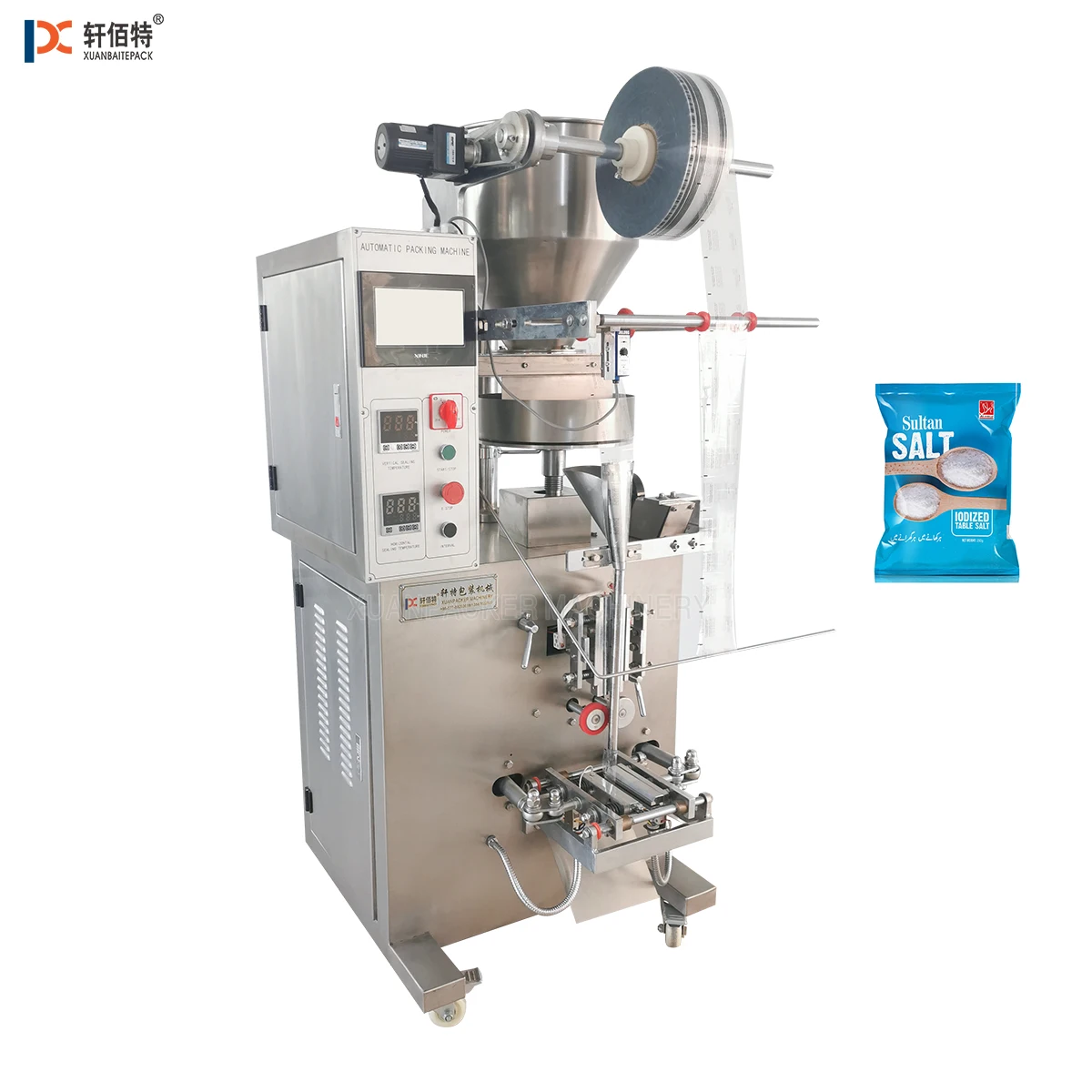

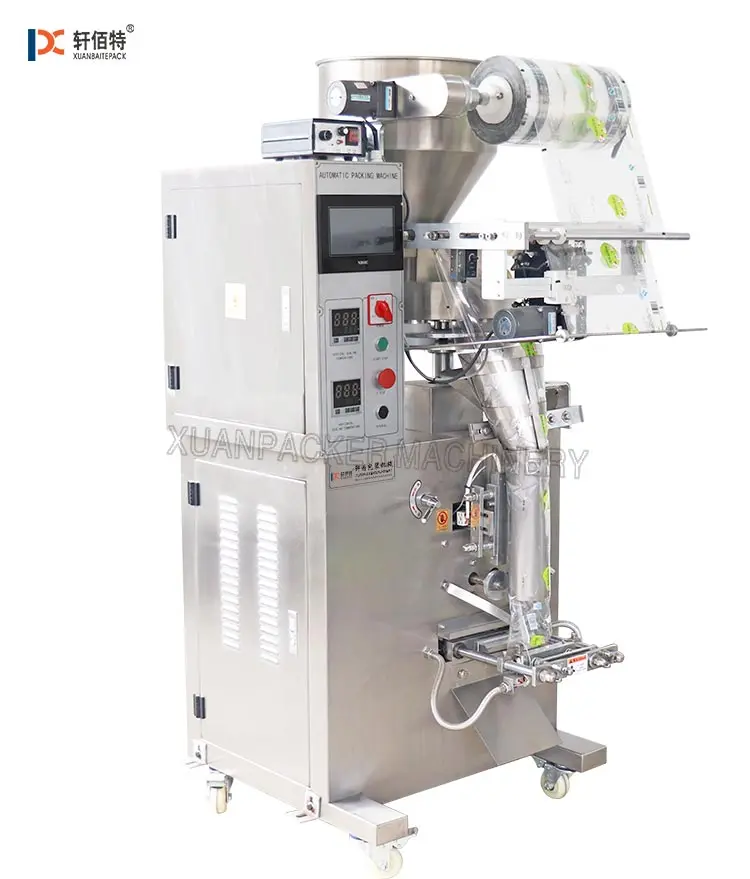

Automatic snack popcorn cashew nuts seeds beans peanut small grain packing machine
Automatic snack popcorn cashew nuts seeds beans peanut small grain packing machine
Automatic snack popcorn cashew nuts seeds beans peanut small grain packing machine
Automatic snack popcorn cashew nuts seeds beans peanut small grain packing machine
Automatic snack popcorn cashew nuts seeds beans peanut small grain packing machine
Automatic snack popcorn cashew nuts seeds beans peanut small grain packing machine
Automatic snack popcorn cashew nuts seeds beans peanut small grain packing machine

Automatic snack popcorn cashew nuts seeds beans peanut small grain packing machine

Share on (60798342422):


Price:$2,500.00 - $2,800.00

Quantity:


Product Overview

Description



One .main performance & characteristics
1. The whole structure:This machine integrates mechanical and electrical together. And the whole machine is controlled by PLC(Programmable Logic Controller).
2. Photoelectric on membrane:It adopts PLC control photoelectric correction system, and equipped with high-precision stepping motor, to ensure the integrity of the packaging film pattern, it can control the system of complete synchronization,length fixing, orientation and speed of whole machine.
3. Adjusted the bag length: If turn off on the membrane system, you can adjust the parameter to adjust the bag length, although the film width is fixed, so as to adjust the amount of packaging.
4. Measurement and subpackage method: The machine according to the measuring cup size and measuring the regulating handle manually adjust to realize partial shipments and measurement function.

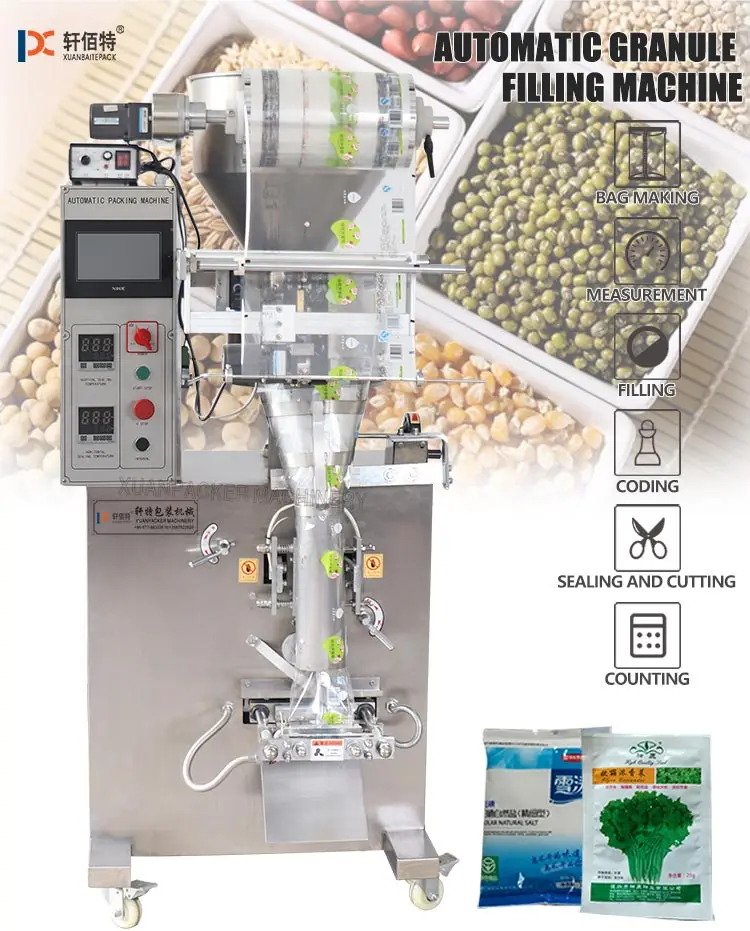

5. All functions: this machine is fully automatic machine. Can automatic accounting bag (film), on film, The date of printing (need to match the ribbon code printer linkage device), measuring, filling, sealing, cutting film ,and so on.
Two .using range
This machine is applicable for packaging the foodstuff, pharmaceutics, chemicals, agricultural chemicals, as well as the granules with little viscosity. It is applicable for packaging the puffing food, fried foodstuff, peanut, melonseeds, electuary, desiccating agents,aginomoto,white sugar,plant seeds,delergent,etc.

Three . technical parameter











Only one of the above packaging forms can be customized, and two packaging forms cannot be realized on one machine.










Product Description


Mode
HP100G
HP200G
HP500G
HP1000G
Packing speed
40-60Packs/min
40-60Packs/min
40-60Packs/min
40-60Packs/min
package style

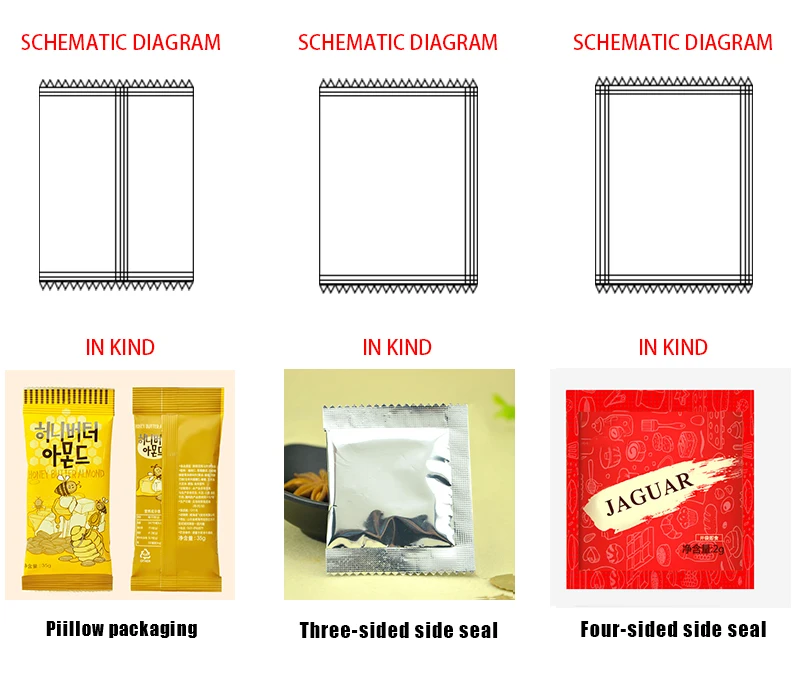

Back seal or three-side, four-side seal
Back seal or three-side, four-side seal
Back seal or three-side, four-side seal
Back seal or three-side, four-side seal
Sealing form
Tooth shape or customized flat mouth shape
Tooth shape or customized flat mouth shape
Tooth shape or customized flat mouth shape
Tooth shape or customized flat mouth shape
Sealing temperature
0-300℃
0-300℃
0-300℃
0-300℃
Power
1350W
1350W
1350W
1350W
Maximum film width
300mm/400mm
300mm/400mm
300mm/400mm
300mm/400mm
Applicable film
Composite packaging film
Composite packaging film
Composite packaging film
Composite packaging film
capacity
50-100ml
100-200ml
200-450ml
600-1200mm
Packing quantity
1-80g
80-150g
150-450g
500-1000g
Bag size
20-140*200mm
20-140*200mm
20-140*200mm
20-140*200mm

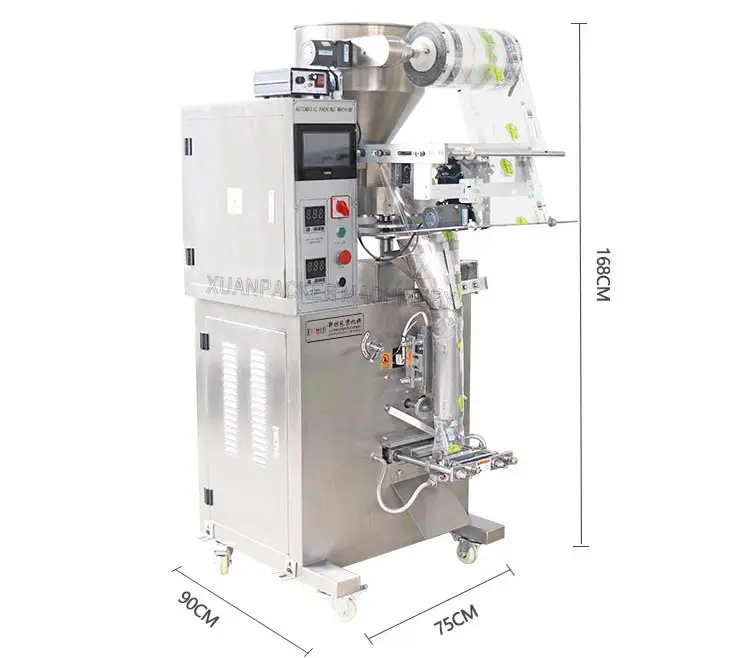

Product Size
75*90*165cm
75*90*165cm
75*90*165cm
80*108*240cm
Weight
280kg
300kg
320kg
380kg


Tips.
This model is a customized model, the production is based on the standard model, please refer to the actual product

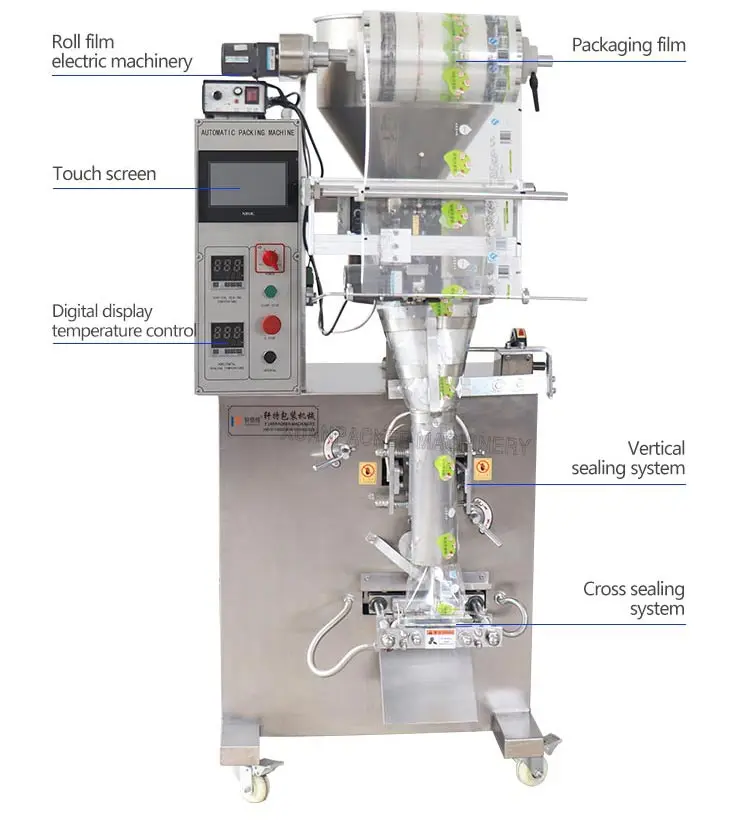

Stainless steel hopper.
Made of stainless steel, can be according to different needs,Customize different capacities
Measuring cup.
With an operable paper feed tray, it can flexibly control the loading volume and ensure the accuracy of the packaging weight.


Metering regulator.
Used to adjust packaging metering
Ribbon Coder.
Can be used to code production date or batch number, with clear printing, If you need, you can contact customer service to configure


Microcomputer touch operation screen.
Controlled by a microcomputer, the working speed of the packaging weight and the length of the bag can be easily set. Ensure that the operator uses the machine as soon as possible.
Digital display temperature control.
Horizontal sealing temperature and vertical sealing temperature can be set separately, the packaging is more beautiful


Vertical sealing system.
The sealing and cutting device can accurately pack the bag after the operator sets the length of the bag. According to your needs, we can tailor the machine for the back/three-side/four-side sealing bag.
Horizontal sealing system.
The sealing and cutting device can accurately pack the bag after the operator sets the length of the bag. According to your needs, we can tailor the machine for the back/three-side/four-side sealing bag.




Electronic scale packaging machine
Paste packaging machine
Coffee powder packaging machine


Screw packing machine
Puffed Food Packaging Machine
Powder filling machine


Granule filling machine
Electronic scale granule filling machine
Feeder




Service description


Q: Are you trading company or manufacturer ?

A: We are factory and trade union business,But we are specialized in trade business.



Q: How long is your delivery time?

A: Generally it is 5-10 days. or it is 15-30 days if the goods are not in stock.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free chargen, but do not pay the cost of freight.



Q: What is your terms of payment ?

A:  30% T/T in advance ,balance before shippment.Or pay through online trading platform
