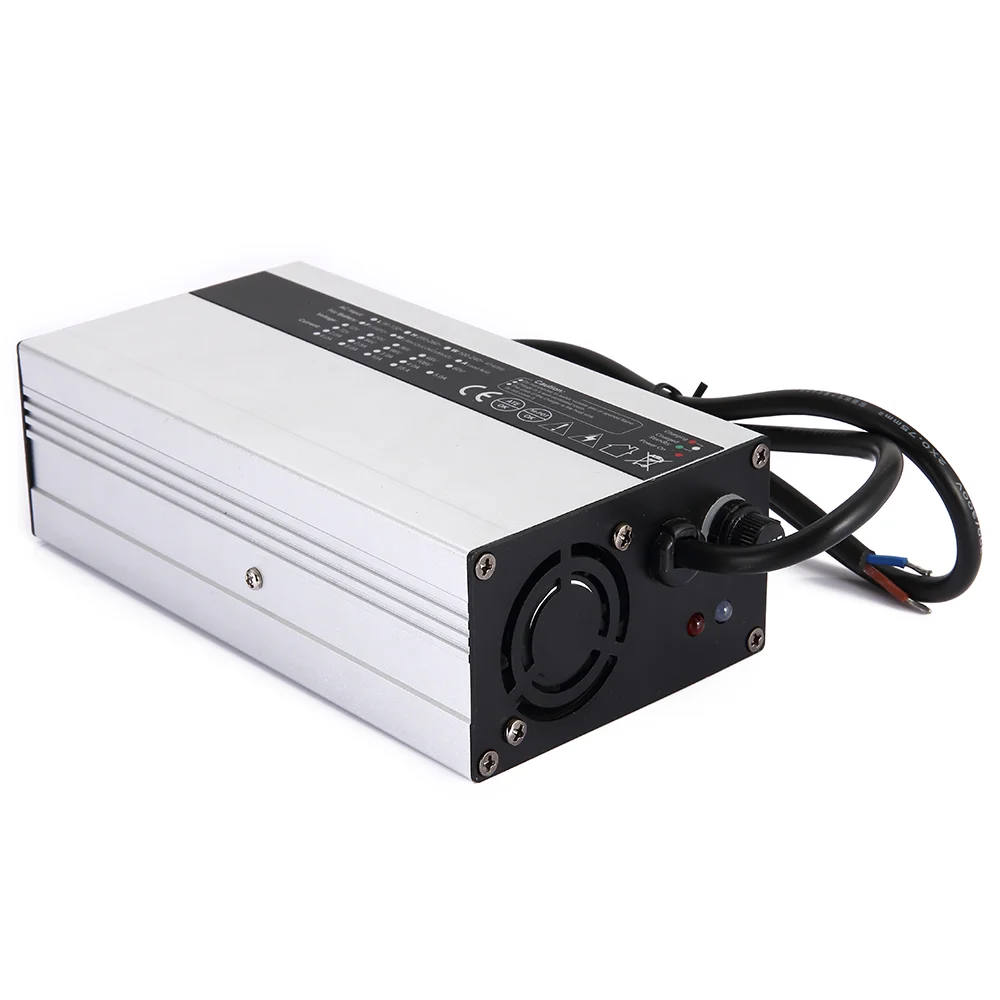

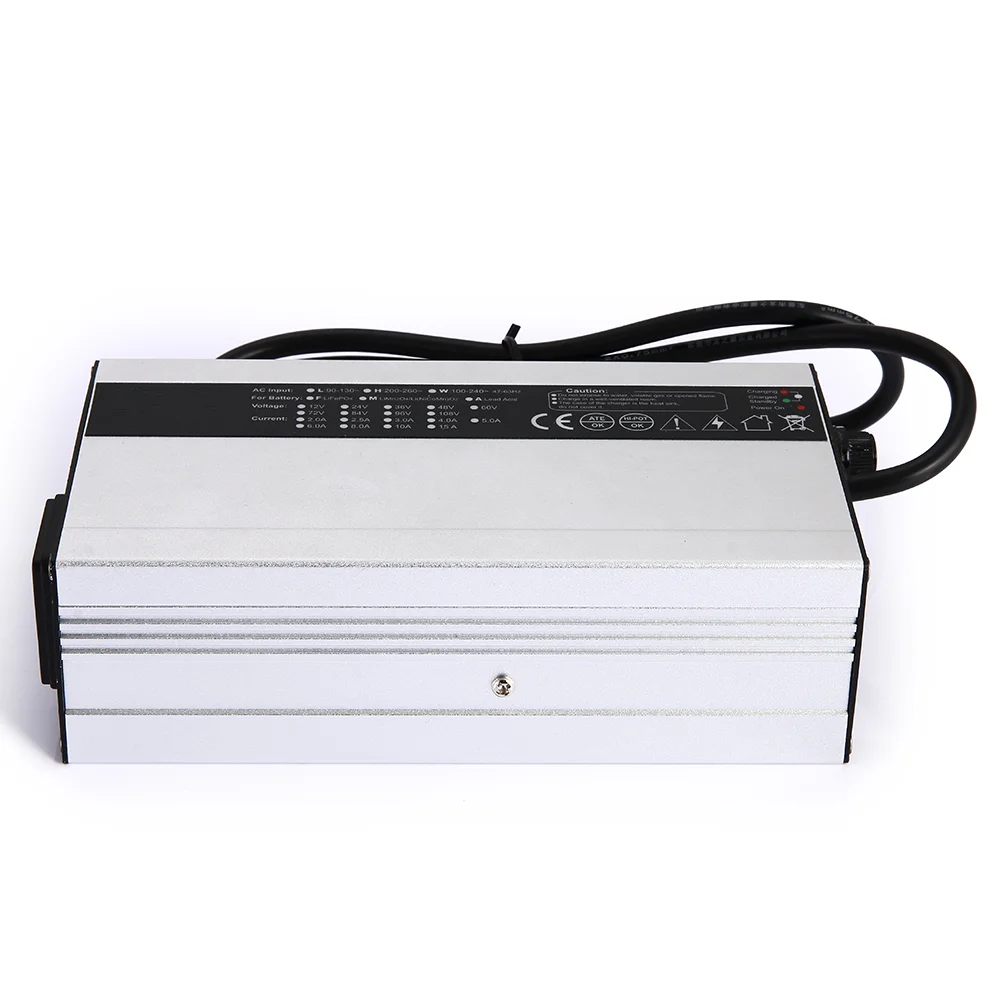

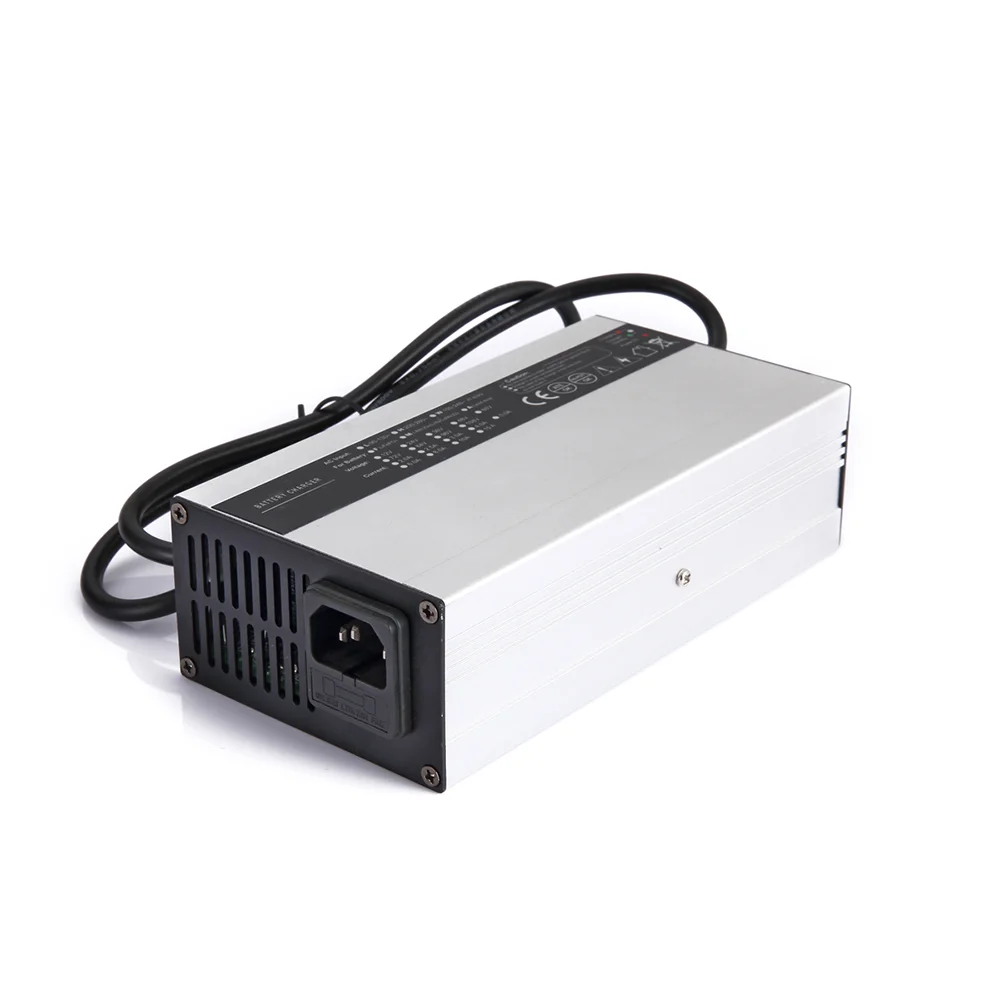

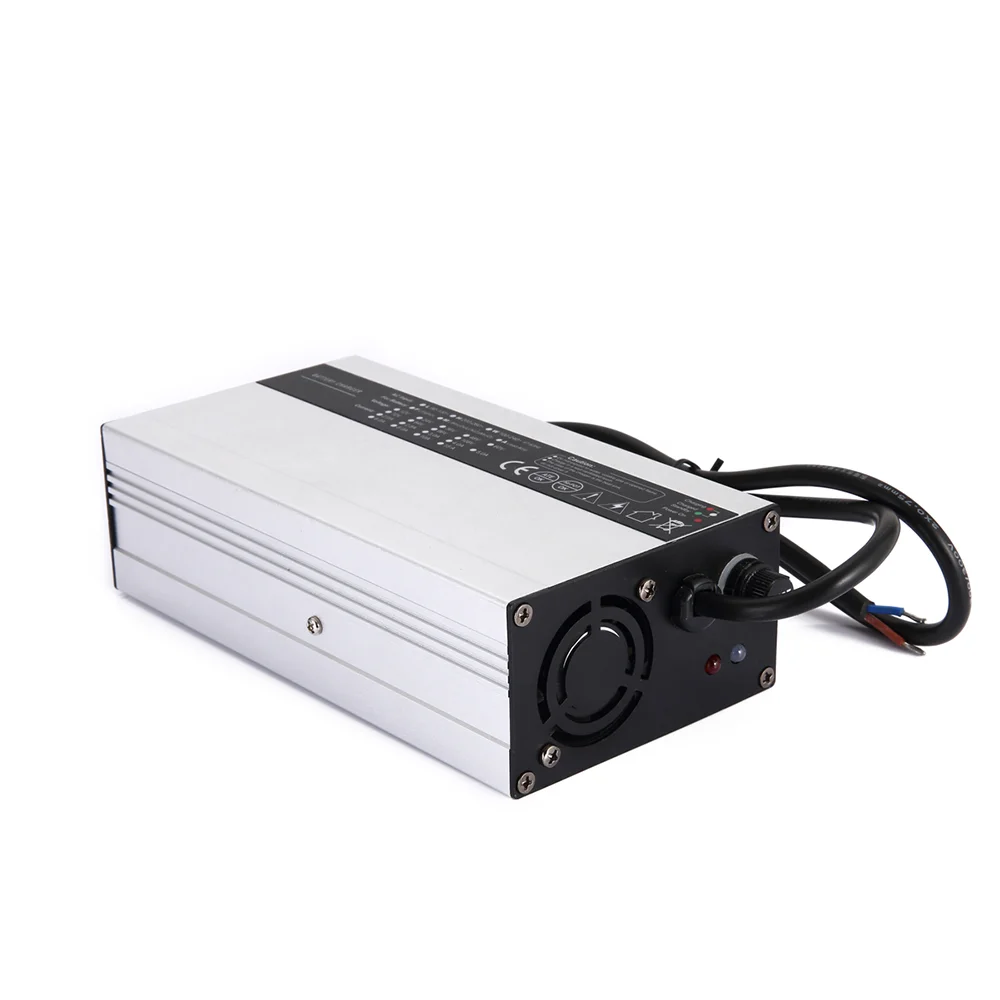

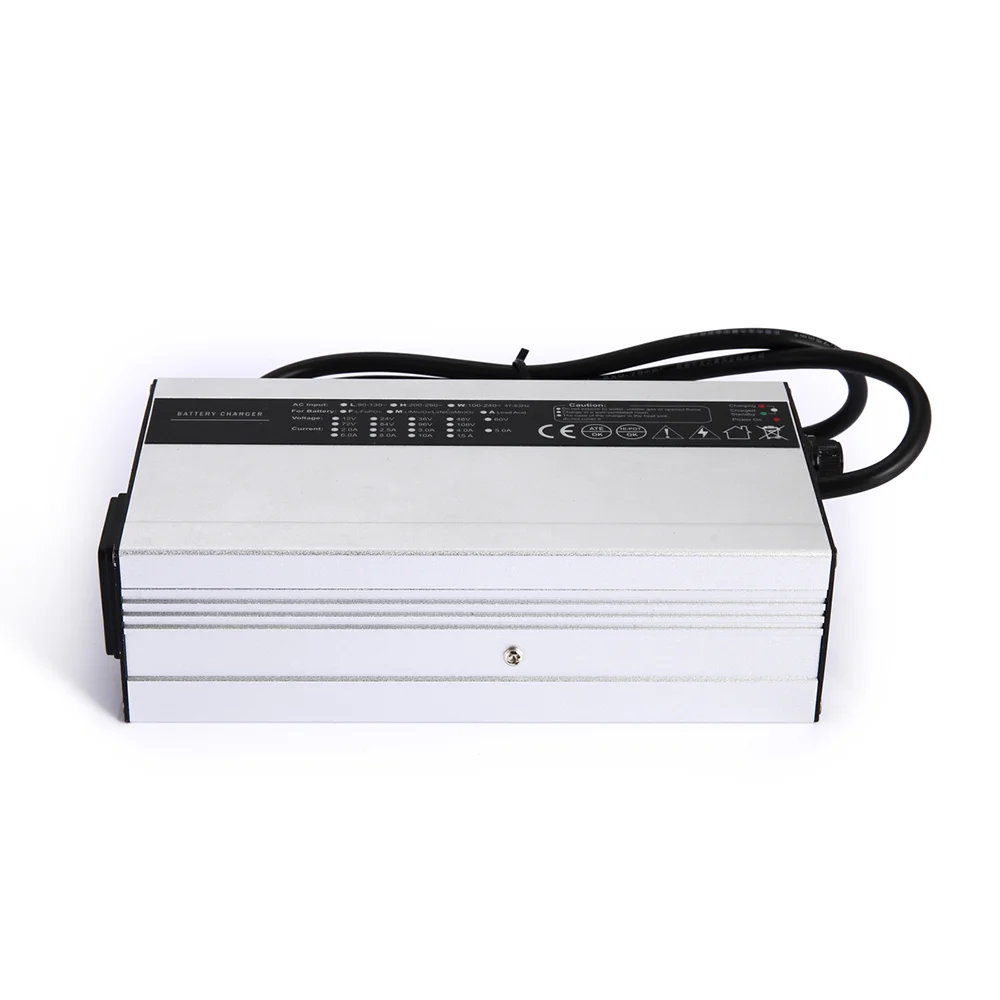

13s 14s 15s 16s 20 48V LTO свинцово кислотный LifepO4 Li MnO2 литиевая батарея зарядное устройство 240 Вт Мощность для электрический игрушечный автомобиль

13s 14s 15s 16s 20 48V LTO свинцово кислотный LifepO4 Li MnO2 литиевая батарея зарядное устройство 240 Вт Мощность для электрический игрушечный автомобиль

Category: Charger >>>
Supplier: Shenzhen E-Fire Technology Development Co. Limited

Price:

Quantity:

Product Overview

Description

\t\t\t\t\t\t\t\t\tOverview \t\t\t\t\t\t\t

Our charger has the advantages like high efficiency, good stability, low-carbon and energy-saving. Three-section charging mode ---- Controlling the charging current and voltage automatically and precisely, both ensure that battery is charged fully, and not over charged. Your battery life will be protected.

Buyer attention:

In order to confirm if our charger is suitable for your battery pack,

please send the following info to us by email:

(1) Battery type: Lithium ,lifepo4 or lead acid or LTO

(2) Number of cells in series:

(3) Capacity of battery pack(AH):

(4) The maximum charge voltage:

(5) AC input voltage:

(6) AC plug: EU,US,AU or UK

(7)DC connector: XT60 ,XT90 ,Anderson style connector

Main Protection:

Over current protection

Over voltage protection

Over temperature protection

Short Ciruit protection

Reverse polarity protection

Charging Mode:

Lithium battery: CC/CV(Constant Current/Constant voltage)

Lead acid battery:CC/CV and float charging

\t\t\t\t\t\t\t\t\tUnpacking Inspection \t\t\t\t\t\t\t

Open the package case, check the items shown on Table 1 carefully to check any missing or damaged part.

Table 1. Unpacking Inspection

Item	Description	Qty
1	Charger	1
2	Operating manual	1
3	AC wire	1
4	Output fuse	2

Operate Instructions

1 Before charging, please connect the DC terminal to battery firstly, and then connect the AC terminal.

2 After charging complete, unplug the AC terminal firstly, and then unplug the DC terminal.4.1 Before charging, please connect the DC terminal to battery firstly, and then connect the AC terminal.

3 No charging or after charging complete, be sure to unplug the DC terminal and the AC terminal.

4 LED is the power on indicator, shows red when the charger starting-up.

Matters Need Attention

1 Don't cover the charger or intake during charging.

2 The charger should be placed where children could not touch.

3 Please charging in indoor area where good ventilation and heat dissipation is. Prohibited charging where is humid, high temperature or a flammable, explosive gas surrounding.

4 To avoid vibration damage, please don't carry the charger on the driving vehicle long time.

5 It's danger of high voltage in charger case please do not disassemble it unauthorized.

6 The losses caused by not operating according to the instruction manual operation, manufacturer does not bear any responsibility.

Maintenance

WARNING: Before conducting the following operations, make sure the charger is disconnected with the battery and power connection

Routine maintenance

Clear dust on vents and fan regularly, to ensure the charger has good heat dissipation.

Periodically wipe the case with a cloth with some alcohol.

Do not use or store the charger in a place of humidity or high temperature.

1 Replace the fuse

If the charger can not charge, please confirm the output fuse is blown out. Install only replacement fuse with the identical type and specification as follows and make sure the1 fuse is fixed firmly in the fuse holder.

2 Common malfunction & Solution

Phenomenon	Cause	Solution
After connecting charger and battery, charger can not work or, LED2 shows green.	Connecting reverse, output fuse blow.	Please replace the fuse, and then connect charger and battery correctly.
			Connecting reverse, relay has no action.
Battery isn't charged fully, but LED2 flashes between red and green.	Charger and battery is disconnected.	Reconnect charger and battery.
		Charger overheating, into thermal protection mode and standby.	Cooling charger, Charger can auto-resume to work when temperature cool down.
After connect charger to AC power, charger can not work, and two LED don't light.	Plug loose, charger does not connect to AC power.	Reconnect the AC wire, and make sure that is OK.
	Charger has damaged	Send charger back to local dealer for repair. There is high-voltage inside charger, please don't open the charger personally.

Operating Manual

This Operating Manual covers information on safety and cautions.

Please read it carefully before charging

Input plug and output connector is optional

If you need other voltage charger, welcome contact with us

24v 29.2v 2A 4A lifepo4 battery charger

When order please tell us input voltage and plug, output connector

Detailed Images
