8 Temperature inputs GSM 3G 4G Temperature Data Logger S266

King Pigeon Hi-Tech.Co.,Ltd. is a leading GSM GPRS 3G 4G RTU Controller and GSM GPRS 3G 4G Industrial IoT Solution manufacturer since 2005. It provides a complete product lines  and Cloud Platform, APP solution to meet different applications.

***Mianly Products***

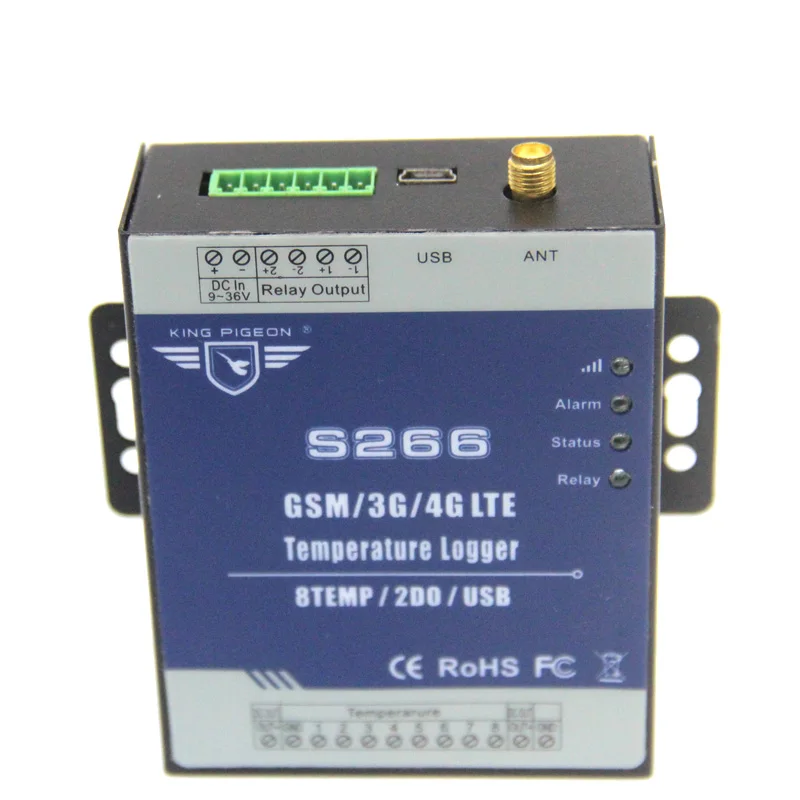

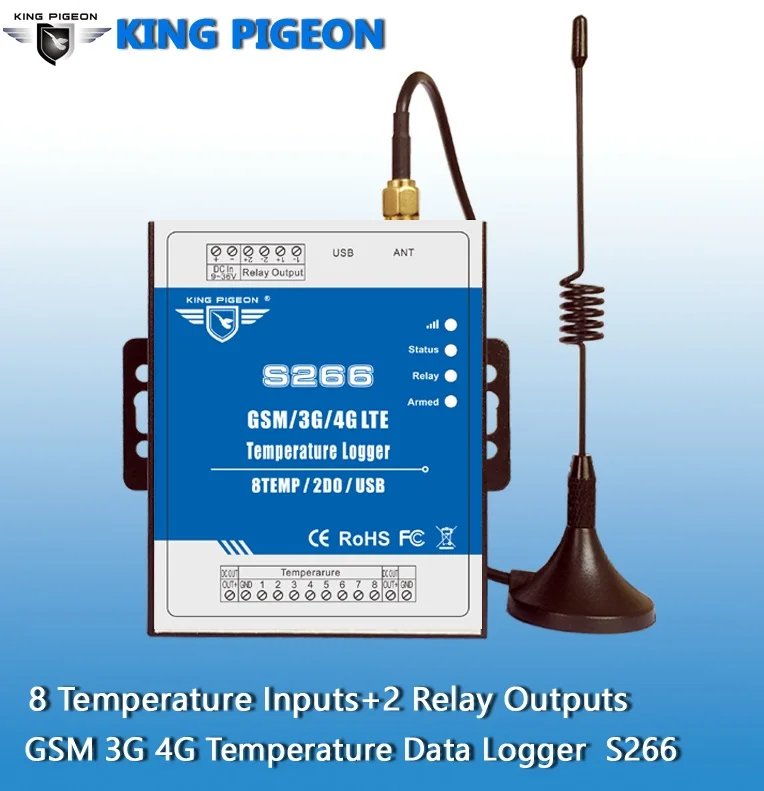

 8 Temperature inputs GSM 3G 4G Temperature Data Logger S266

 King Pigeon GSM/3G/4G LTE S266 Data Loggers are special for remote monitoring the onsite temperature.Not only for monitoring Temperature  in real-time, also support high/low .SMS/Call alert to max 10 user phone numbers.

The Data Logger with large memory that can save 200000 events. Moreover,It provides 2 Relay outputs for automatically switch ON/OFF devices when Temperature exceed high/low value and remote switch ON/OFF Device by SMS or GPRS/3G/4G.

It has been designed as a cost effective, low power, self contained data logger. It has 8 temperature sensor inputs with embedded GSM/GPRS/3G/4G module to provide an all in one instrument for data logging, Remote data acquisition, alarm and control.

Applications

Ø Server room;

Ø Warehouse;

Ø Weather Stations remote control and data logging;

Ø Oil pump monitoring;

Ø Transformer stations;

Ø Supervision and monitoring alarm systems

Ø Transformer stations;

Ø Medicine center;

Ø Drug store ,Seafood storage, Aquarium;

Ø Supermarket, hospital, Hotel;

Ø Billboard, Ads Signs LED, etc.

Advantages

Ø  Quad band 850/900/1800/1900Mhz GSM GPRS Module inside;

Ø  3G UMTS/HSDPA/4G Modules are optional.;

Ø  32 bit MCU, reliable performance with in-built watchdog;

Ø  Support temperature & humidity monitoring remotely in real-time;

Ø  Support 8 channel temperature input interface(DS18B20 Temperature sensors);

Ø  Support  2 relay outputs,7A@125VAC   5A@125VAC  20A@14VDC;

Ø  High/Low Alert via SMS/Call/GPRS;

Ø  Supports 1 DNS or IP address as server;

Ø  Supports Modbus TCP, TCP/IP protocol over GPRS/3G/4G network;

Ø  Automatically resend the data while communication failure, GPRS failure will alert by SMS text;

Ø  Supports remotely restart the device, and configure it by SMS commands remotely;

Ø  Up to 10 user's phone number to receive alarm and daily report SMS/Call;

Ø  Timer report, interval period 1~65535 seconds, configurable; automatically upload status/Value to the authorized numbers;

Ø  In-built rechargeable battery, power lost/recover alarm, low maintenance, 24×7 operation;

Ø  In-built internal clock, support 11 actions on schedule at pre-set time;

Ø  Internal 16MB memory, logs more than 200000 records;

Ø  Wall mount or 35mm standard DIN rail Design, convenient installation, Dimensions 70*88*30mm;

Ø  Support Android/IOS APP, easily & friendly for use/config.

Ø  Support remote upgrade the firmware via PC.

Ø  Can be operated from anywhere, no distance limitation;

Ø  Secure - Using caller ID and password for identification, unknown callers are ignored;
