Full Automatic Pet Blow Machine Auto Bottle Blowing Machine
US $13000-$30000
Semi automatic manual 4 cavity semi automatic pet blowing machine to make pet bottle
- Category: Stretch Blow Moulding Machines >>>
- Supplier: Zhangjiagang,Beyond,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
semi automatic pet blowing machine
Semi-automatic manual 4 cavity semi automatic pet blowing machine to make pet bottle
Product Description
The semi-automatic PET bottle blowing machine is controlled by microcomputer and can control the technical parameters more accurately. Semi-automatic PET bottle blowing machine operation is simple and safe, only one person is needed, no special training is required. YC series semi-automatic PET bottle blowing machine is suitable for the blow molding of plastic packaging containers, such as soda bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is very suitable for the production of small beverage enterprises and Japanese enterprises.
| Item | BY-2L-2 | BY-5L-1 | BY-20L-1 | BY-2L-4 |
Maximum product capacity (L / cav) | 2 | 5.5 | 20 | 2 |
Preform maximum diameter (mm) | 100 | 150 | 200 | 100 |
The max diameter of the bottle (mm) | 180 | 200 | 400 | 180 |
Bottle maximum height (mm) | 300 | 400 | 600 | 300 |
| Cavity number | 2 | 1 | 1 | 4 |
| Clamping force (KN) | 100 | 120 | 150 | 500 |
Opening and closing mold stroke (mm) | 270 | 320 | 340 | 270 |
Maximum mold size (mm) | 390*345 | 390*350 | 420*500 | 460*345 |
| Mold thickness | Adjustable | Adjustable | Adjustable | Adjustable |
Die center distance (mm) | Adjustable | Adjustable | 400 | 120 |
Maximum stretching stroke (mm) | 400 | 500 | 500 | 400 |
| Working pressure (Mpa) | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 |
Run air pressure air consumption | 200 | 350 | 560 | 200 |
| (1tr / min) | ||||
| Blow volume (Mpa) | 1.2-2.8 | 1.2-2.8 | 1.2-2.8 | 1.2-2.8 |
Blow air pressure (1tr / min) | 300 | 300 | 650 | 300 |
| Yield (pcs / h) | 1000-1800 | 1000-1600 | 600-900 | 1000-1800 |
Machine size (LxWxH) (m) | 1.46*0.58*1.8 | 1.56*0.7*1.9 | 2.18*0.77*1.96 | 1.46*0.58*1.8 |
| Weight KG) | 650 | 700 | 1000 | 650 |
Temperature level (segment) | 8 | 8 | 8 | 8 |
| Heating time (seconds) | 90-200 | 90-200 | 90-200 | 90-200 |
| Voltage (V) | 220 or as your request | 220 or as your request | 220 | 220 or as your request |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 | 50/60 |
| Total power (KW) | 16 | 16 | 15-40 | 16 |
| Oven size (LxWxH) | 1.35*0.55*1.15 | 1.45*0.65*1.15 | 2.37*0.68*1.65 | 1.35*0.55*1.15 |
| Oven weight (KG) | 300 | 330 | 380 | 300 |

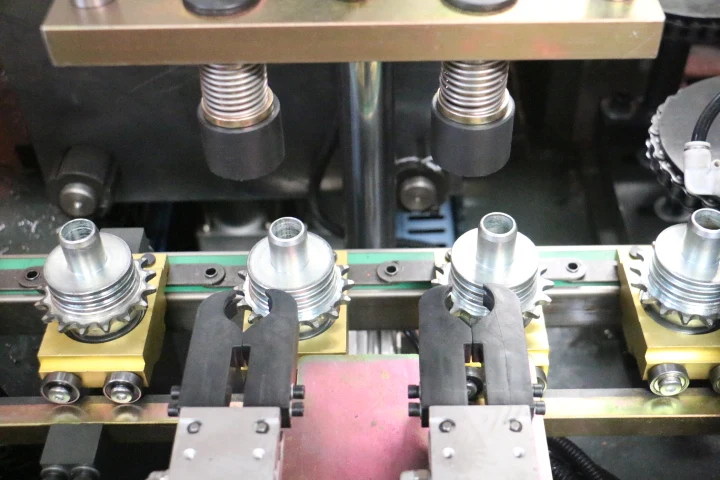

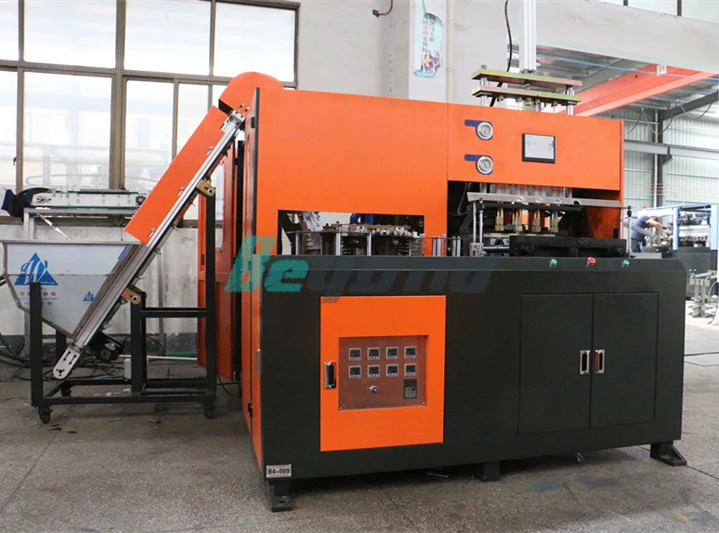

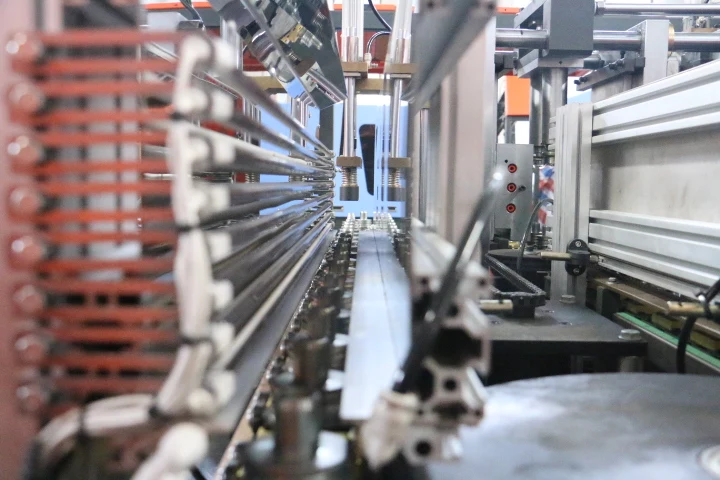

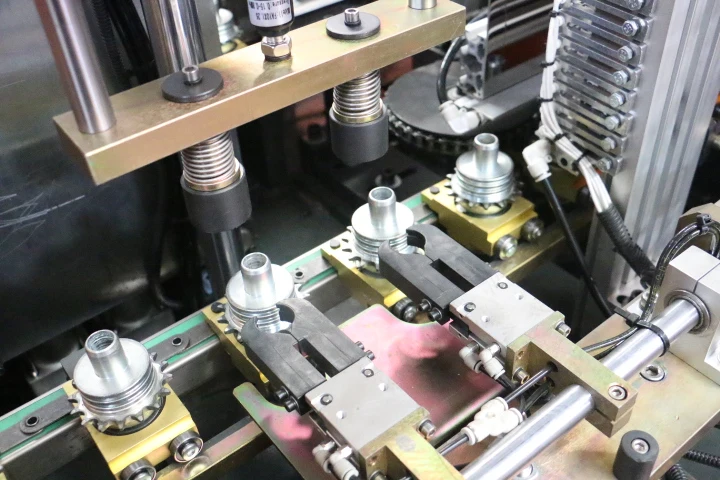

Detailed Images
Related product
Our company's products are varied,following are our Hot Products!Click it!
 |  |  |

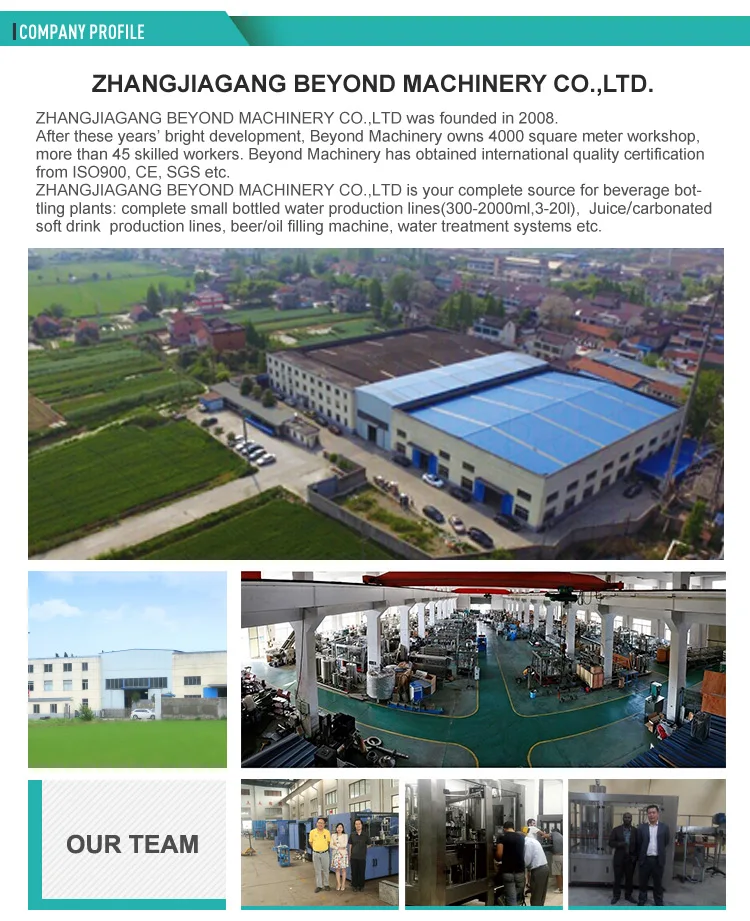

Company Information
why choose us
Packaging & Shipping
FAQ
