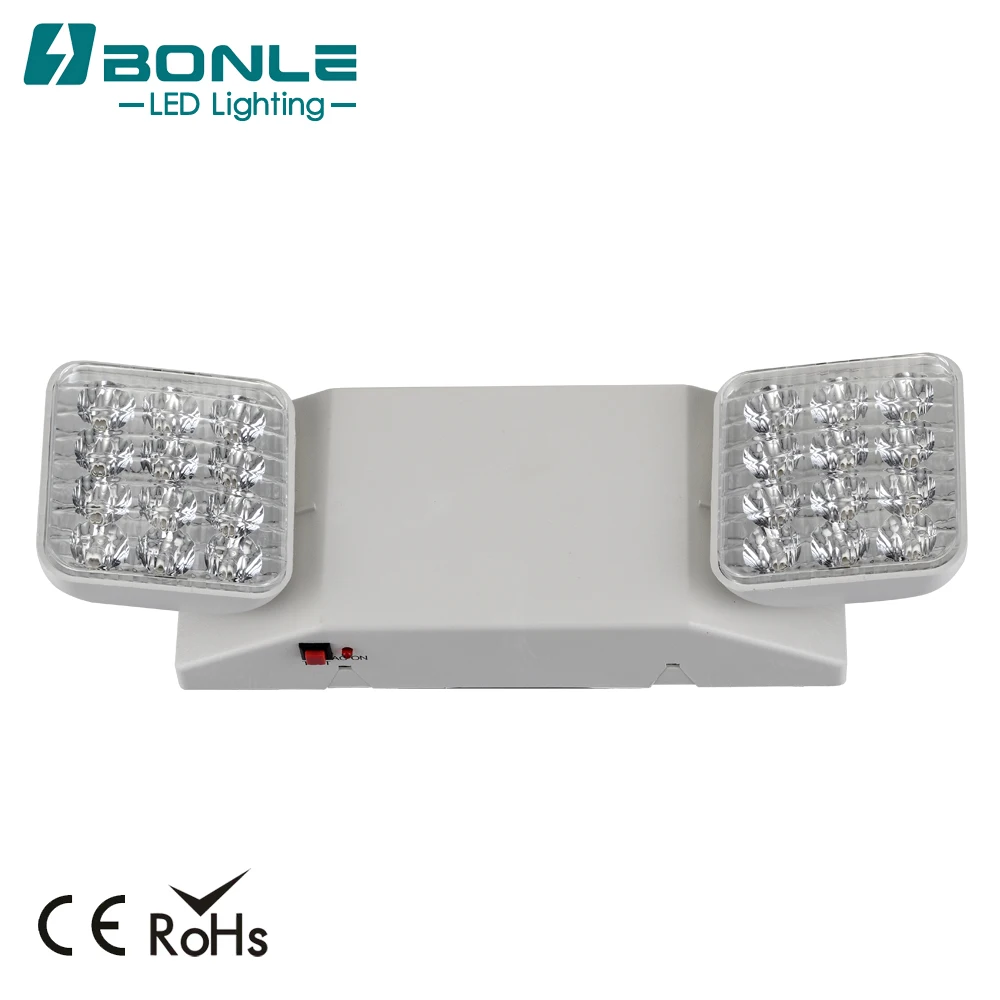

The emergency light features fully adjustable lamp heads containing long lasting, ultra bright, white LEDs. This low-profile unit can be mounted in any orientation, on walls or ceilings and will operate for a minimum of 90 minutes during a loss of power. With it's rugged, high-temperature thermoplastic housing this fixture is ideal for areas where emergency lighting is needed.
Features

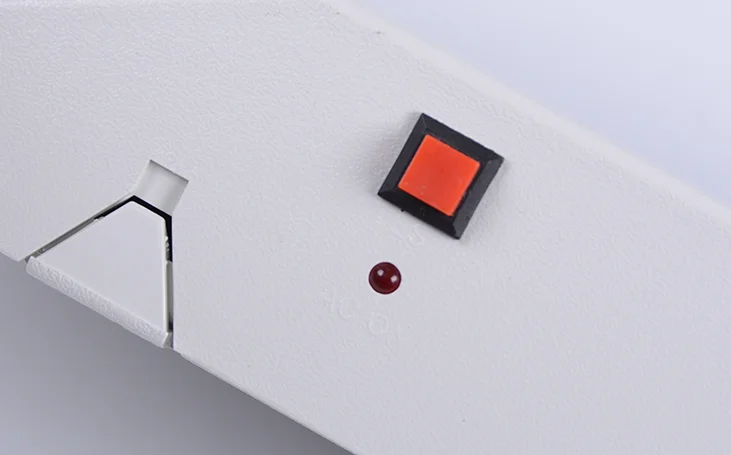

• Each head contains 12 long-lasting, efficient, ultra-bright, white LEDs using 1.5 watts per head • Completely self-contained, compact, low-profile design • Rugged, injection-molded UL94 V-0 flame retardant,hightemperature thermoplastic housing • Remote capable- up to 2 HLED remote heads • AC lockout for ease of installation and installer protection • Low voltage disconnect eliminates deep discharge • Brown-out, short circuit and voltage surge protection • Charge rate/power “ON” LED indicator light with test button • Maintenance-free Ni-cad battery • UL listed 90 minute emergency run time, 24 hour recharge time • Universal J-Box mounting system • Optional Guardian Self-Test/Self-Diagnostics (G2) available • Standard finishes: Black or white • 120/277V dual primary, 60Hz inp
Specifications
Material
Plastic
Voltage
120/277 VAC
Light Source
2X12pcs ultra bright LED lamp heads for emergency mode
Battery Type
Ni-Cad
Housing
White Thermoplastic
Emergency Operation
90 Minutes
Recharge Time
24 Hours
Lamp Heads
Adjustable LED
Mounting
Universal
MOQ
1 PCS

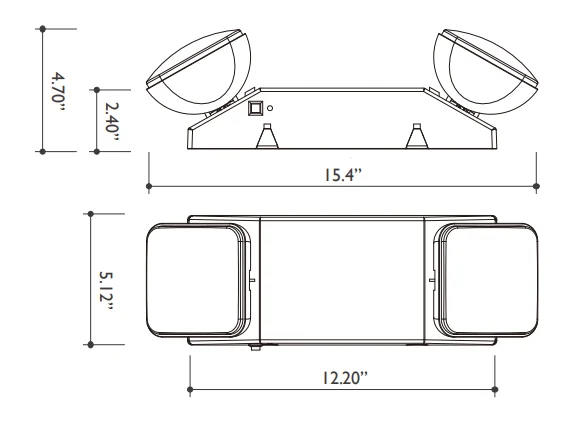

Products Size
Sample Photometrics
Using multiple units mounted at a typical 7.5' delivers 18' center-to center spacing on a 3' wide egress path.
Contact Info Tina Lin Skype: bonle-lai Email: sales5(@)bonle.com Mobile Phone: +86 13675019150 QQ:2100629008 Wechat:+86 13675019150 Whatsapp:+86 13675019150
Model
BN-EL01
BN-EL04
BN-EL05
BN-EL02
BN-EL03
Light Source
2X12pcs SMD2835
2X12pcs SMD2835
2X12pcs SMD2835
Ultra bright RED or GREEN LEDs
Ultra bright RED or GREEN LEDs
+
2X12pcs SMD2835
Voltage
120/277
120/277
120/277
120/277
120/277
Battery Type
Ni-Cad
Ni-Cad
Ni-Cad
Ni-Cad
Ni-Cad
Emergency
Operation
90 Minutes
90 Minutes
90 Minutes
90 Minutes
90 Minutes
Housing
White Thermoplastic
White Thermoplastic
White Thermoplastic
White Thermoplastic
White Thermoplastic
Lamp Heads
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
Recharge
24 Hours
24 Hours
24 Hours
24 Hours
24 Hours
Company Information
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution i ncluding re-call according to real situation.
