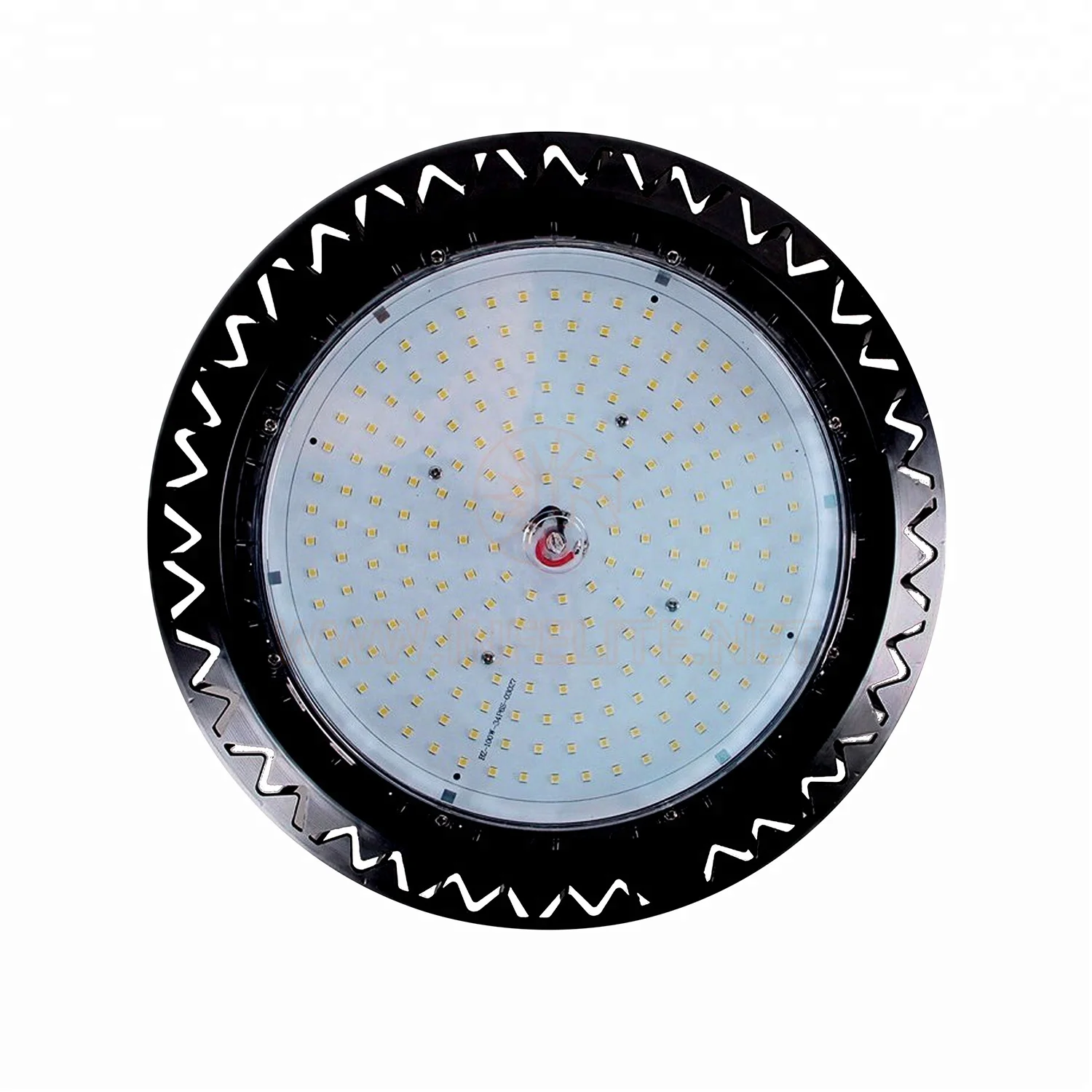

IN-UFO304 High Bright IP65 SMD3030 LED Garage Gymnasium Stadium Supermarket Mall High Bay Highbay Light 100W 150W 200W 250W
Product Overviews
UFO304 High Bright SMD3030 LED High Bay Light Parameters:
Item Model:
Power(watt)
Lumen(lm)
LED Qty.(smd)
Unit Size(mm)
IN-UFO304-100W
100 Watts
12000lm
3030/133pcs
D:310*H:211mm
IN-UFO304-150W
150 Watts
18000lm
3030/190pcs
D:310*H:228mm
IN-UFO304-200W
200 Watts
24000lm
3030/230pcs
D:350*H:230mm
Voltage Input:
AC100-277V, 50/60HZ
Luminous Intensity:
100lm/W, 120lm/W, 130lm/W, SMD3030 LED Chip
PF/CRI/THD:
PF>0.97@130lm/W, PF>0.95@100lm/W, Ra>80, THD<14%
Viewing Angle:
60, 90, 120, Degrees
Color Temp. (CCT):
WW:3000-3500K, NW:4000-4500K, CW:6000-7000K
Working Temp.:
-22°F-+140°F(-30℃-60℃, Work Humidity:5-95% R.H.)
Driver Type:
Waterproof Meanwell HBG Series, Lifud FHB Series Driver, Support Dimmable
Light Decay:
<3%@3000 Hours
IP Rating:
Dustproof, Waterproof IP65 Grade, Class II
Lamp Base:
Line Interface, 3 Core Outlet Cable
Installation:
Bracket Fixing, Suspended Pendant, Hook Hanging
Product Material:
Die Cast Aluminum + PMMA+ Steel
Lamp Life Span:
Over 50,000 Hours, 5 Years' Quality Warranty
Lamp Color:
Black Shell, Support Your Logo Print On Lamp Body And Color Box
Infelite LED Industrial High Bay Light Specification:
1.Brand new high brightness LM-80 listed COB LED chips output 100lm/W, 110lm/W, 130lm/W.. 2.Die cast aluminum heat sink is good at heat dissipation, stay low surface temp. and long lifespan. 3.Beam angle 60°, 90°, 110°, 120° could be choose, perfect solution for different ligting area. 4.Easy installation and maintenance, dust prevention, longer lifetime with high lumen maintenance. 5.It is an ideal replacement for Induction lamp, metal halide, HID lamp, HPS lamp and CFL lamp. 6.Our high bay lamp with aluminum material and the lamp looks like UFO, beautiful and works well.
Product Application: Available for building, factory, storage room, public, parking lot, building, domestic block, mining Lamp, workshop, exhibition hall, stadium, supermarket, gymnasium, gas station, square, advertise, lawn, wharf, warehouses, parking Lot, train station, warehouse, manufacturing, food processing, cold storage, fuel pump, marine, canopy, tunnels, silo, stadium, fresh market, indoor/outdoor sport courts field and other lighting places.

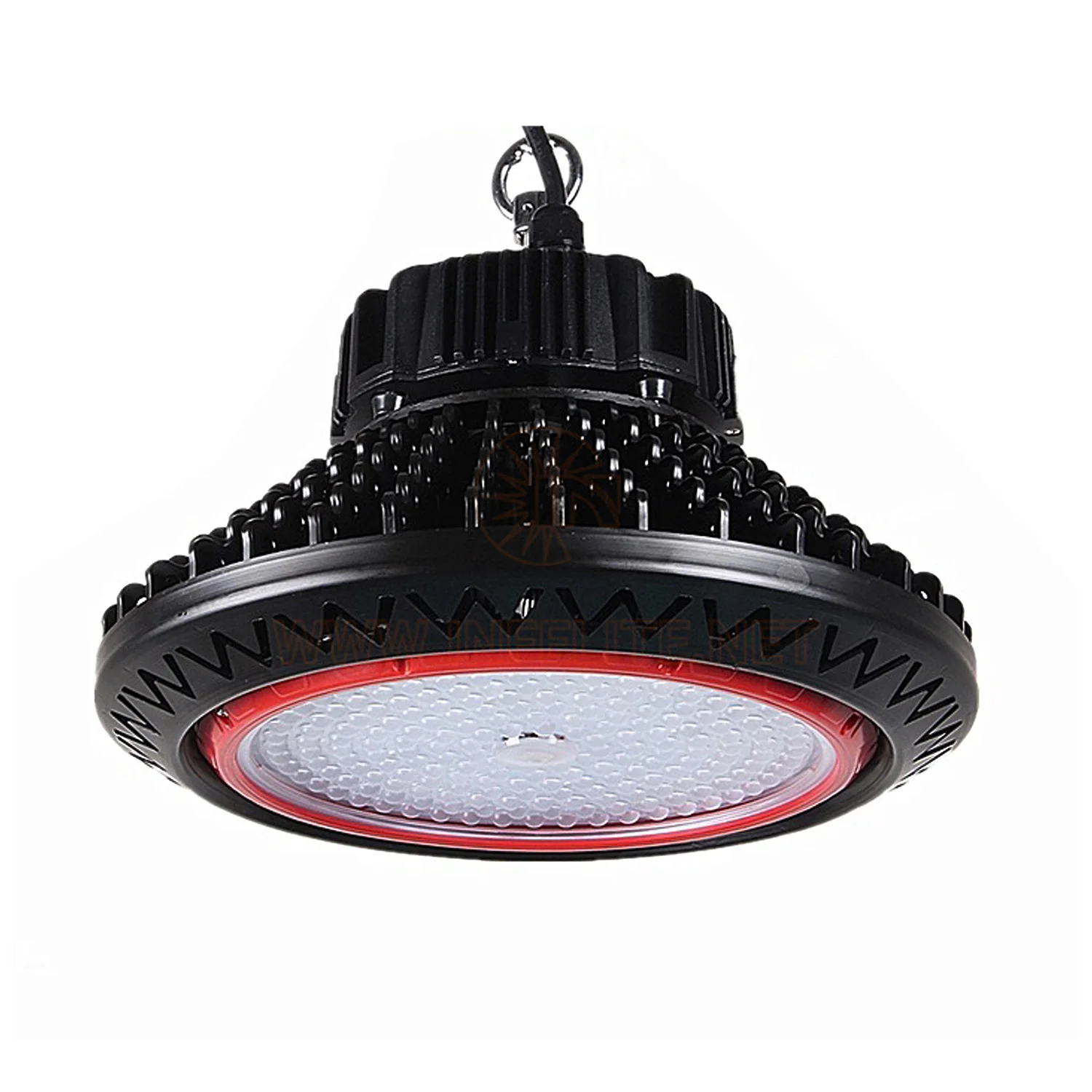

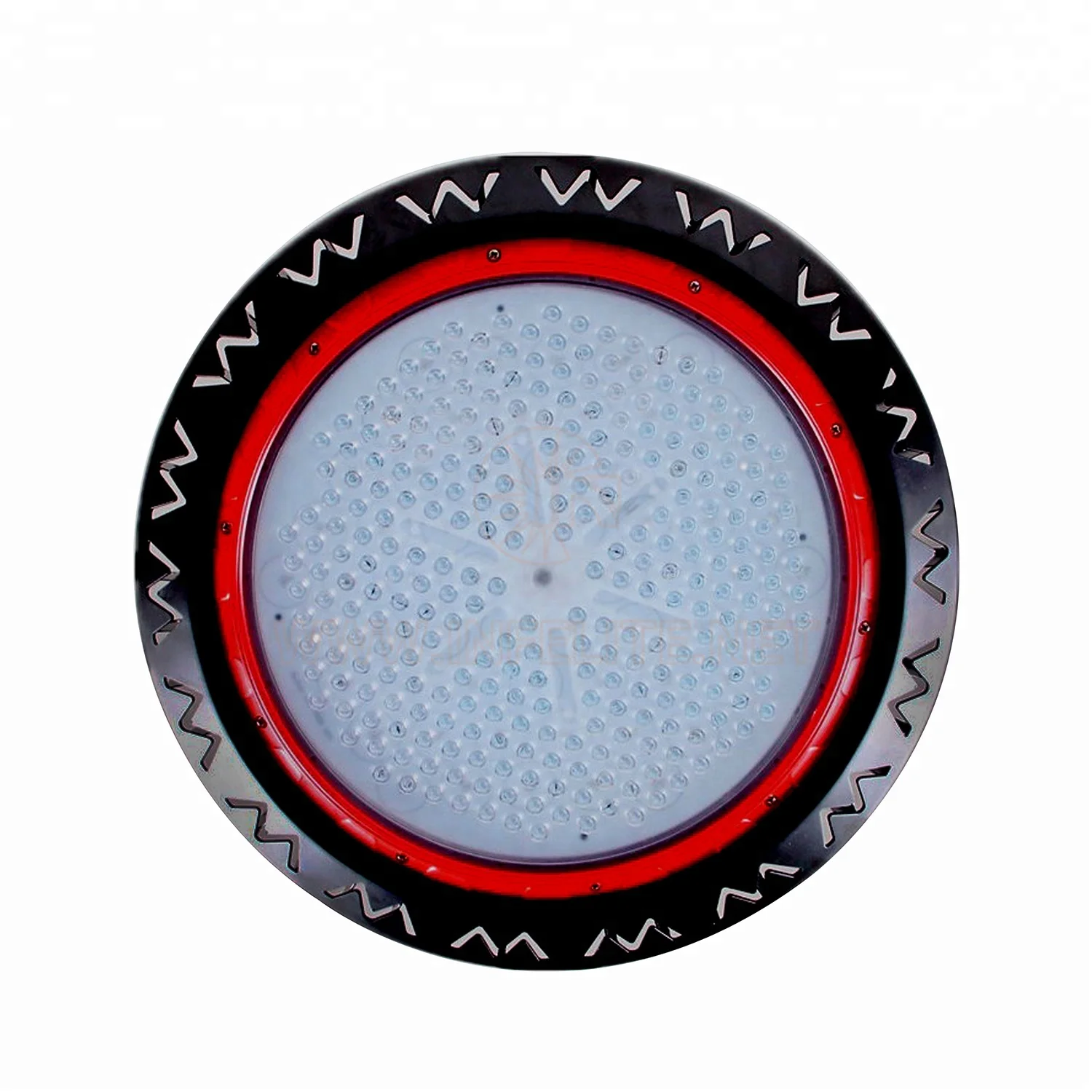

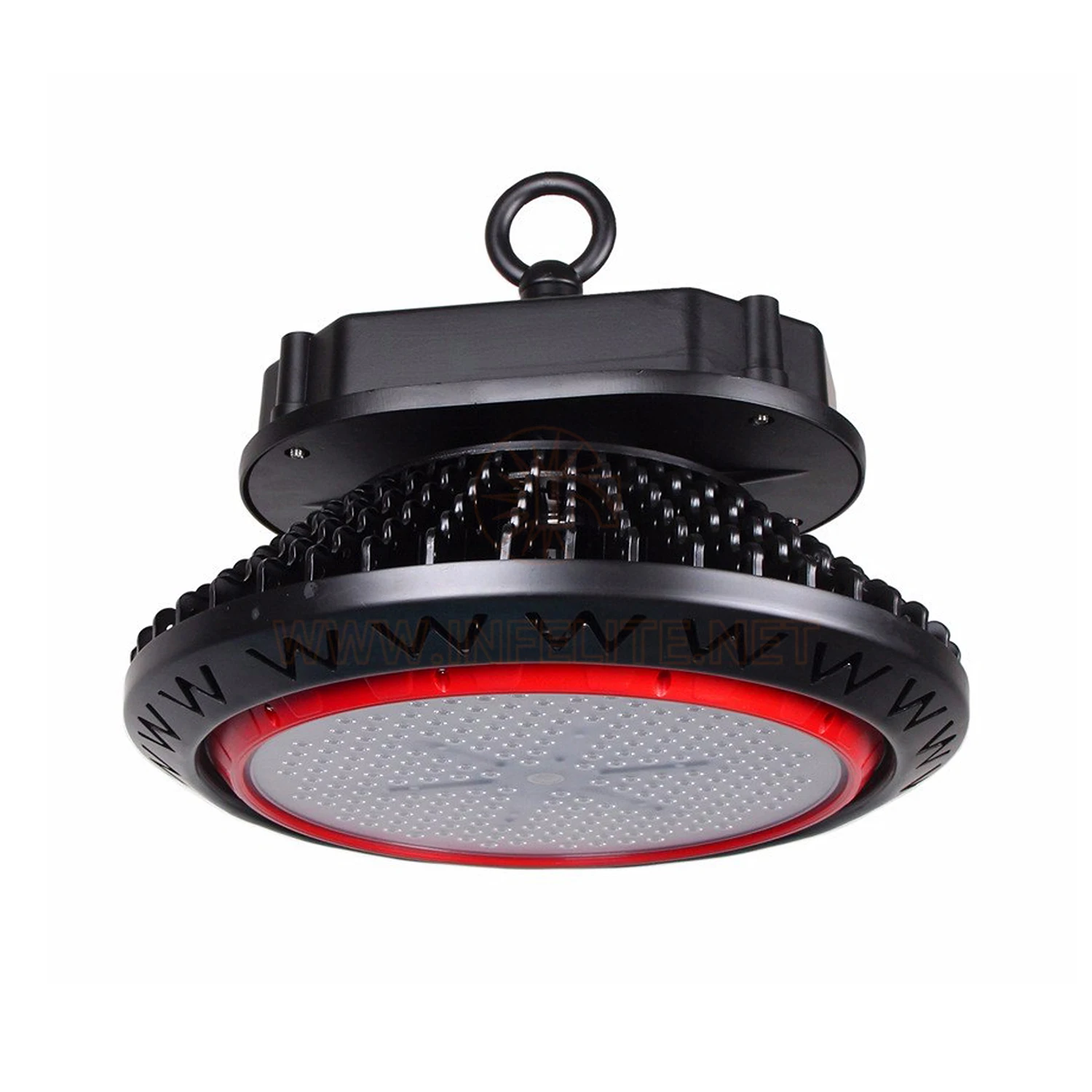

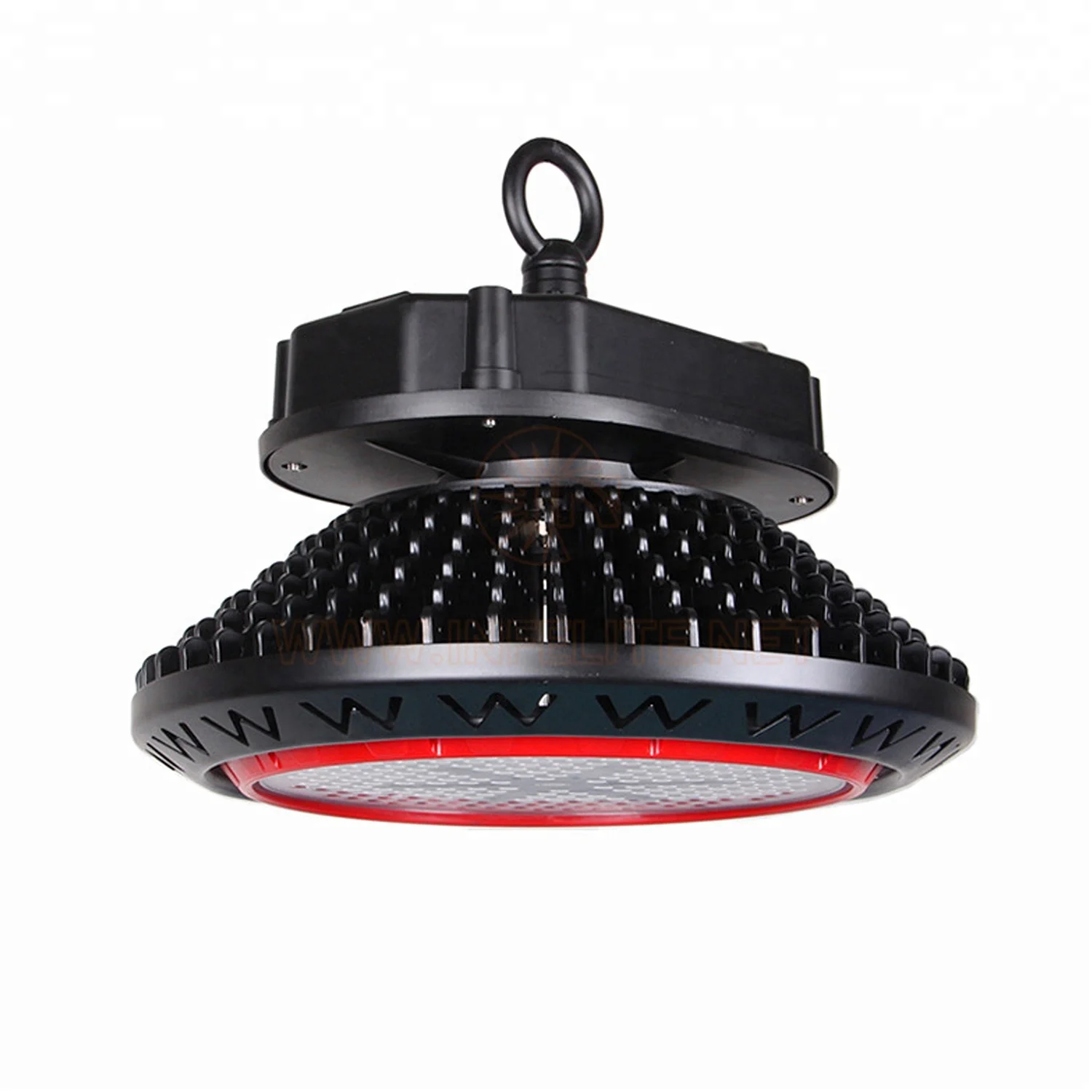

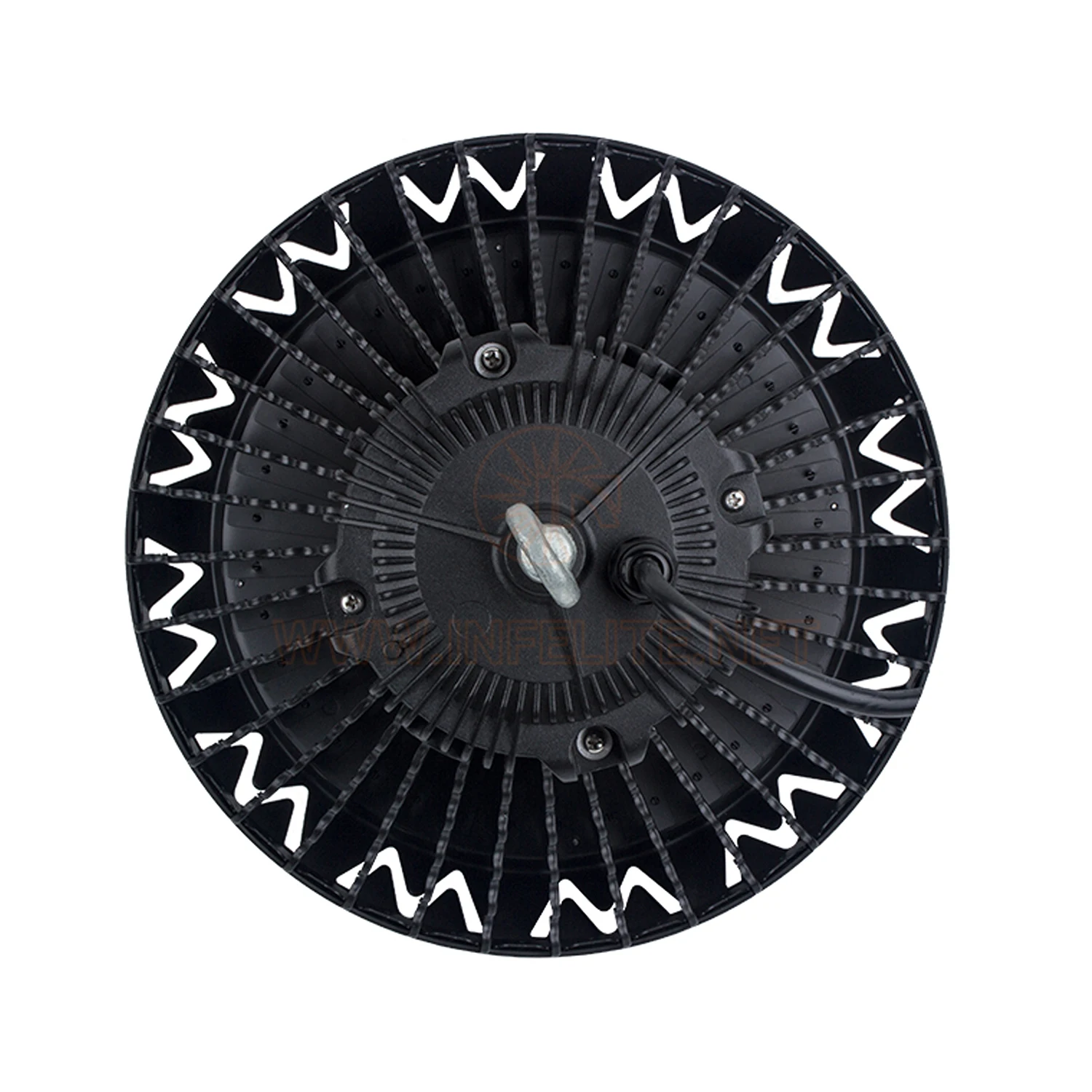

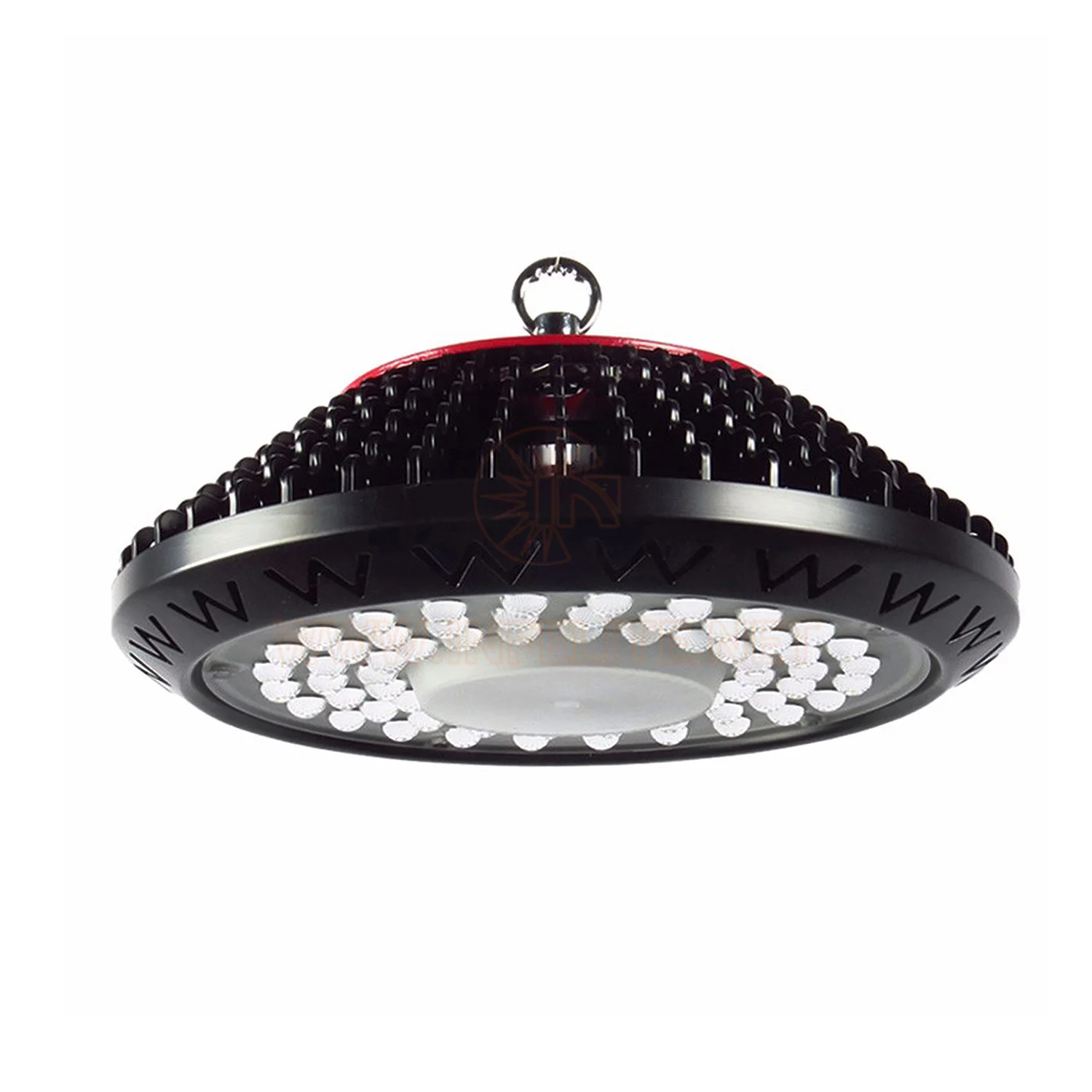

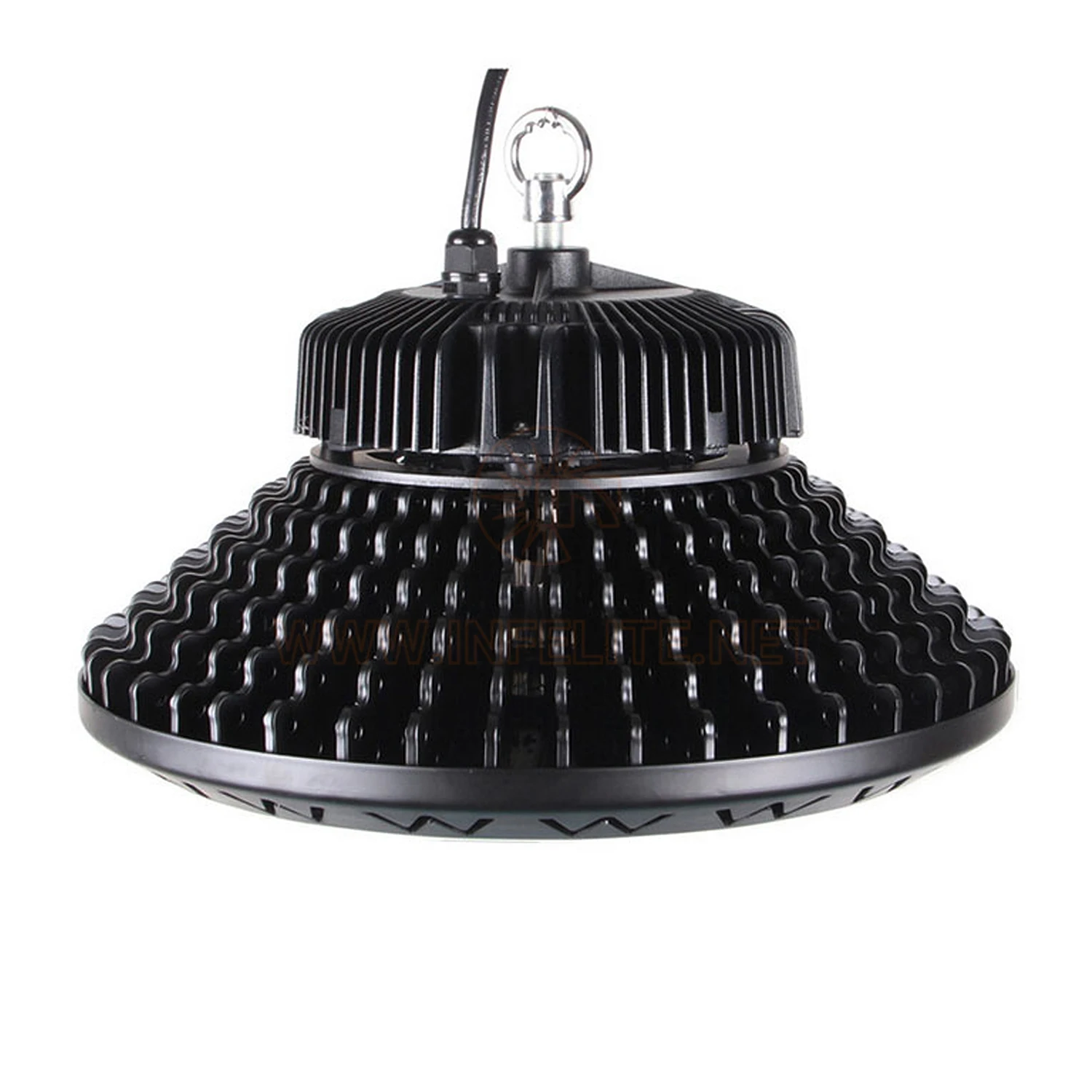

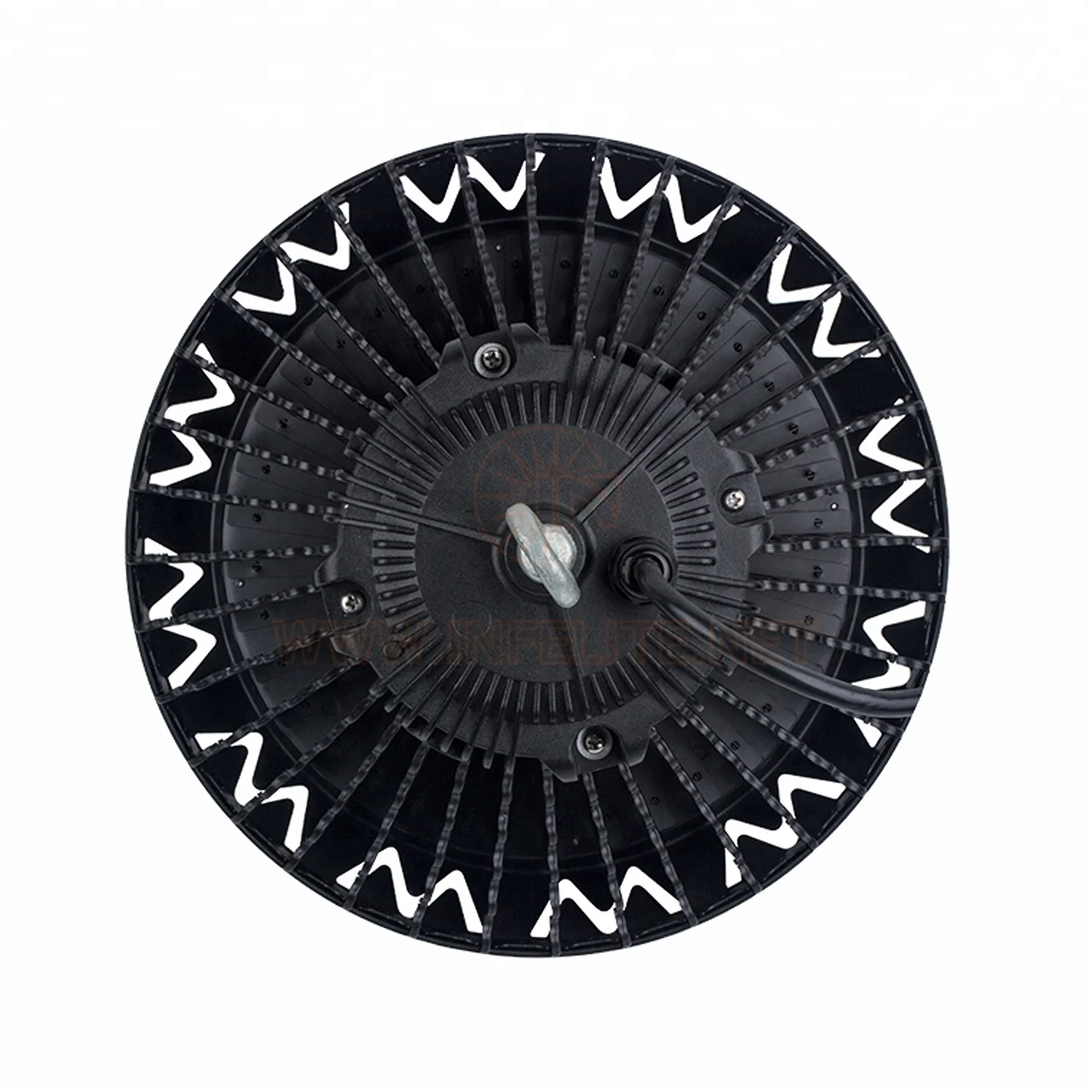

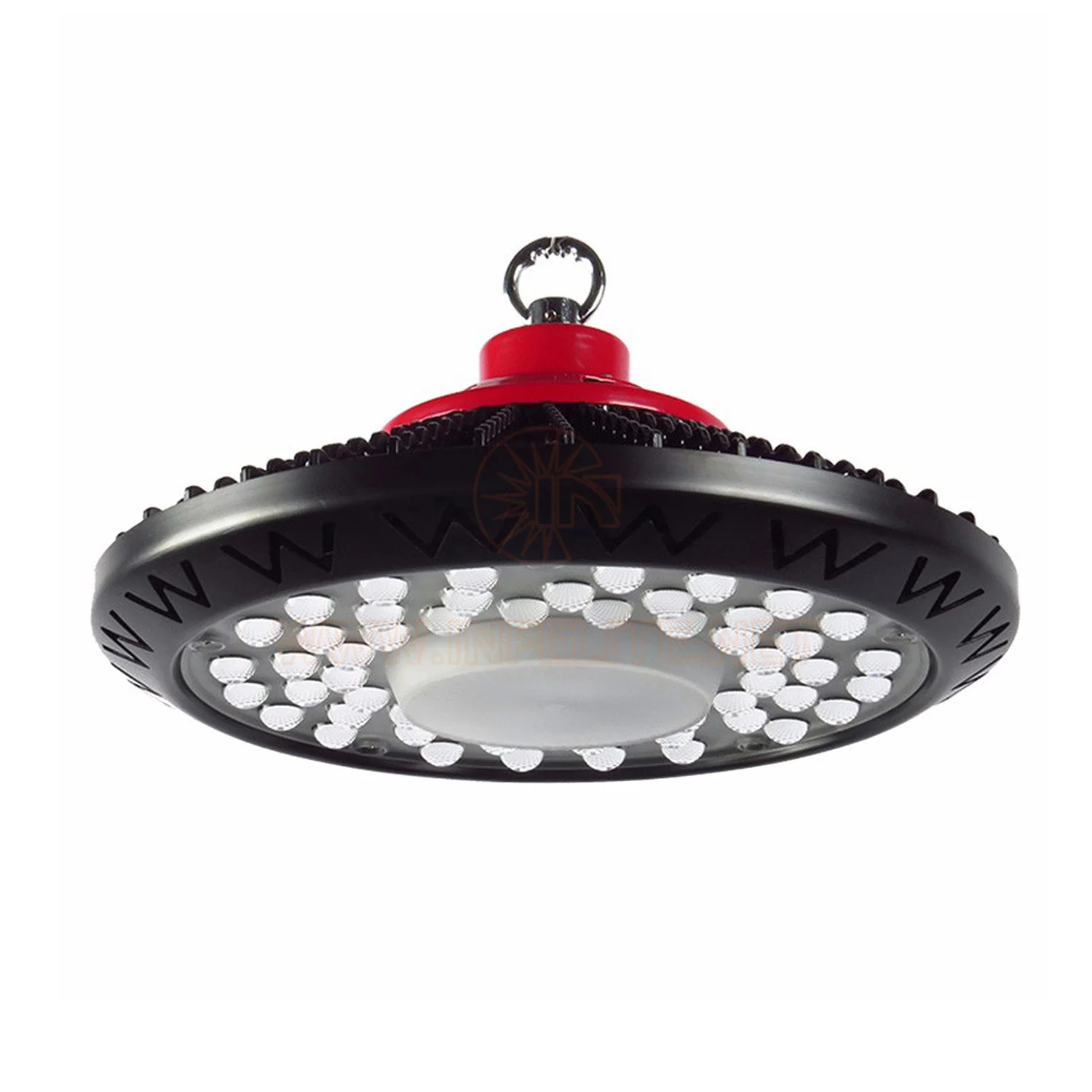

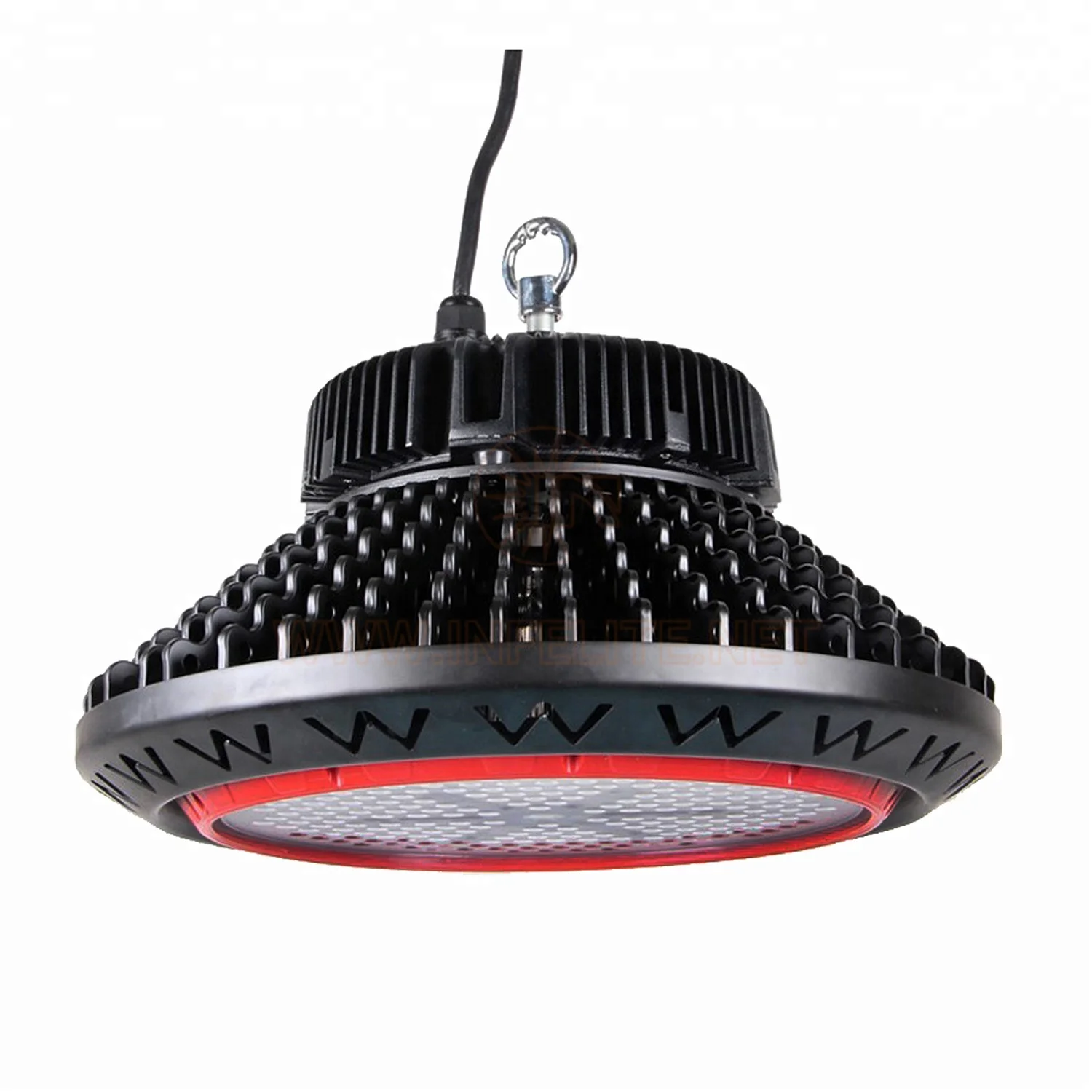

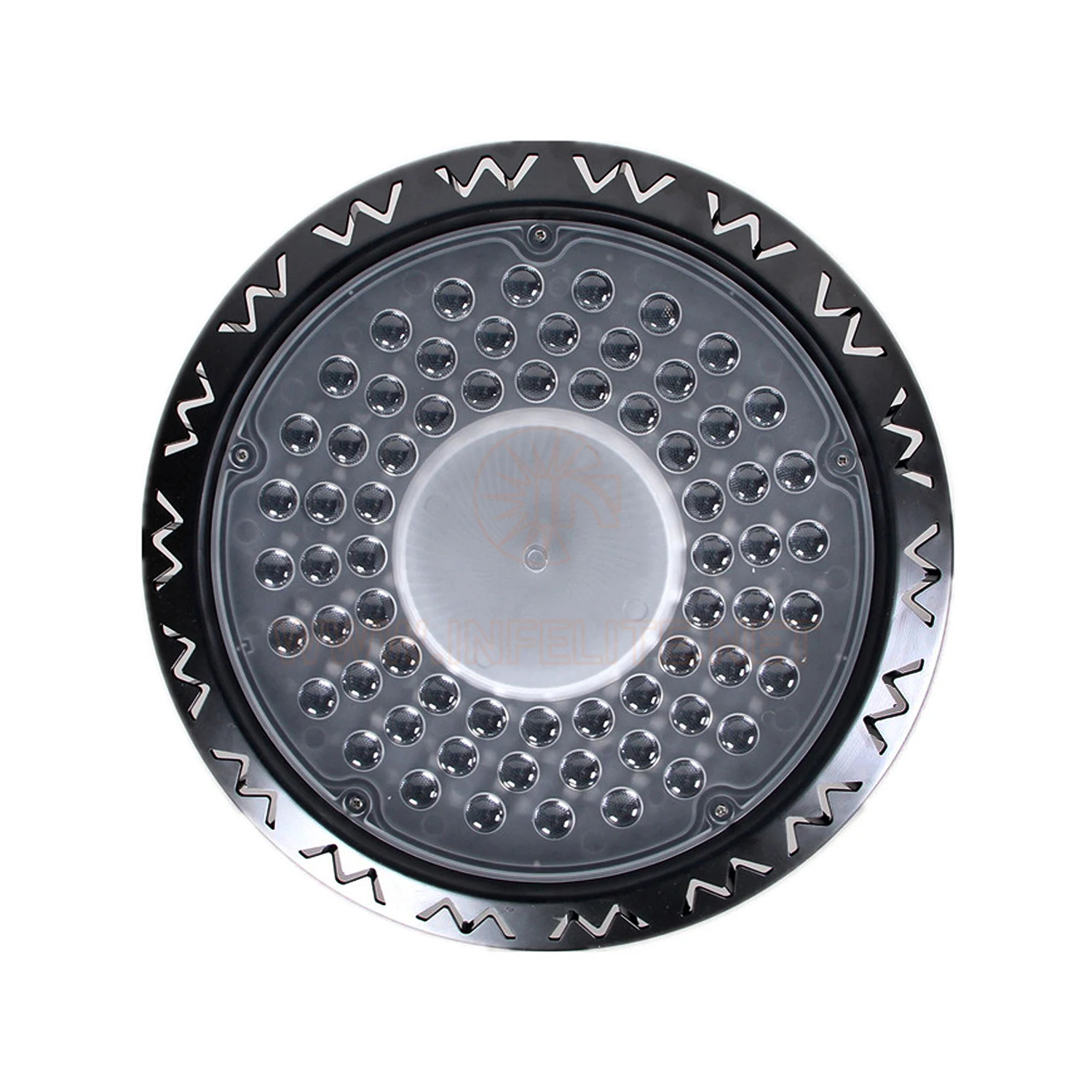

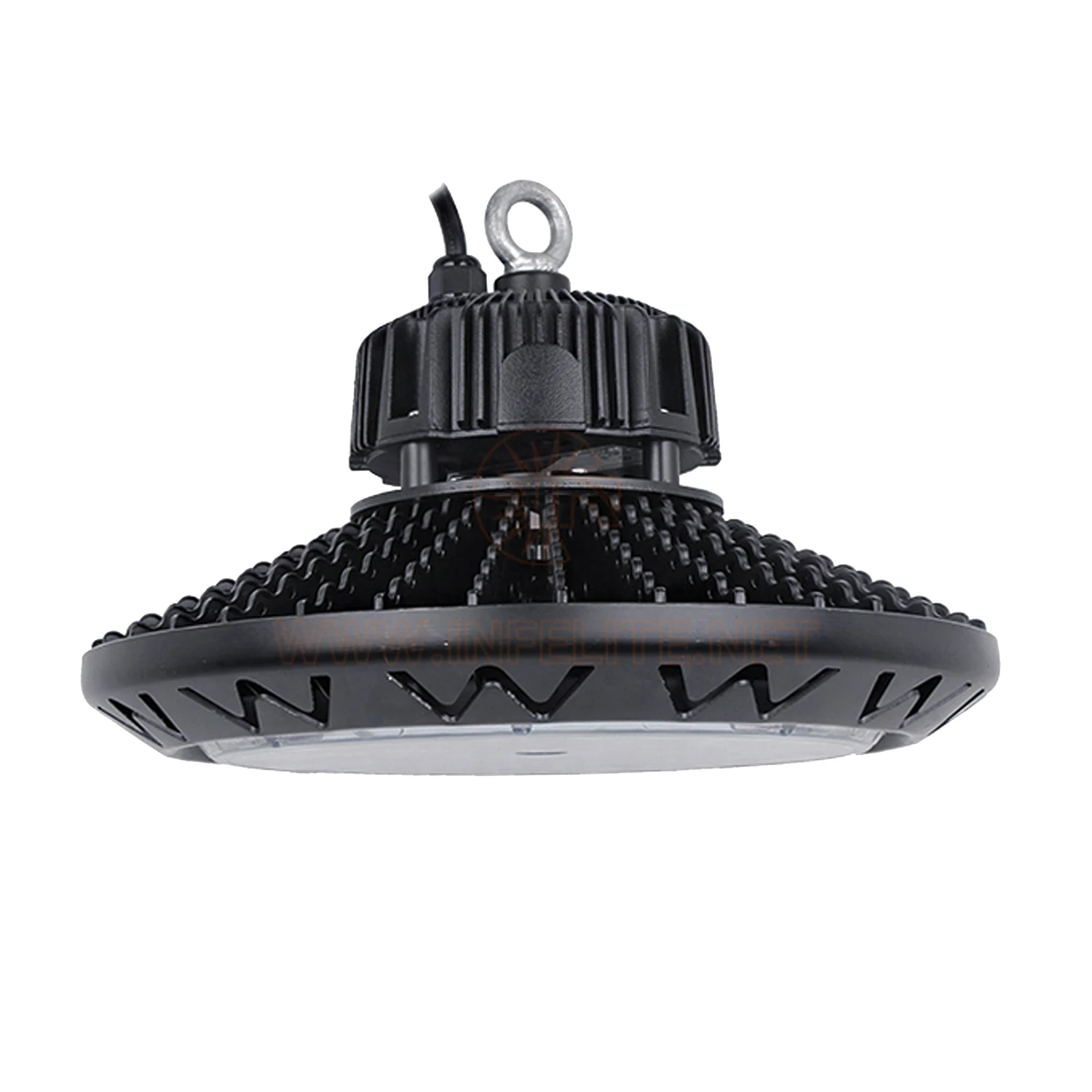

Detailed Images

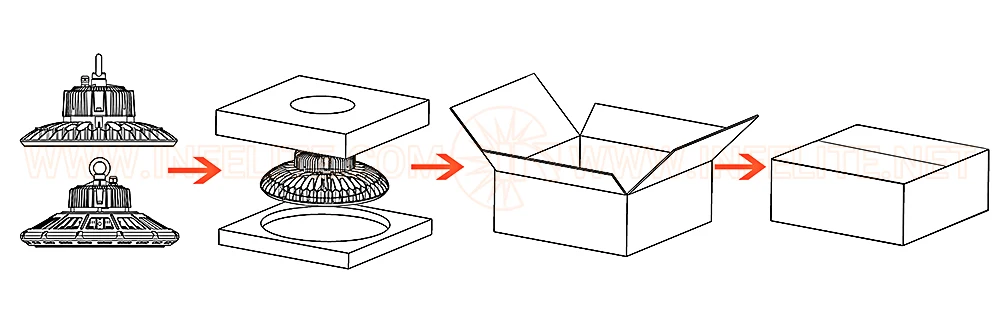

Packaging Detials
1. High bright smd 3030 UFO LED high bay light 150w, unit size:D310**H228mm.
