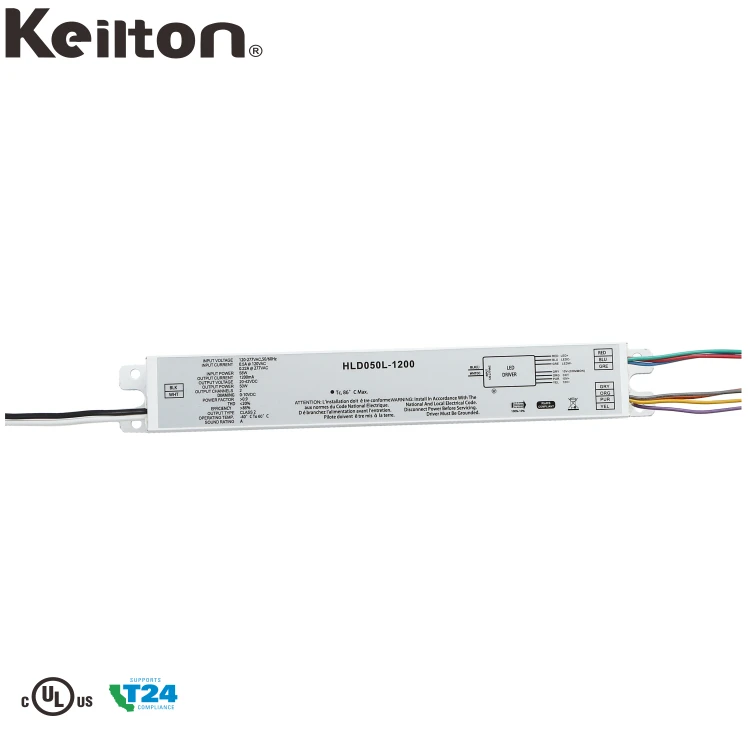

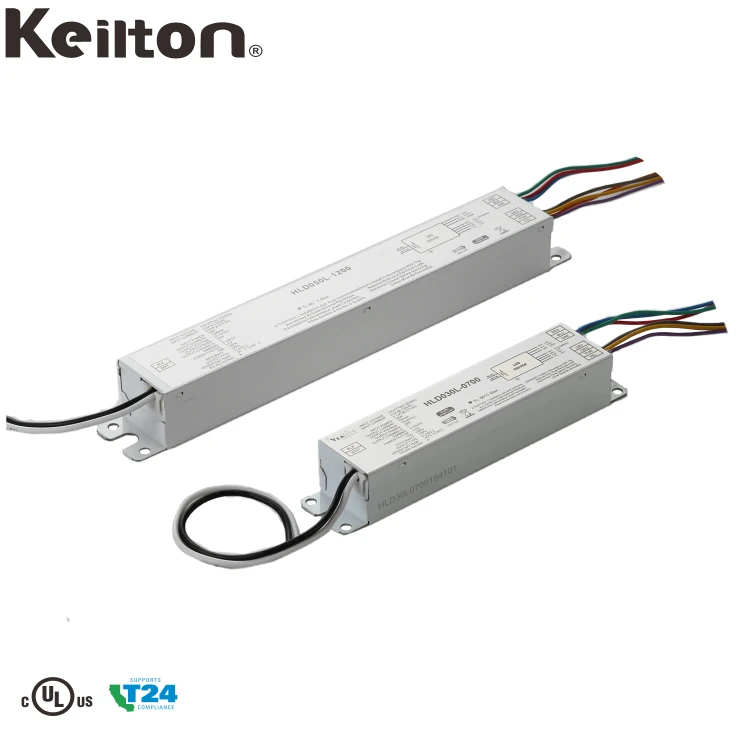

Dual Channel 0 10V Led Driver CCT Tunable & Dimmable Driver 30W 120 277V Class P

Product Overview

Description

Dual Channel CCT Tunable & Dimmable Driver 120-277V













Features:



* Dual 0-10V dimming , one channel to dim output power , another to adjust CCT. Compatible with any 0-10V dimmer.

* Combine two drivers into one , easy wiring

* Constant current output , output voltage 10-43Vdc

* 0-10V Dimming Off Function. To achieve pure CCT output , either channel can be completely turn off by the dimmer.

* Compact Size. The driver was designed for architecture and decorative lighting fixture and will be rated as UL Class P, the compact size can even fit into silm wall scones.

* 12V AUX is left for DC 12V sensor

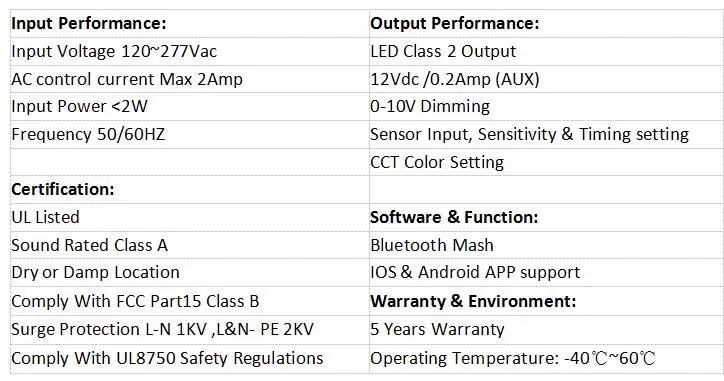

Specifications:



Output Current (mA)	Output Voltage (V)	Output Power (W)	Input Voltage (Vac)	Input Current A(Max)	Freq.(Hz)	Power Factor @Max Load	THD	Efficiency	Envir Protection Rating
700mA	10-43Vdc	30W	120V	0.3A	50/60	0.99	<20%	84%	UL damp & dry
			277V	0.14A	50/60	0.9	<20%	86%

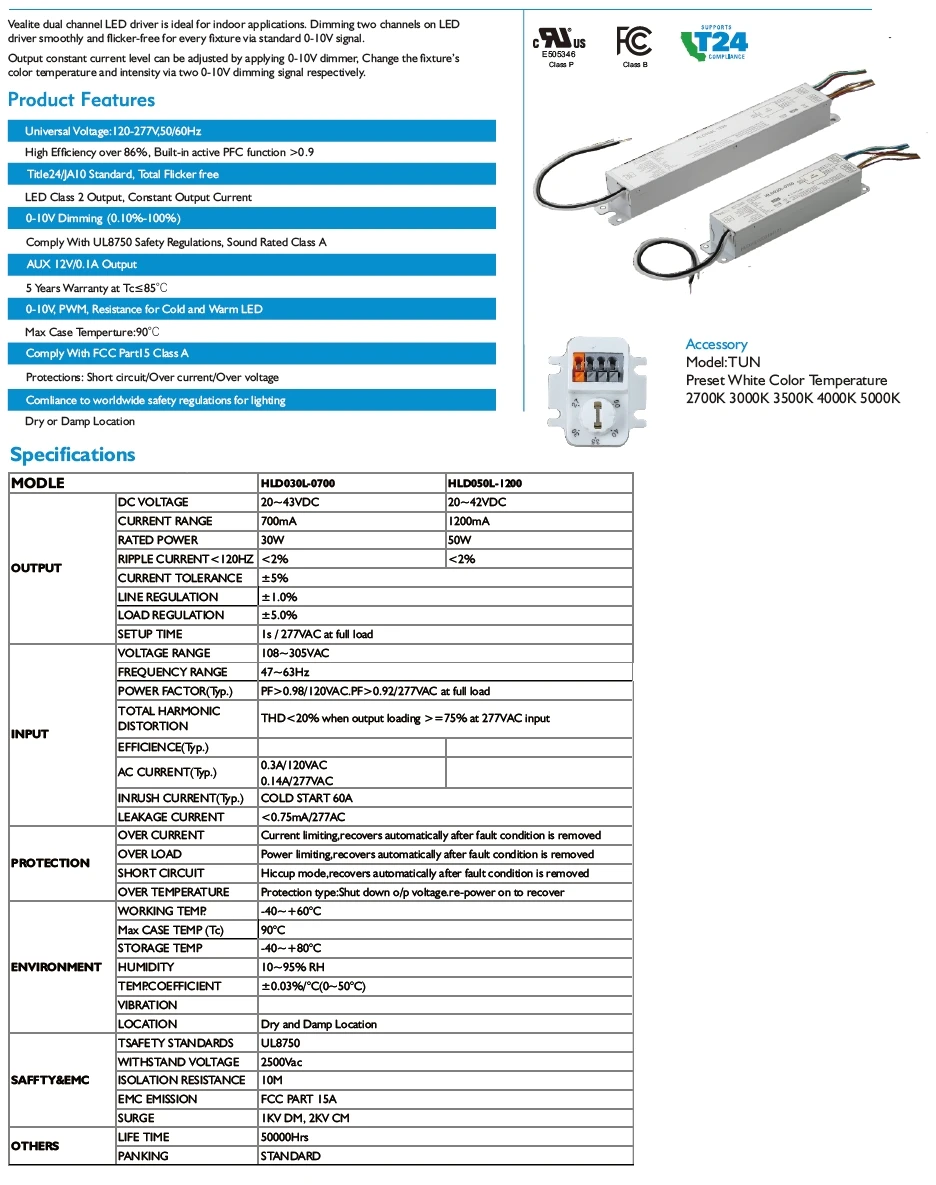

Specification

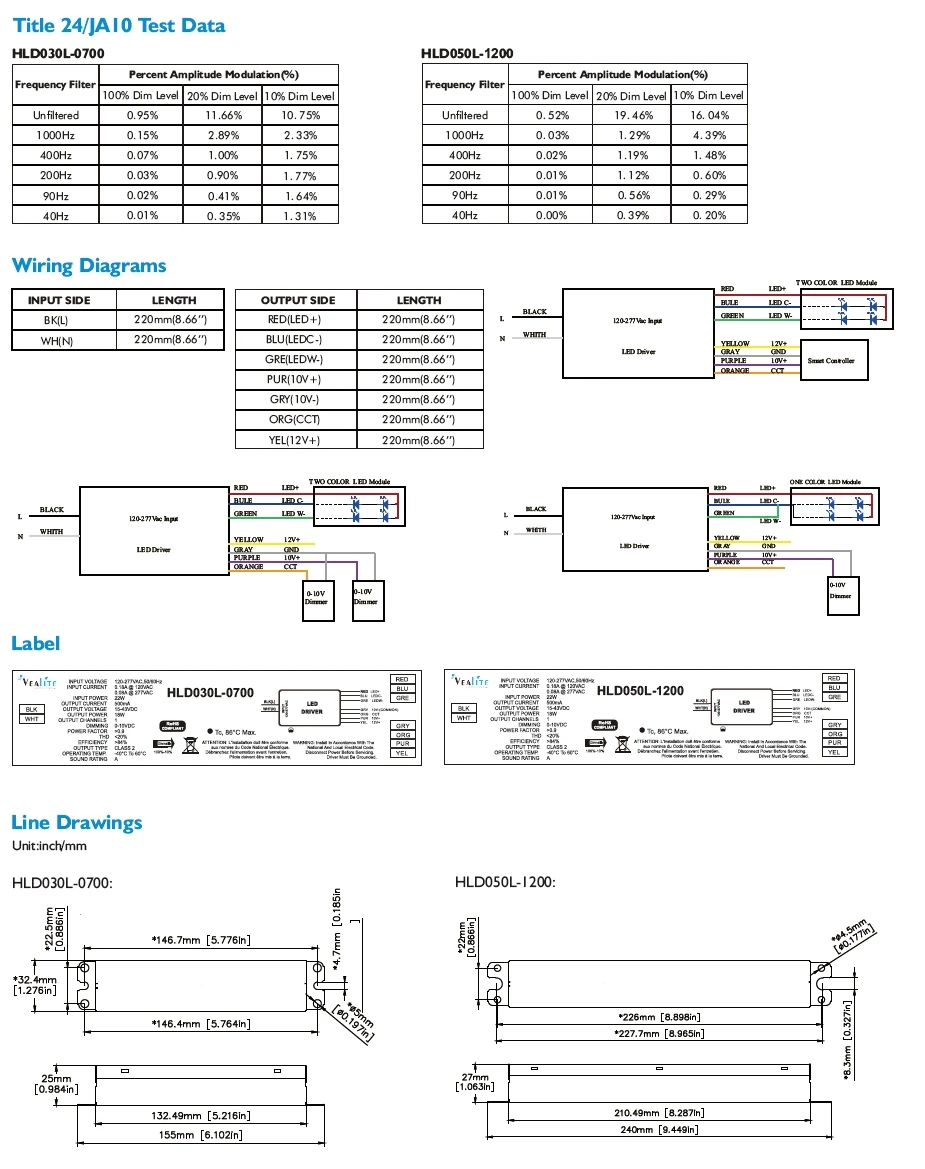

   Wiring Diagrams













The smart control APP is a Bluetooth based smart lighting control system , compatible with Bluetooth enabled iOS or Android Smartphone . The APP communicates with smart lamps and devices through the smart phone’s Bluetooth signals.





The main functionalities :



1) Support multi types of lamp include mono switchable relay lamps, mono-dimmable lamps,

    color-temperature and brightness dimmable lamps and color dimmable (RGB/RGBW) lamps.

2) User may add and delete lamps directly with APP.

3) Support lamp group operations such as turn on/off a group of lamps and group dimming.

4) Support lighting scenes so that users may design different lighting scenes according to their needs.

5) Different smart phones can synchronize data with specified privileges through scanning QR code.

6) Support multiple smart phones in one project.

          Ready to use on installation, no account and password needed
