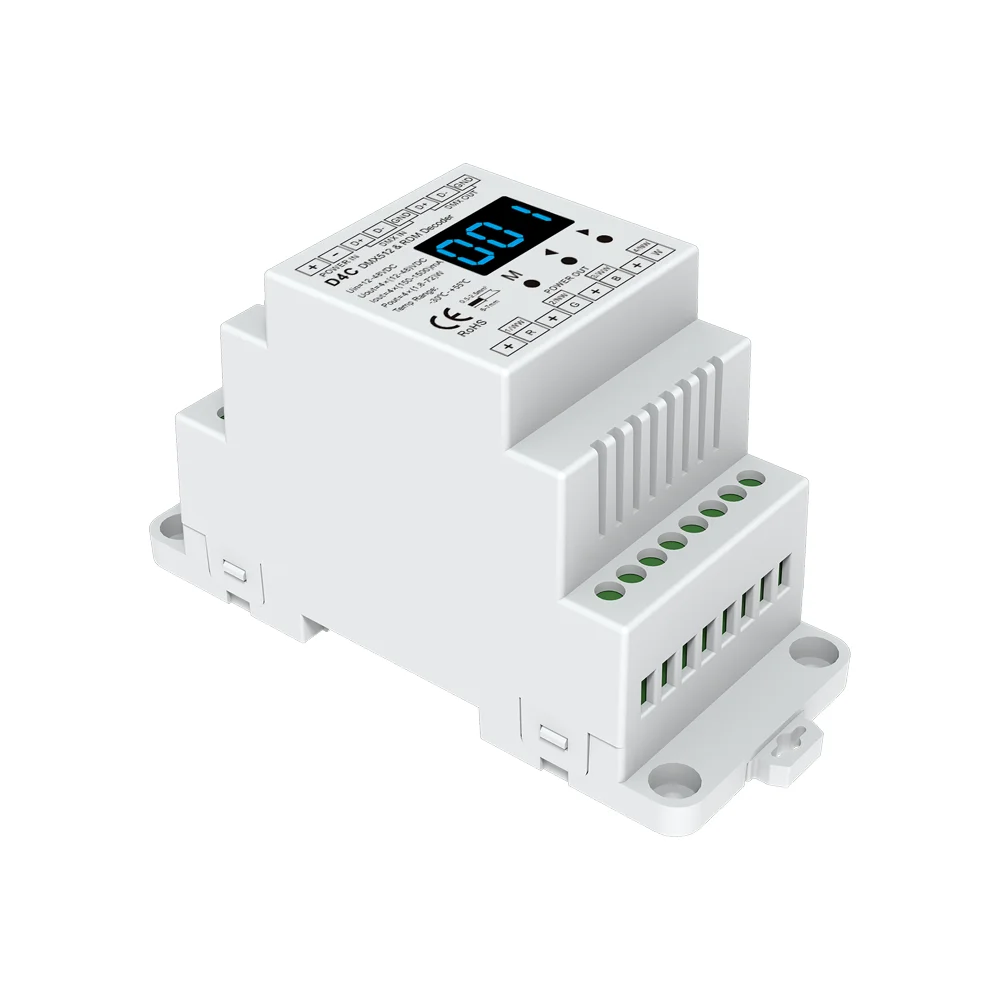

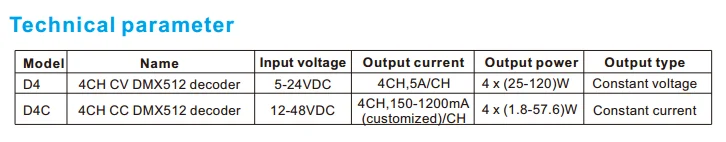

SKYDANCE D4C 12 48VDC 150 500mA/350 1200mA 4 Channels Din Rail DMX512 RDM Decoder DMX Receiver

The DMX512 & RDM decoder D4 / D4C which features full support to the latest DMX512 protocols, is designed

with 4 channels output. RDM bi-direction communication function enables the DMX512 master console to detect

and display decoder information and set DMX address. A variety of features can be set via the numeric digital

display and the buttons such as DMX address,DMX decoding mode,PWM output frequency and dimming curve

value

● Din rail mounted DMX512 decoder with 4 channel constant voltage or constant current output.

● DMX decode mode / Stand-alone RGB/RGBW controller mode / Stand-alone 4 channel dimmer mode.

● Standard DMX512 compliant interface, DMX address display, set DMX address freely.

● Comply with the latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) standard protocols.

● RDM bi-directional communication function, can realize intercommunication between DMX master and decoder. for example, you can set DMX decoder address by DMX master console.

● Compatial with our DMX master and any high quality DMX master from other supplier.

● Under stand-alone RGB/RGBW controller mode, built in 30 mode, include static color, jump, flash or gradual change style, adjustable speed and brightness.

● Under stand-alone 4 channel dimmer mode, each channel adjust brightness independently, and save up to 8 groups brightness.

● 1/2/4 DMX channel decode optional.

● High or low PWM frequency optional.

● Log or linear dimming curve optional.

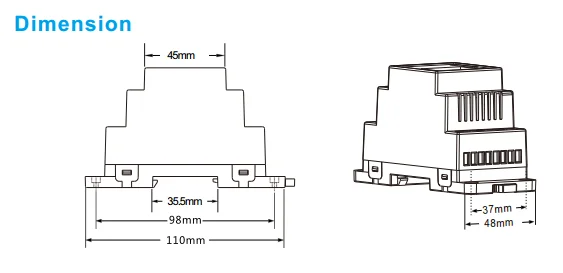

● Din rail or screw mounted optional.

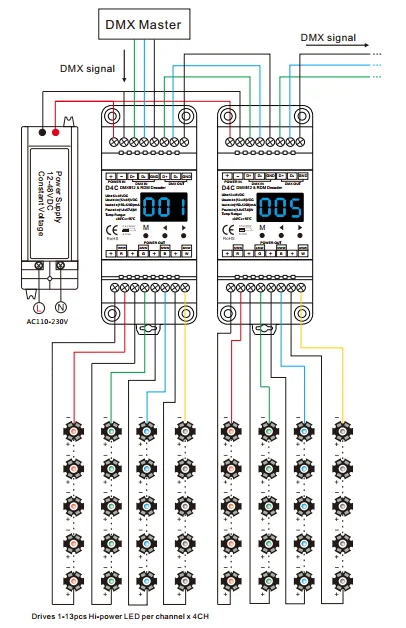

● Work with power repeater to expand output unlimitedly.
